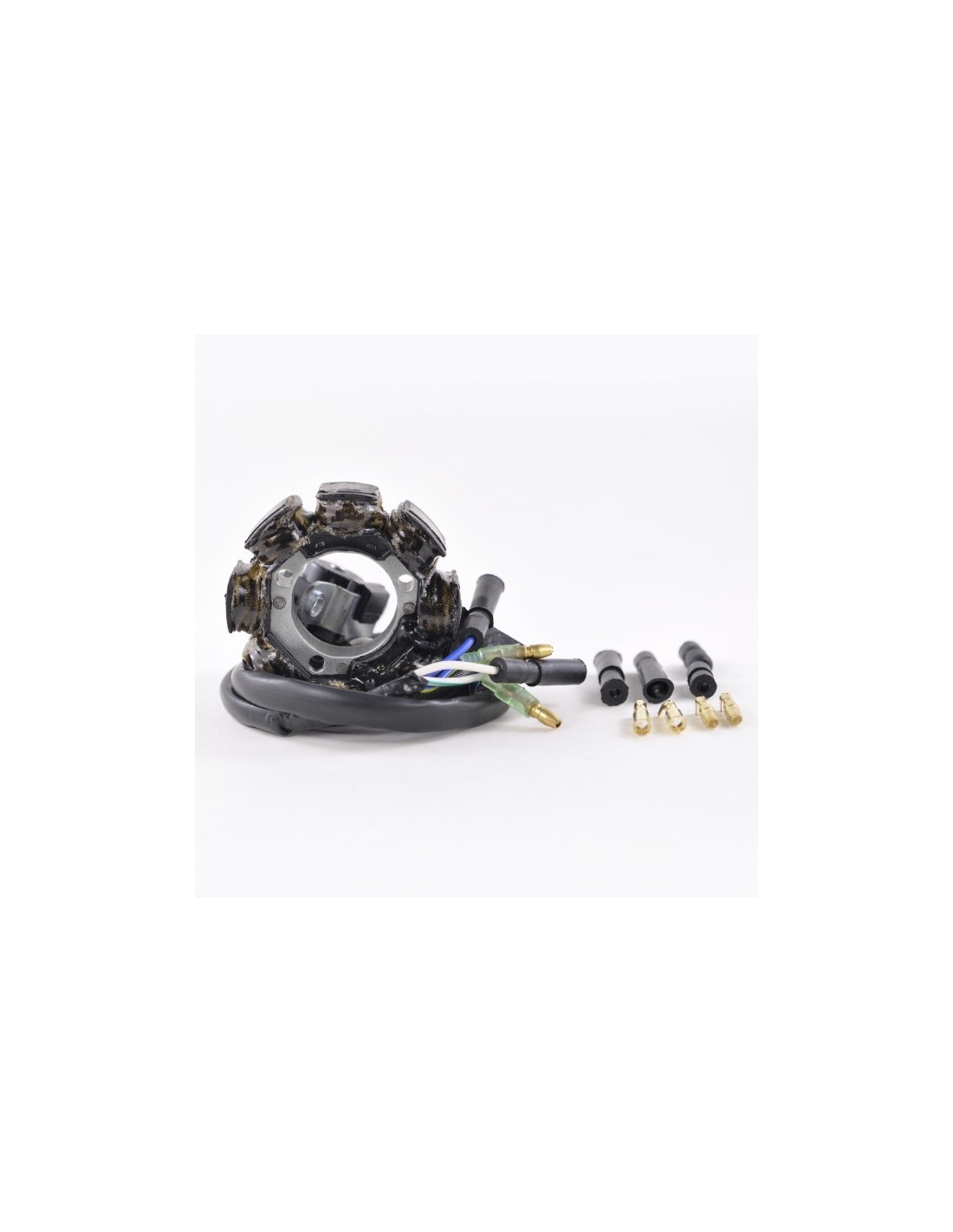

Stator Honda CRF450R OEM 31120-MEN-000 31120-MEN-003
CARM01367
Contact Us
€199.00
Tax included
Stator Honda Honda CRF450R 2004
Stator Resistant to 200°C - Ignition Only
2004 Honda CRF 450 R
OEM 31120-MEN-000 31120-MEN-003
Dimensions :
Interior diameter : 28mm
Exterior diameter : 60mm
Thickness : 14mm
Length of wires stator to grommet : 120mm
Length of wires grommet to plug : 400mm
Length of pickup coil's wire to grommet : 70mm
Other specifications :
Number of wires : 4
Number of plugs : 0
Number of pins : 4
Wire to wire resistance :
Pickup : White/green to Blue/yellow = 285 ohms +/-20%
Source : Blue to White = 23 ohms +/-20%
