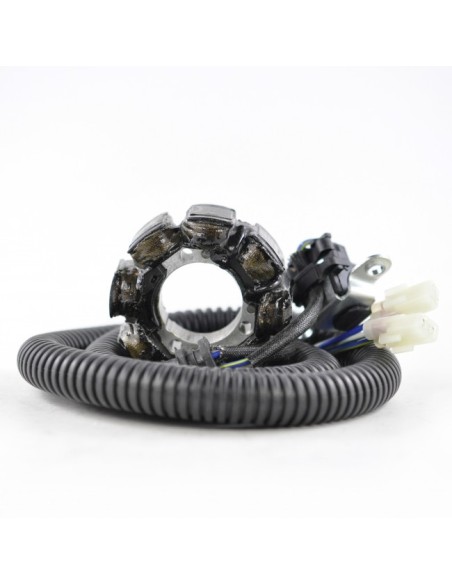

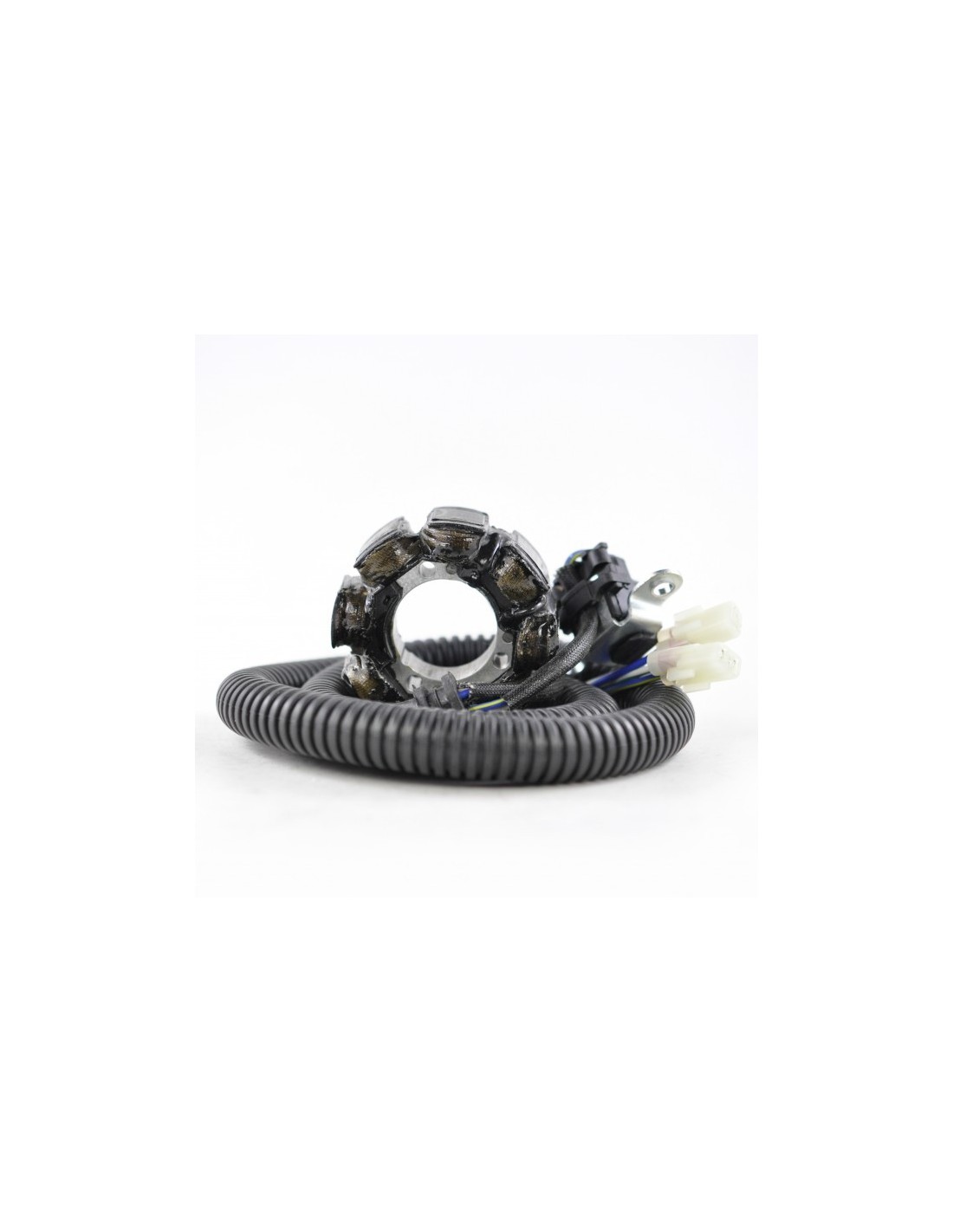

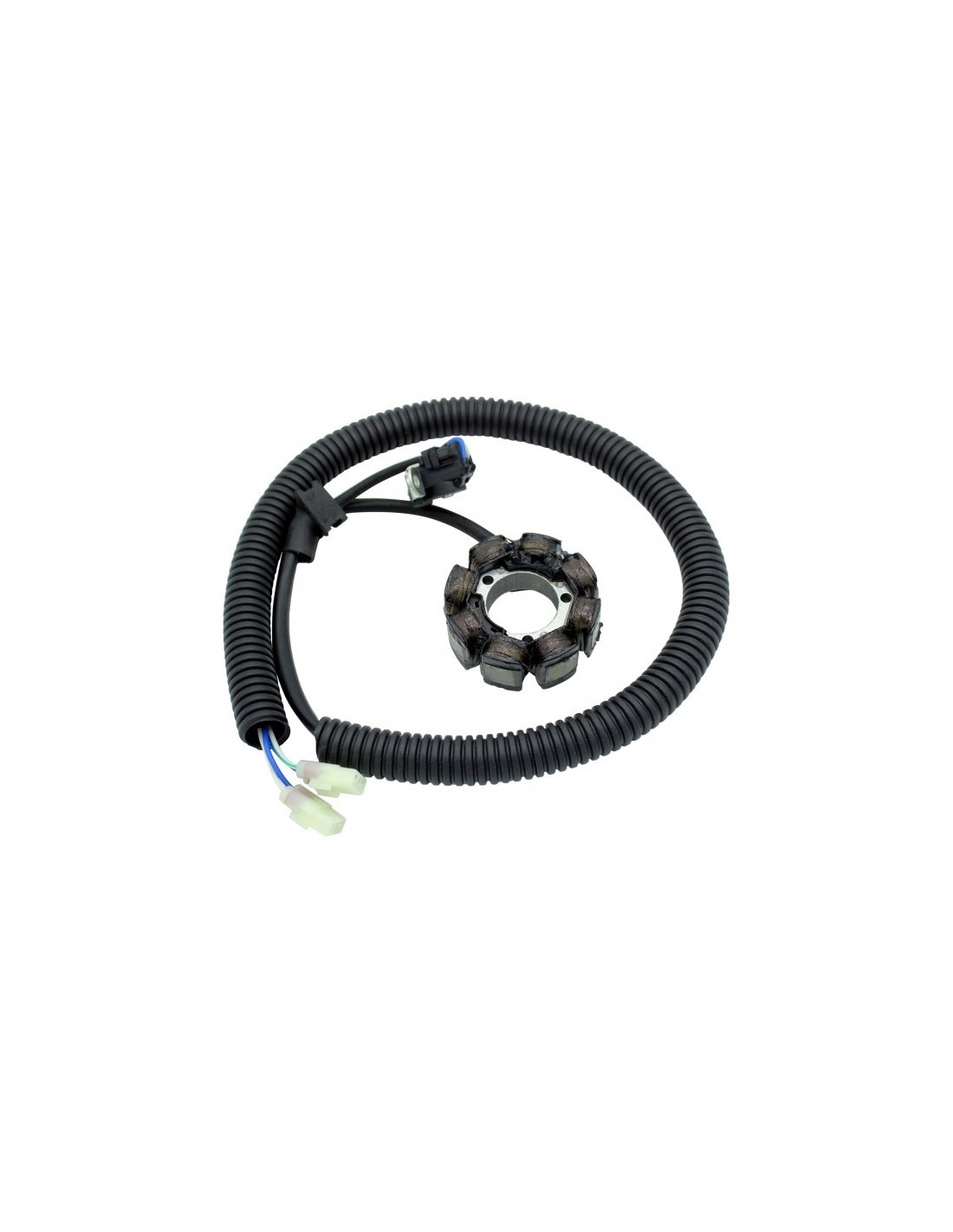

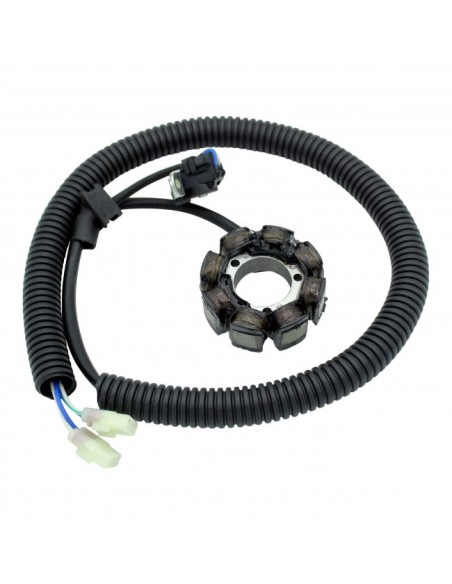

Stator Honda CRF450R CR250R OEM 31120-KRN-670 31120-MEN-730 31120-MEN-731 31120-MEN-A11

Stator Resistant to 200°C - Ignition Only

2009 Honda CR 250 R R
2008 Honda CR 250 R R
2008 Honda CRF 450 R
2007 Honda CR 250 R R
2007 Honda CRF 450 R
2006 Honda CR 250 R R
2006 Honda CRF 450 R
2005 Honda CR 250 R R
2005 Honda CRF 450 R
2004 Honda CR 250 R R

OEM
31120-KRN-670
31120-MEN-A11
31120-MEN-730
31120-MEN-731

Dimensions :
Interior diameter : 28mm
Exterior diameter : 61mm
Thickness : 13mm
Length of wires stator to grommet : 90mm
Length of wires grommet to plug : 700mm
Length of pickup coil's wire to grommet : 30mm

Other specifications :
Number of wires : 4

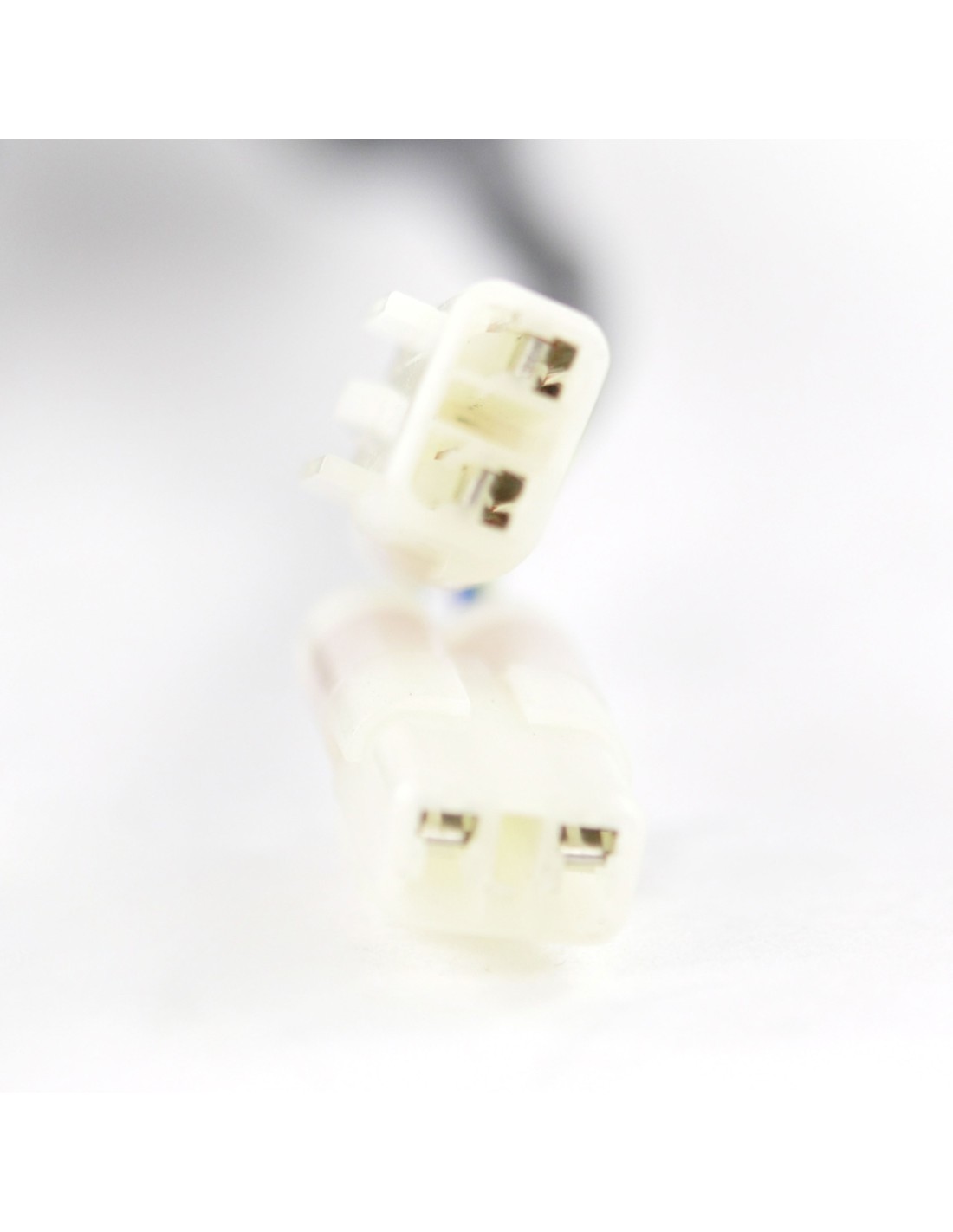

Number of plugs : 2
Number of pins : 4

Wire to wire resistance :
Pickup : Blue/Yellow to Green/White = 250 ohms +/-20%
Source : White to Blue = 22 ohms +/-20%
