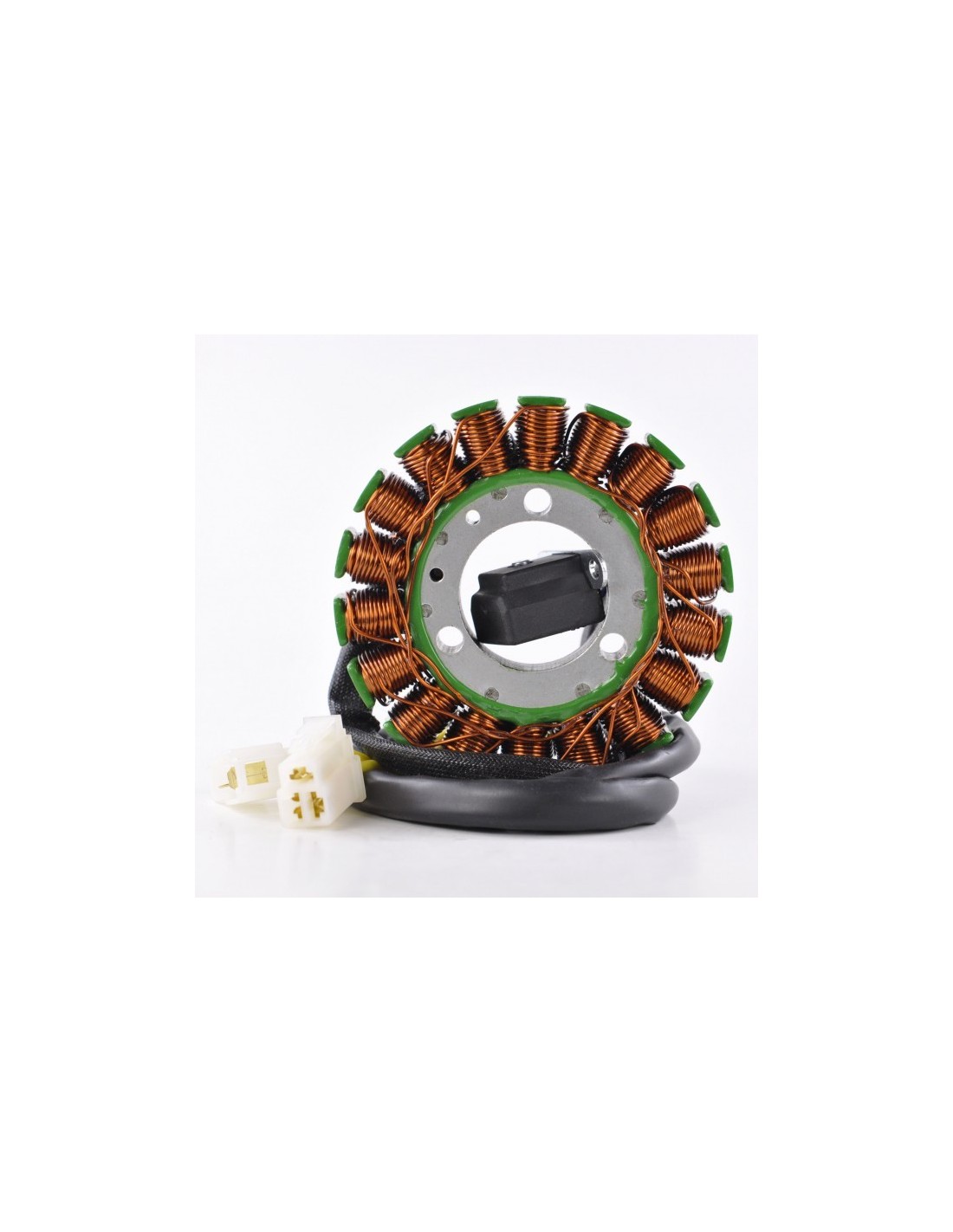

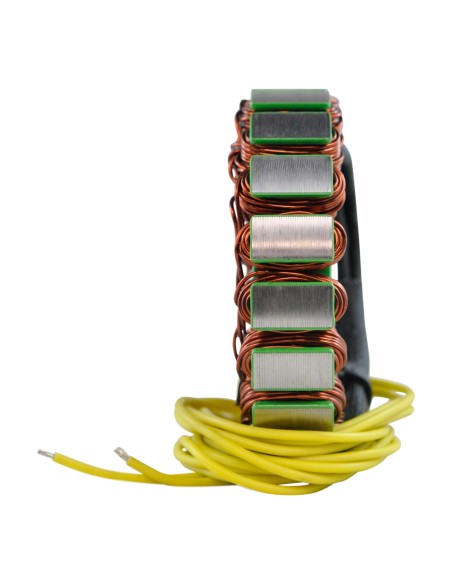

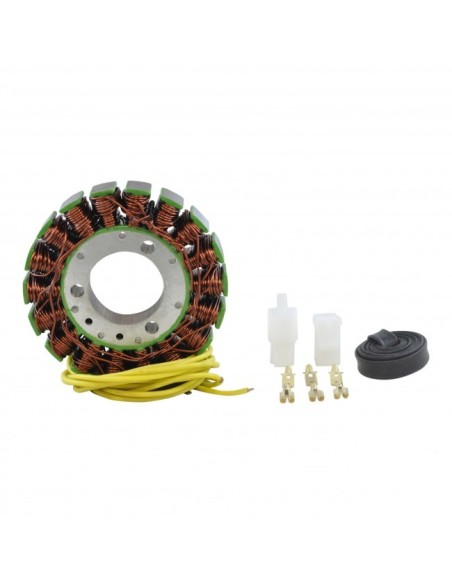

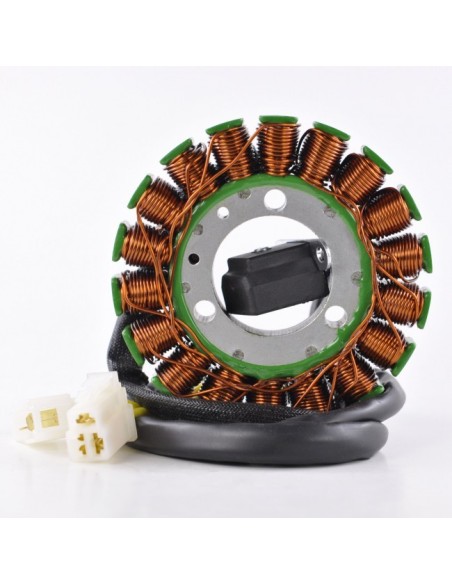

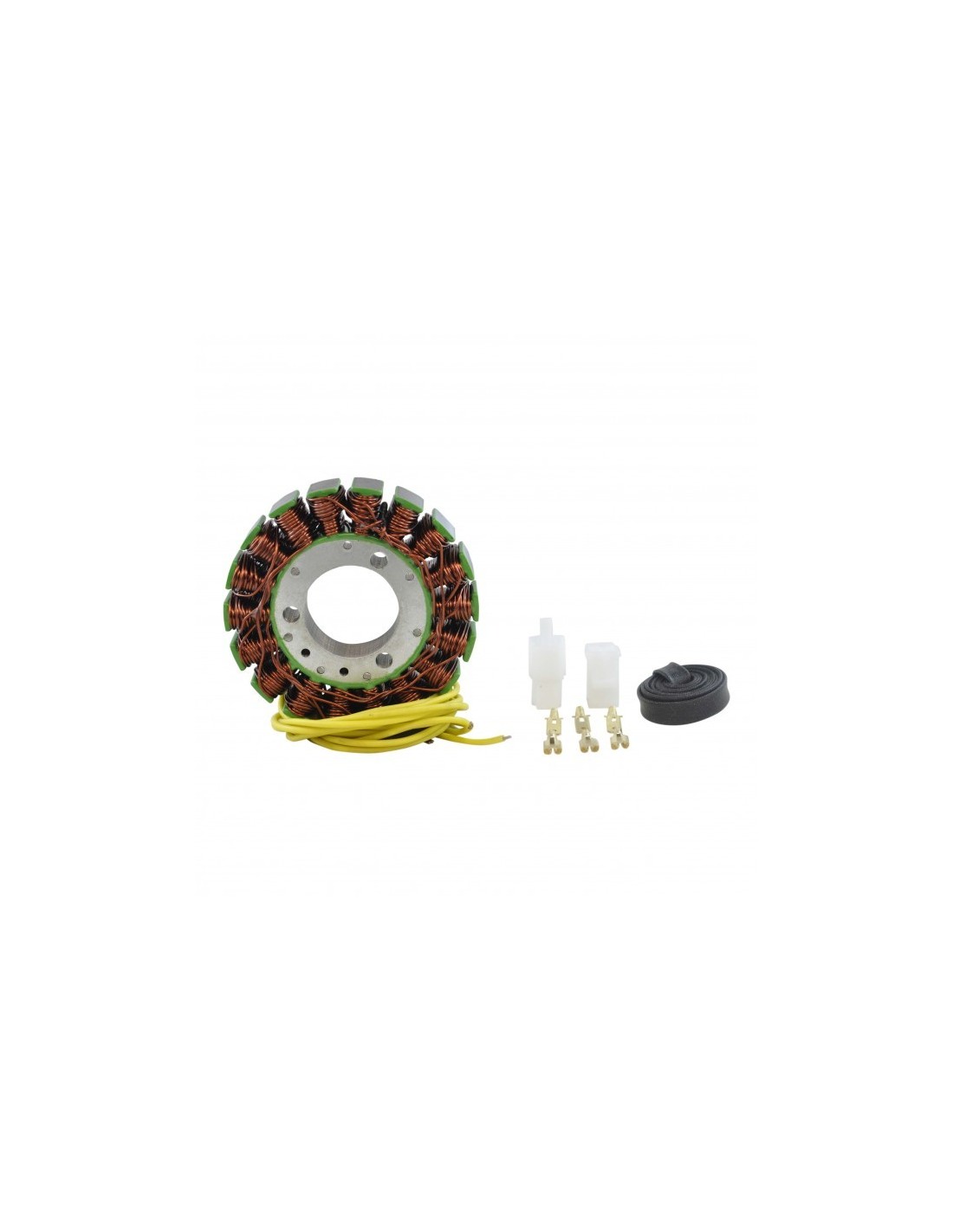

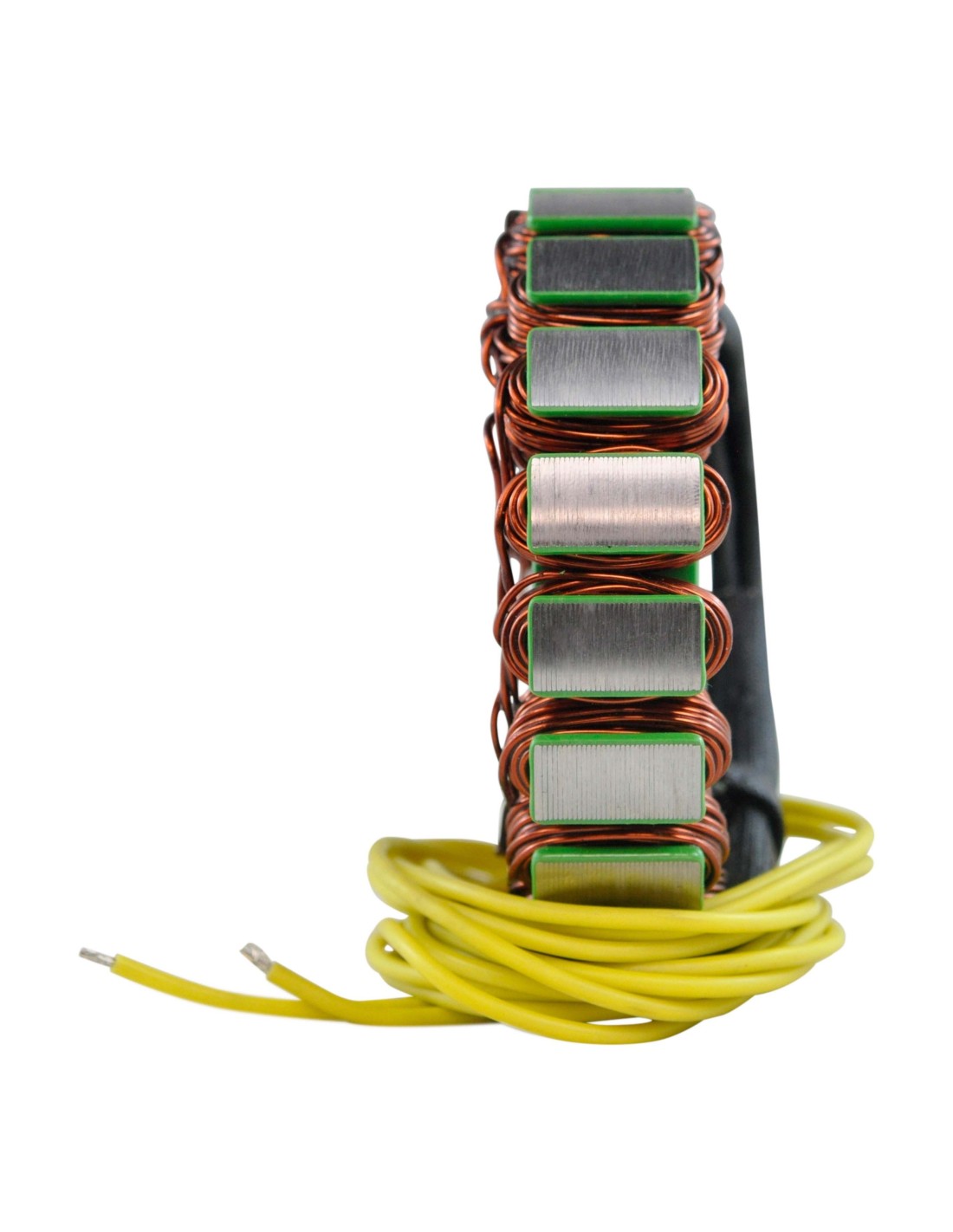

Stator Hyosung GV650 GT650 GT650 Comet GV650 Avitar OEM 32101HN9101

2013 Hyosung GT650 EFI
2013 Hyosung GT650R EFI
2013 Hyosung GT650S
2013 Hyosung GV650 EFI
2013 Hyosung ST7
2012 Hyosung GT650 EFI
2012 Hyosung GT650R EFI
2012 Hyosung GT650S
2012 Hyosung GV650 EFI
2012 Hyosung ST7
2011 Hyosung GT650 EFI
2011 Hyosung GT650R EFI
2011 Hyosung GT650S
2011 Hyosung GV650 EFI
2011 Hyosung ST7
2010 Hyosung GT650 EFI
2010 Hyosung GT650R EFI
2010 Hyosung GT650S
2010 Hyosung GV650 EFI
2010 Hyosung ST7
2009 Hyosung GT650 EFI
2009 Hyosung GT650R EFI
2009 Hyosung GT650S
2009 Hyosung GV650 EFI
2008 Hyosung GT650 Carb
2008 Hyosung GT650 Comet Carb
2008 Hyosung GT650 X Special Edition
2008 Hyosung GT650R Carb
2008 Hyosung GV650 Carb
2007 Hyosung GT650 Carb
2007 Hyosung GT650 Comet Carb
2007 Hyosung GT650R Carb
2007 Hyosung GV650 Carb
2006 Hyosung GT650 Carb
2006 Hyosung GT650 Comet Carb
2006 Hyosung GT650R Carb
2006 Hyosung GV650 Carb
2005 Hyosung GT650 Comet Carb
2005 Hyosung GT650R Carb
2004 Hyosung GT650 Comet Carb

OEM 32101HN9101

Dimensions :
Interior diameter : 38 mm
Exterior diameter : 104 mm
Thickness : 20 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 515 mm
Length of pickup coil's wire to grommet : 75 mm
Other specifications :
Number of wires : 5

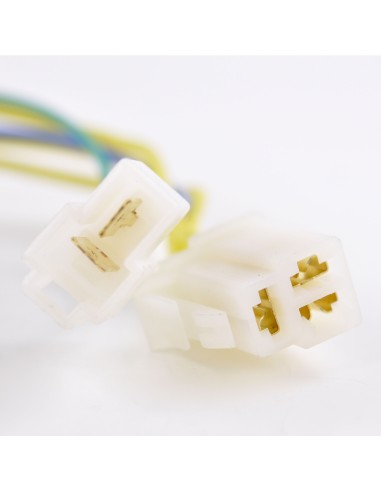

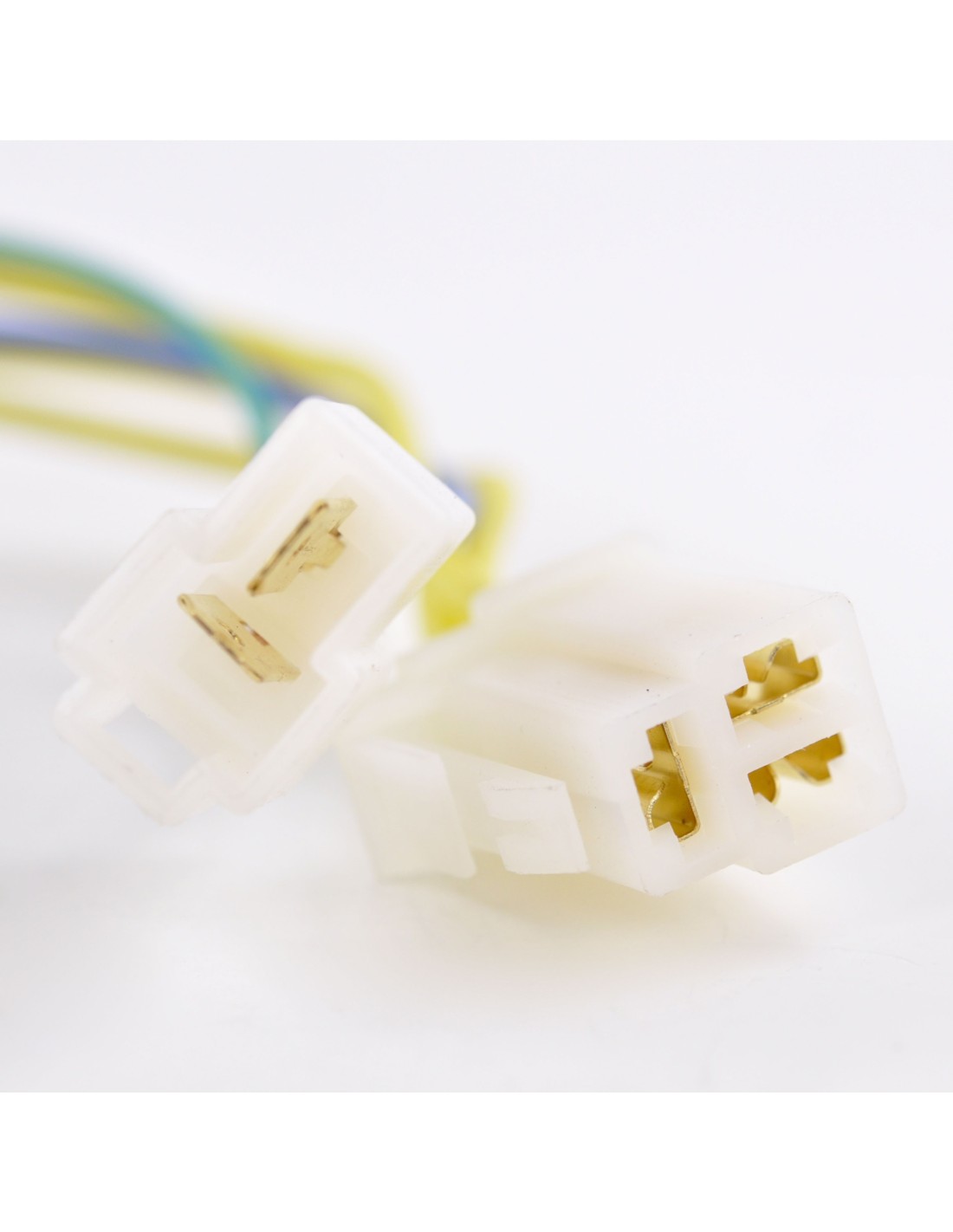

Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : Yellow Between Yellow = 0.5 ohms +/-20%
Pickup : Blue to Green = 129 ohms +/-20%
