Regulator Mosfet Lithium Honda CBR600 CRF1000 CMX500 Rebel CTX700 CBR650F CBR500R CB650F CB500FX CB1100 OEM 31600-HP0-A01

CARMS023-106203

New product

OEM 31600-HP0-A01 31600-HR0-F01 31600-MGZ-J01 31600-MJF-A01

More details

4 Items

3-5 Days

129,00 € tax incl.

More info

    Regulator Rectifier Mosfet Lithium-Ion

    2020-2022 Honda CBR 600 RA
    2016-2019 Honda CRF 1000 Africa Twin
    2016-2019 Honda CMX 500 Rebel
    2014-2018 Honda CTX 700
    2014- 2018 Honda CBR 650 F
    2013-2018 Honda CBR 500 R
    2013-2018 Honda CB 650 F
    2013-2018 Honda CB 500 X
    2013-2018 Honda CB 500 F
    2013-2017 Honda CB 1100

    OEM 31600-HP0-A01
    31600-HR0-F01
    31600-MGZ-J01
    31600-MJF-A01

    • It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

      Improved heat sink and charging capabilities

      Before installing your new voltage regulator rectifier:
      Check the AC output of the stator.
      Replace any burned or corroded connectors on stator and regulator/rectifier
      Check and repair any melted wiring.
      Use hi-temp dielectric grease on all connectors.

    • This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
      Brand new Mosfet voltage regulator rectifier
      WORKS WITH LITHIUM BATTERIES ONLY
      STOP BURNING YOUR REGULATOR RECTIFIER!
      It is time to update or replace your voltage regulator with the advanced MOSFET type.
      It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
      Direct replacement to your original unit.
      Plug-and-play, direct fit, easy installation.
      The quality exceeds the OEM equipment
      Higher grade of electric components.
      All shipped products are tested. All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

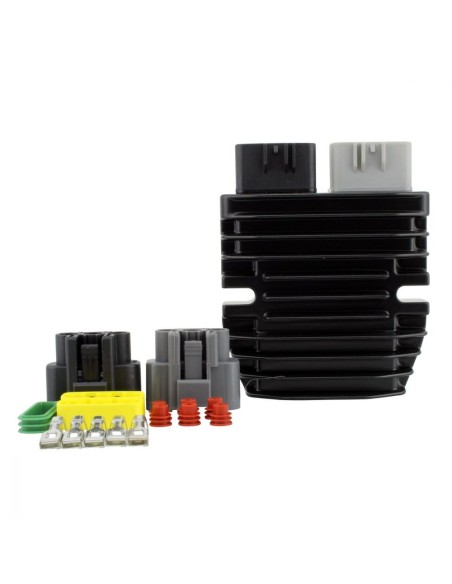

      We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
      *All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.
      Why do you need a different voltage regulator for lithium batteries?
      Lithium batteries have different charging requirements than Lead Acid or AGM batteries that can severely affect their lifespan and performance. The key factors in safe and reliable lithium battery charging are the output DC voltage ripple and average output voltage. The regulator is designed around the optimal parameters for these factors.
      The ripple effect is all that matters
      Charging voltage ripple in a powersports application is the difference between the highest and lowest voltages from the voltage regulator output. By nature, a common shunt style voltage regulator will have a fairly high voltage ripple due to the regulation shunt switches opening and closing frequently. Each on/off transition will cause some variation in the output voltage, this is unavoidable. Keeping this to minimum is critical for Lithium batteries, and the RMSTATOR Lithium regulator is designed around this feature.
      In a perfect world, a ripple of less than 10% of the output voltage (~1.5V for a typical regulator), would be ideal, however is not practical for this type of regulator. The  Lithium regulator is able to maintain a less than 4 Volts output ripple, compared to verified test results of our competitors 8 volts. Keep in mind this ripple voltage is only seen via an Oscilloscope sampling the voltage 1000’s of times a second, and is not the same as your average charging voltage as measured by a multimeter.
      PLEASE NOTE : This universal voltage regulator is ONLY for lithium batteries THIS IS NOT FOR LEAD ACID BATTERIES. Output Voltage is the key factor in a voltage regulator designed specifically for Lithium batteries. The ideal charging voltage for Lithium batteries is 13.9-14.2VDC. The RMSTATOR regulator has a carefully set output voltage of 14.1VDC (+/- 0.1VDC). This stable and ideal output voltage carefully keeps a lithium battery in it’s ideal charging range.
      Please contact the manufacturer of your Lithium Ion Battery to ensure our product has the correct set point for their product
      Protect your investment in an expensive lithium battery with our lithium battery voltage regulator!
