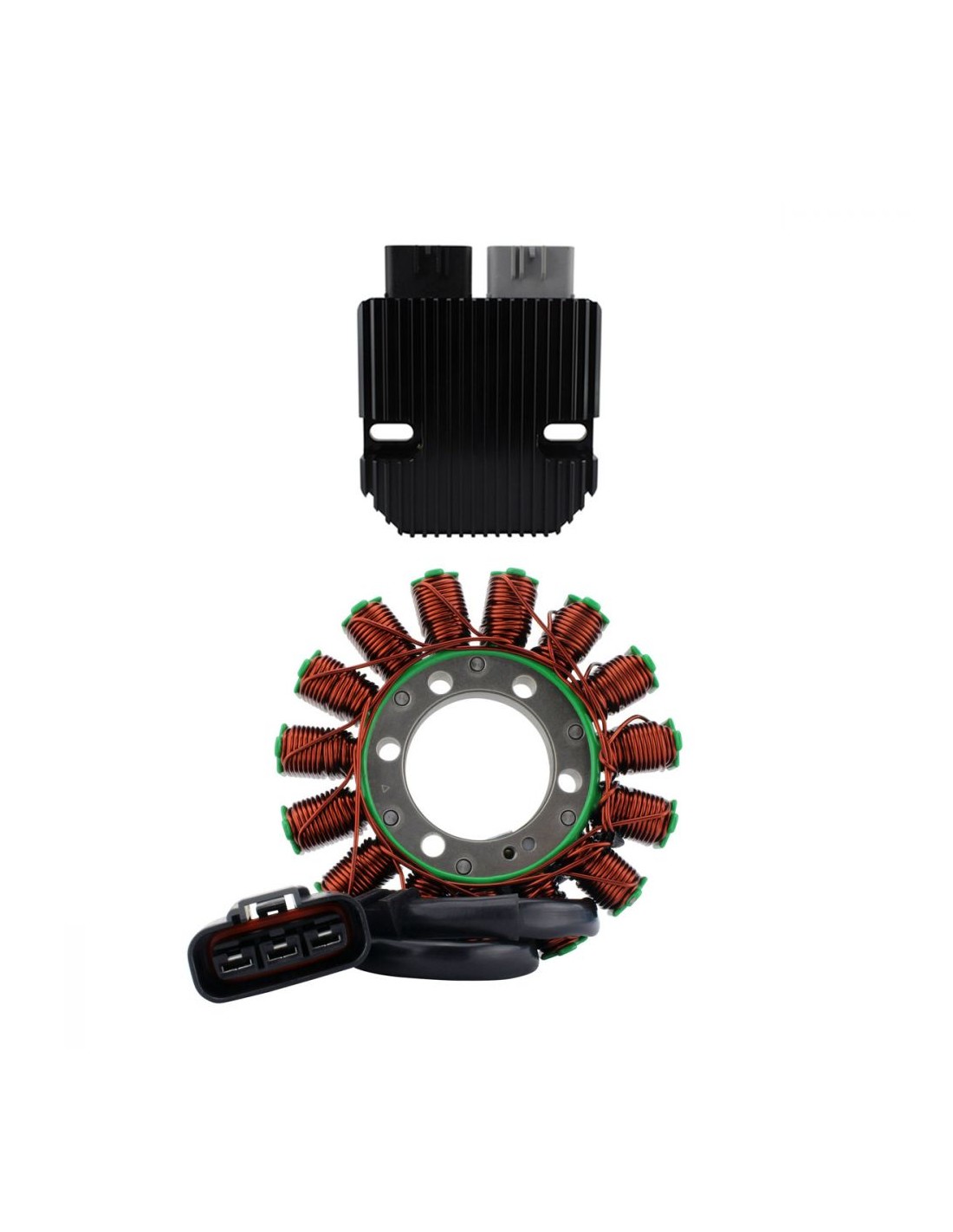

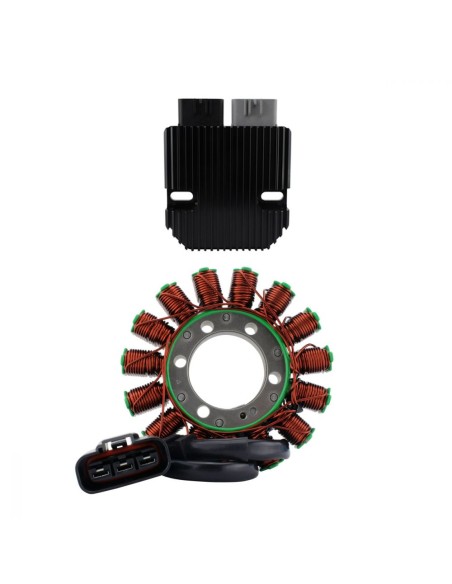

REVOLT Voltage Regulator Generator Honda CBR600RR OEM 31120-MJC-D01

2022 Honda CBR 600 RR

2021 Honda CBR 600 RR

2020 Honda CBR 600 RR

2019 Honda CBR 600 RR

2018 Honda CBR 600 RR

2017 Honda CBR 600 RR

2016 Honda CBR 600 RR

2015 Honda CBR 600 RR

2014 Honda CBR 600 RR

2013 Honda CBR 600 RR

Stator Resistant to 200°C

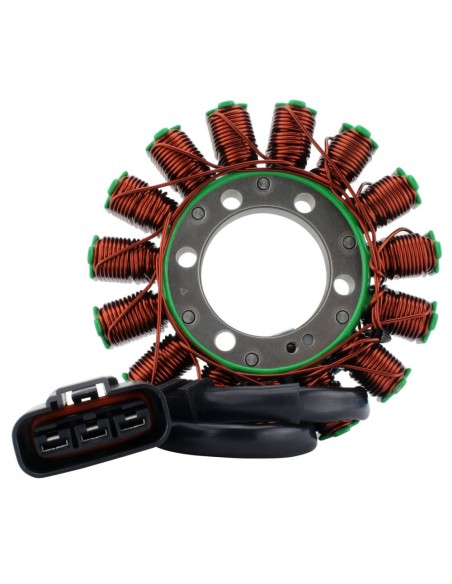

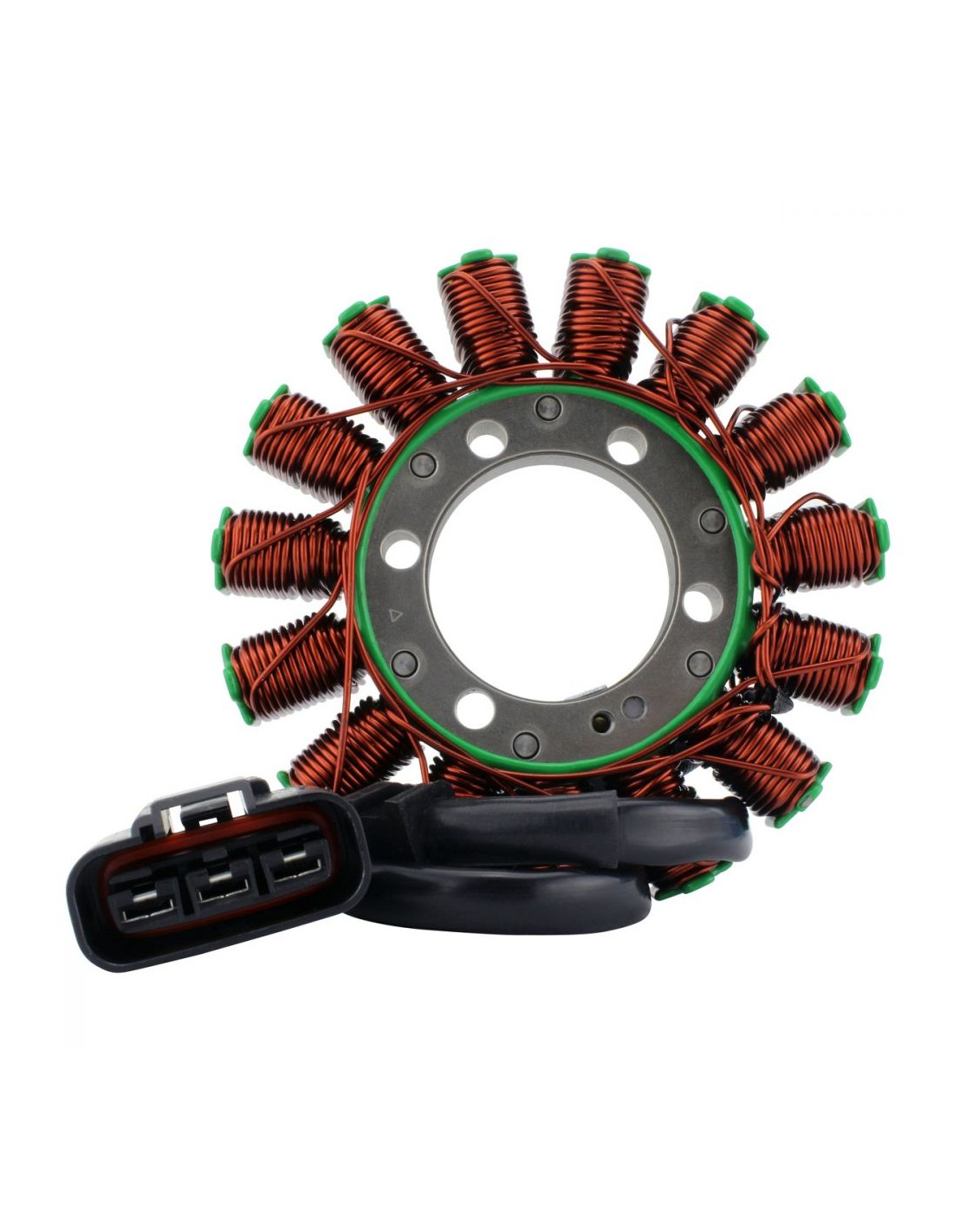

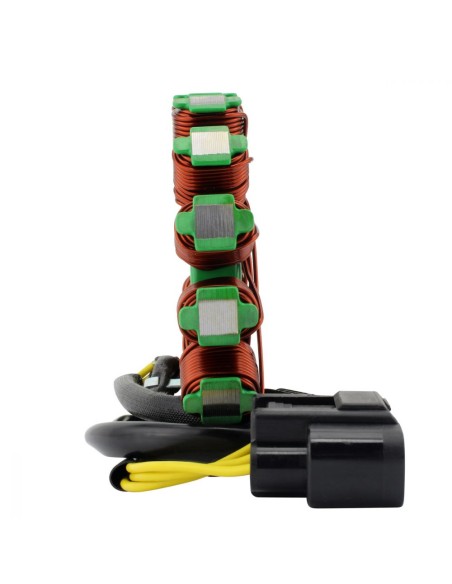

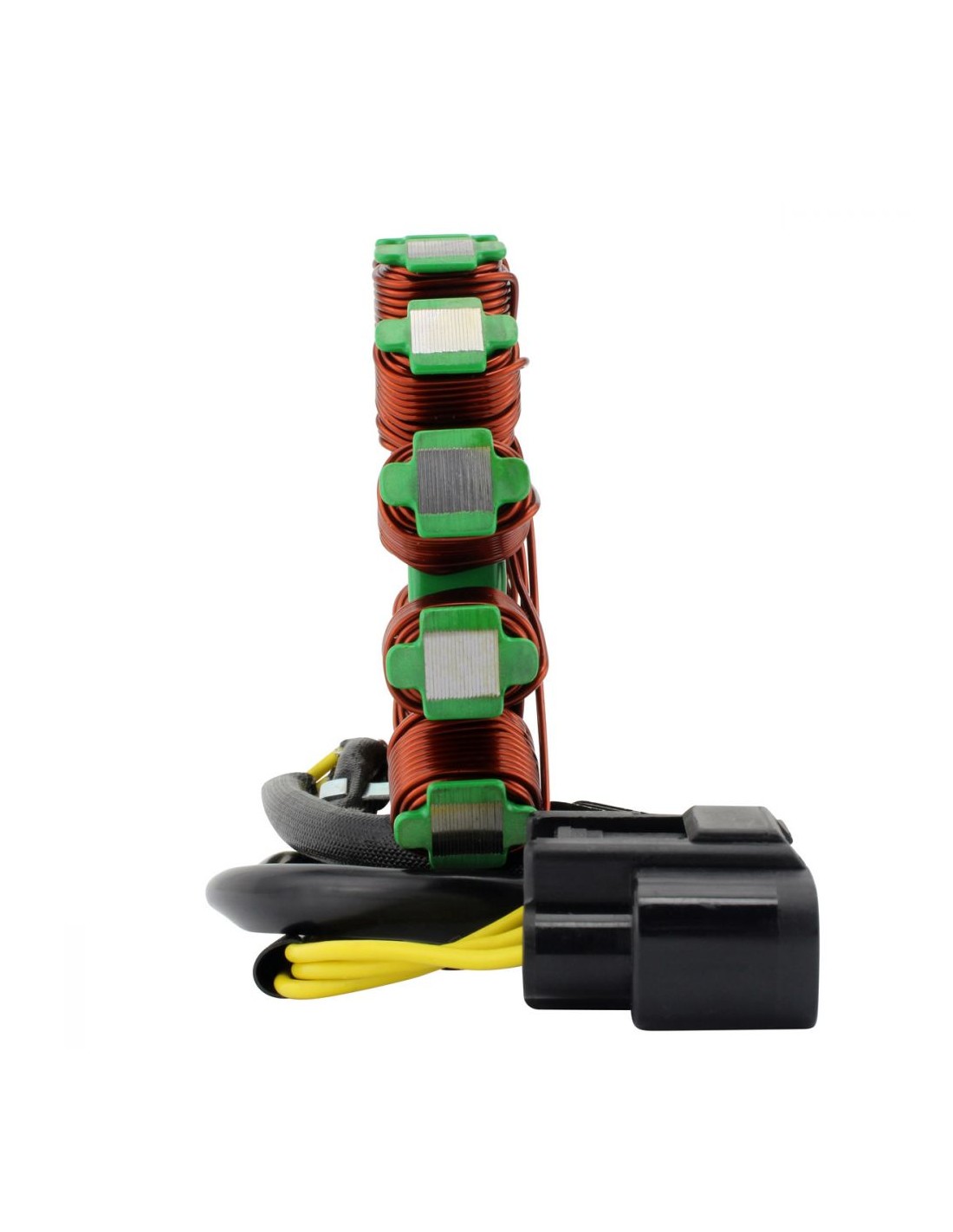

Generator Stator :

Dimensions:

Interior diameter: 42 mm

Exterior diameter: 115 mm

Thickness: 12 mm

Length of wires stator to grommet: 100 mm

Length of wires grommet to plug: 365 mm

Other specifications:

Number of wires: 3

Number of plugs: 1

Number of pins: 3

Number of poles : 15

Wire to wire resistance :

Alternator : Between each Yellow = 0.4 ohms +-20%

OEM 31120-MJC-D01

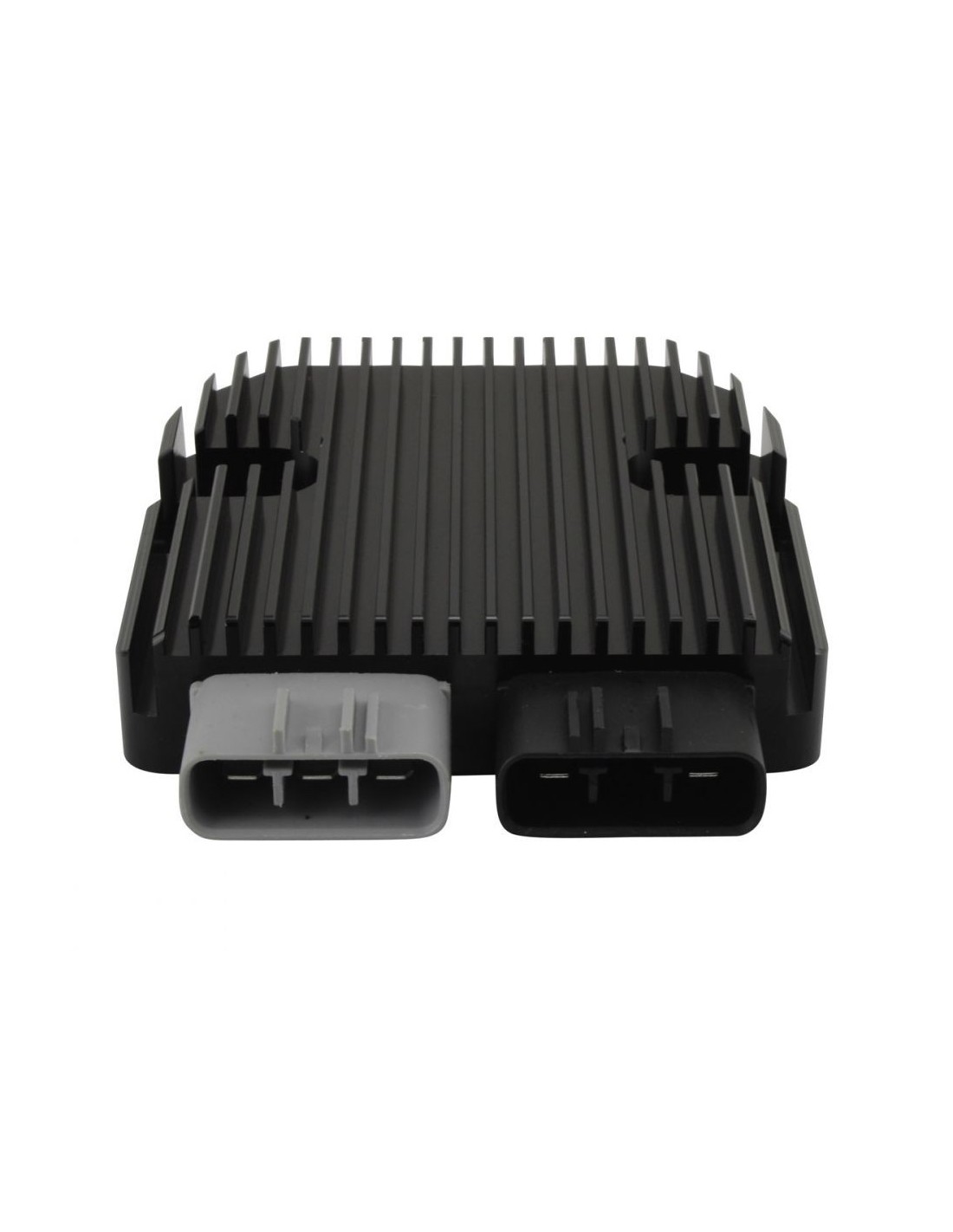

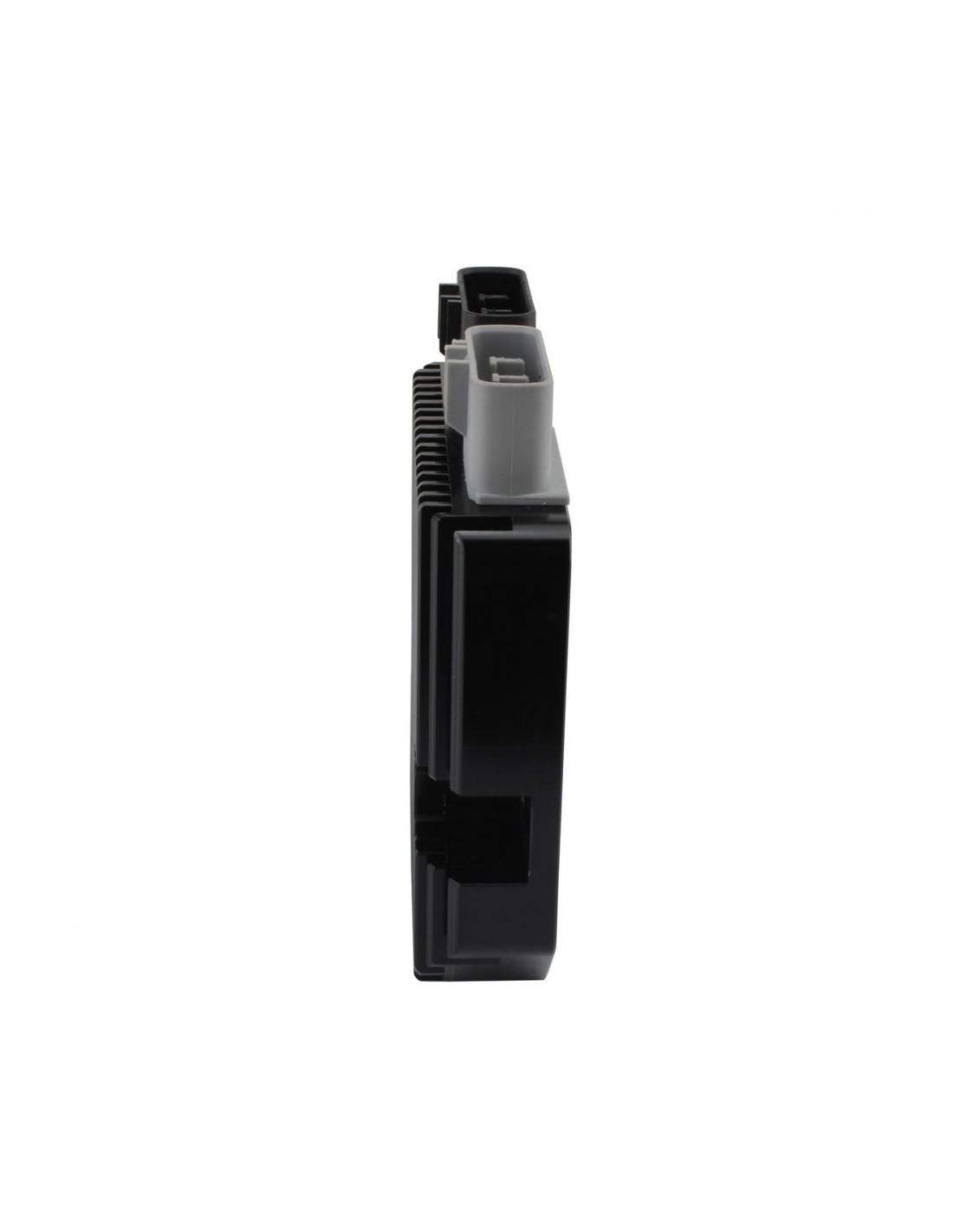

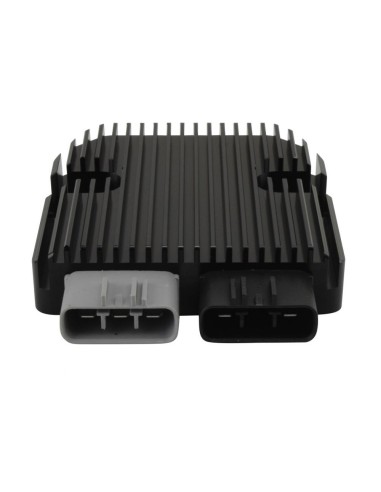

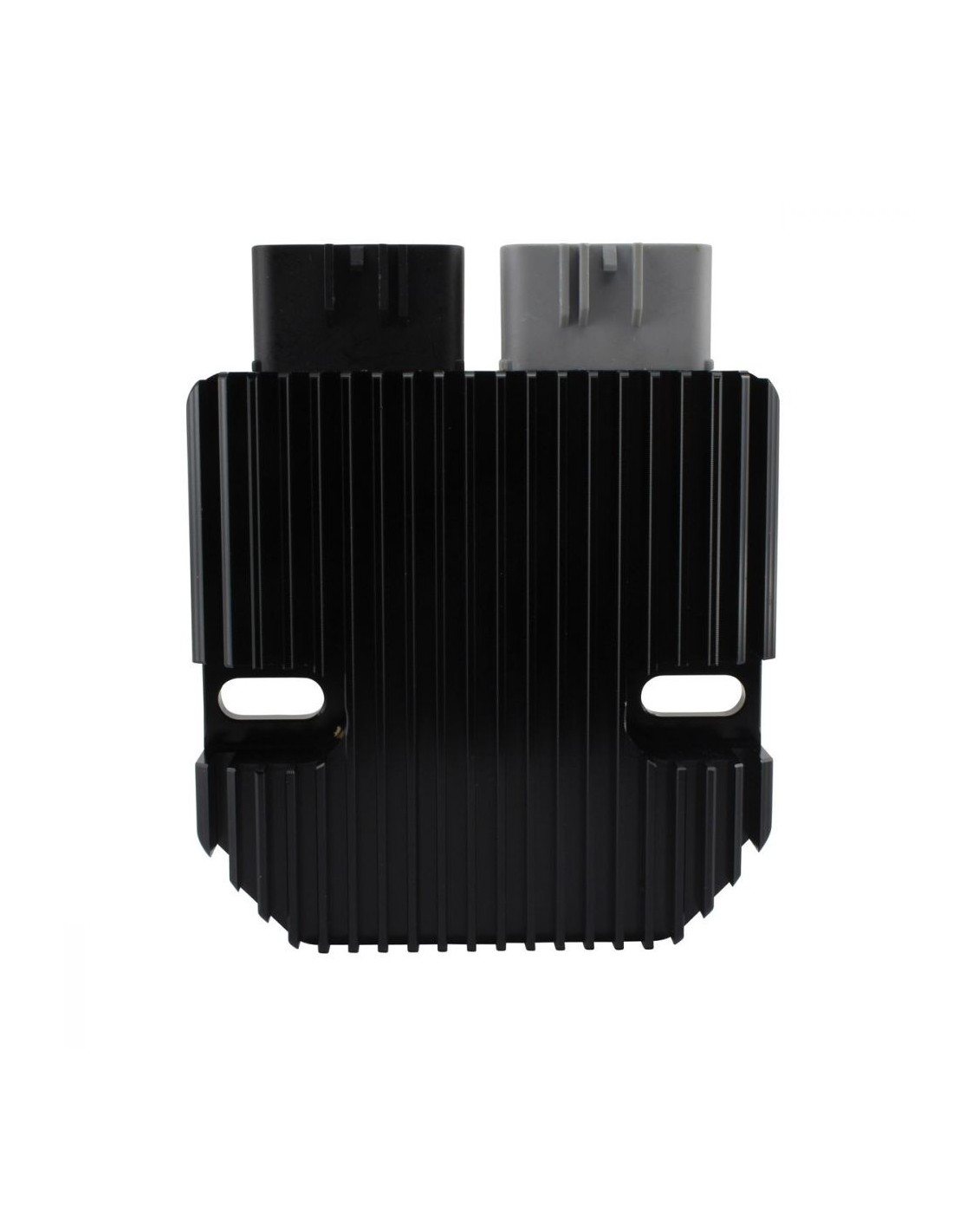

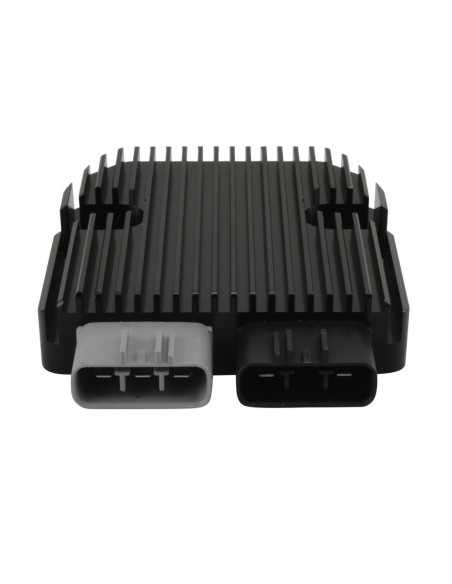

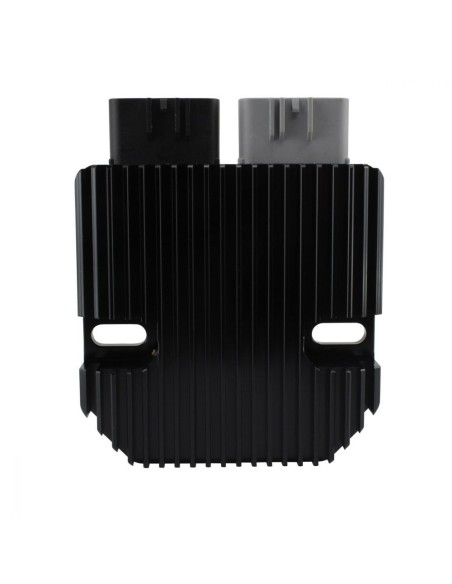

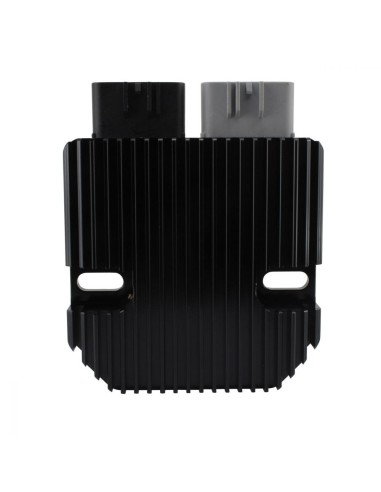

REVOLT Voltage Regulator Rectifier:
Width: 103mm
Length: 102 mm
Height: 26mm
Fixing holes center to center: 78 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 50A / 500W
Open Circuit Voltage: <15V
Operating Temperature: -20°C to 85°C

REVOLT Harness
Wire length: 150mm
Number of yellow wires: 3
Number of red wires: 1
Number of green wires: 1
Number of plugs: 3

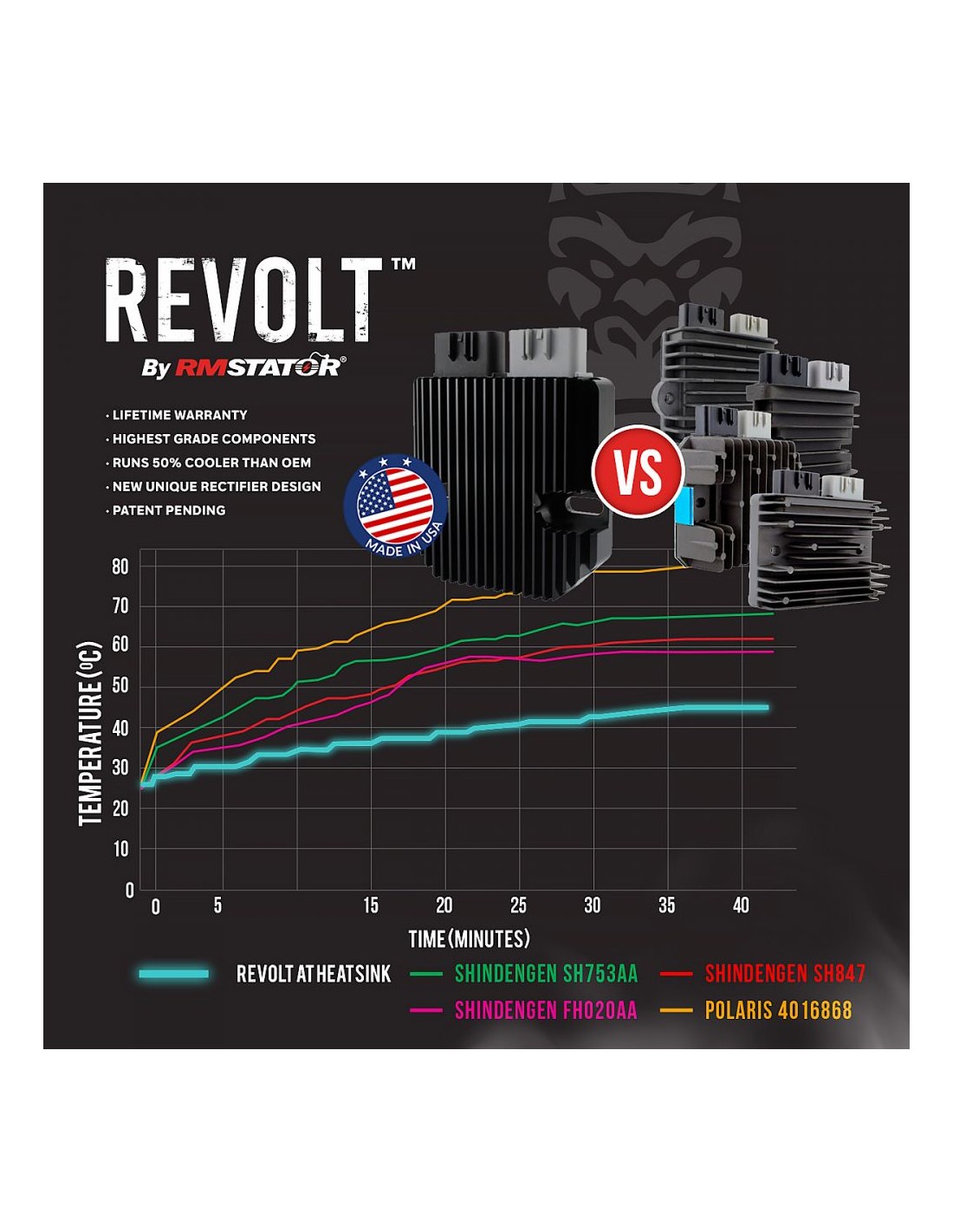

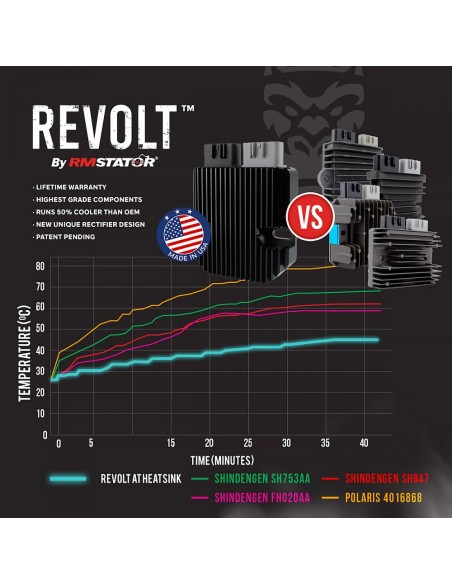

RUNS 50% COOLER THAN OEM
2 years of R&D and careful choice of top graded performance components dramatically reduce failure rate by running substantially cooler than the best OEM and competitors’ products.

SOLVES THE MAJOR CAUSE OF FAILURE
REVOLT is the only voltage regulator rectifier on the market with a redesigned rectifier circuit to considerably improve reliability.

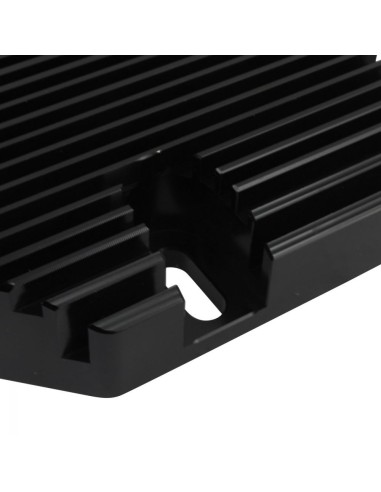

DISSIPATE HEAT 45% BETTER THAN OEM

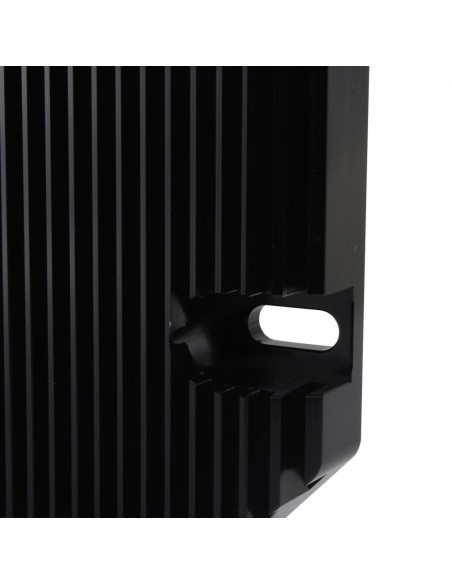

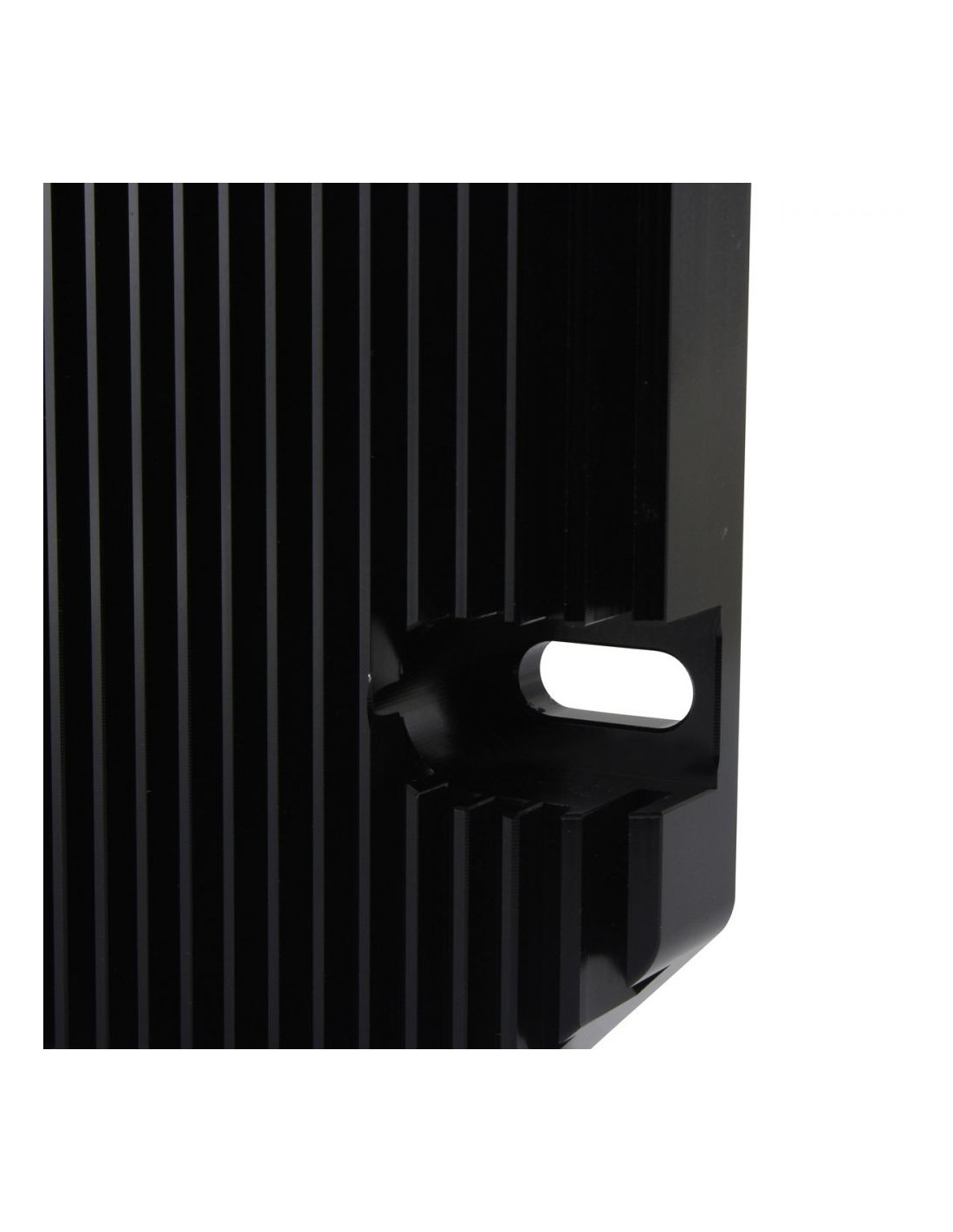

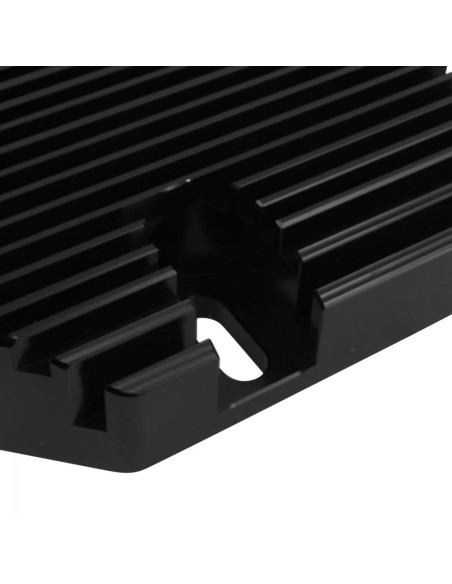

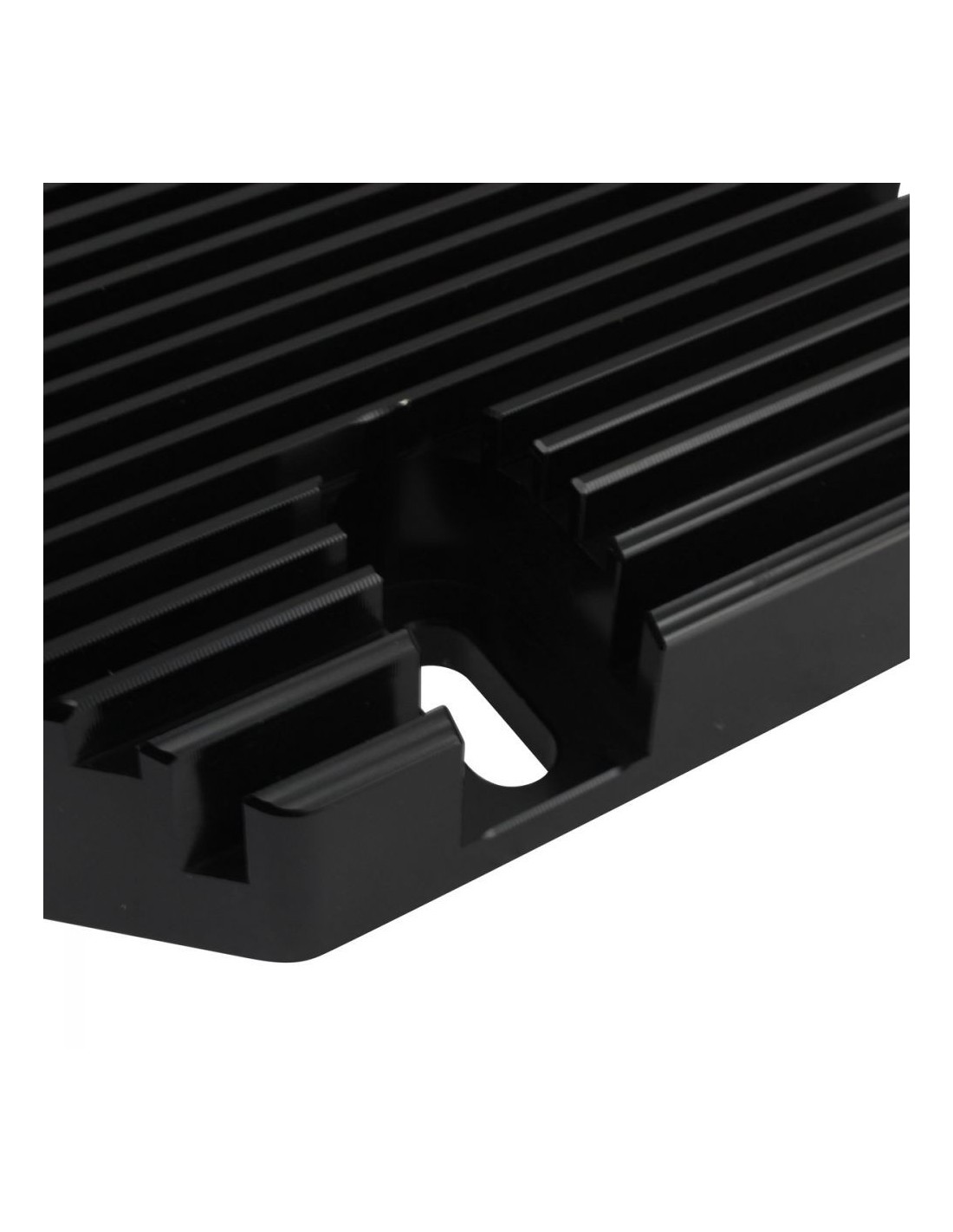

Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.

REVOLT is engineered, designed, and manufactured in USA under strict USA-based quality control standards.
