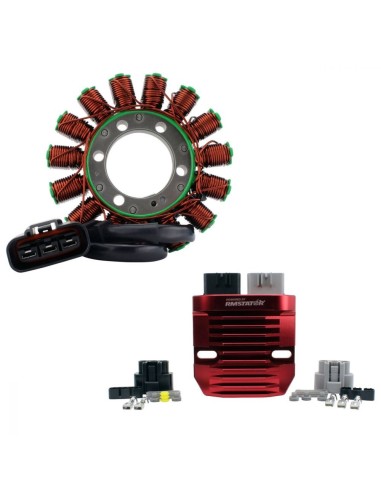

Kit Stator Regulator Rectifier Aluminium Mosfet Honda CBR600RR OEM 31120-MJC-D01 31600-MFJ-D01

2022 Honda CBR 600 RR
2021 Honda CBR 600 RR
2020 Honda CBR 600 RR
2019 Honda CBR 600 RR
2018 Honda CBR 600 RR
2017 Honda CBR 600 RR
2016 Honda CBR 600 RR
2015 Honda CBR 600 RR
2014 Honda CBR 600 RR
2013 Honda CBR 600 RR

OEM 31120-MJC-D01

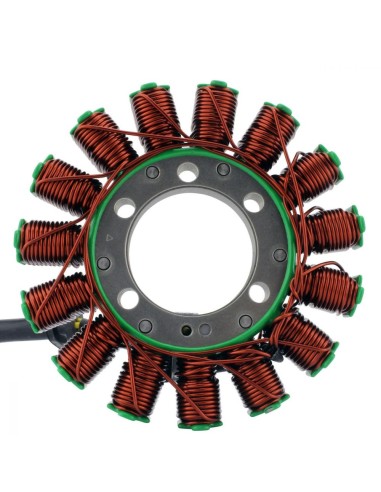

Stator
Dimensions:
Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 12 mm
Length of wires stator to grommet: 100 mm
Length of wires grommet to plug: 365 mm

Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles : 15
Wire to wire resistance :
Alternator : Between each Yellow = 0.4 ohms +-20%

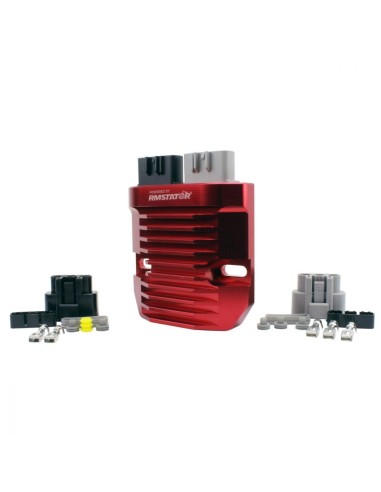

Red Machined Regulator Rectifier Aluminium Mosfet
Dimensions:
Width: 103 mm
Length: 103 mm
Height: 28 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C
