Kit Stator Regulator Rectifier Lithium Batteries Honda CBR600RR OEM 31120-MJC-D01 31600-MFJ-D01

2025 Honda CBR 600 RR

2024 Honda CBR 600 RR

2023 Honda CBR 600 RR

2022 Honda CBR 600 RR

2021 Honda CBR 600 RR

2020 Honda CBR 600 RR

2019 Honda CBR 600 RR

2018 Honda CBR 600 RR

2017 Honda CBR 600 RR

2016 Honda CBR 600 RR

2015 Honda CBR 600 RR

2014 Honda CBR 600 RR

2013 Honda CBR 600 RR

OEM 31120-MJC-D01

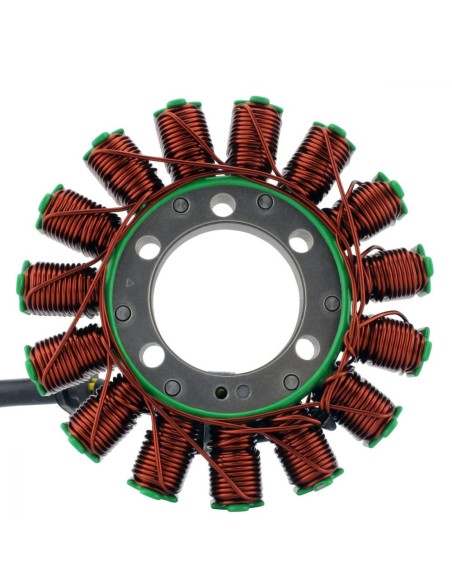

Stator
Dimensions:
Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 12 mm
Length of wires stator to grommet: 100 mm
Length of wires grommet to plug: 365 mm

Other specifications:

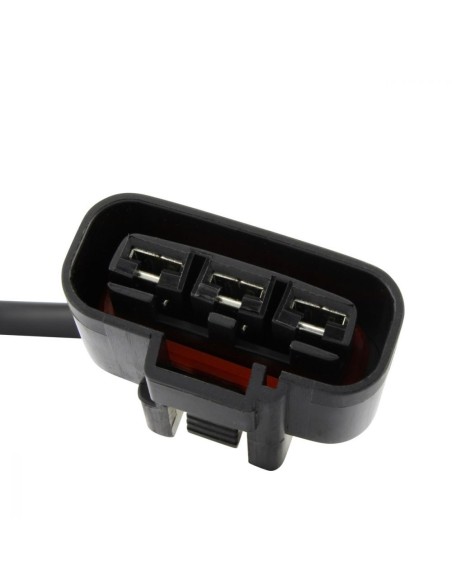

Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles : 15
Wire to wire resistance :
Alternator : Between each Yellow = 0.4 ohms +-20%

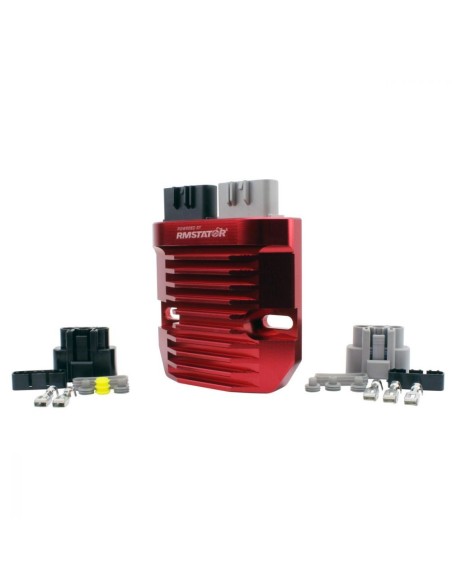

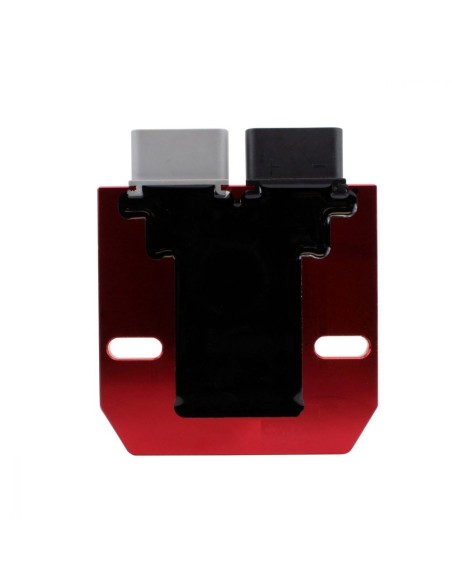

Red Machined Lithium-Ion Battery Compatible Regulator
Dimensions:
Width: 103 mm
Length: 103 mm
Height: 28 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C
