Stator Honda CBR250R 2011-2013 OEM 31120-KYJ-901
CARM01550
7-8 Days
€154.80
Tax included
Honda CBR250R 2011-2013 OEM 31120-KYJ-901

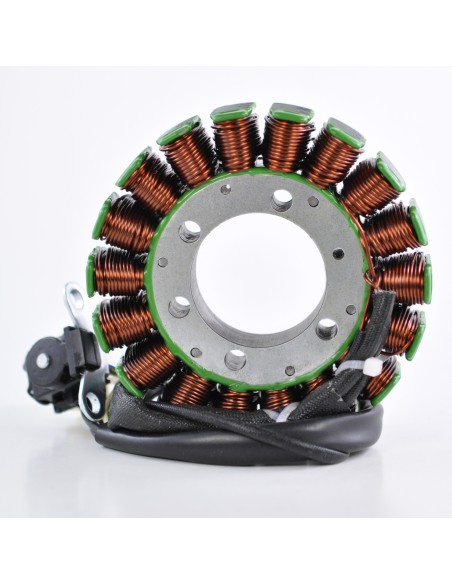

Stator Honda CBR250R 2011-2013 OEM 31120-KYJ-901
2016 Honda CB 300 F
2016 Honda CBR 300 R
2015 Honda CB 300 F
2015 Honda CBR 300 R
2013 Honda CBR 250 R
2012 Honda CBR 250 R
2011 Honda CBR 250 R
OEM 31120-KYJ-901
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 107 mm
Thickness : 22 mm
Length of wires stator to grommet : 60 mm
Length of wires grommet to plug : 180 mm
Length of pickup coil's wire to grommet : 20 mm
Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 10
Wire to wire resistance :
Alternator : Black to Black = 0.6 ohms +/-20%
Pickup : White/Yellow to Blue/Yellow = 232 ohms +/-20%
