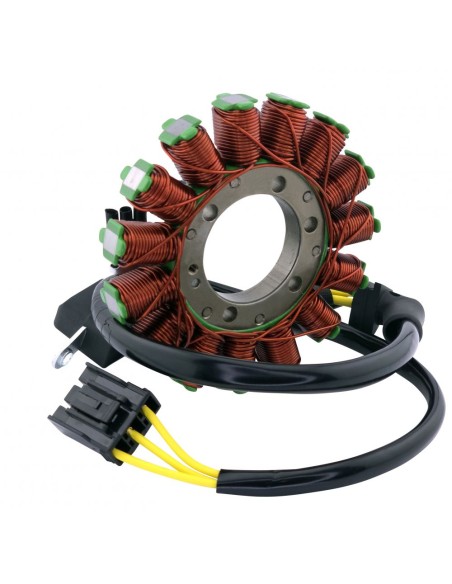

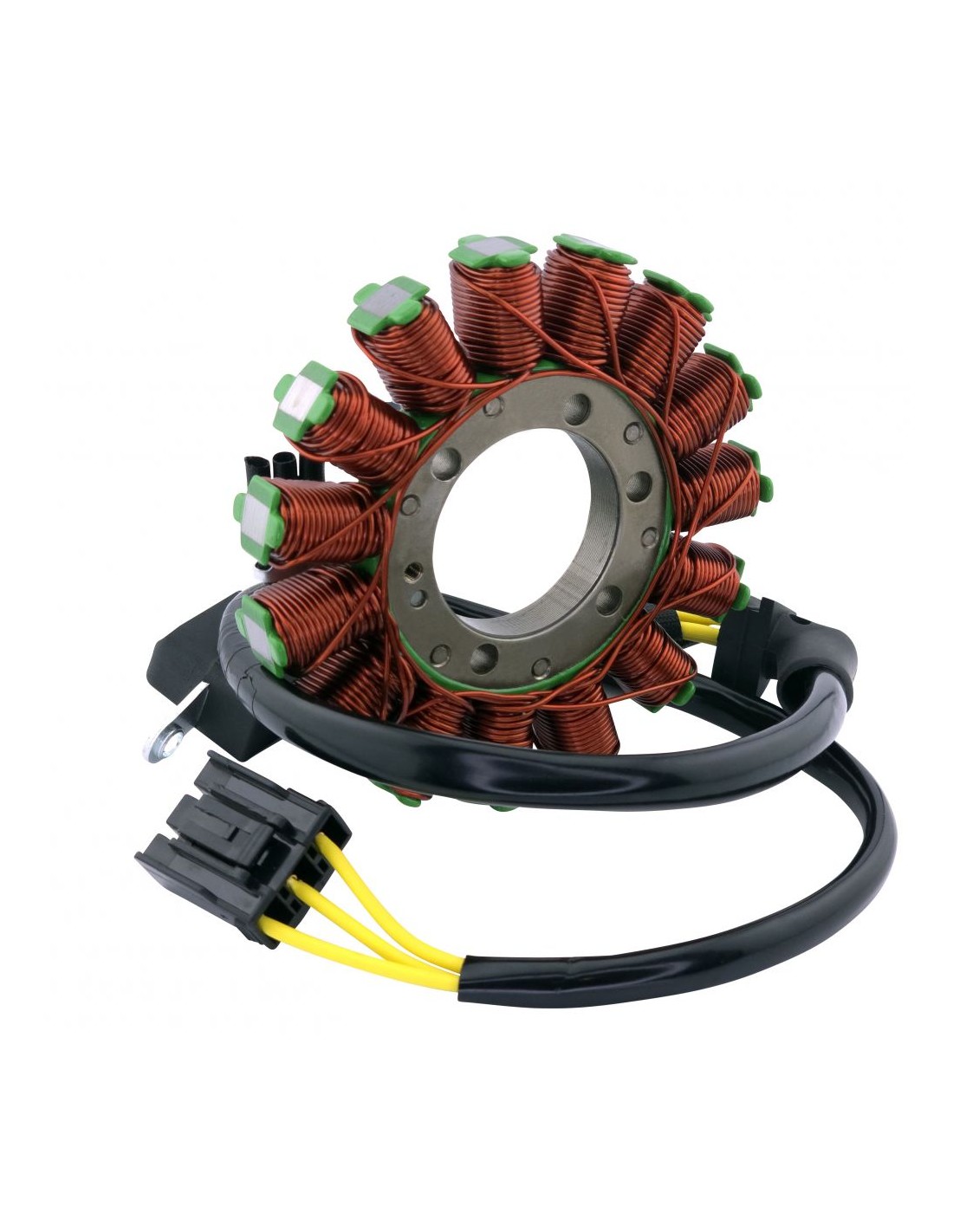

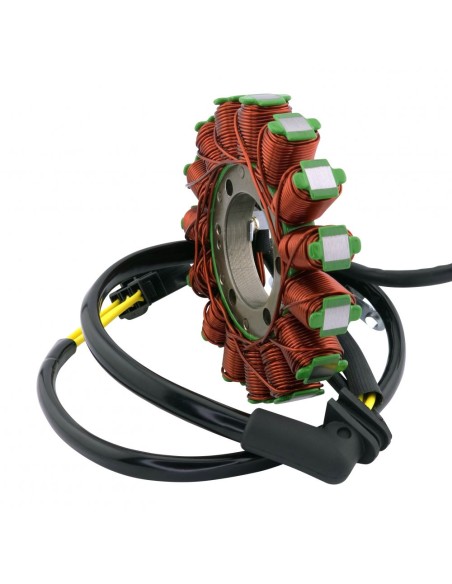

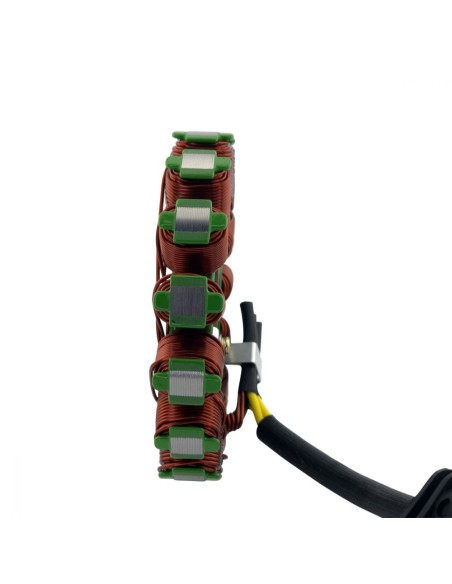

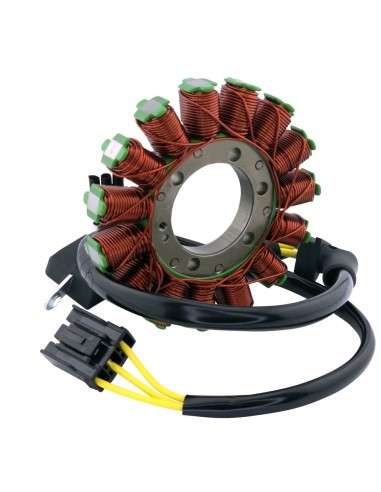

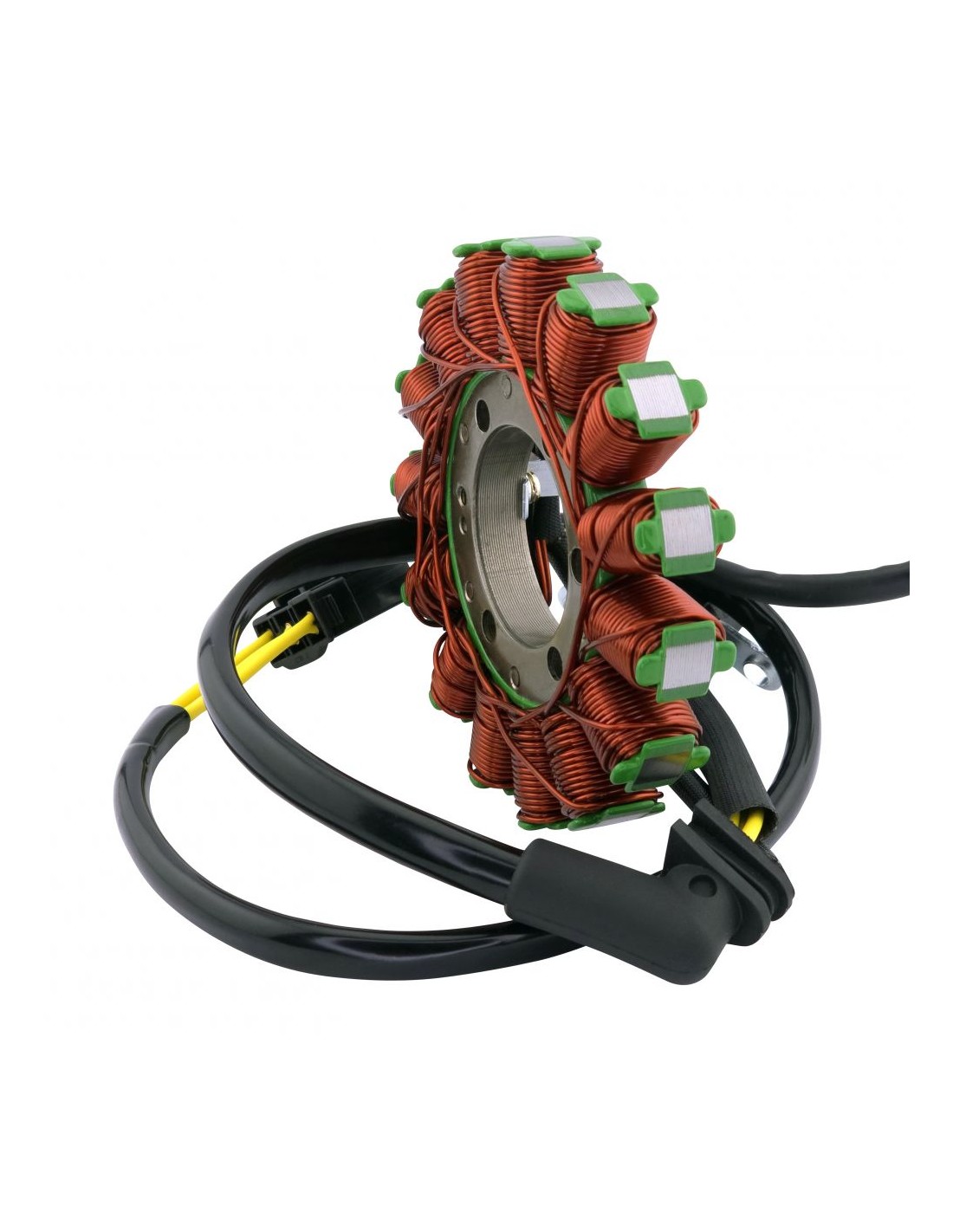

Stator Honda CBR 1000 RR S OEM 31120-MFL-D21 31120-MGP-D61

Stator Resistant to 200°C

2016 Honda CBR 1000 S

2016 Honda CBR 1000 RR

2015 Honda CBR 1000 S

2015 Honda CBR 1000 RR

2014 Honda CBR 1000 RR SP

2014 Honda CBR 1000 RR

2013 Honda CBR 1000 RR

2012 Honda CBR 1000 RR

2011 Honda CBR 1000 RR

2010 Honda CBR 1000 RR

OEM 31120-MFL-D21 31120-MGP-D61

Dimensions:

Interior diameter: 42 mm

Exterior diameter: 115 mm

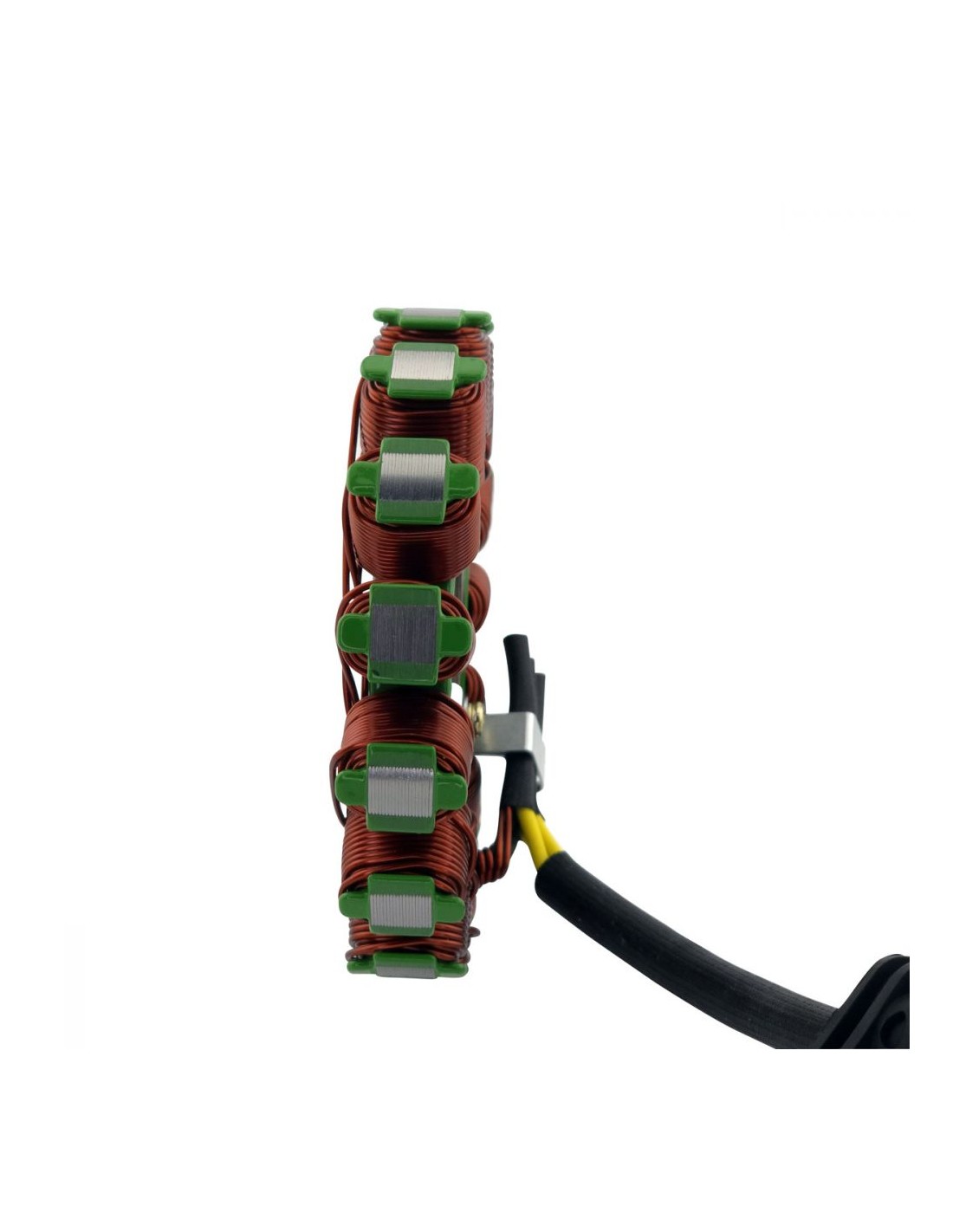

Thickness: 12 mm

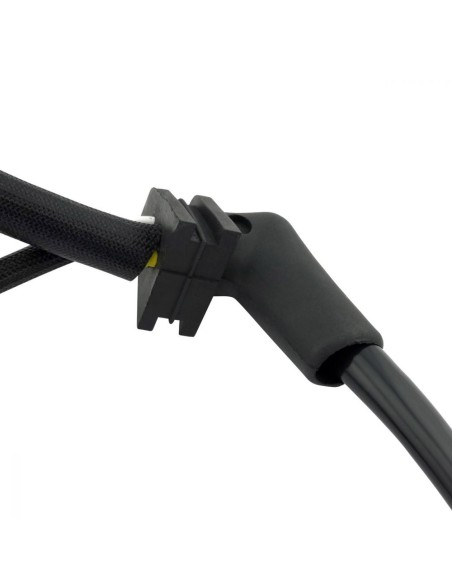

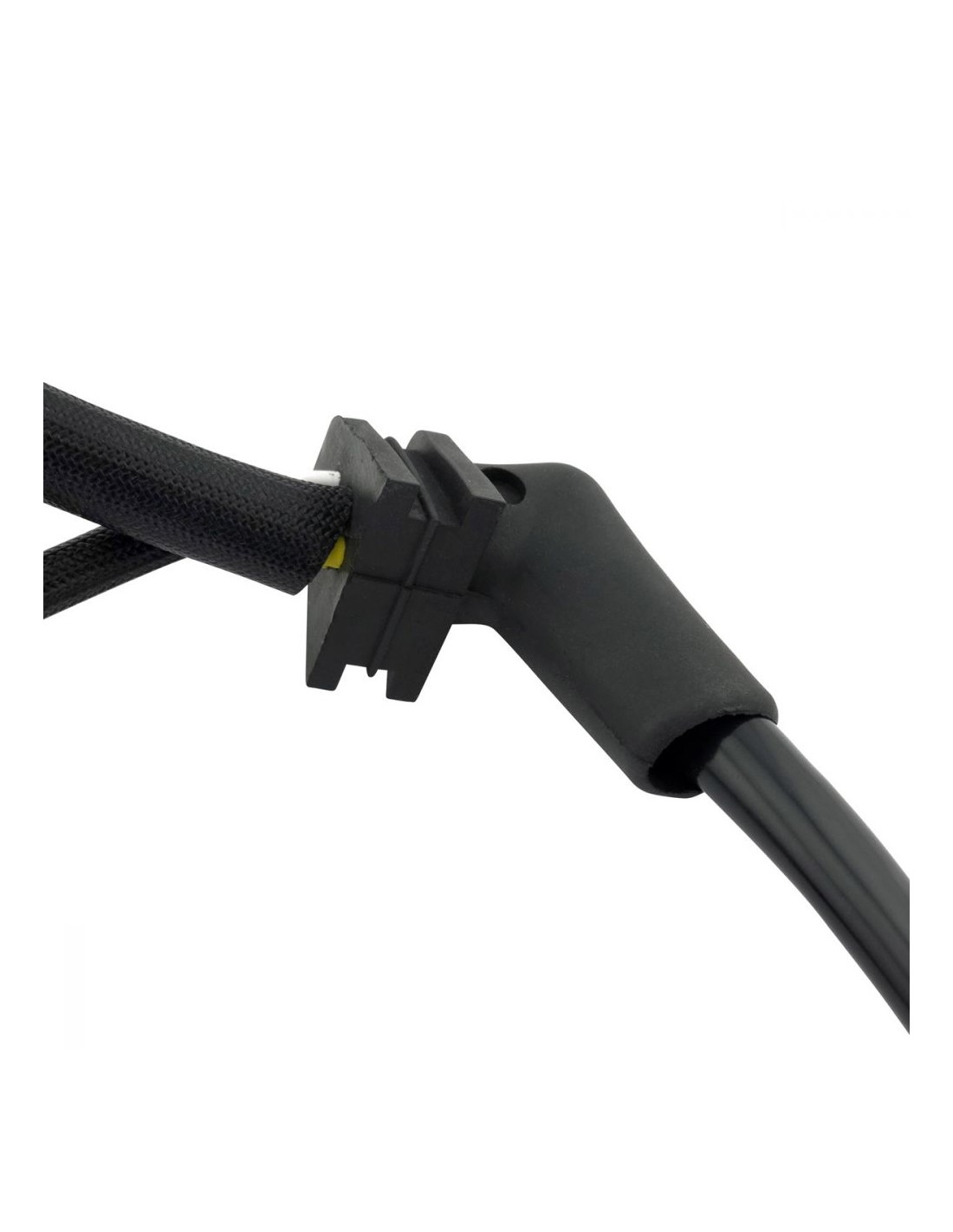

Length of wires stator to grommet: 110 mm

Length of wires grommet to plug: 70 mm

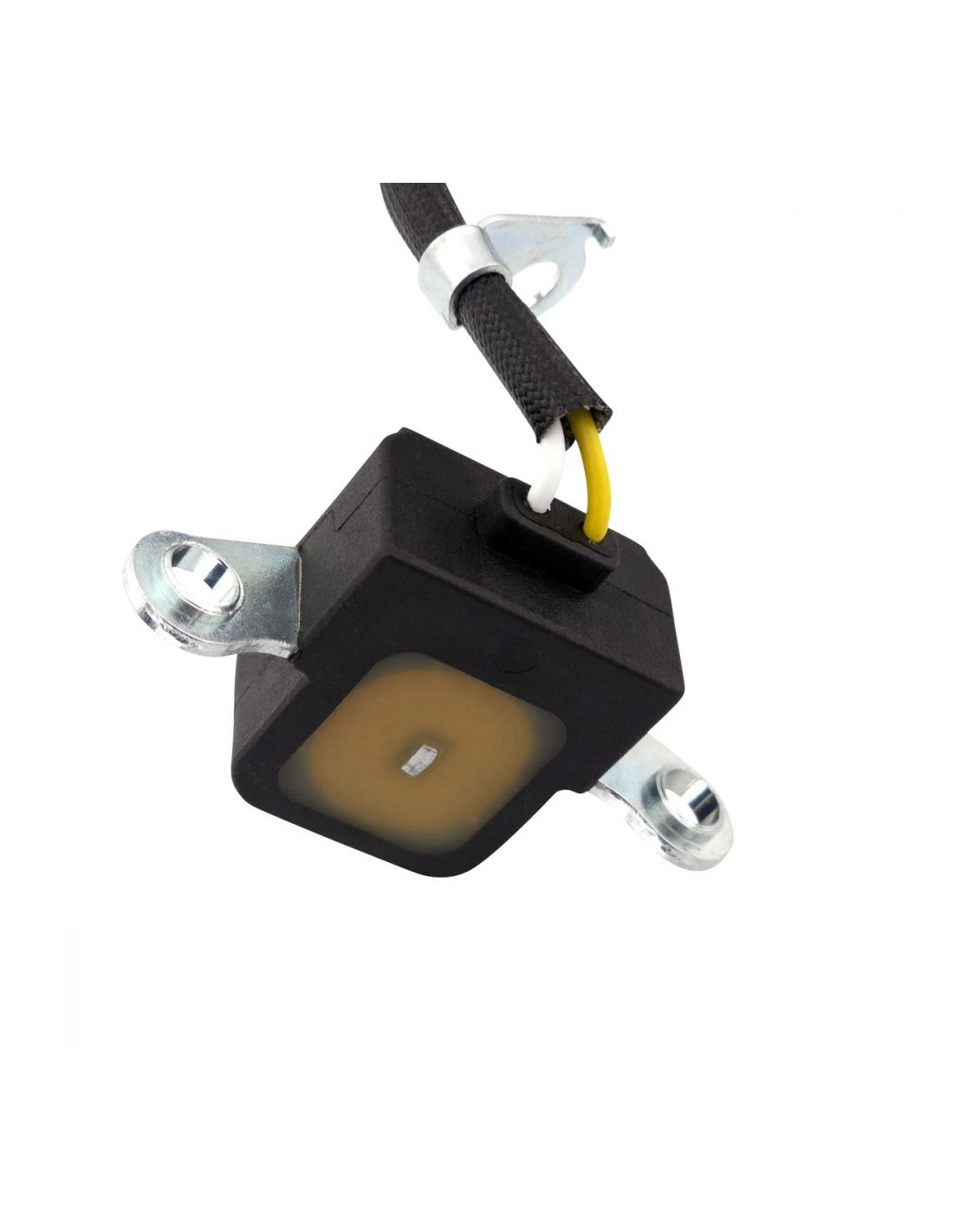

Length of pickup coil's wire to grommet: 330, 560 mm

Other specifications:

Number of wires: 5

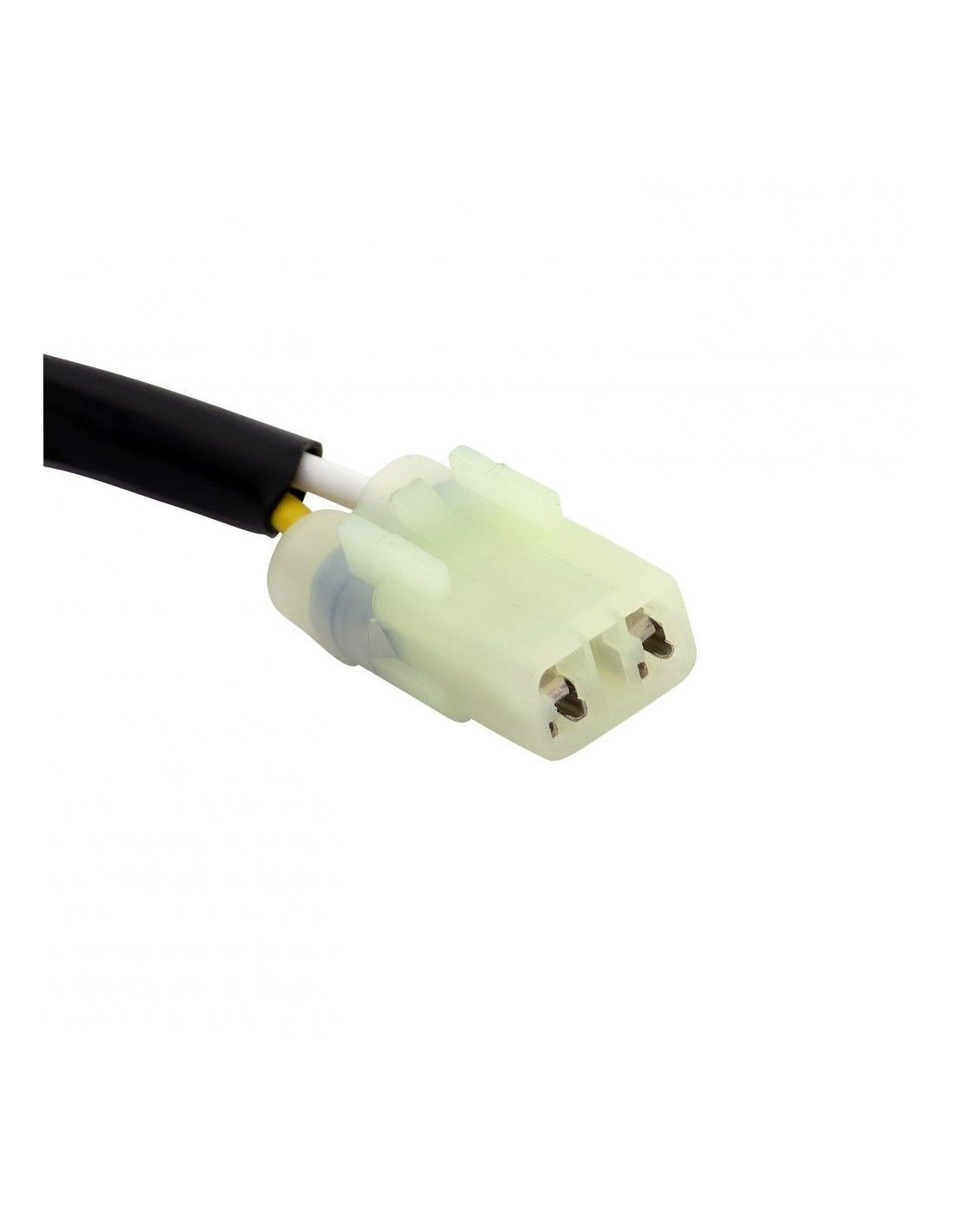

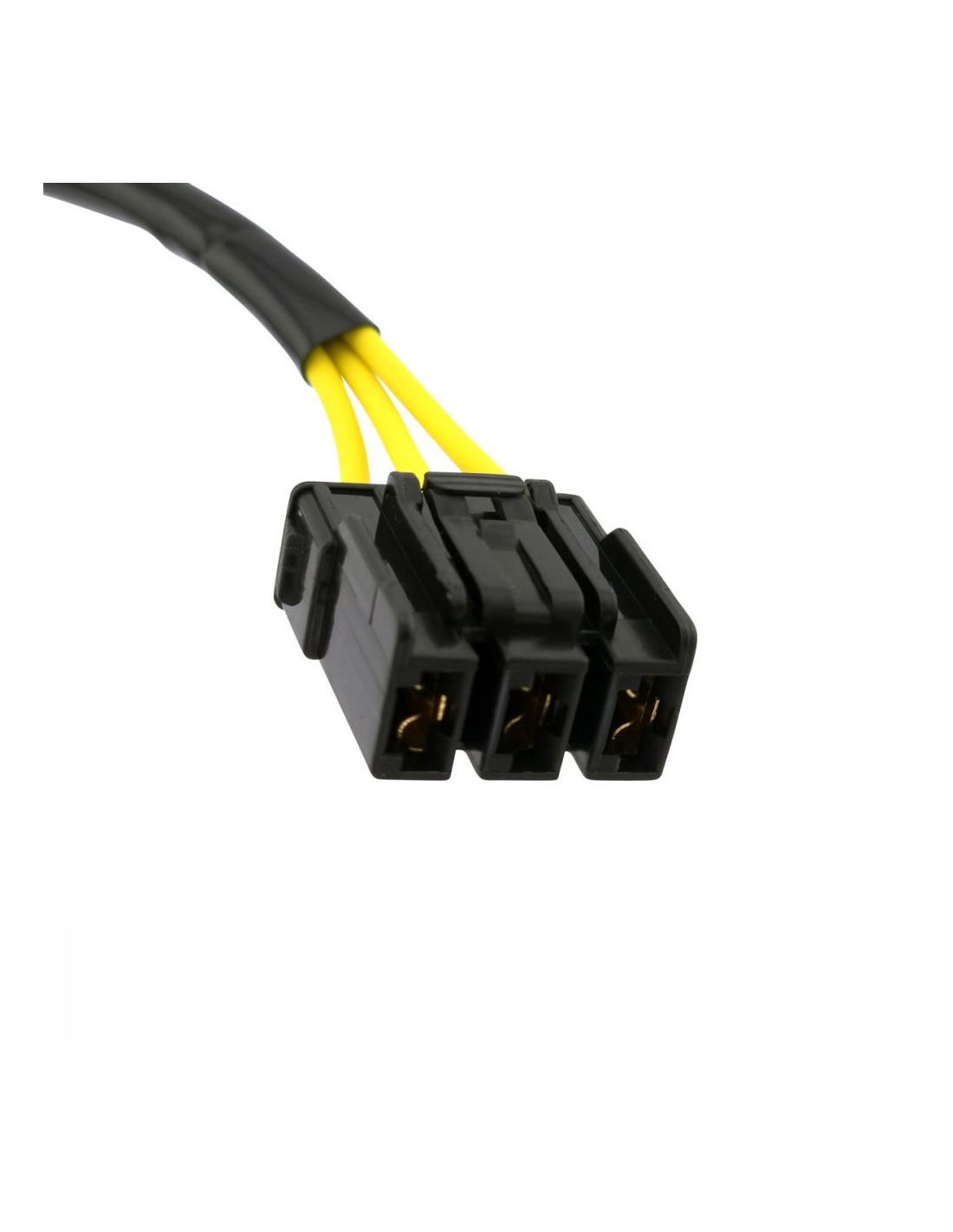

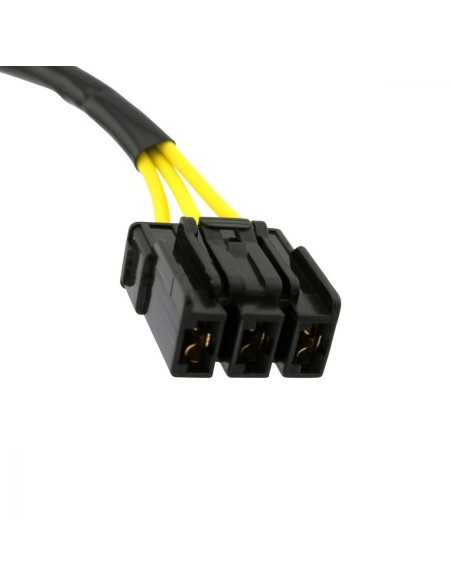

Number of plugs: 2

Number of pins: 5

Number of poles: 15

Wire to wire resistance:

Alternator: Yellow to Yellow = 0.3 ohms +/-20%

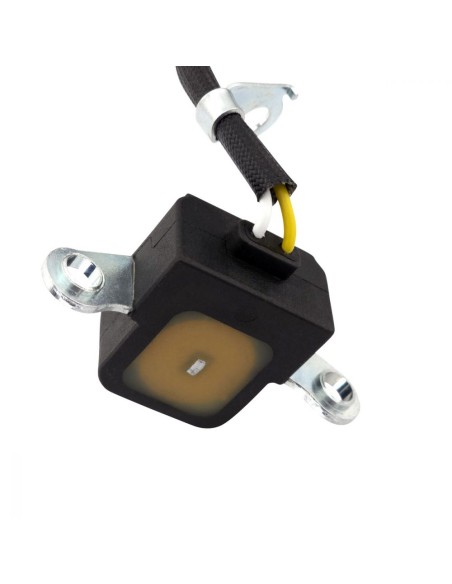

Pickup: Yellow to White/Yellow = 475 ohms +/-20%
