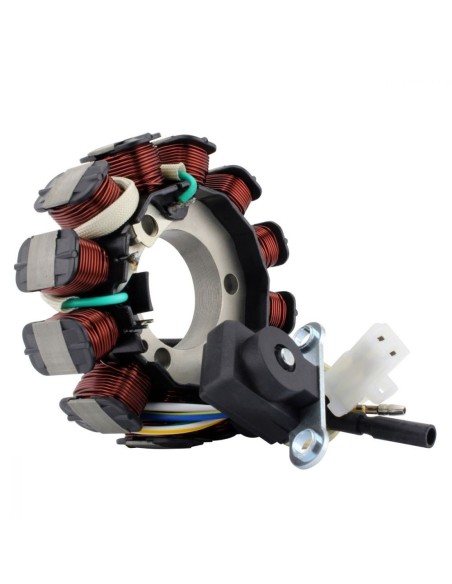

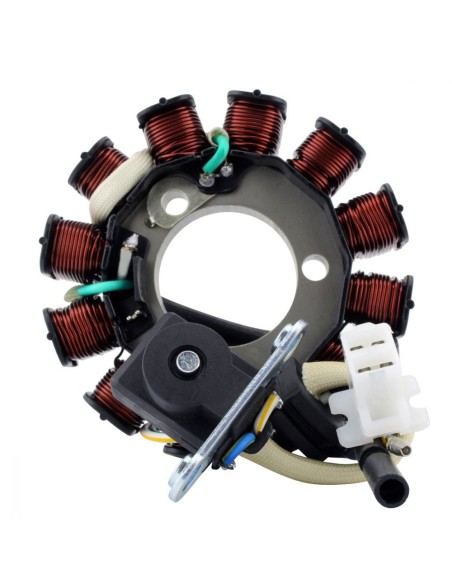

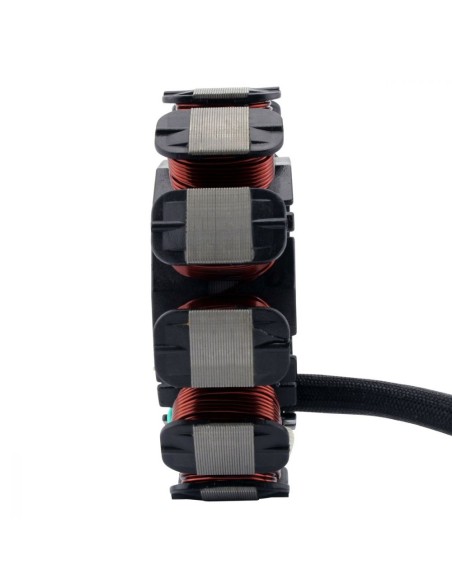

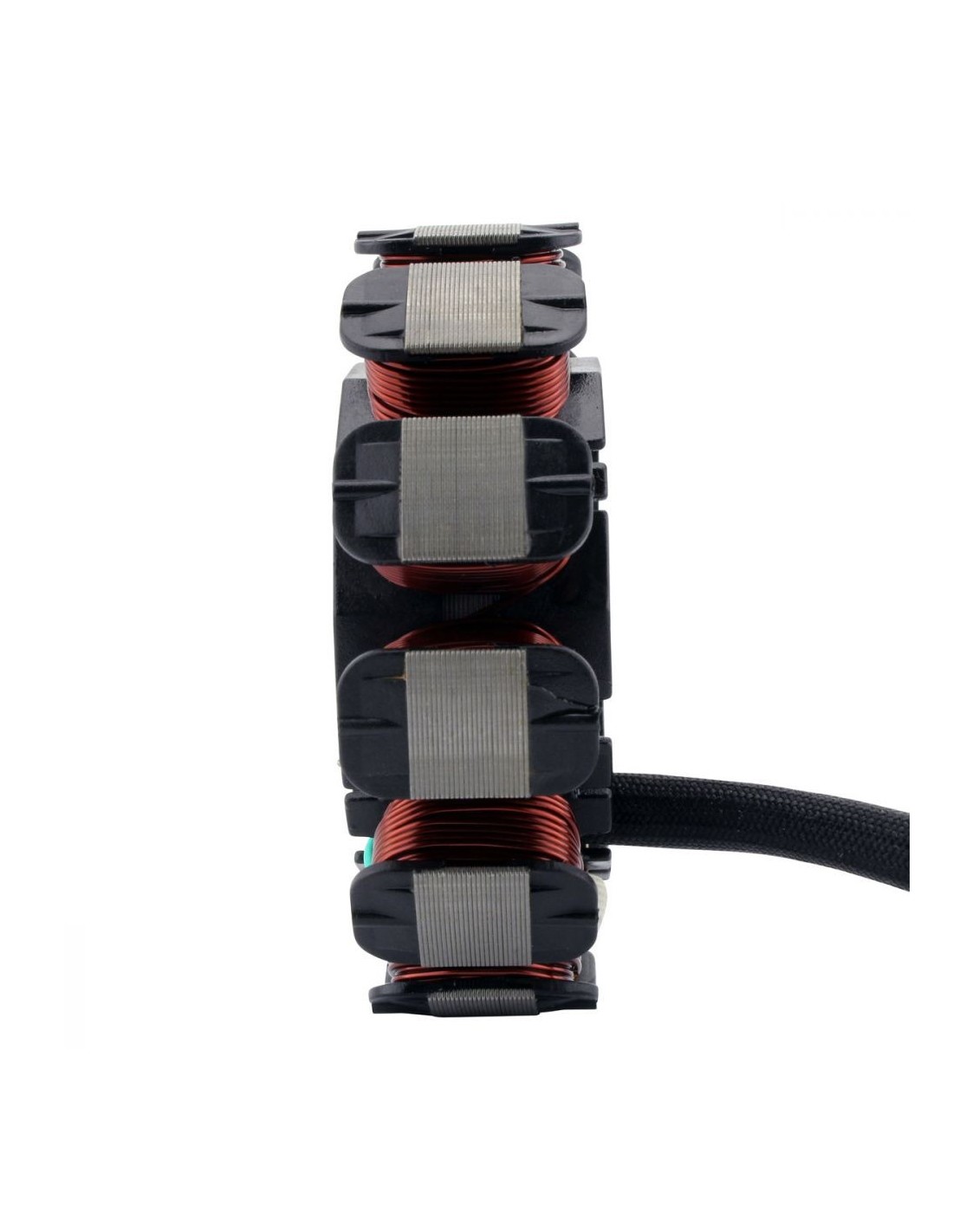

Stator Honda CBF125 OEM 31120-KWF-941
CARMS010-106061
4-5 Days
€64.70
Tax included
OEM 31120-KWF-941
2013 Honda CBF 125
2012 Honda CBF 125
2011 Honda CBF 125
2010 Honda CBF 125
2009 Honda CBF 125
31120-KWF-941
Dimensions:
Interior diameter: 35 mm
Exterior diameter: 92 mm
Thickness: 14 mm
Length of wires stator to grommet: 130 mm
Length of wires grommet to plug: 120 mm

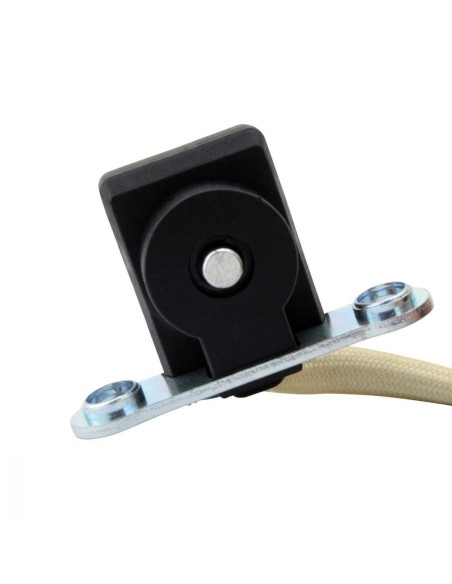

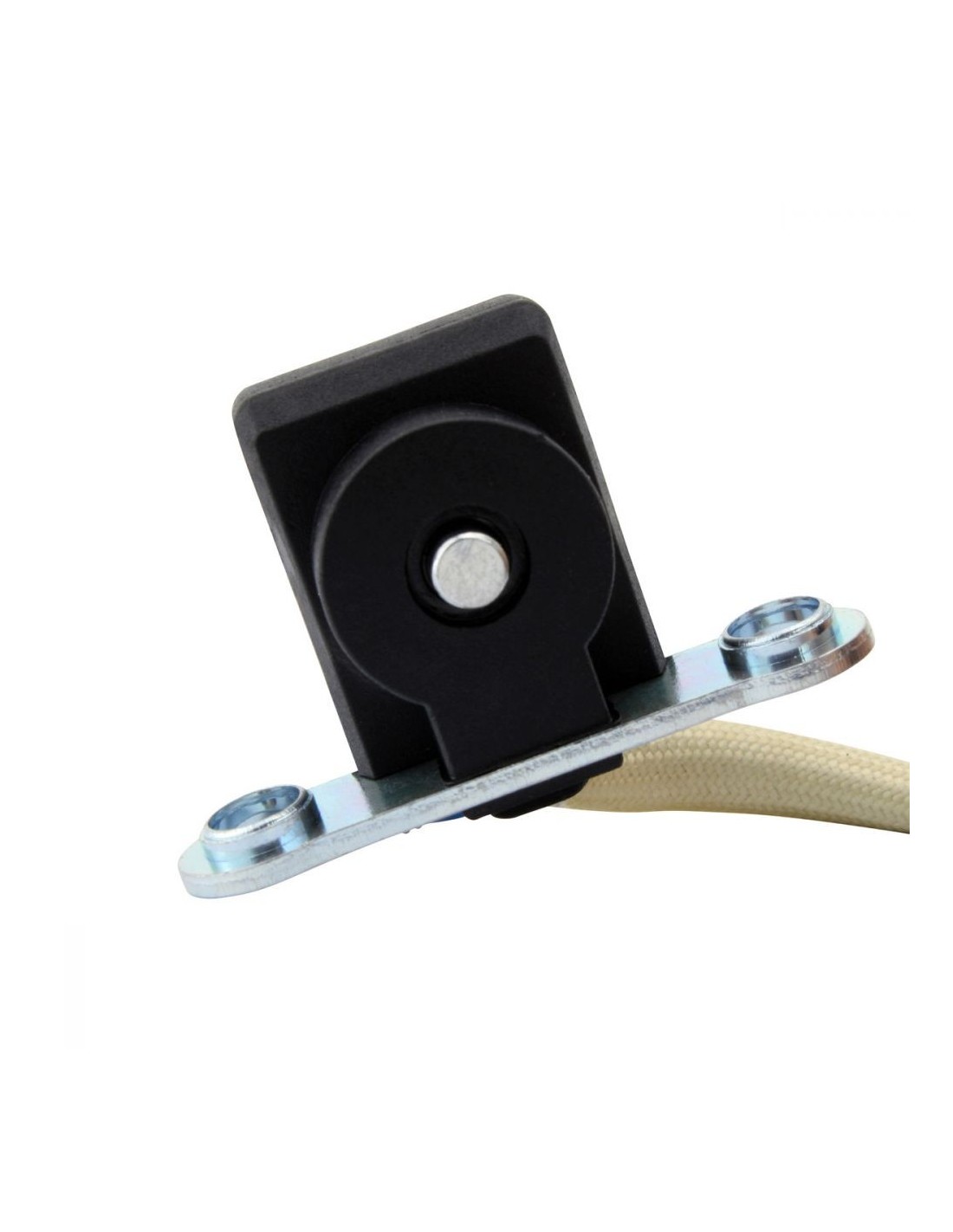

Length of pickup coil's wire to grommet: 90 mm
Other specifications:
Number of wires: 4

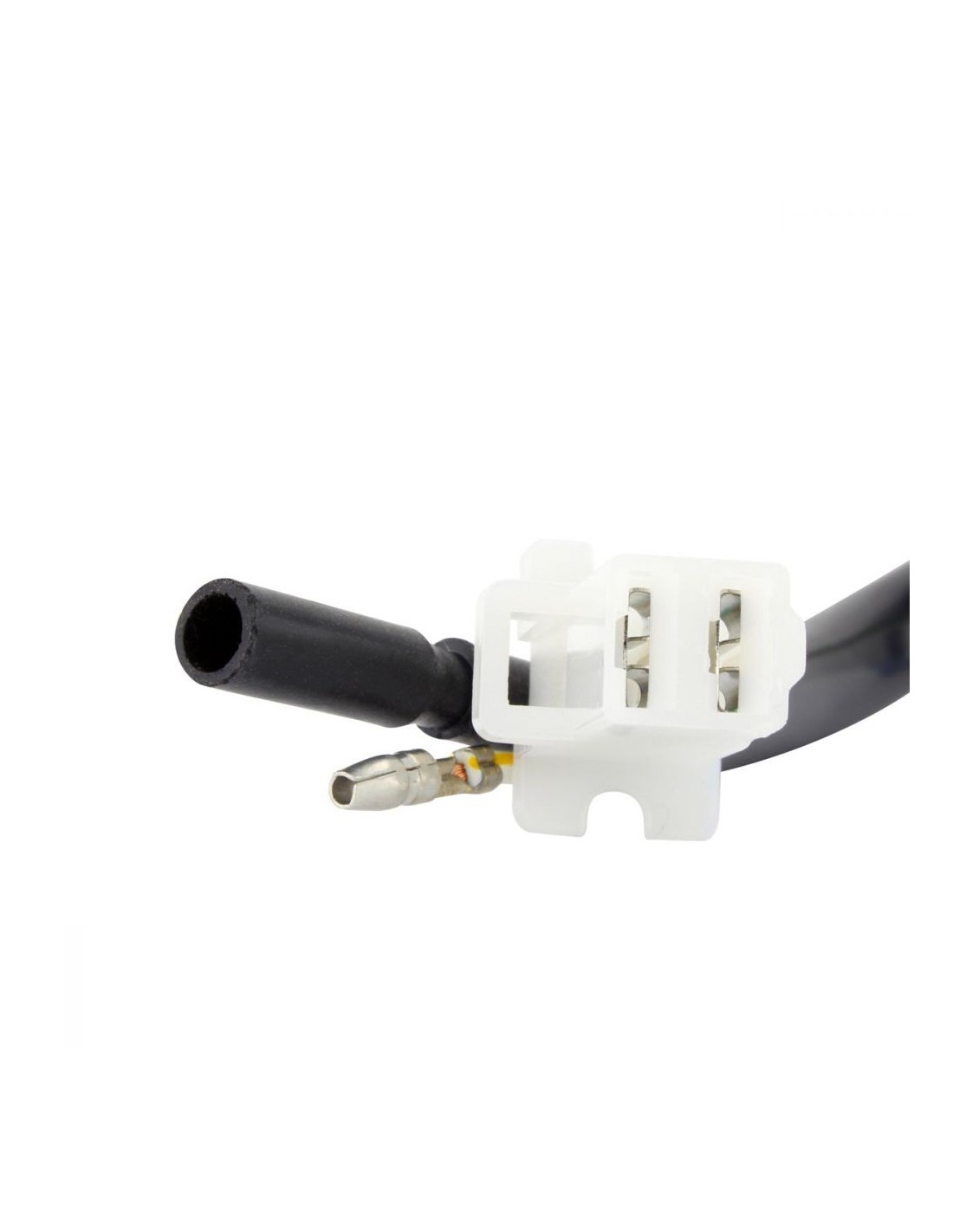

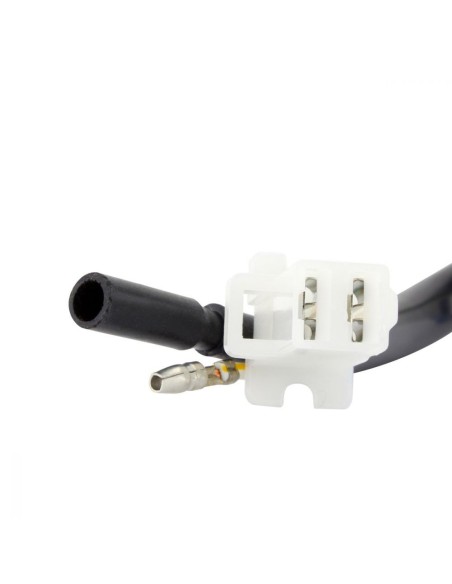

Number of plugs: 3
Number of pins: 4
Number of poles: 12
Wire to wire resistance:
Alternator White to Geen: = 0.9 ohms +-20%
Pickup: White/Yellow to Blue/Yellow = 115 ohms +-20%
