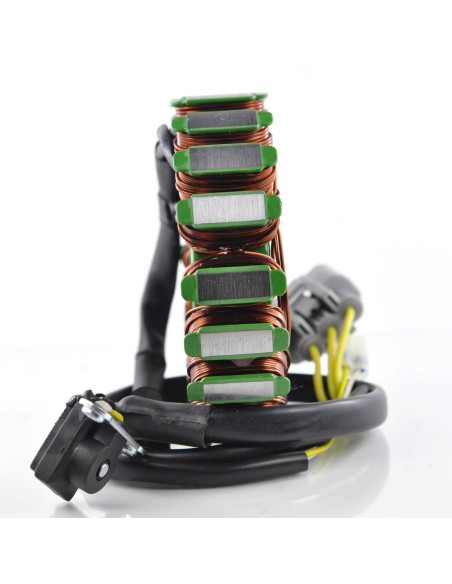

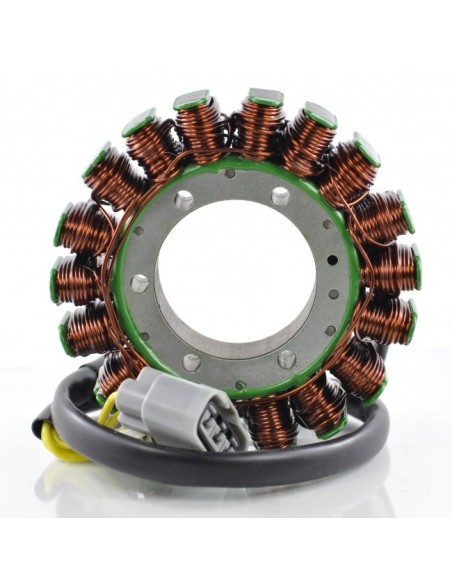

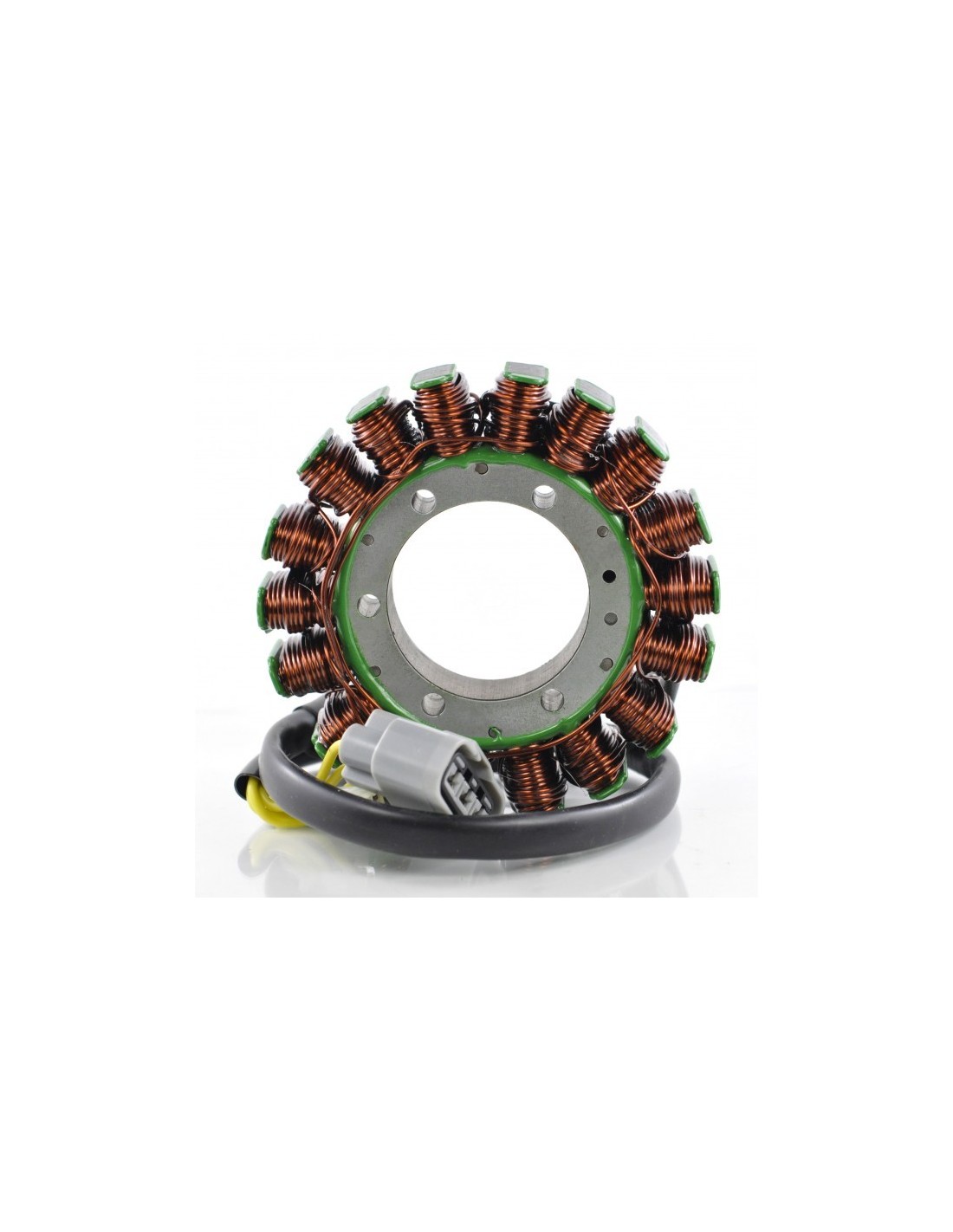

Stator Honda CB500F CB500X CBR500 OEM 31120-MGZ-J01

Stator

2018 Honda CB 500 X
2017 Honda CB 500 X
2016 Honda CB 500 X
2015 Honda CB 500 F
2015 Honda CB 500 X
2015 Honda CBR 500 R
2014 Honda CB 500 F
2014 Honda CB 500 X
2014 Honda CBR 500 R
2013 Honda CB 500 F
2013 Honda CB 500 X
2013 Honda CBR 500 R

OEM 31120-MGZ-J01

Fits Mitsuba charging systems

Dimensions :

Interior diameter : 54 mm

Exterior diameter : 125 mm

Thickness : 25 mm

Length of wires stator to grommet : 80 mm

Length of wires grommet to plug : 50 mm

Length of pickup coil's wire to grommet : 35 mm

Other specifications :

Number of wires : 5

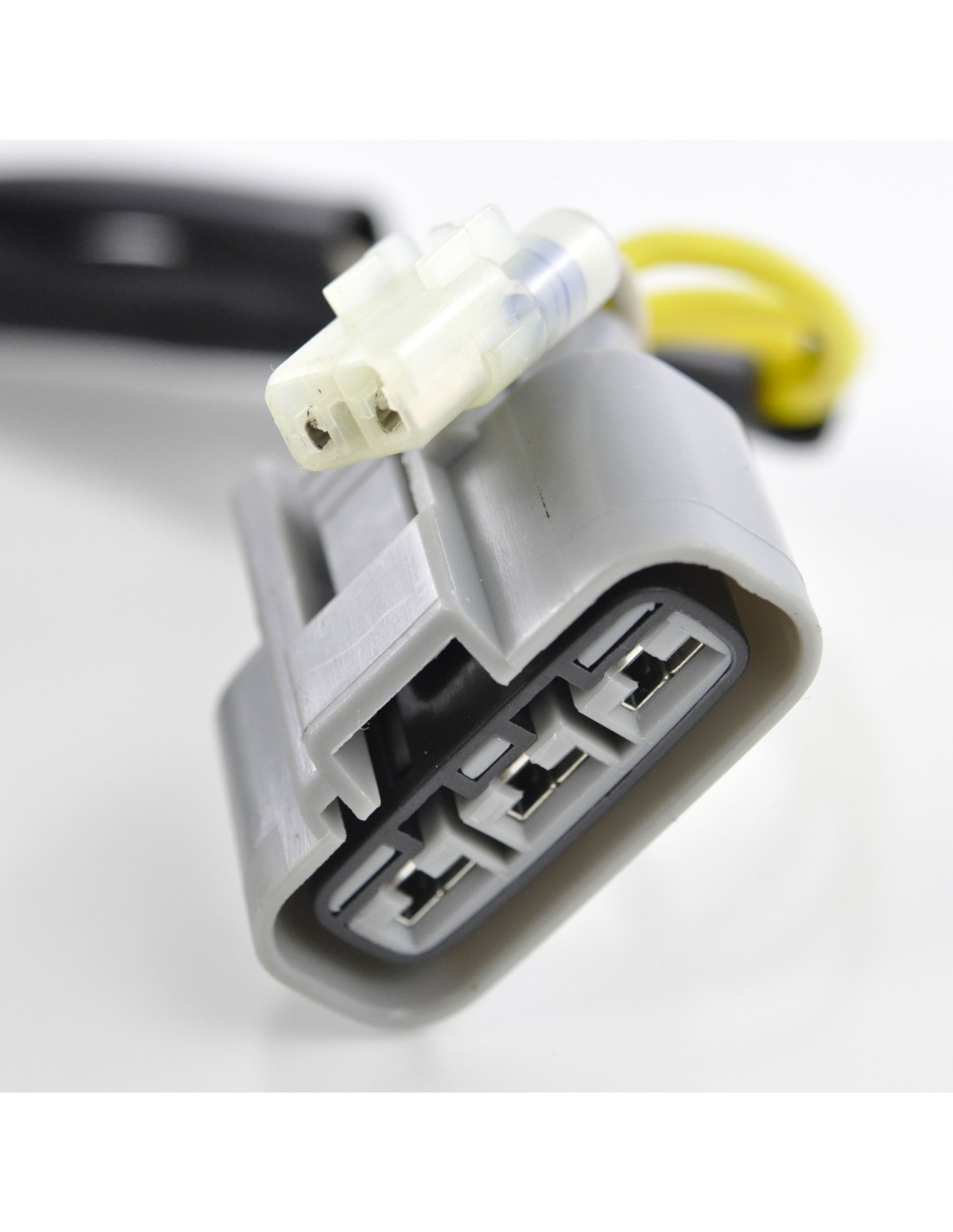

Number of plugs : 2

Number of pins : 5

Wire to wire resistance :

Alternator : Yellow to Yellow = 0.4 ohms +-20%

Pickup : Yellow to White = 120 ohms +-20%
