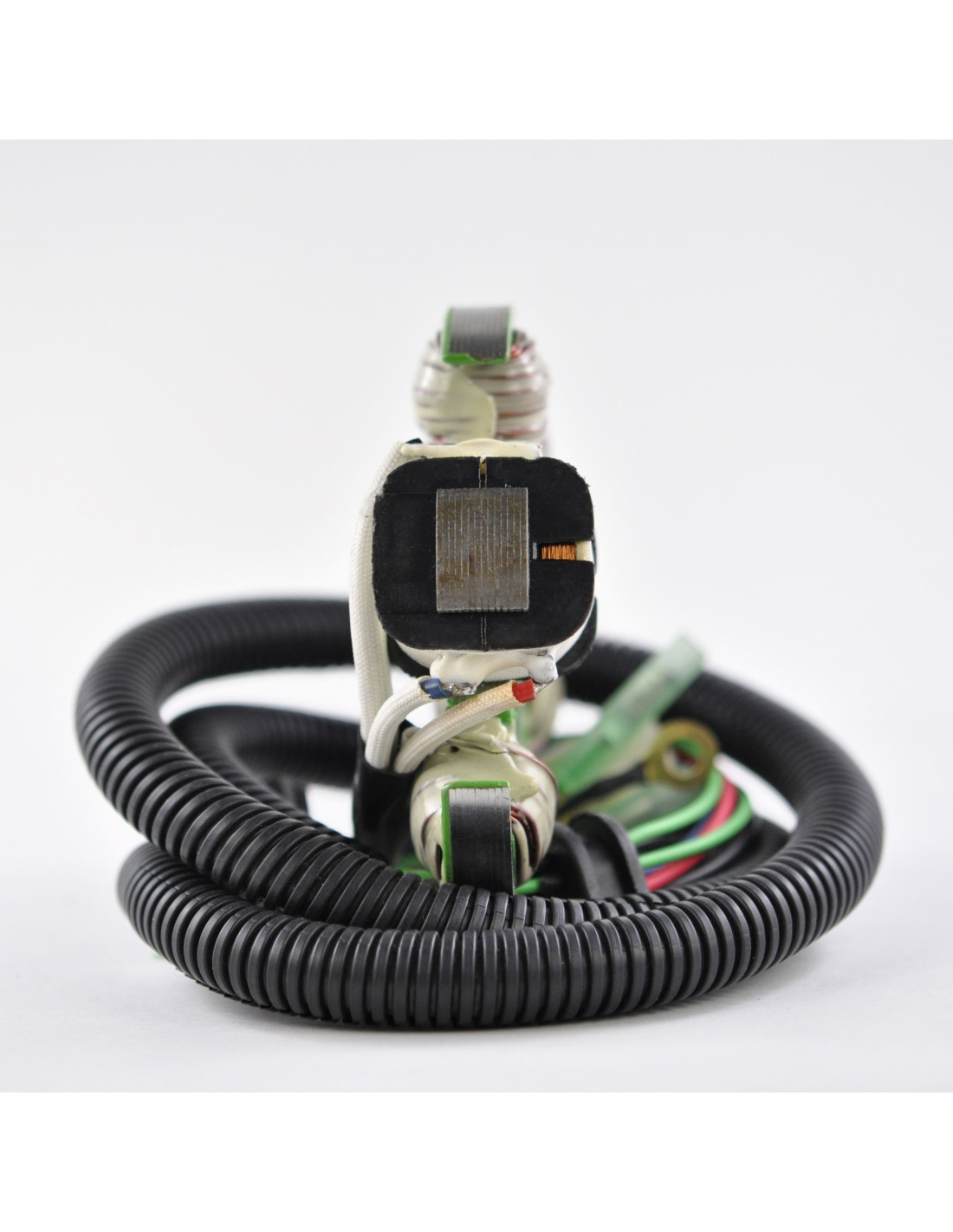

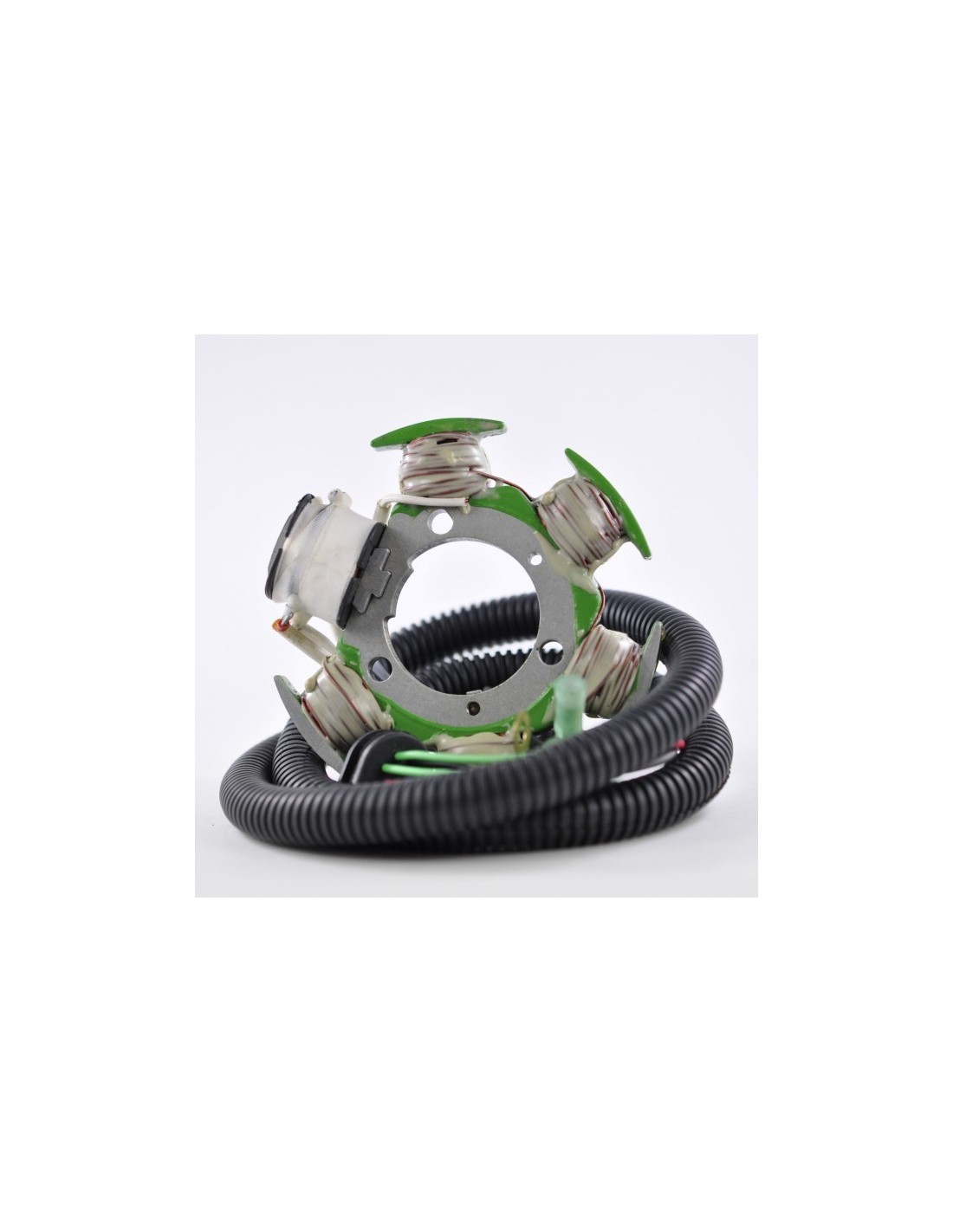

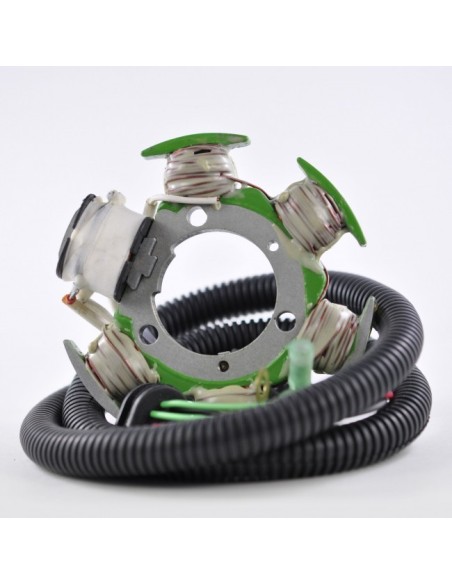

Stator Yamaha AR210 LX210 LX2000 LS2000 Exciter 135 270 Waverunnner XL1200 GP1200 SUV1200 OEM 65U-85510-00-00 65U-85510-01-00

Stator - Highest grade copper windings, resistant to 200 degrees Celsius

2005 Yamaha AR 210
 2005 Yamaha LX 210
2004 Yamaha AR 210
2004 Yamaha LX 210
2004 Yamaha Waverunner SUV 1200
2003 Yamaha AR 210
2003 Yamaha LS 2000
2003 Yamaha LX 210
2003 Yamaha Waverunner SUV 1200
2002 Yamaha LS 2000
2002 Yamaha LX 2000
2002 Yamaha Waverunner SUV 1200
2001 Yamaha LS 2000
2001 Yamaha Waverunner SUV 1200
2000 Yamaha LS 2000
2000 Yamaha Waverunner SUV 1200
1999 Yamaha Exciter 135
 1999 Yamaha Exciter 270
1999 Yamaha LS 2000
1999 Yamaha Waverunner GP 1200
1999 Yamaha Waverunner SUV 1200
1998 Yamaha Exciter 135
1998 Yamaha Exciter 270
1998 Yamaha Waverunner GP 1200
1998 Yamaha Waverunnner XL 1200
1997 Yamaha Waverunner GP 1200

OEM 65U-85510-00-00
65U-85510-01-00



Dimensions :
Interior diameter : 42 mm
Exterior diameter : 107 mm
Thickness : 10 mm
Length of wires stator to 1st grommet : 180 mm
Length of wires between grommets : 765 mm
Length of wires 2nd grommet to plug t : 55 mm

Other specifications :
Number of wires : 6

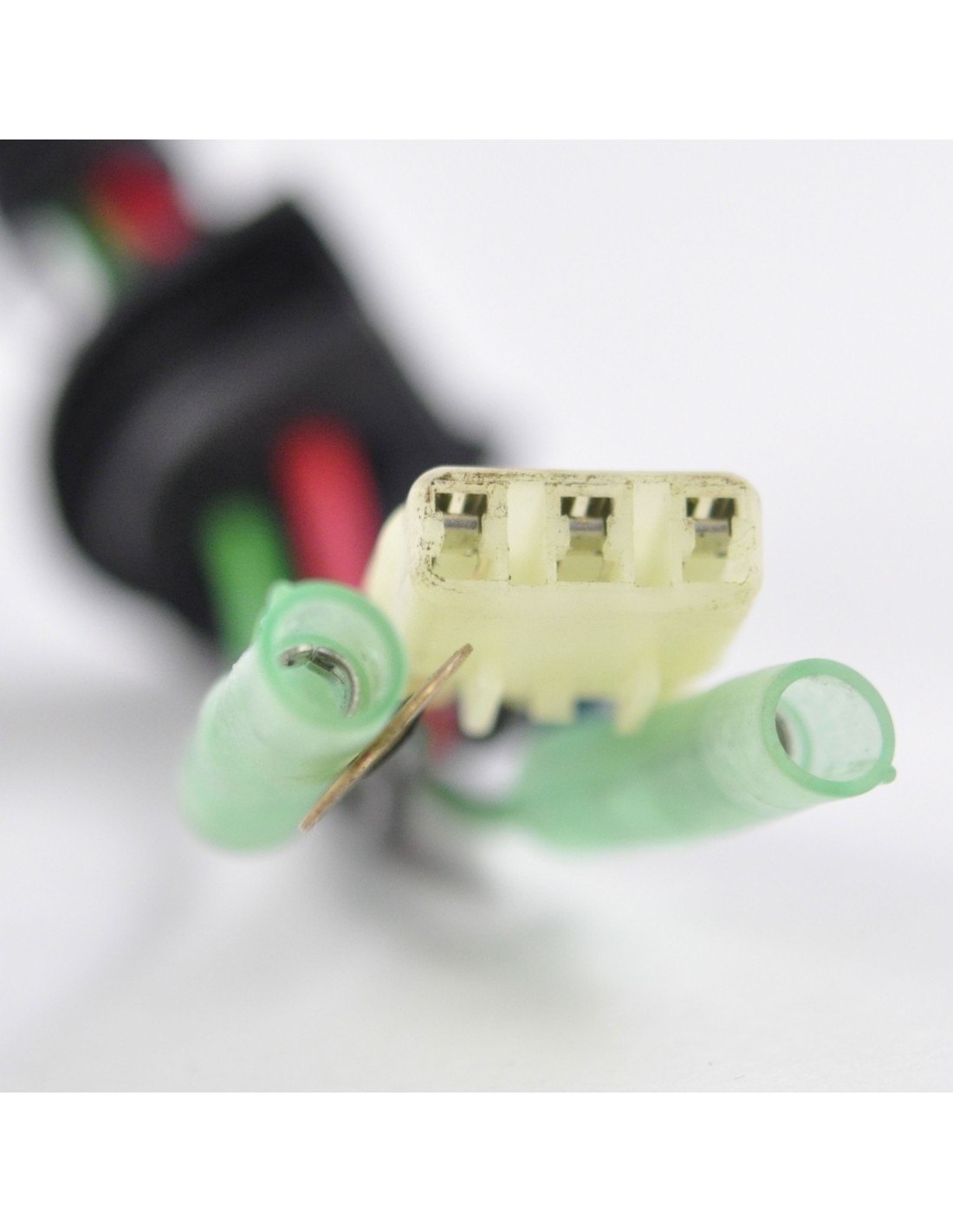

Number of plugs : 4
Number of pins : 6

Wire to wire resistance :
Alternator : Green to Green = 1.0 ohms +/-20%
Source 1 : Black to Blue = 757 ohms +/-20%
Source 2 : Black to Red = 183 ohms +/-20%
