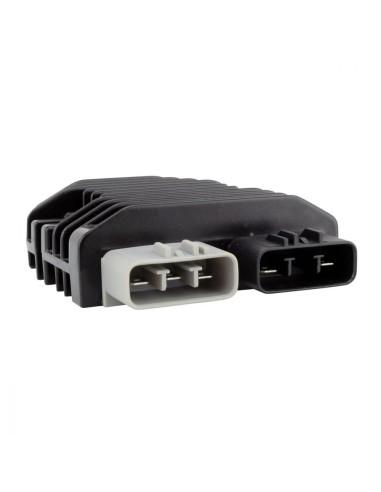

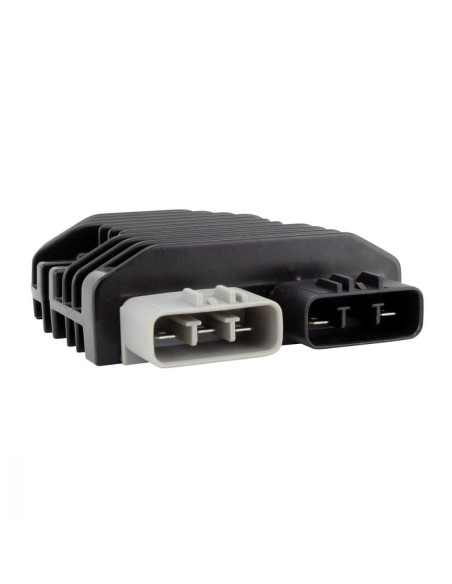

Regulator Rectifier Mosfet Lithium Arctic Cat OEM 0824-072 0824-078

Regulator Rectifier Mosfet Lithium-Ion

2024 Arctic Cat ZR 9000 RR EFI L/C

2024 Arctic Cat ZR 7000 LTD EFI L/C

2024 Arctic Cat Wildcat XX 1000 EFI L/C

2024 Arctic Cat Pantera 7000

2024 Arctic Cat Alterra 600

2023 Arctic Cat Wildcat XX 1000 EFI L/C

2023 Arctic Cat Alterra 600

2022 Arctic Cat Wildcat XX 1000 EFI L/C

2022 Arctic Cat Alterra 700

2022 Arctic Cat Alterra 600

2021 Arctic Cat Wildcat XX 1000 EFI L/C

2021 Arctic Cat TRV 700

2021 Arctic Cat Alterra 700

2021 Arctic Cat Alterra 570

2020 Textron Wildcat Trail 700

2020 Arctic Cat Wildcat XX 1000 EFI L/C

2020 Arctic Cat TBX 700

2020 Arctic Cat Alterra TRV 700

2020 Arctic Cat Alterra 700

2020 Arctic Cat Alterra 570

2019 Arctic Cat TRV 700

2019 Arctic Cat TBX 700

2018 Textron Wildcat XX 1000 EFI L/C

2018 Textron Wildcat X 1000

2018 Textron Wildcat Trail 700

2018 Textron Wildcat Sport 700

2018 Textron Wildcat 4X 1000

2018 Textron Alterra 700

2018 Arctic Cat VLX 700

2018 Arctic Cat TBX 700

2017 Arctic Cat ZR 9000 LTD EFI L/C

2017 Arctic Cat ZR 7000 LTD EFI L/C

2017 Arctic Cat XF 9000 LXR EFI L/C

2017 Arctic Cat XF 7000 LXR Sno Pro EFI L/C

2017 Arctic Cat Wildcat Trail 700

2017 Arctic Cat Wildcat Sport 700

2017 Arctic Cat VLX 700

2017 Arctic Cat TRV 1000

2017 Arctic Cat TBX 700

2017 Arctic Cat Prowler 700

2017 Arctic Cat Prowler 1000

2017 Arctic Cat Pantera 7000

2017 Arctic Cat Mudpro 700

2017 Arctic Cat Mudpro 1000

2017 Arctic Cat HDX 700

2017 Arctic Cat HDX 500

2017 Arctic Cat Bearcat 7000 XT

2017 Arctic Cat Alterra TRV 700

2017 Arctic Cat Alterra TRV 550

2017 Arctic Cat Alterra TRV 1000

2017 Arctic Cat Alterra 700

2017 Arctic Cat 1000 XT

2016 Arctic Cat ZR 9000 LTD EFI L/C

2016 Arctic Cat ZR 7000 LTD EFI L/C

2016 Arctic Cat XF 7000 LXR Sno Pro EFI L/C

2016 Arctic Cat Wildcat X 1000

2016 Arctic Cat Wildcat Trail 700

2016 Arctic Cat Wildcat Sport 700

2016 Arctic Cat Wildcat 4X 1000

2016 Arctic Cat TRV 700

2016 Arctic Cat TBX 700

2016 Arctic Cat Prowler 700

2016 Arctic Cat Prowler 1000

2016 Arctic Cat Pantera 7000

2016 Arctic Cat Mudpro 700

2016 Arctic Cat Mudpro 1000

2016 Arctic Cat M 7000

2016 Arctic Cat HDX 700

2016 Arctic Cat HDX 500

2016 Arctic Cat Bearcat 7000 XT

2016 Arctic Cat Alterra 700

2016 Arctic Cat Alterra 550

2016 Arctic Cat 1000 XT

2015 Arctic Cat ZR 7000 LTD EFI L/C

2015 Arctic Cat XR 700

2015 Arctic Cat XR 550

2015 Arctic Cat XF 7000 LXR Sno Pro EFI L/C

2015 Arctic Cat Wildcat X 1000

2015 Arctic Cat Wildcat Trail 700

2015 Arctic Cat Wildcat Sport 700

2015 Arctic Cat Wildcat 4X 1000

2015 Arctic Cat Wildcat 1000

2015 Arctic Cat TRV 700

2015 Arctic Cat TRV 550

2015 Arctic Cat TRV 1000

2015 Arctic Cat TBX 700

2015 Arctic Cat Prowler 700

2015 Arctic Cat Prowler 550

2015 Arctic Cat Prowler 500

2015 Arctic Cat Prowler 1000

2015 Arctic Cat Pantera 7000

2015 Arctic Cat Mudpro 700

2015 Arctic Cat Mudpro 1000

2015 Arctic Cat M 7000

2015 Arctic Cat 1000 XT

2014 Arctic Cat ZR 7000 LTD EFI L/C

2014 Arctic Cat XF 7000 LXR Sno Pro EFI L/C

2014 Arctic Cat Wildcat X 1000

2014 Arctic Cat Wildcat Trail 700

2014 Arctic Cat Wildcat 4X 1000

2014 Arctic Cat Wildcat 4 1000

2014 Arctic Cat Wildcat 1000

2014 Arctic Cat TRV 700

2014 Arctic Cat TRV 550

2014 Arctic Cat TRV 1000

2014 Arctic Cat TBX 700

2014 Arctic Cat Prowler 700

2014 Arctic Cat Prowler 500

2014 Arctic Cat Mudpro 700

2014 Arctic Cat Mudpro 1000

2014 Arctic Cat 700

2014 Arctic Cat 550 EFI F/C

2013 Arctic Cat Wildcat X 1000

2013 Arctic Cat Wildcat 4 1000

2013 Arctic Cat Wildcat 1000

2013 Arctic Cat TRV 700

2013 Arctic Cat TRV 1000

2013 Arctic Cat TBX 700

2013 Arctic Cat Prowler 700

2013 Arctic Cat Mudpro 700

2013 Arctic Cat Mudpro 1000

2013 Arctic Cat 700

OEM 0824-072 0824-078

• It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

  Improved heat sink and charging capabilities

  Before installing your new voltage regulator rectifier:
  Check the AC output of the stator.
  Replace any burned or corroded connectors on stator and regulator/rectifier
  Check and repair any melted wiring.
  Use hi-temp dielectric grease on all connectors.
•
  This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
  Brand new Mosfet voltage regulator rectifier
  WORKS WITH LITHIUM BATTERIES ONLY
  STOP BURNING YOUR REGULATOR RECTIFIER!
  It is time to update or replace your voltage regulator with the advanced MOSFET type.
  It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
  Direct replacement to your original unit.
  Plug-and-play, direct fit, easy installation.
  The quality exceeds the OEM equipment
  Higher grade of electric components.
  All shipped products are tested. All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

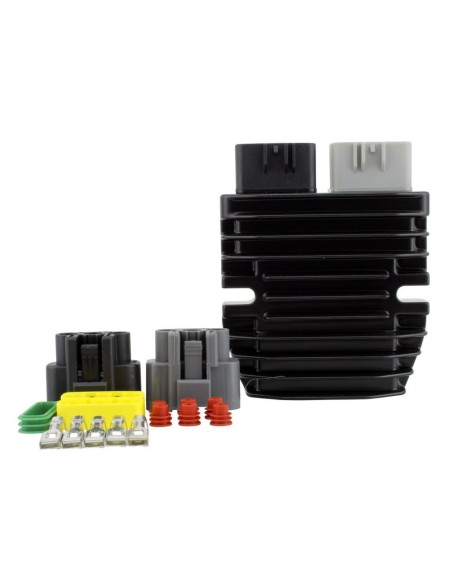

  We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
  *All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.
  Why do you need a different voltage regulator for lithium batteries?
  Lithium batteries have different charging requirements than Lead Acid or AGM batteries that can severely affect their lifespan and performance. The key factors in safe and reliable lithium battery charging are the output DC voltage ripple and average output voltage. The regulator is designed around the optimal parameters for these factors.
  The ripple effect is all that matters
  Charging voltage ripple in a powersports application is the difference between the highest and lowest voltages from the voltage regulator output. By nature, a common shunt style voltage regulator will have a fairly high voltage ripple due to the regulation shunt switches opening and closing frequently. Each on/off transition will cause some variation in the output voltage, this is unavoidable. Keeping this to minimum is critical for Lithium batteries, and the RMSTATOR Lithium regulator is designed around this feature.
  In a perfect world, a ripple of less than 10% of the output voltage (~1.5V for a typical regulator), would be ideal, however is not practical for this type of regulator. The  Lithium regulator is able to maintain a less than 4 Volts output ripple, compared to verified test results of our competitors 8 volts. Keep in mind this ripple voltage is only seen via an Oscilloscope sampling the voltage 1000’s of times a second, and is not the same as your average charging voltage as measured by a multimeter.
  PLEASE NOTE : This universal voltage regulator is ONLY for lithium batteries THIS IS NOT FOR LEAD ACID BATTERIES. Output Voltage is the key factor in a voltage regulator designed specifically for Lithium batteries. The ideal charging voltage for Lithium batteries is 13.9-14.2VDC. The RMSTATOR regulator has a carefully set output voltage of 14.1VDC (+/- 0.1VDC). This stable and ideal output voltage carefully keeps a lithium battery in it’s ideal charging range.
  Please contact the manufacturer of your Lithium Ion Battery to ensure our product has the correct set point for their product
  Protect your investment in an expensive lithium battery with our lithium battery voltage regulator!
