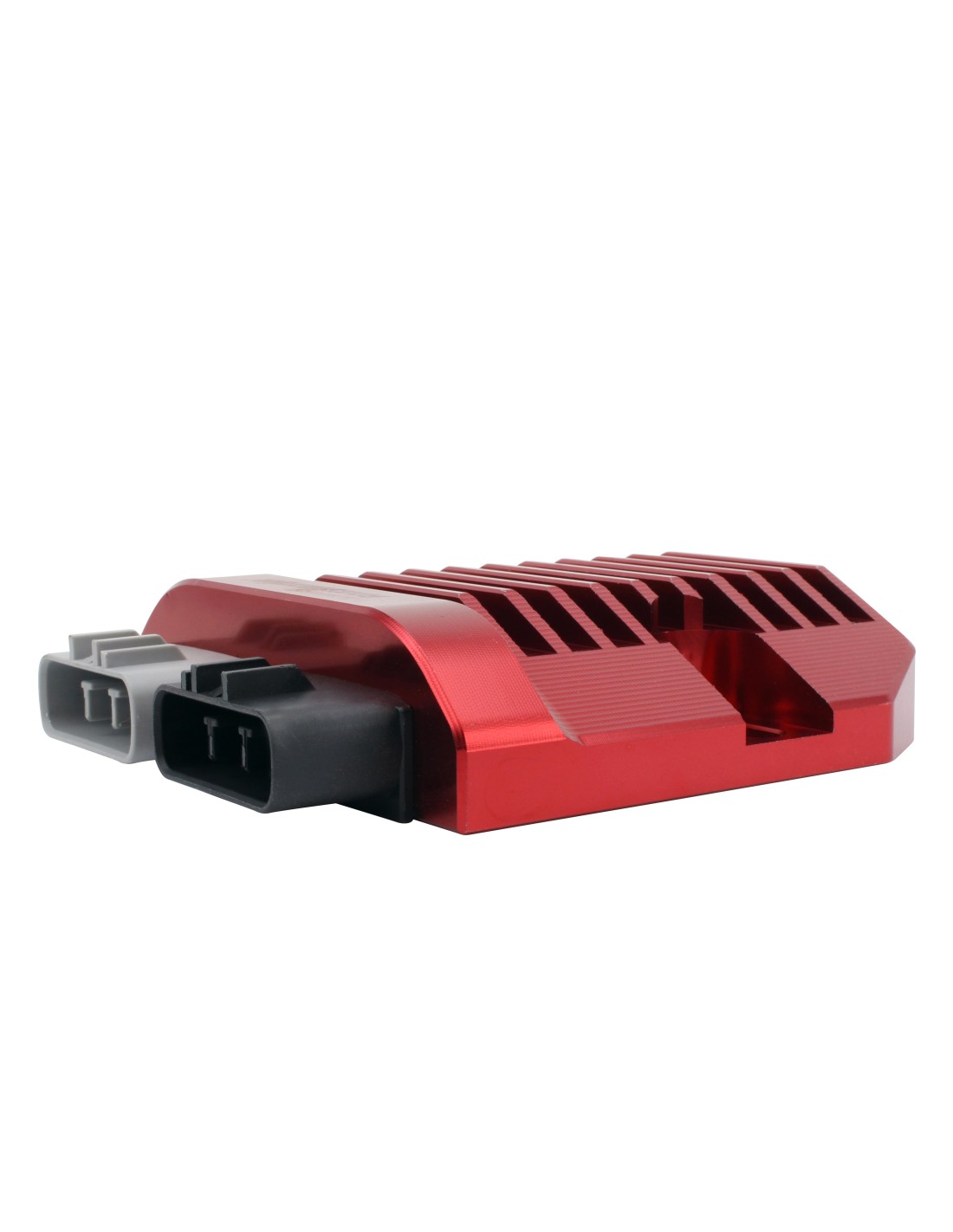

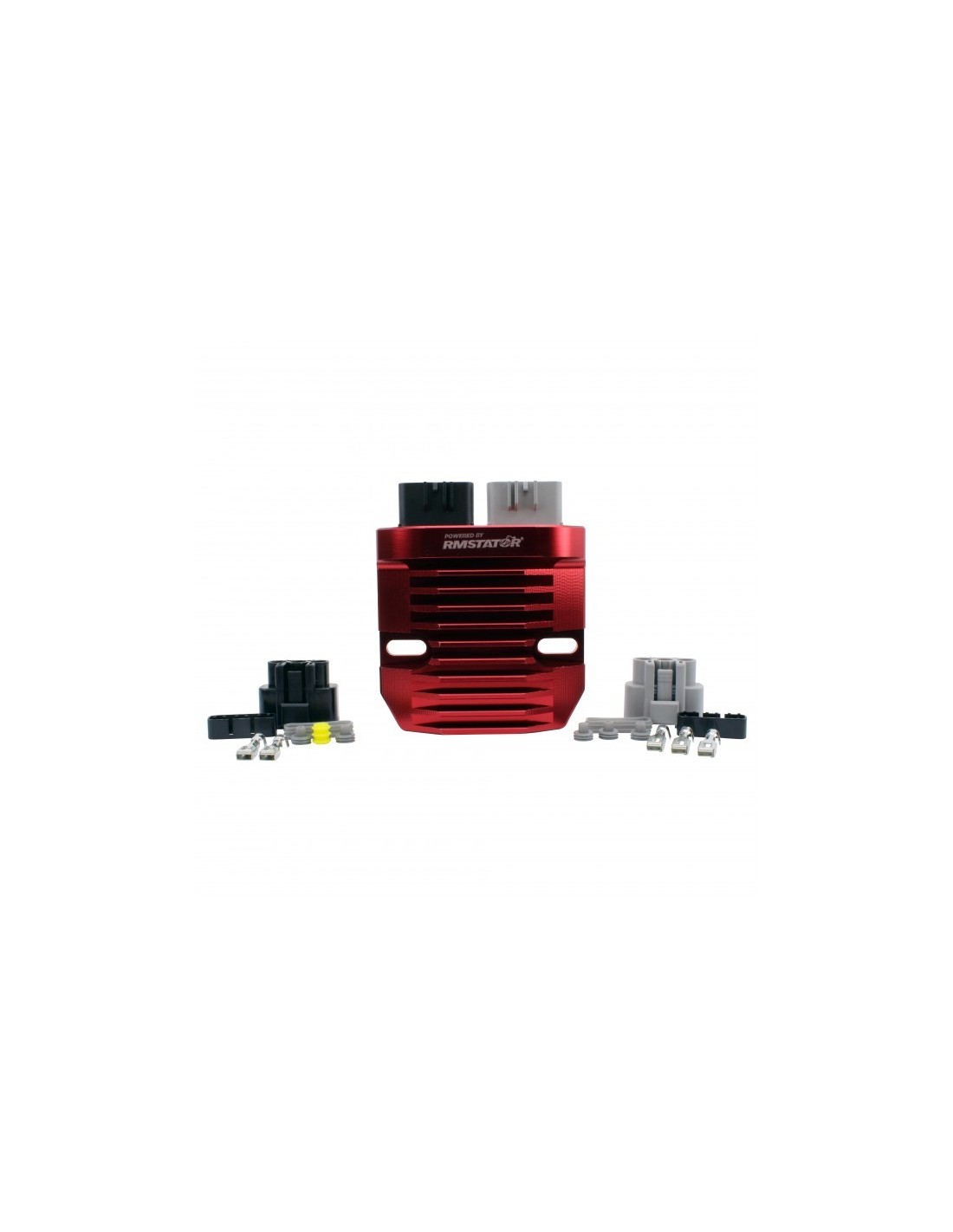

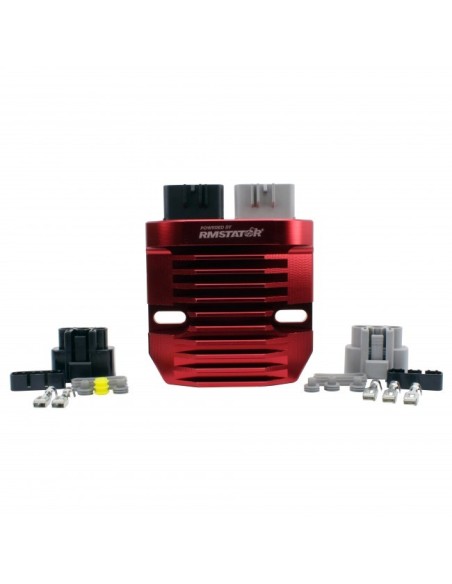

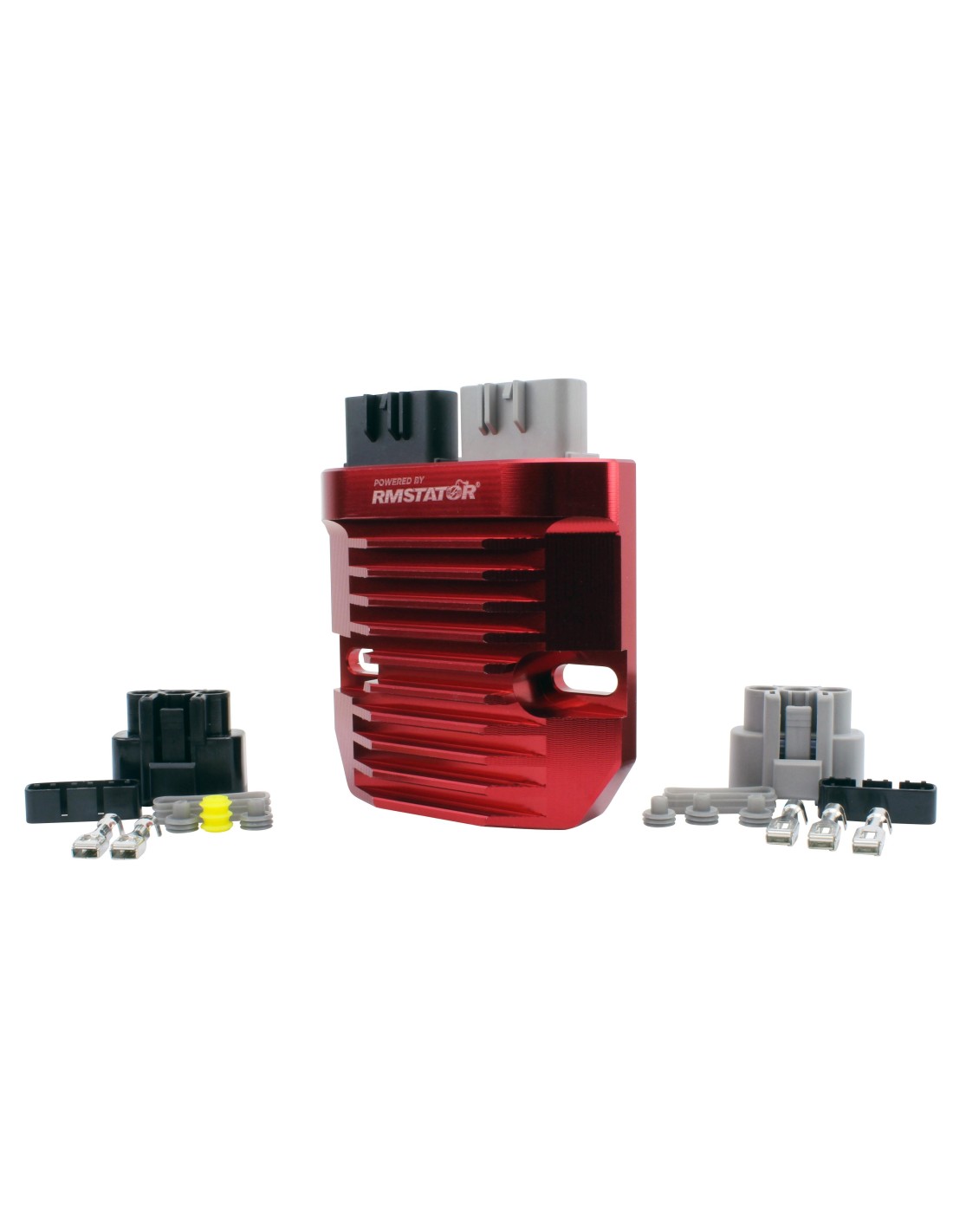

Alu Mosfet Regulator Arctic Cat 550 700 1000XT XR550 700 Alterra 550 700 TRV550 700 1000 TBX700 Mudpro OEM 0824-072 0824-078
CARMS022-105928
5-7 Days
€162.00
Tax included
OEM 0824-072 0824-078
- Regulator Rectifier
-
2019 Arctic Cat TBX 700
2019 Arctic Cat TRV 700
2018 Arctic Cat Alterra 700
2018 Arctic Cat TBX 700
2018 Arctic Cat VLX 700
2017 Arctic Cat 1000 XT
2017 Arctic Cat Alterra 700
2017 Arctic Cat Alterra TRV 1000
2017 Arctic Cat Alterra TRV 550
2017 Arctic Cat Alterra TRV 700
2017 Arctic Cat HDX 500
2017 Arctic Cat HDX 700
2017 Arctic Cat Mudpro 1000
2017 Arctic Cat Mudpro 700
2017 Arctic Cat TBX 700
2017 Arctic Cat VLX 700
2016 Arctic Cat 1000 XT
2016 Arctic Cat Alterra 550
2016 Arctic Cat Alterra 700
2016 Arctic Cat HDX 500
2016 Arctic Cat HDX 700
2016 Arctic Cat Mudpro 1000
2016 Arctic Cat Mudpro 700
2016 Arctic Cat TBX 700
2016 Arctic Cat TRV 700
2015 Arctic Cat 1000 XT
2015 Arctic Cat Mudpro 1000
2015 Arctic Cat Mudpro 700
2015 Arctic Cat TBX 700
2015 Arctic Cat TRV 1000
2015 Arctic Cat TRV 550
2015 Arctic Cat TRV 700
2015 Arctic Cat XR 550
2015 Arctic Cat XR 700
2014 Arctic Cat 700
2014 Arctic Cat TRV 700
2014 Arctic Cat TRV 550
2014 Arctic Cat TRV 1000
2014 Arctic Cat TBX 700
2014 Arctic Cat Mudpro 700
2014 Arctic Cat Mudpro 1000
2014 Arctic Cat 550 EFI F/C
2013 Arctic Cat 700
2013 Arctic Cat TRV 700
2013 Arctic Cat TRV 1000
2013 Arctic Cat TBX 700
2013 Arctic Cat Mudpro 700
2013 Arctic Cat Mudpro 1000
OEM 0824-072
0824-078 - It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
Improved heat sink and charging capabilities
Before installing your new voltage regulator rectifier:
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors. -
Dimensions:
Width: 103 mm
Length: 103 mm
Height: 28 mm
Fixation holes center to center: 80 mm
Other specifications:

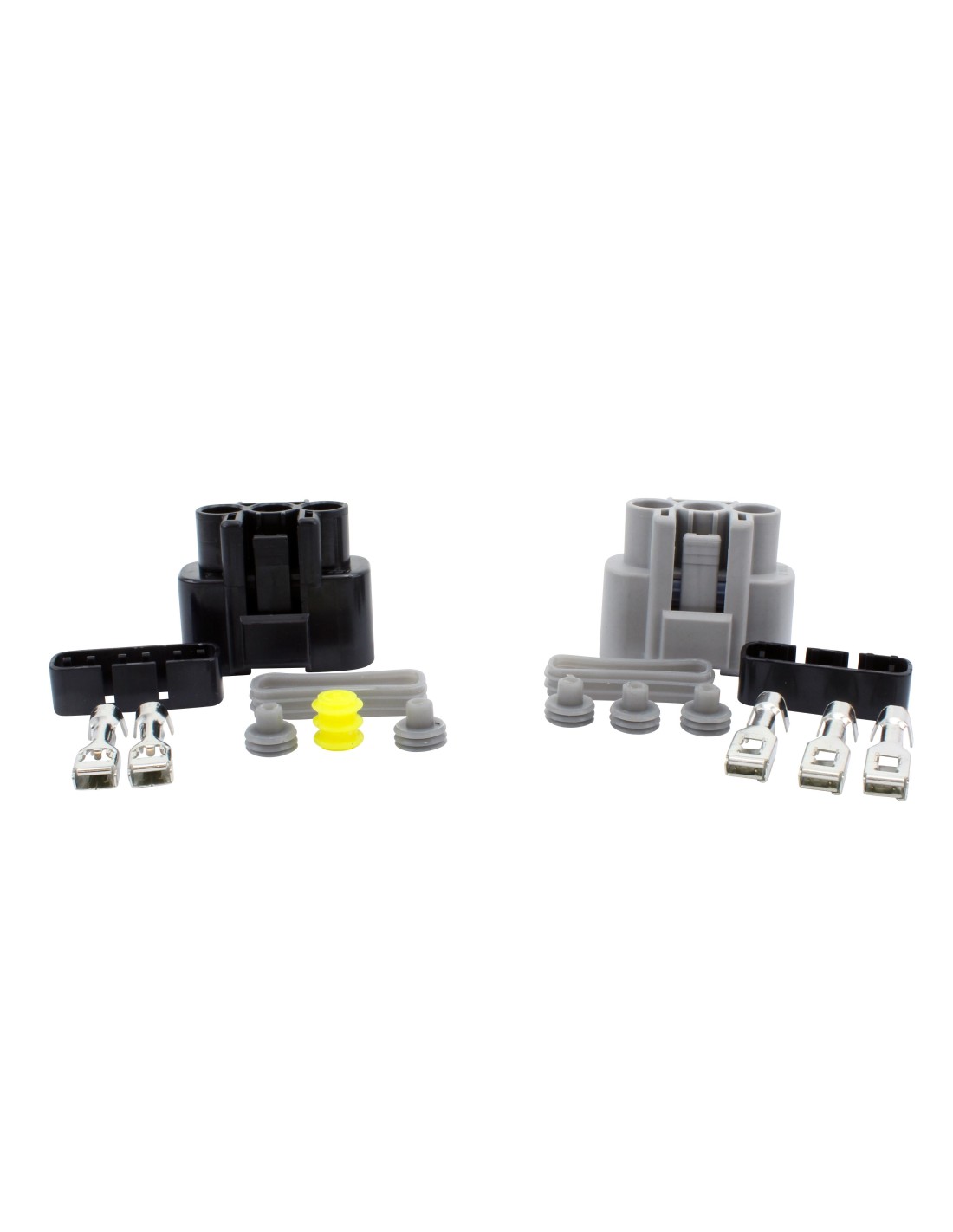

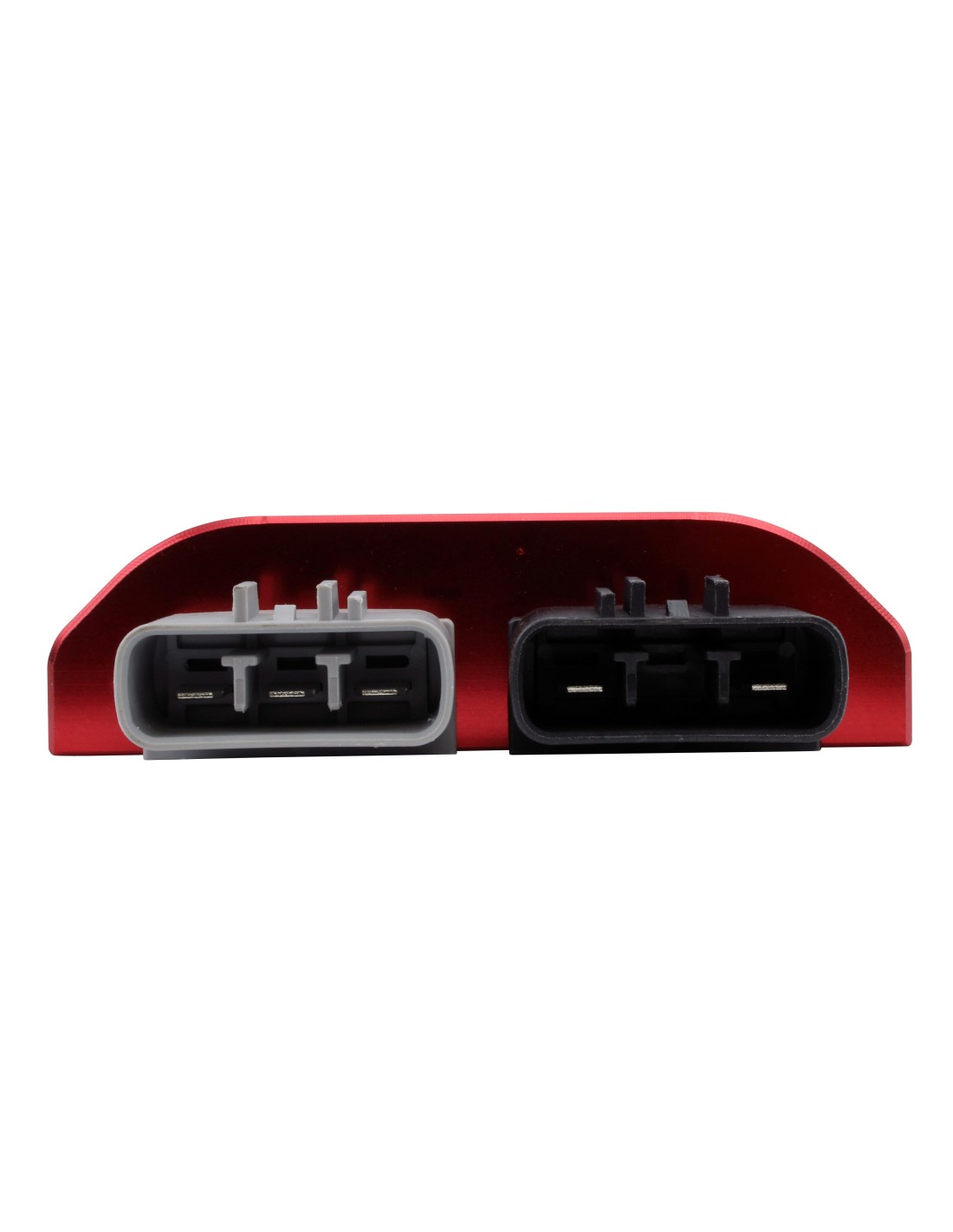

Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20⁰ to 85⁰ -
Our new machined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.
