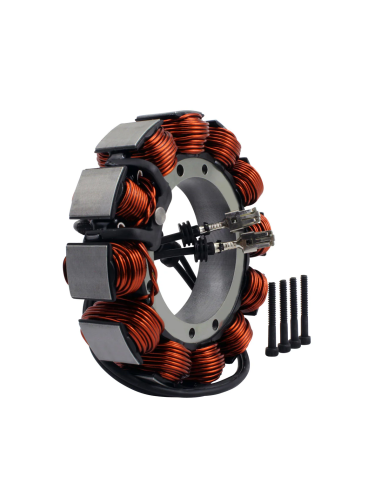

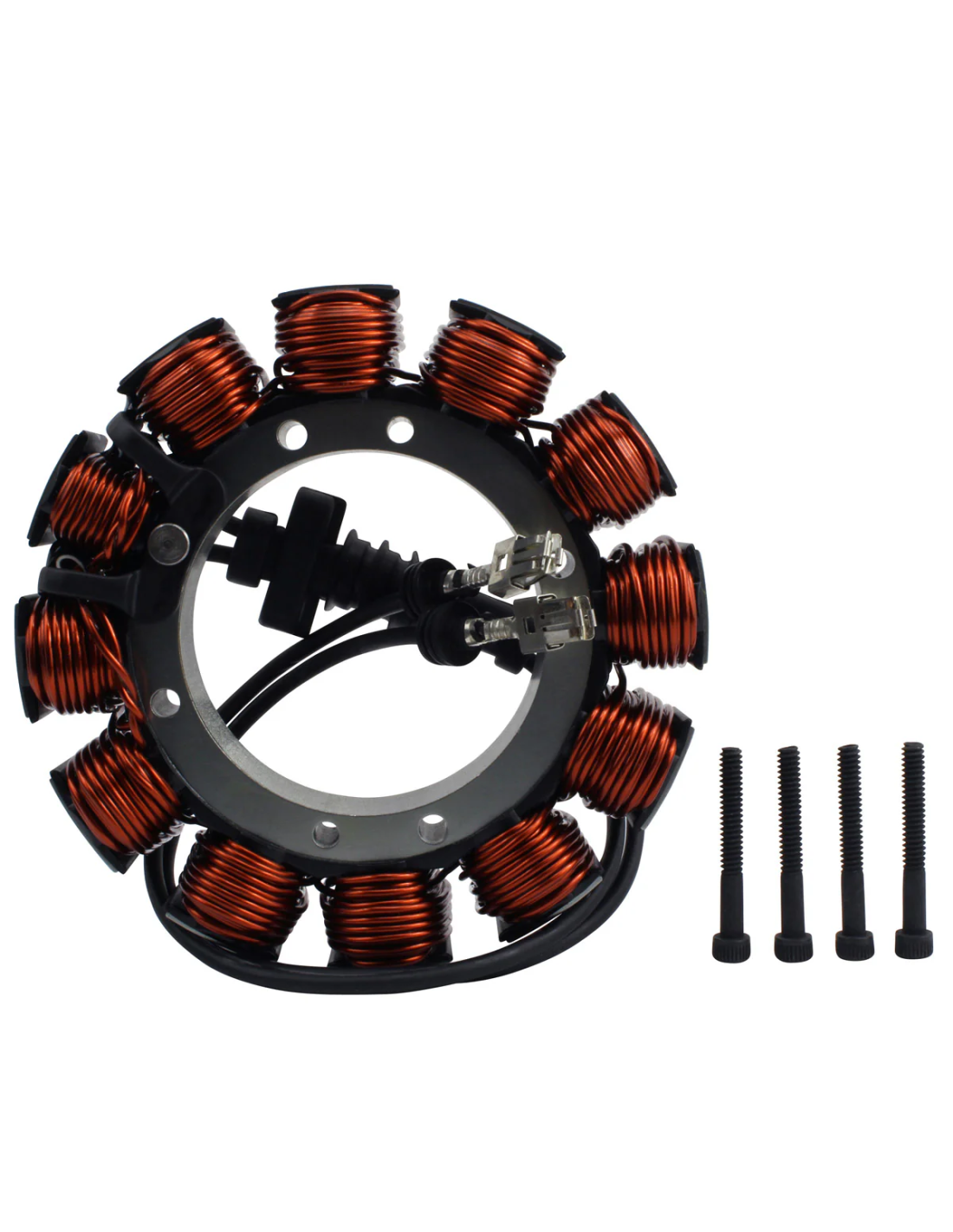

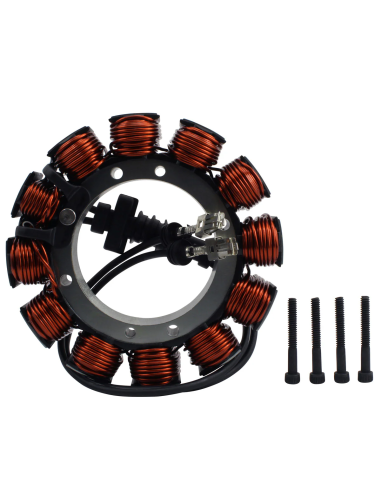

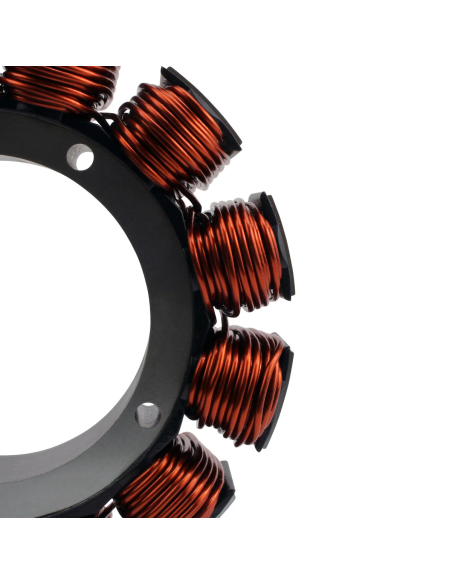

Stator Harley Davidson Electra Glide Glide Classic 1450 Road Glide King 1450 OEM 29987-99 29987-99A 29987-99B

Direct replacement to your original unit

Plug-and-play, direct fit, easy installation

Highest grade of lamination materials

Highest grade of copper winding, resistant to 200 degrees Celsius

Connectors included

Rubber grommet included

Mounting Bolts included

2001 Harley Davidson Electra Glide 1450

2001 Harley Davidson Road Glide 1450

2001 Harley Davidson Road King 1450

2001 Harley Davidson Screamin Eagle Road Glide 1550

2001 Harley Davidson Electra Glide Ultra Classic EFI FLHTCUI 1450

2001 Harley Davidson Road Glide EFI FLTRI 1450

2001 Harley Davidson Electra Glide EFI FLHTI 1450

2001 Harley Davidson Electra Glide Classic EFI FLHTCI 1450

2000 Harley Davidson Electra Glide 1450

2000 Harley Davidson Road Glide 1450

2000 Harley Davidson Road King 1450

2000 Harley Davidson Screamin Eagle Road Glide 1550

2000 Harley Davidson Electra Glide Ultra Classic EFI FLHTCUI 1450

2000 Harley Davidson Road Glide EFI FLTRI 1450

2000 Harley Davidson Electra Glide EFI FLHTI 1450

2000 Harley Davidson Electra Glide Classic EFI FLHTCI 1450

1999 Harley Davidson Electra Glide 1450

1999 Harley Davidson Road Glide 1450

1999 Harley Davidson Road King 1450

1999 Harley Davidson Electra Glide Ultra Classic EFI FLHTCUI 1450

1999 Harley Davidson Road Glide EFI FLTRI 1450

1999 Harley Davidson Electra Glide Classic EFI FLHTCI 1450

OEM 29987-99

29987-99A

29987-99B

Dimensions:

Interior diameter: 71 mm

Exterior diameter: 135 mm

Thickness: 24 mm

Length of wires stator to grommet: 30 mm

Length of wires grommet to plug: 300 mm

Other specifications:

Number of wires: 2

Number of plugs: 1

Number of pins: 2

Number of poles: 12

Wire to wire resistance:

Alternator: Black to Black = 0.6 ohms +/-20%

Alternator: Black to ground = O.L
