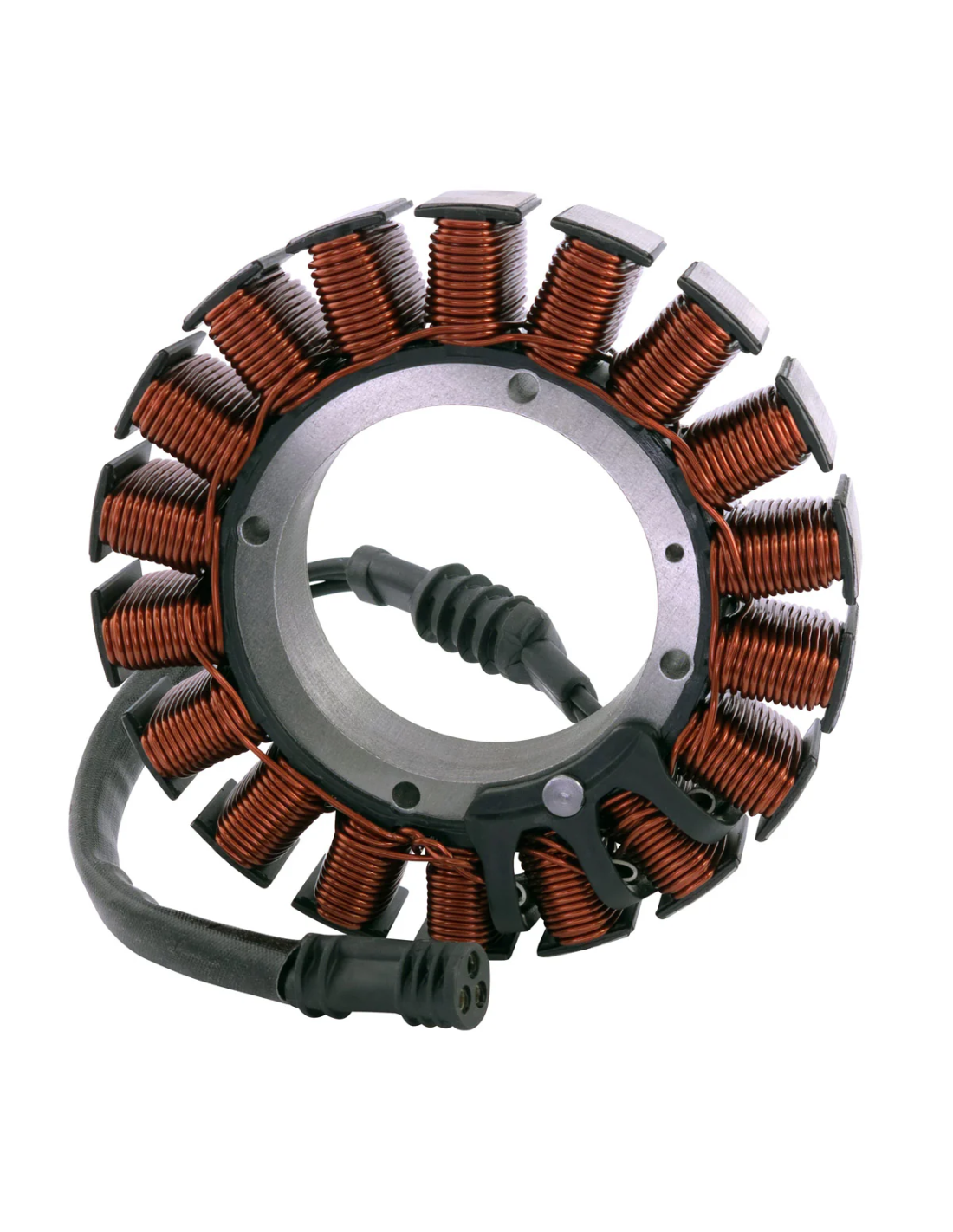

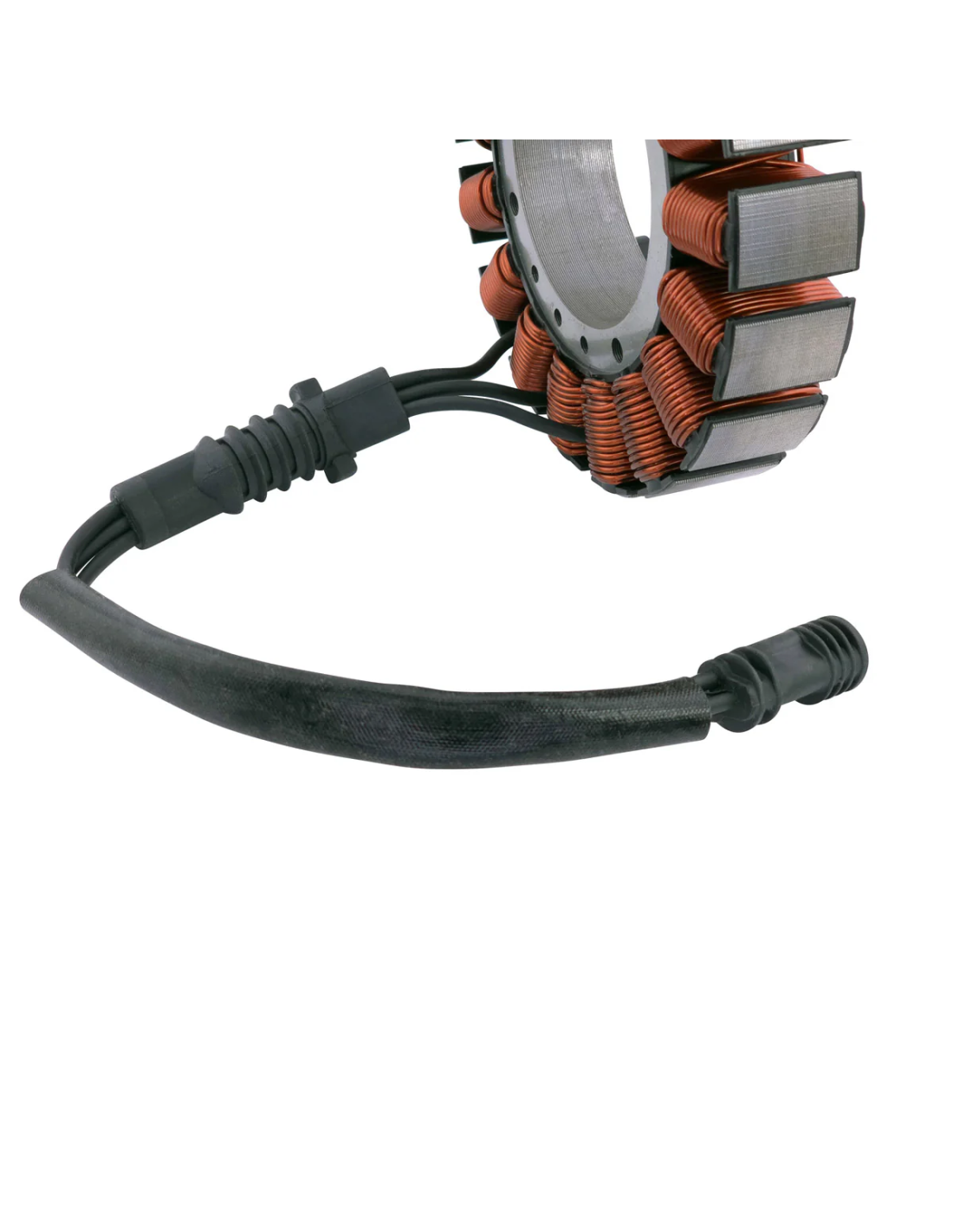

Stator Harley Davidson Electra Glide Road King Street Glide 1584 1690 OEM 29987-06 29987-06A 29987-06B

Direct replacement to your original unit

Plug-and-play, direct fit, easy installation

Highest grade of lamination materials

Highest grade of copper winding, resistant to 200 degrees Celsius

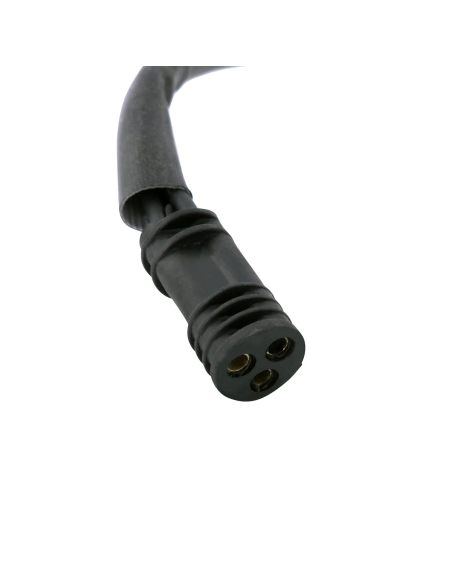

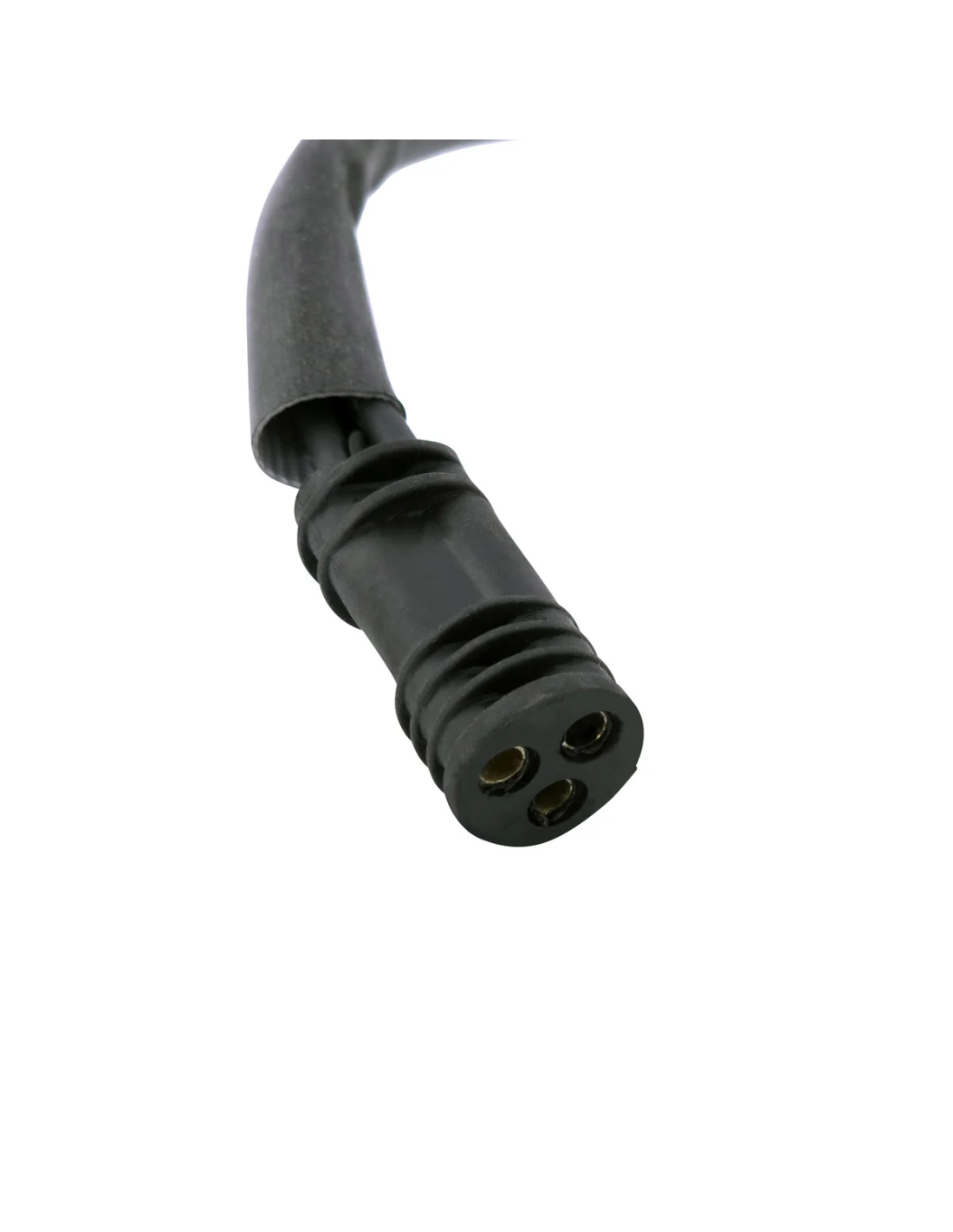

Connectors included

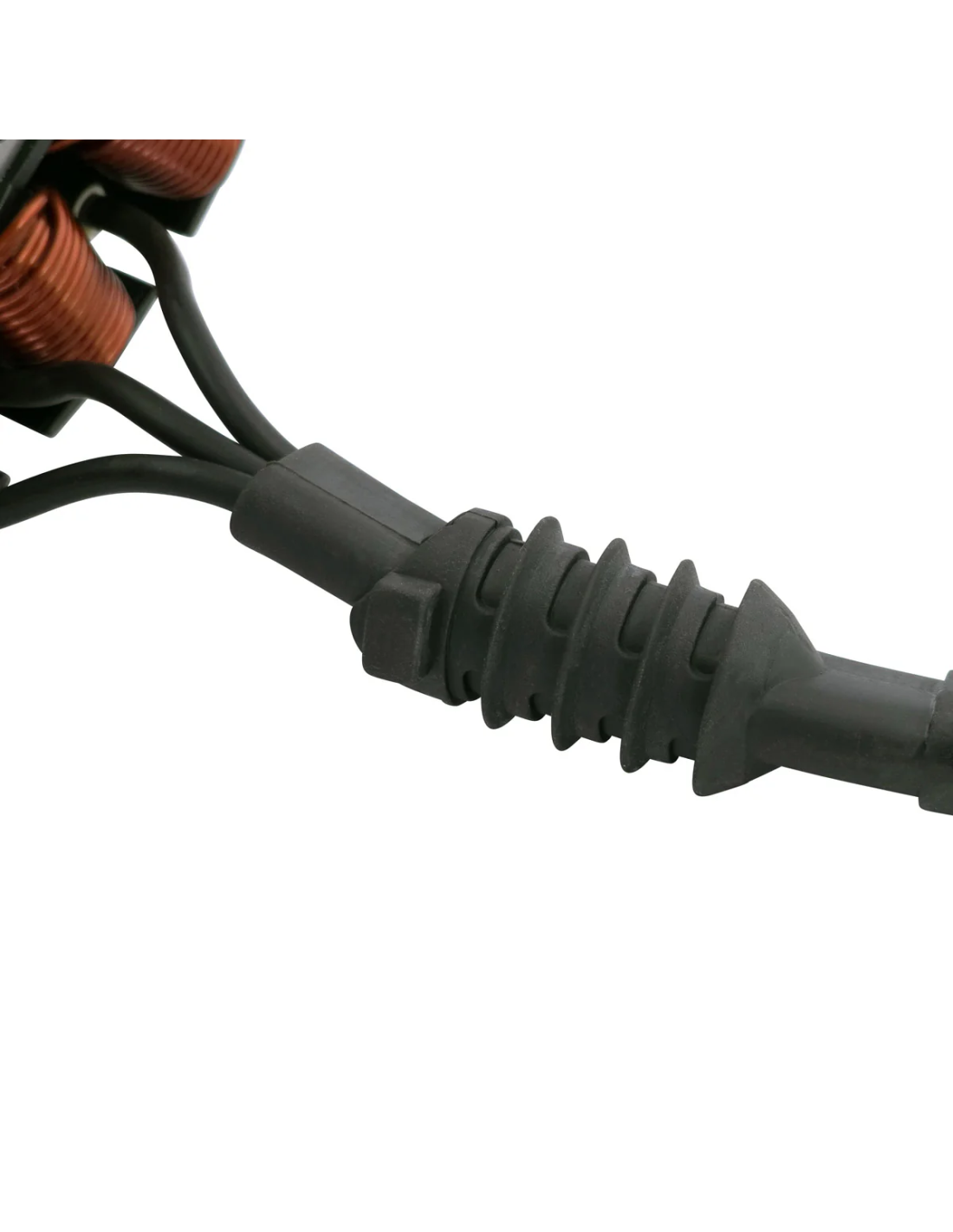

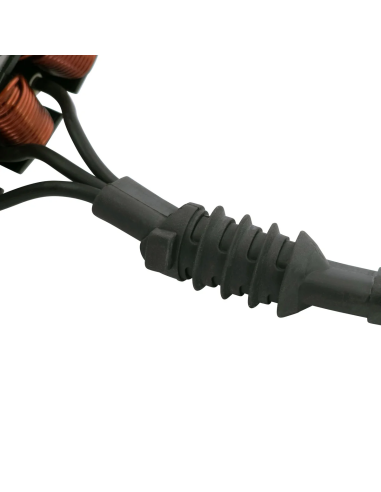

Rubber grommet included

2016 Harley Davidson Electra Glide 1690

2016 Harley Davidson Road King 1690

2016 Harley Davidson Street Glide 1690

2016 Harley Davidson Road Glide 1690

2016 Harley Davidson Freewheeler FLRT

2016 Harley Davidson Tri Glide Ultra Classic FLHTCUTG 1690

2016 Harley Davidson Street Glide CVO FLHXSE 1800

2016 Harley Davidson Road Glide CVO Ultra FLTRUSE 1800

2016 Harley Davidson Electra Glide Ultra Limited FLHTK 1690

2016 Harley Davidson CVO Limited FLHTKSE 1800

2016 Harley Davidson Street Glide Special FLHXS 1690

2015 Harley Davidson Electra Glide 1690

2015 Harley Davidson Road King 1690

2015 Harley Davidson Street Glide 1690

2015 Harley Davidson Road Glide 1690

2015 Harley Davidson Freewheeler FLRT

2015 Harley Davidson Tri Glide Ultra Classic FLHTCUTG 1690

2015 Harley Davidson Street Glide CVO FLHXSE 1800

2015 Harley Davidson Road Glide CVO Ultra FLTRUSE 1800

2015 Harley Davidson CVO Limited FLHTKSE 1800

2015 Harley Davidson Street Glide Special FLHXS 1690

2015 Harley Davidson CVO Limited FLHTK 1800

2014 Harley Davidson Electra Glide 1690

2014 Harley Davidson Road King 1690

2014 Harley Davidson Street Glide 1690

2014 Harley Davidson Road King FLHR 1690

2014 Harley Davidson CVO Road King FLHRSE 1800

2014 Harley Davidson Tri Glide Ultra Classic FLHTCUTG 1690

2014 Harley Davidson Electra Glide Ultra Limited FLHTK 1690

2014 Harley Davidson CVO Limited FLHTKSE 1800

2014 Harley Davidson CVO Limited FLHTK 1800

2013 Harley Davidson Electra Glide 1690

2013 Harley Davidson Road King 1690

2013 Harley Davidson Street Glide 1690

2013 Harley Davidson Road Glide 1690

2013 Harley Davidson Tri Glide Ultra Classic FLHTCUTG 1690

2013 Harley Davidson Road Glide CVO Custom Anniversary FLTRXSE2 1800

2013 Harley Davidson Road Glide CVO Custom FLTRXSE2 1800

2013 Harley Davidson Road King CVO Anniversary FLHRSE5 1800

2013 Harley Davidson Road King CVO FLHRSE5 1800

2013 Harley Davidson Electra Glide CVO Ultra Classic FLHTCUSE8 1690

2013 Harley Davidson Electra Glide CVO Ultra Classic Anniversary FLHTCUSE8 1800

2013 Harley Davidson Tri Glide Ultra Classic Anniversary FLHTCUTG 1690

2013 Harley Davidson Electra Glide CVO Ultra Classic FLHTCUSE8 1800

2012 Harley Davidson Electra Glide 1690

2012 Harley Davidson Road King 1690

2012 Harley Davidson Street Glide 1690

2012 Harley Davidson Road Glide 1690

2012 Harley Davidson Tri Glide Ultra Classic FLHTCUTG 1690

2012 Harley Davidson Road Glide CVO Custom FLTRXSE 1800

2012 Harley Davidson Street Glide CVO FLHXSE3 1800

2012 Harley Davidson Electra Glide CVO Ultra Classic FLHTCUSE7 1800

2011 Harley Davidson Road King 1584

2011 Harley Davidson Street Glide 1584

2011 Harley Davidson Electra Glide 1690

2011 Harley Davidson Road King 1690

2011 Harley Davidson Street Glide 1690

2011 Harley Davidson Road Glide 1690

2011 Harley Davidson Electra Glide 1584

2011 Harley Davidson Road Glide 1584

2011 Harley Davidson Tri Glide Ultra Classic FLHTCUTG 1690

2011 Harley Davidson Street Glide Trike FLHXXX 1690

2011 Harley Davidson Road Glide CVO Ultra FLTRUSE 1800

2011 Harley Davidson Street Glide CVO FLHXSE2 1800

2011 Harley Davidson Electra Glide CVO Ultra Classic FLHTCUSE6 1800

2010 Harley Davidson Road King 1584

2010 Harley Davidson Street Glide 1584

2010 Harley Davidson Electra Glide 1690

2010 Harley Davidson Electra Glide 1584

2010 Harley Davidson Road Glide 1584

2010 Harley Davidson Tri Glide Ultra Classic FLHTCUTG 1690

2010 Harley Davidson Street Glide Trike FLHXXX 1690

2010 Harley Davidson Street Glide CVO FLHXSE 1800

2010 Harley Davidson Electra Glide CVO Ultra Classic FLHTCUSE5 1800

2009 Harley Davidson Road King 1584

2009 Harley Davidson Street Glide 1584

2009 Harley Davidson Electra Glide 1584

2009 Harley Davidson Road Glide 1584

2009 Harley Davidson Tri Glide Ultra Classic FLHTCUTG 1690

2009 Harley Davidson Road Glide CVO FLTRSE3 1800

2009 Harley Davidson Electra Glide CVO Ultra Classic FLHTCUSE4 1800

2009 Harley Davidson Electra Glide CVO Ultra Classic FLHTCU4 1800

2008 Harley Davidson Road King 1584

2008 Harley Davidson Street Glide 1584

2008 Harley Davidson Electra Glide 1584

2008 Harley Davidson Road Glide 1584

2008 Harley Davidson Road King Screamin Eagle FLHRSE4 1800

2008 Harley Davidson Electra Glide Ultra Classic Screamin Eagle FLHTCUSE3 1800

2007 Harley Davidson Road King 1584

2007 Harley Davidson Street Glide 1584

2007 Harley Davidson Electra Glide 1584

2007 Harley Davidson Road Glide 1584

2007 Harley Davidson Road King Screamin Eagle FLHRSE31 800

2007 Harley Davidson Electra Glide Ultra Classic Screamin Eagle FLHTCUSE2 1800

2007 Harley Davidson Road King Screamin Eagle FLHRSE3 1800

2006 Harley Davidson Electra Glide 1690

2006 Harley Davidson Street Glide 1450

2006 Harley Davidson Electra Glide 1450 Police

2006 Harley Davidson Road King Police Escort EFI FLHPEI 1450

2006 Harley Davidson Road King 1450 Police

2006 Harley Davidson Road King FLHR 1450

2006 Harley Davidson Road King EFI FLHRI 1450

2006 Harley Davidson Road King Classic EFI FLHRCI 1450

2006 Harley Davidson Road King Custom FLHRS 1450

2006 Harley Davidson Road King Custom EFI FLHRSI 1450

2006 Harley Davidson Electra Glide FLHT 1450

2006 Harley Davidson Electra Glide EFI FLHTI 1450

2006 Harley Davidson Electra Glide Classic FLHTC 1450

2006 Harley Davidson Electra Glide Classic EFI FLHTCI 1450

2006 Harley Davidson Road Glide FLTR 1450

2006 Harley Davidson Road Glide EFI FLTRI 1450

2006 Harley Davidson Electra Glide Ultra Classic FLHTCU 1450

2006 Harley Davidson Electra Glide Ultra Classic EFI FLHTCUI 1450

OEM 29987-06

29987-06A

29987-06B

29987-06C

29987-06D

29900029

Dimensions:

Interior diameter: 71 mm

Exterior diameter: 144 mm

Thickness: 24 mm

Length of wires stator to grommet: 40 mm

Length of wires grommet to plug: 210 mm

Other specifications:

Number of wires: 3

Number of plugs: 1

Number of pins: 3

Number of poles: 18

Wire to wire resistance:

Alternator: Black to Black = 0.6 ohms +/-20%

Alternator: Black to ground = O.L
