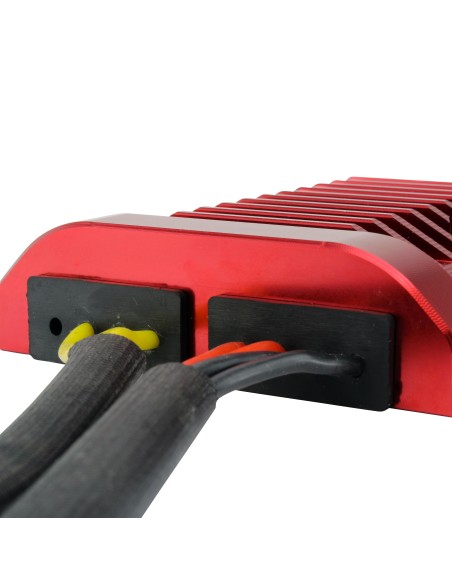

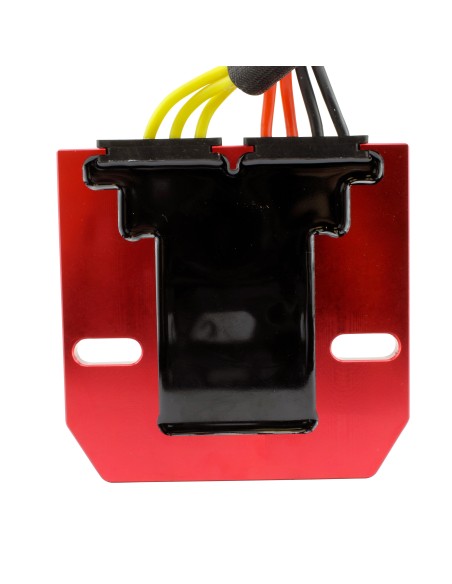

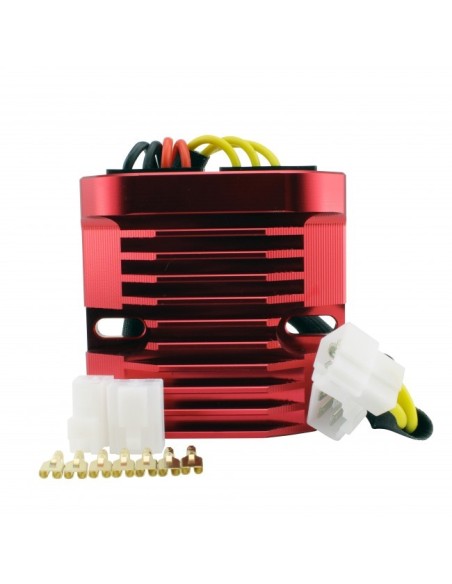

Aluminum Mosfet Regulator Triumph Speed Triple 900 Speed Triple 955 Speed Four 600 OEM T1300560 T1304040
CARMS022-106230
5-7 Days
€174.00
Tax included
OEM T1300560 T1304040
- Regulator Rectifier - Mosfet
-
1994-1998 Speed Triple 9001999-2004 Speed Triple 9552002-2005 Speed Four 600OEM T1300560 T1304040
- It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
-
Dimensions:
Width: 90 mm
Length: 94 mm
Height: 30 mm
Fixation holes center to center: 79 mm
Other specifications:

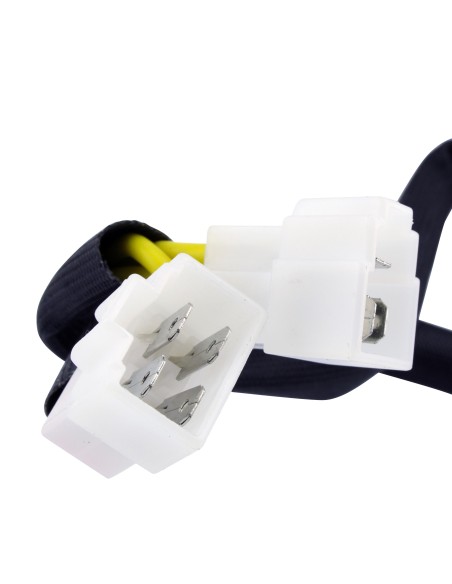

Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20⁰ to 85⁰ -
Our new machined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.
