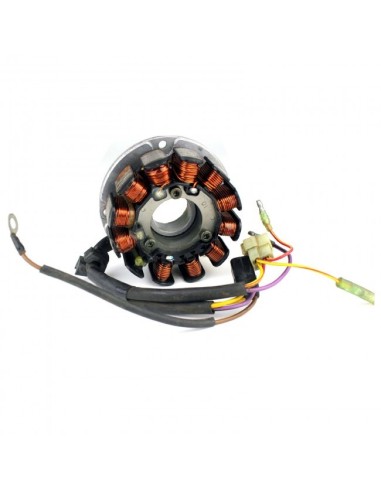

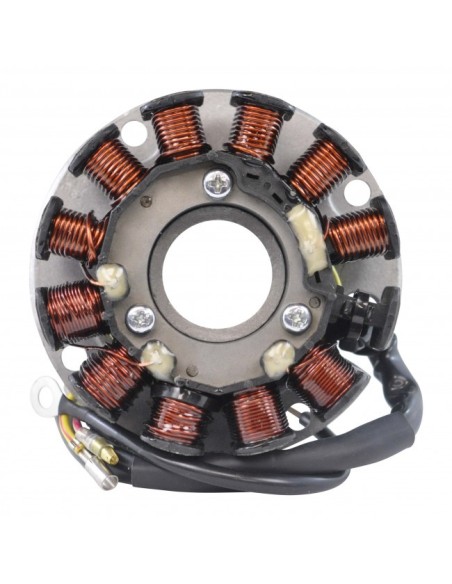

Stator Arctic Cat King Cat 900 Mountain Cat 800 Mountain Cat 900 ZL800 ZR440 ZR800 ZR900 OEM 3005-727 3005-805 3005-784

Stator

Arctic Cat
King Cat 900 Carb L/C
2004 Arctic Cat King Cat 900 Carb L/C
2005 Arctic Cat King Cat 900 Carb L/C
Mountain Cat 800 Carb L/C
2001 Arctic Cat Mountain Cat 800 Carb L/C
2002 Arctic Cat Mountain Cat 800 Carb L/C
Mountain Cat 900 Carb L/C
2003 Arctic Cat Mountain Cat 900 Carb L/C
2004 Arctic Cat Mountain Cat 900 Carb L/C
ZL 800 Carb L/C
ESR
2001 Arctic Cat ZL 800 Carb L/C ESR
ZR 440 Carb L/C
2000 Arctic Cat ZR 440 Carb L/C
2001 Arctic Cat ZR 440 Carb L/C
ZR 800 Carb L/C
2001 Arctic Cat ZR 800 Carb L/C
2002 Arctic Cat ZR 800 Carb L/C
ZR 900 Carb L/C
2003 Arctic Cat ZR 900 Carb L/C
2004 Arctic Cat ZR 900 Carb L/C
2005 Arctic Cat ZR 900 Carb L/C

OEM 3005-784
3005-727
3005-805

Dimensions :
Interior diameter : 37 mm
Exterior diameter : 98 mm
Thickness : 20 mm
Length of wires stator to plug : 160 mm

Other specifications :

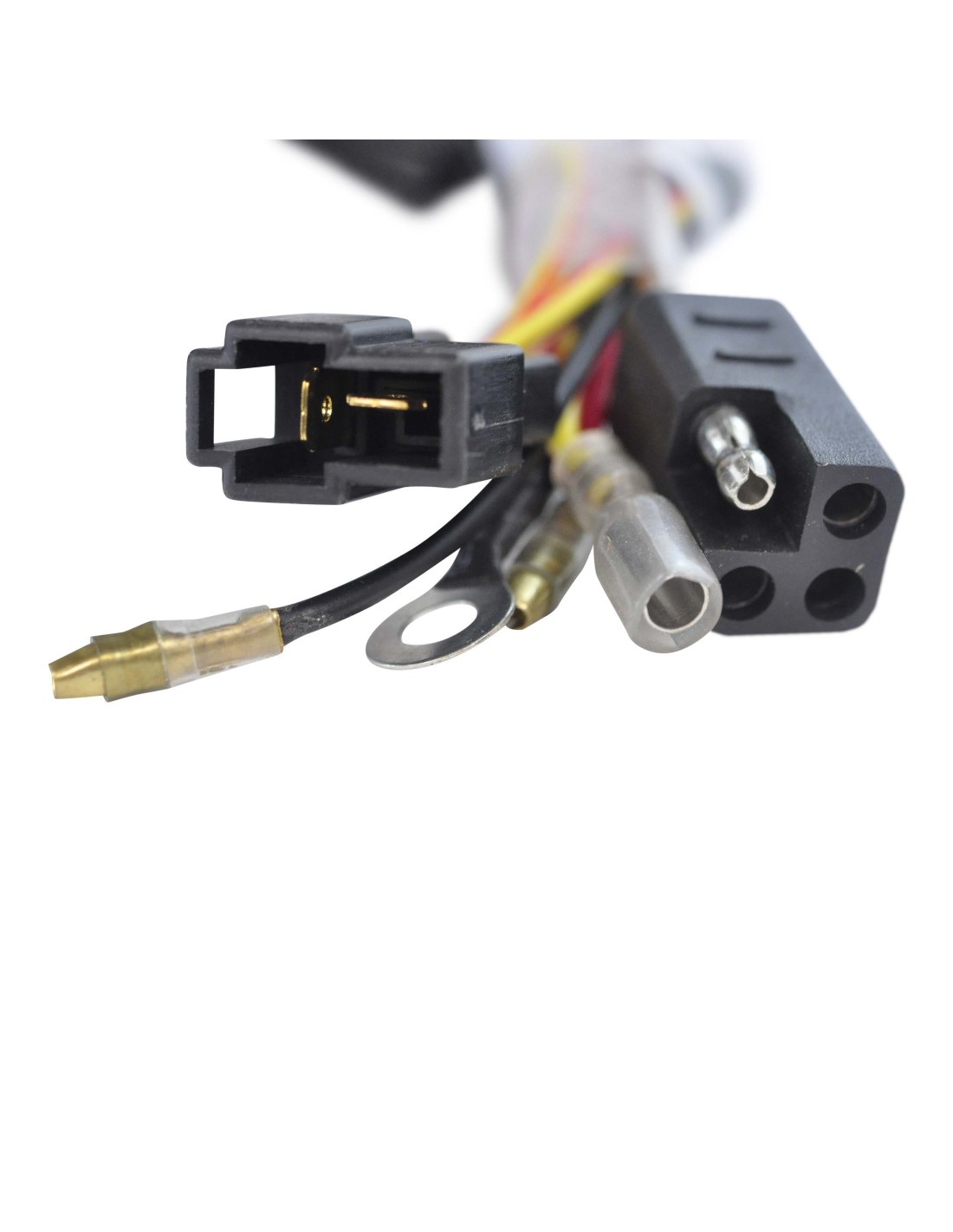

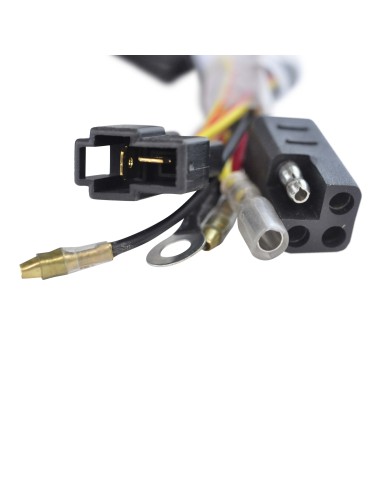

Number of wires : 9
Number of plugs : 6
Number of pins : 10

Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4 ohms +-20%
