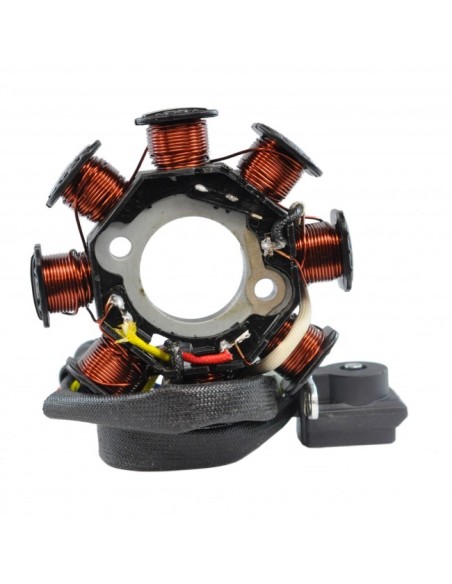

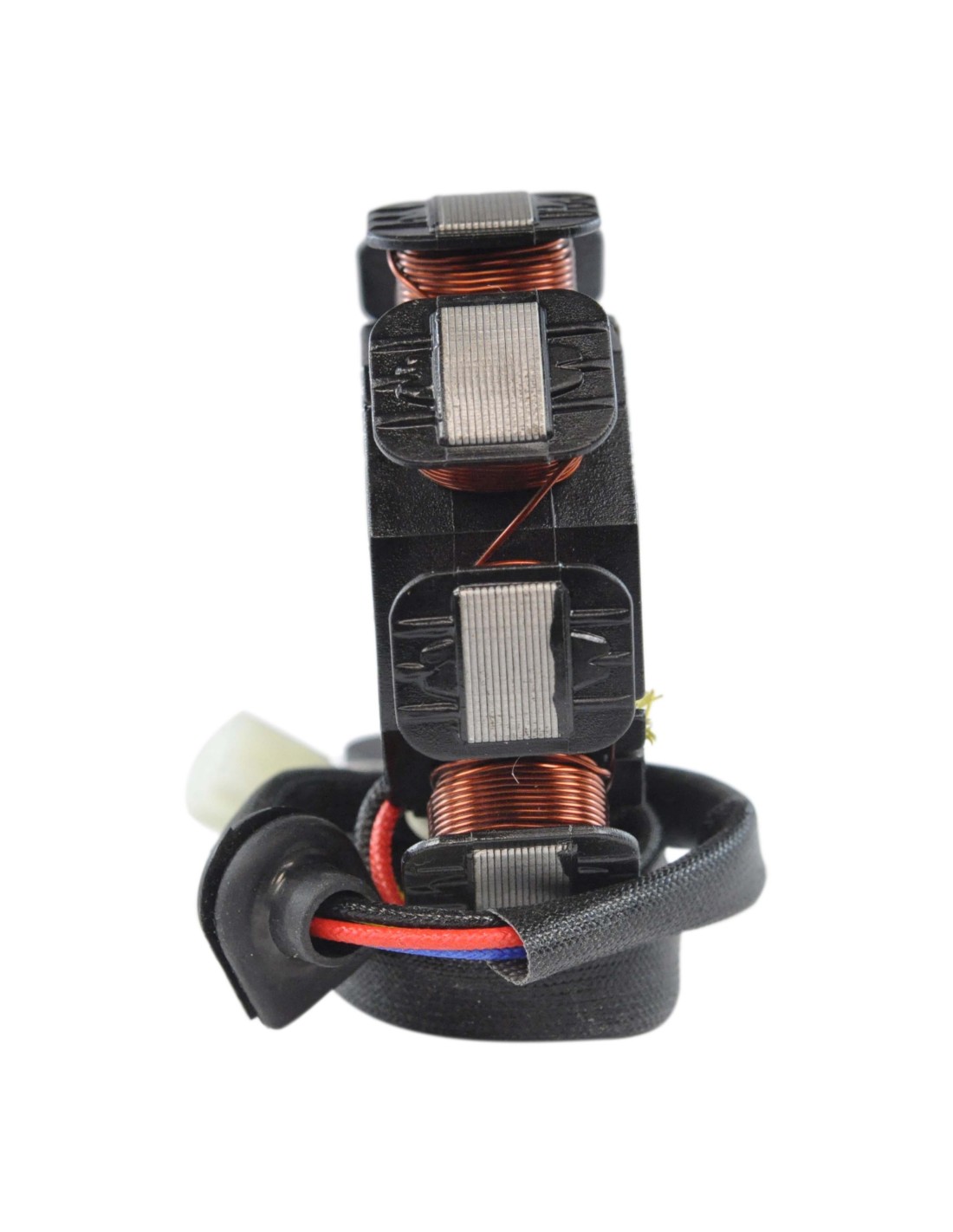

Stator Yamaha YFM 90 Grizzly 90 Raptor OEM BD3-H1410-00-00

CARM01405

New product

OEM BD3-H1410-00-00

More details

1 Item

5-7 Days

97,50 € tax incl.

More info

  • 2021 Yamaha YFM 90 Raptor EFI L/C
    2021 Yamaha YFM 90 Grizzly
    2020 Yamaha YFM 90 Raptor EFI L/C
    2020 Yamaha YFM 90 Grizzly
    2019 Yamaha YFM 90 Raptor EFI L/C
    2019 Yamaha YFM 90 Grizzly
    2018 Yamaha YFM 90 Raptor EFI L/C
    2017 Yamaha YFM 90 Raptor EFI L/C
    2016 Yamaha YFM 90 Raptor EFI L/C

    OEM BD3-H1410-00-00

  • Dimensions :
    Interior diameter : 29mm
    Exterior diameter : 88mm
    Thickness : 12mm
    Length of wires stator to grommet : 100mm
    Length of wires grommet to plug : 300mm
    Length of pickup coil's wire to grommet : 30mm

    Other specifications :
    Number of wires : 4
    Number of plugs : 1
    Number of pins : 4

    Wire to wire resistance :
    Alternator : Red to Black = 1ohms +/-20%
    Alternator : Yellow to Black = 0.8ohms +/-20%
    Pickup : Blue to Black = 120ohms +/-20%

  • Resistant to 200 degrees Celsius
