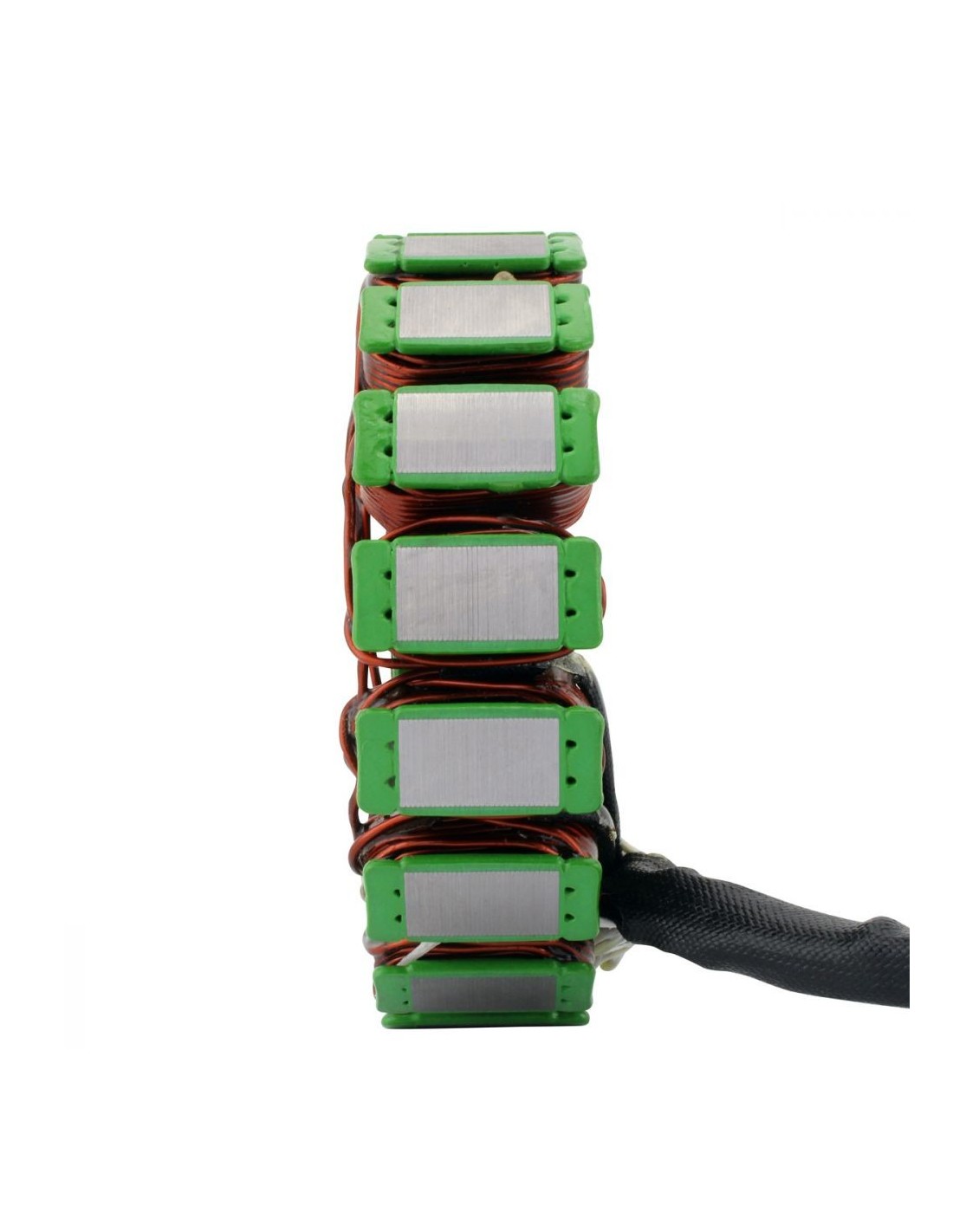

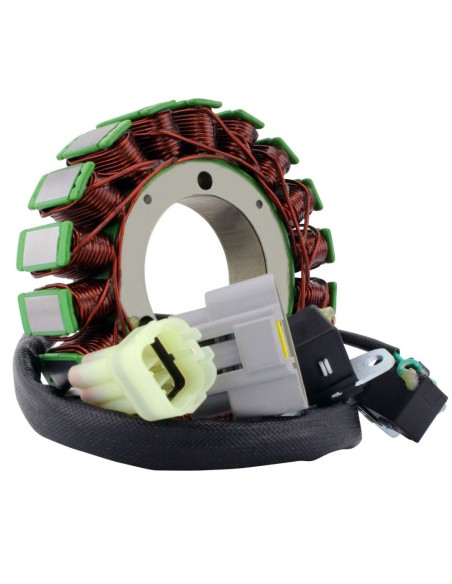

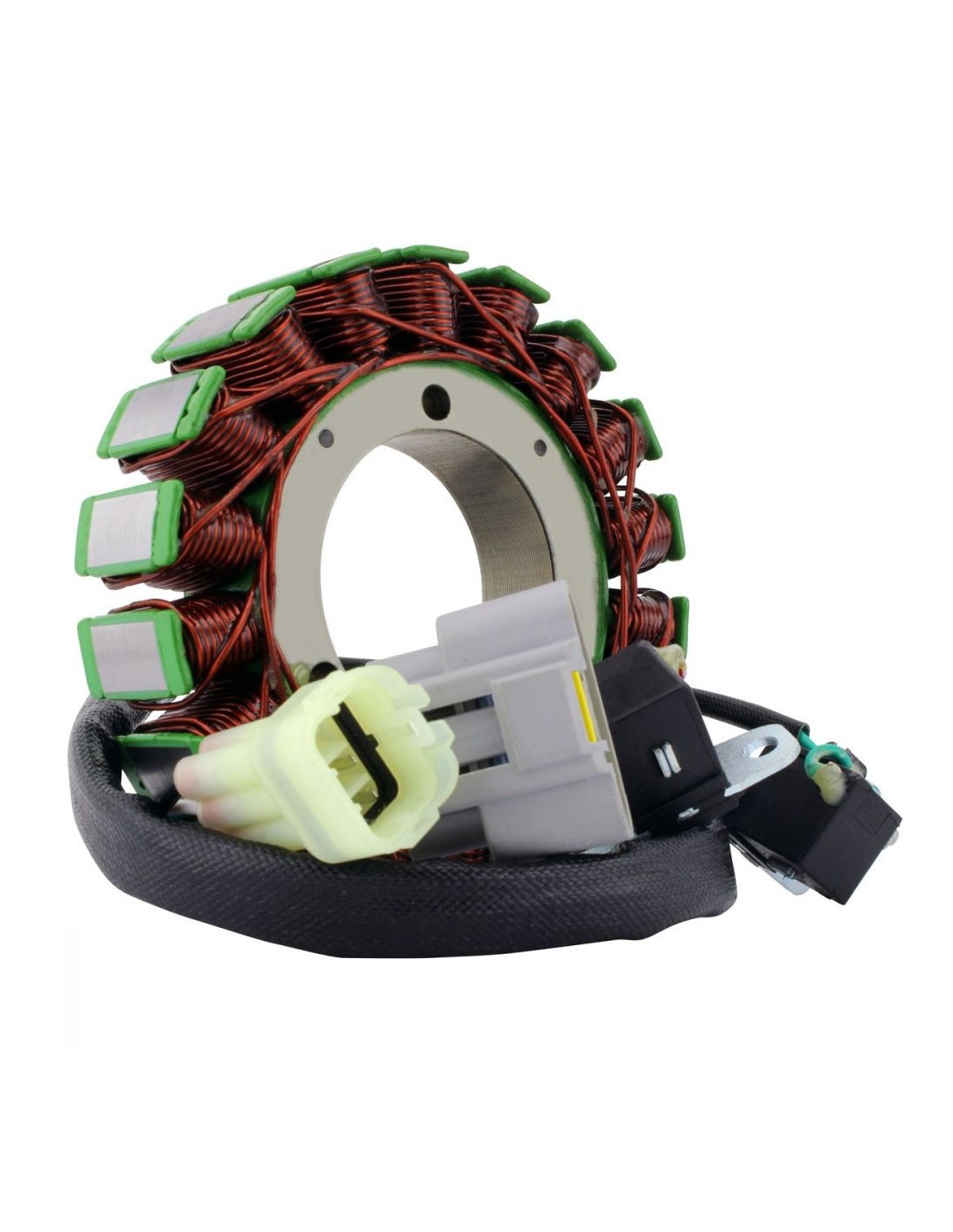

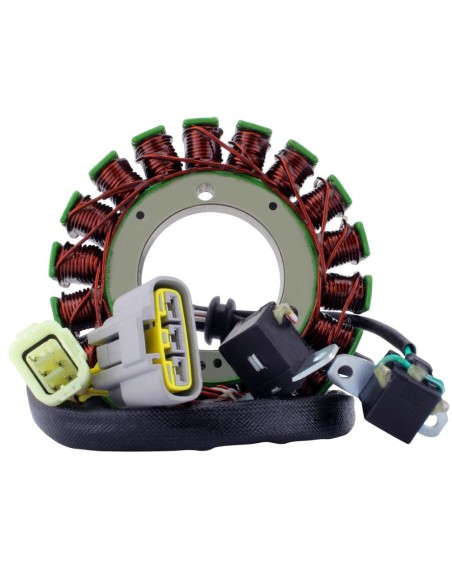

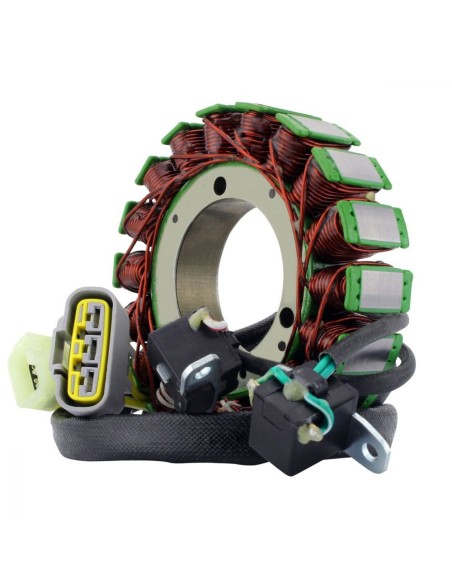

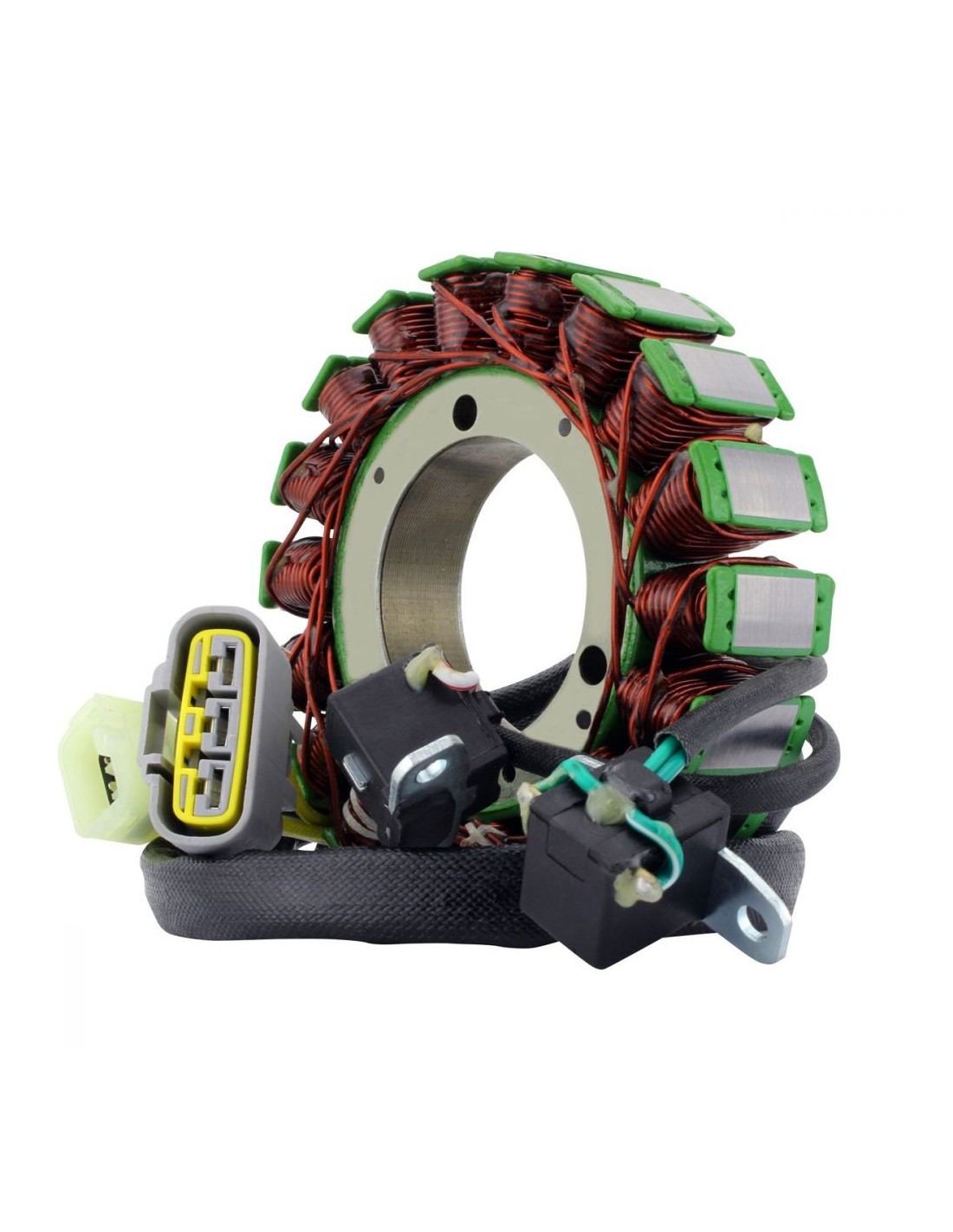

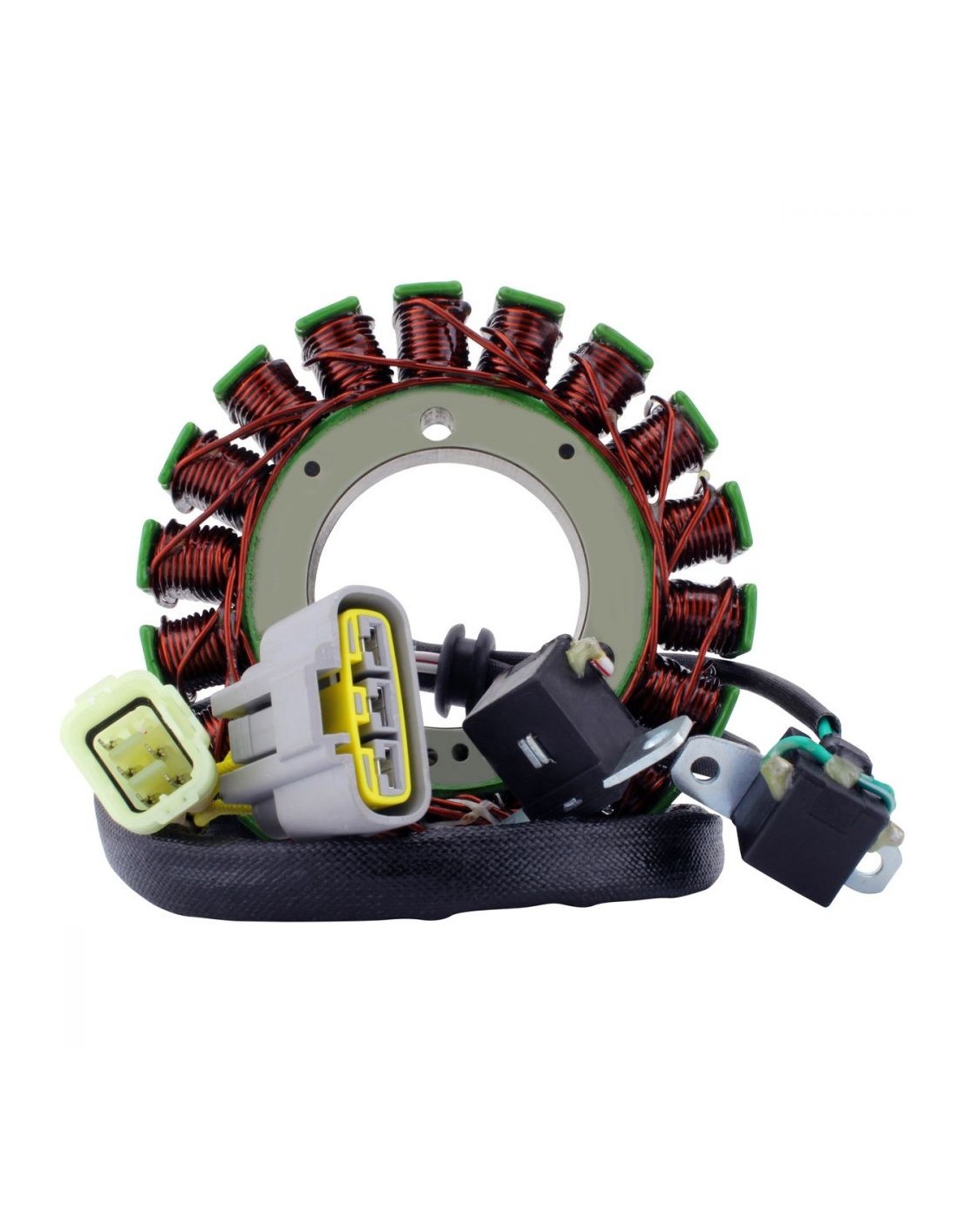

Stator Polaris 800 Titan EFI L/C OEM 4016161

2023 Polaris 800 Titan EFI L/C
2022 Polaris 800 Titan EFI L/C
2021 Polaris 800 Titan EFI L/C
2020 Polaris 800 Titan EFI L/C
2019 Polaris 800 Titan EFI L/C
2018 Polaris 800 Titan EFI L/C

OEM 4016161

Dimensions:
Interior diameter: 54 mm
Exterior diameter: 119 mm

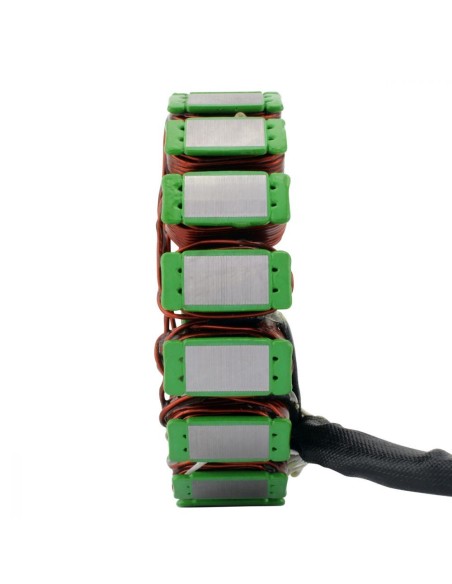

Thickness: 23 mm

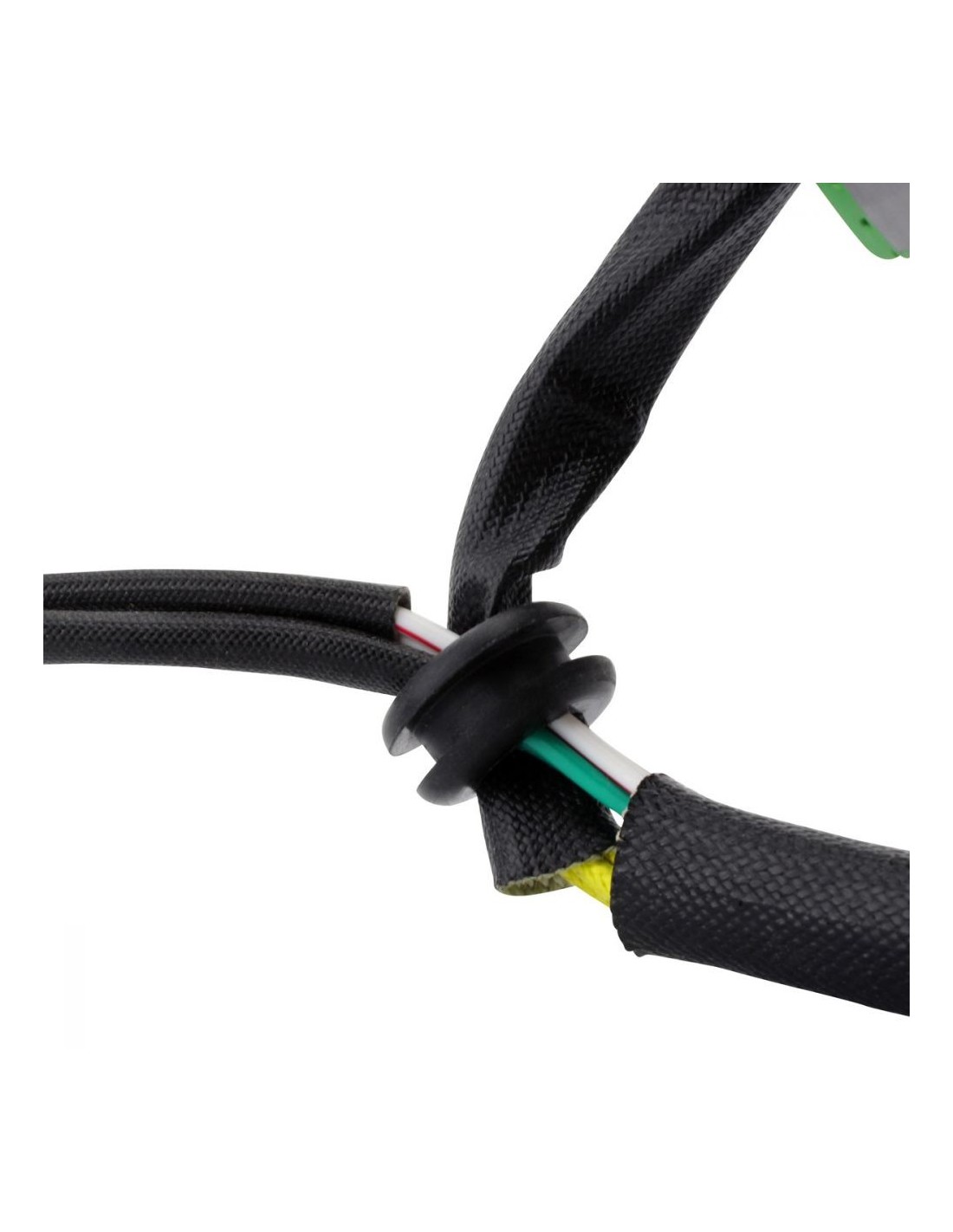

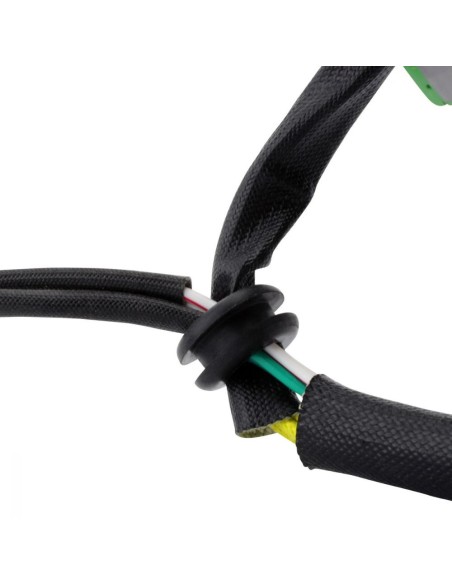

Length of wires stator to grommet: 60 mm
Length of wires grommet to plug: 480 mm

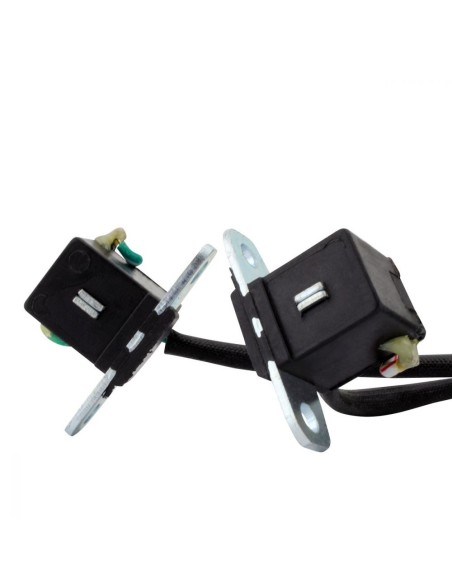

Length of pickup coil's wire to grommet: 90 mm
Length of 2nd pickup coil's wire to grommet: 90 mm

Other specifications:
Number of wires: 8

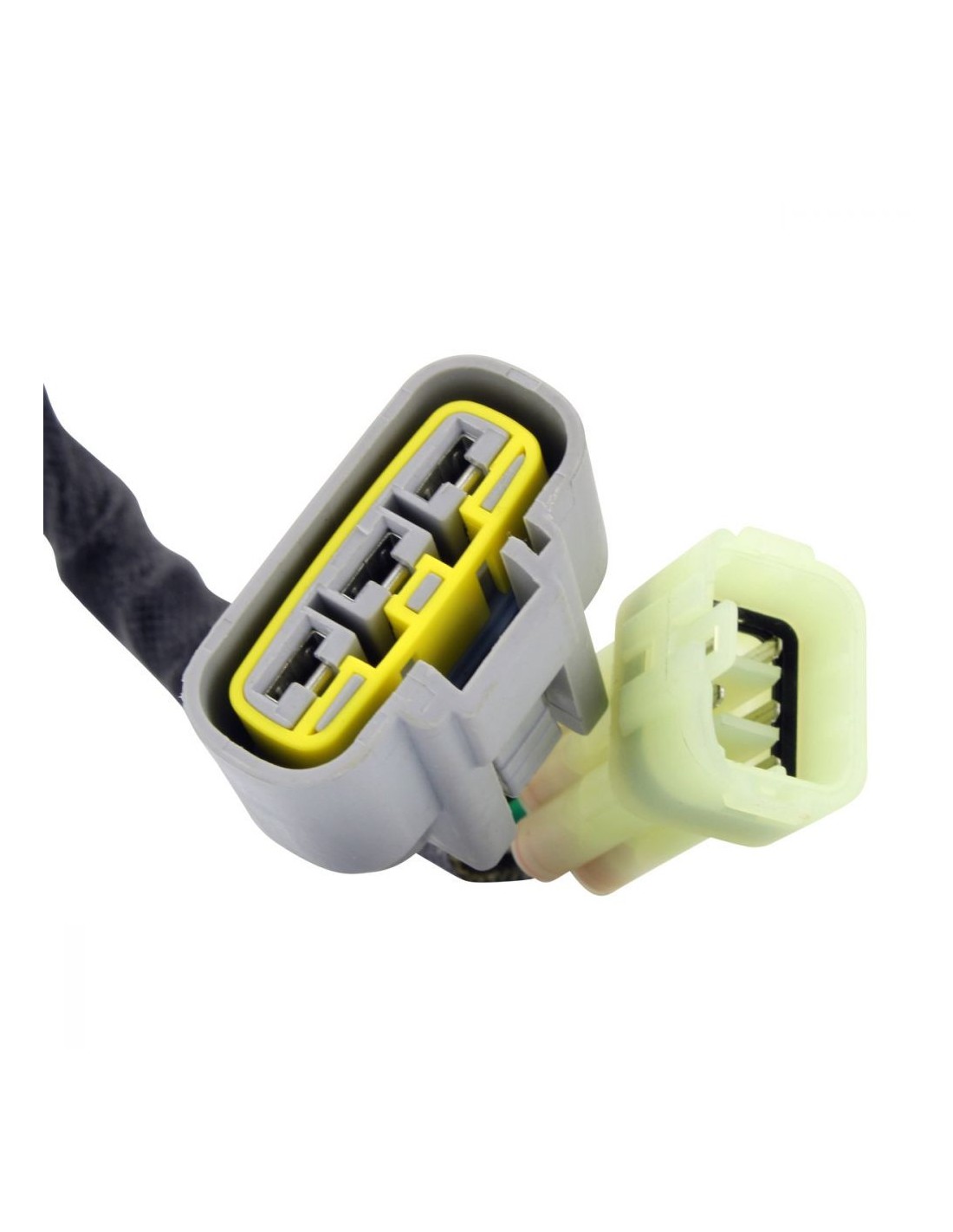

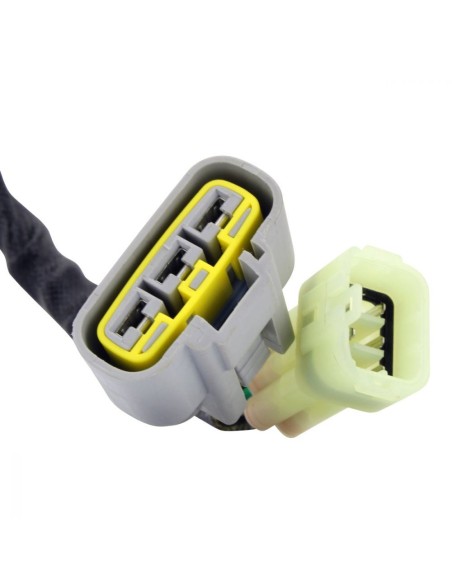

Number of plugs: 2
Number of pins: 8
Number of poles: 18
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.6ohms +-20%
Alternator: Yellow to ground = O.L

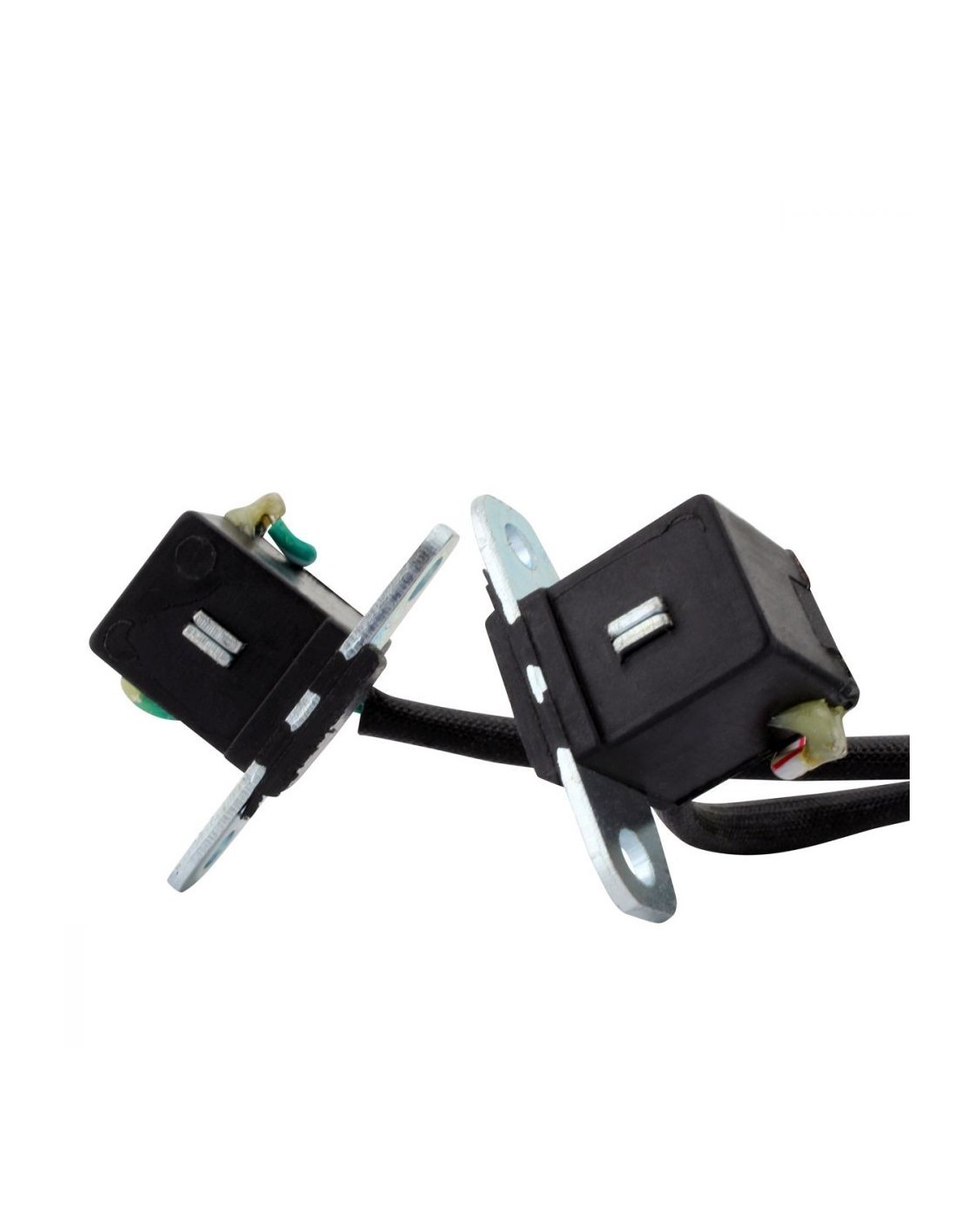

Pickup 1 : White to White/Red: = 200 ohms +-20%
Pickup 2 : Green to White/Green: = 200 ohms +-20%
Capteur d'allumage 2 : Vert à Blanc/Vert : = 200 ohms +/-20%
