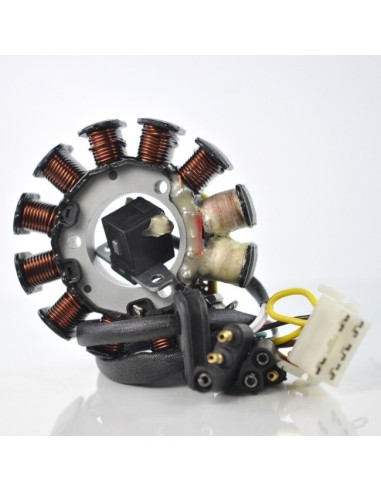

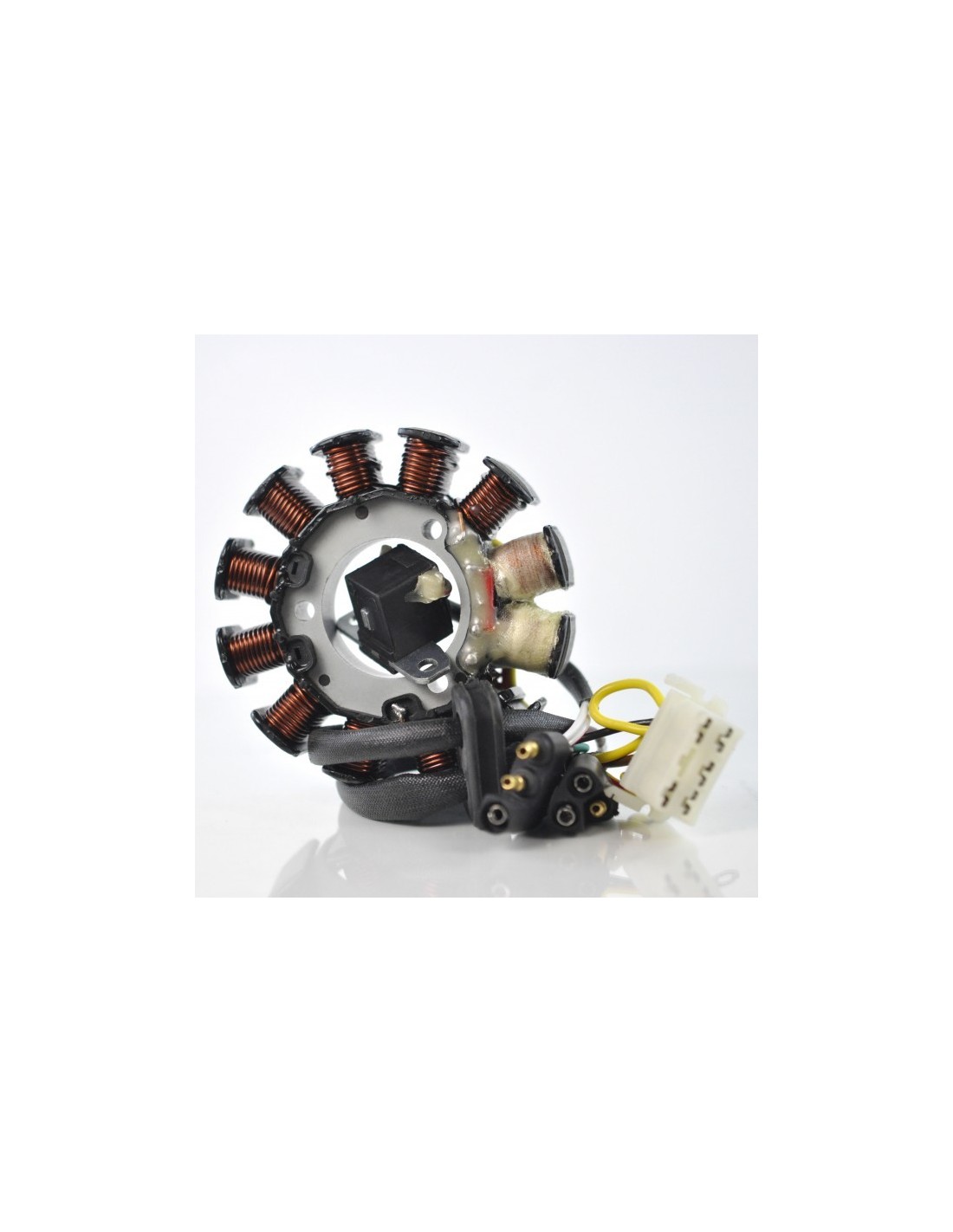

Stator Polaris 800 XCR 600 XCR 700 XCR Ultra 680 XLT 600 Touring OEM 3085602 3085603 3086147 3085601 3085614

Stator Polaris

Resistant to 200 degrees Celsius

2003 Polaris 800 XCR Carb L/C
2002 Polaris 800 XCR Carb L/C
2001 Polaris 800 XCR Carb L/C
2000 Polaris 800 XCR Carb L/C
1999 Polaris 700 XCR Carb L/C
1999 Polaris 800 XCR Carb L/C
1998 Polaris 600 XCR Carb L/C
 1998 Polaris 700 XCR Carb L/C
1998 Polaris Ultra 680 Carb L/C
1998 Polaris Ultra 680 Touring Carb L/C
1998 Polaris XLT 600 Classic Carb L/C
1998 Polaris XLT 600 LTD Carb L/C
1998 Polaris XLT 600 SP Carb L/C
1998 XLT 600 Touring Carb L/C

OEM
3085602
3085603
3086147
3085601
3085614

Dimensions :
Interior diameter : 37 mm
Exterior diameter : 99 mm
Thickness : 15 mm
Length of wires stator to grommet : 160 mm
Length of wires grommet to plug : 169 mm
Length of pickup coil's wire to grommet : 158 mm

Other specifications :

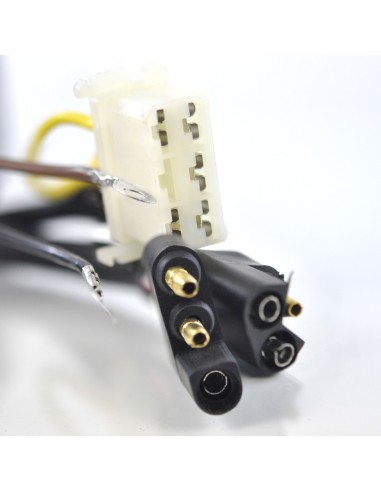

Number of wires : 9
Number of plugs : 3
Number of pins : 11

Wire to wire resistance :
Alternator : Yellow to Yellow/Red = 0.5 ohms +/-20%
Pickup : White to White/Red = 196 ohms +/-20%
Source 1 : Black/Red to Red = 14.2 ohms +/-20%
Source 2 : Black/Red to Green = 7.3 ohms +/-20%
