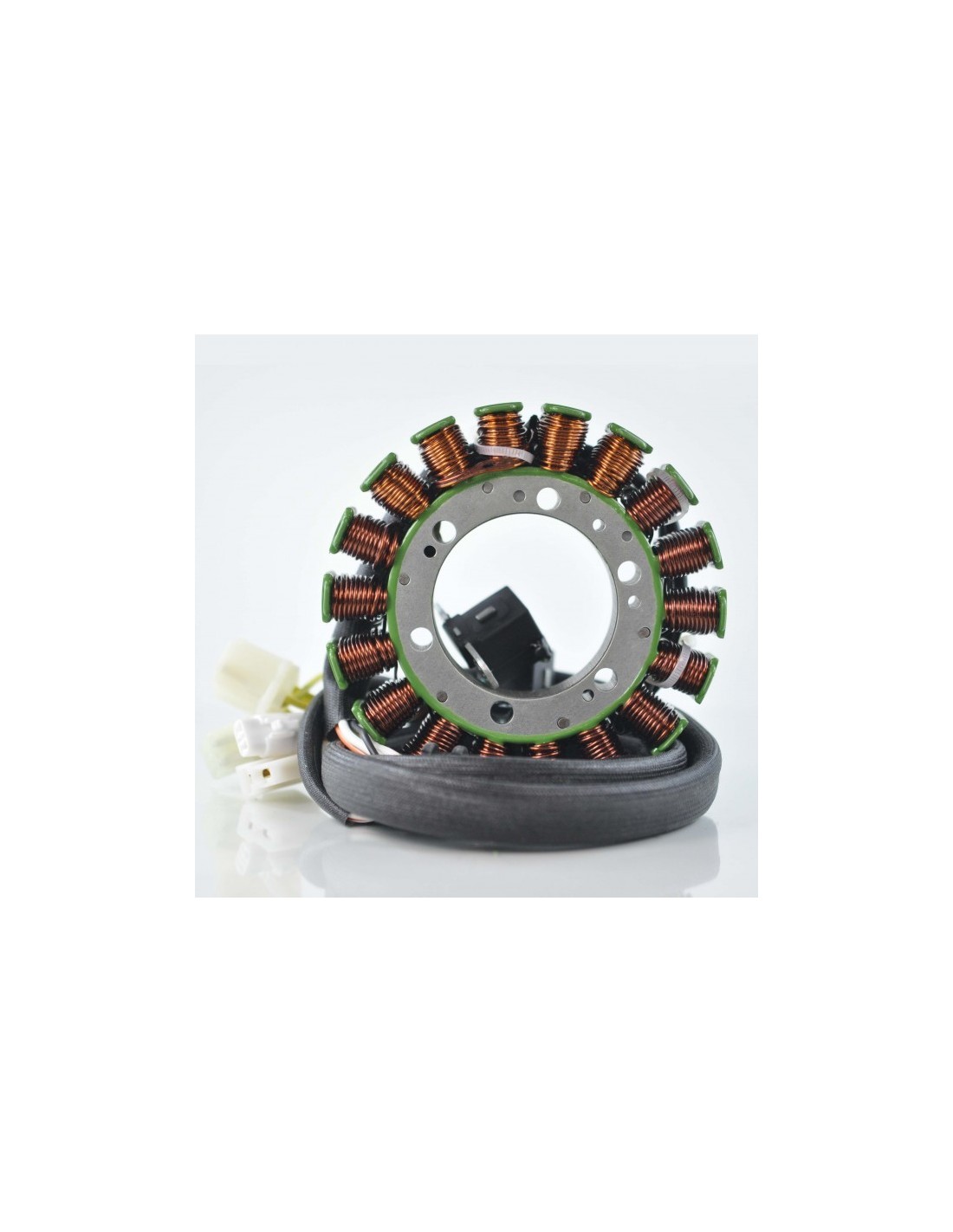

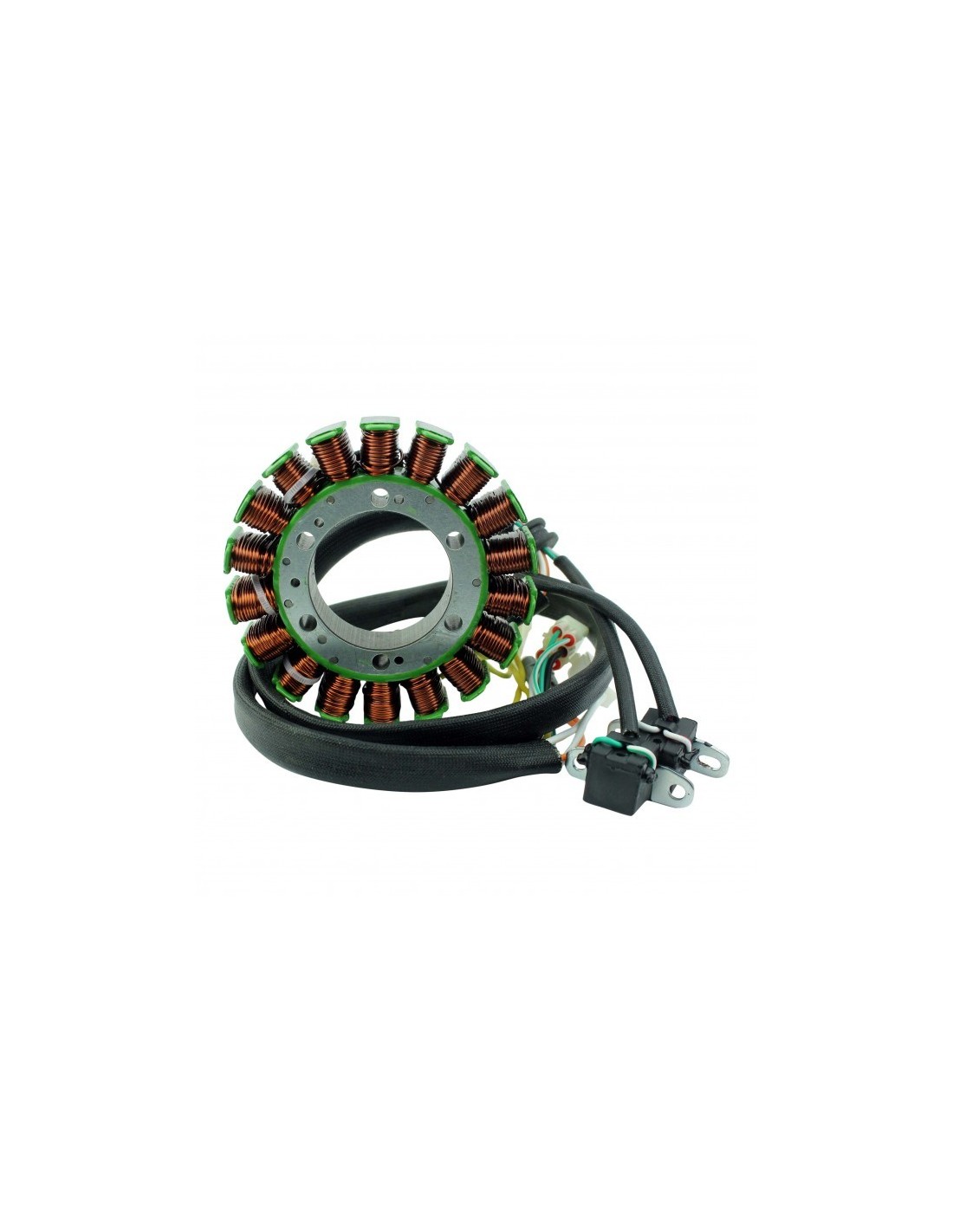

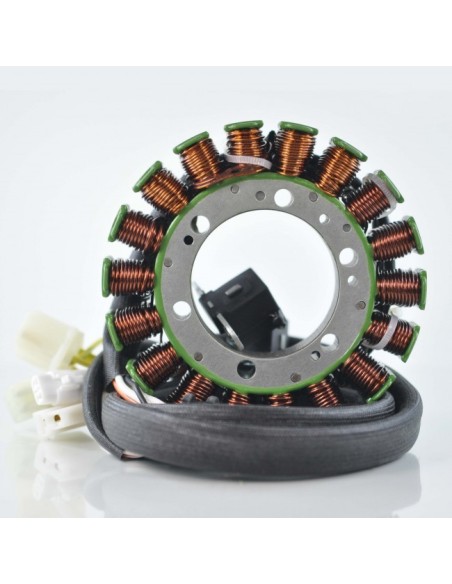

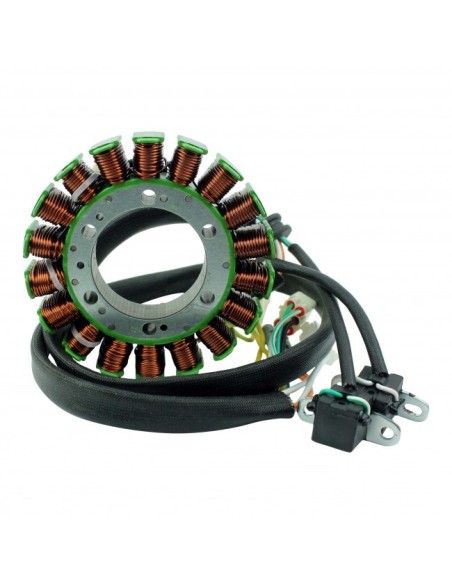

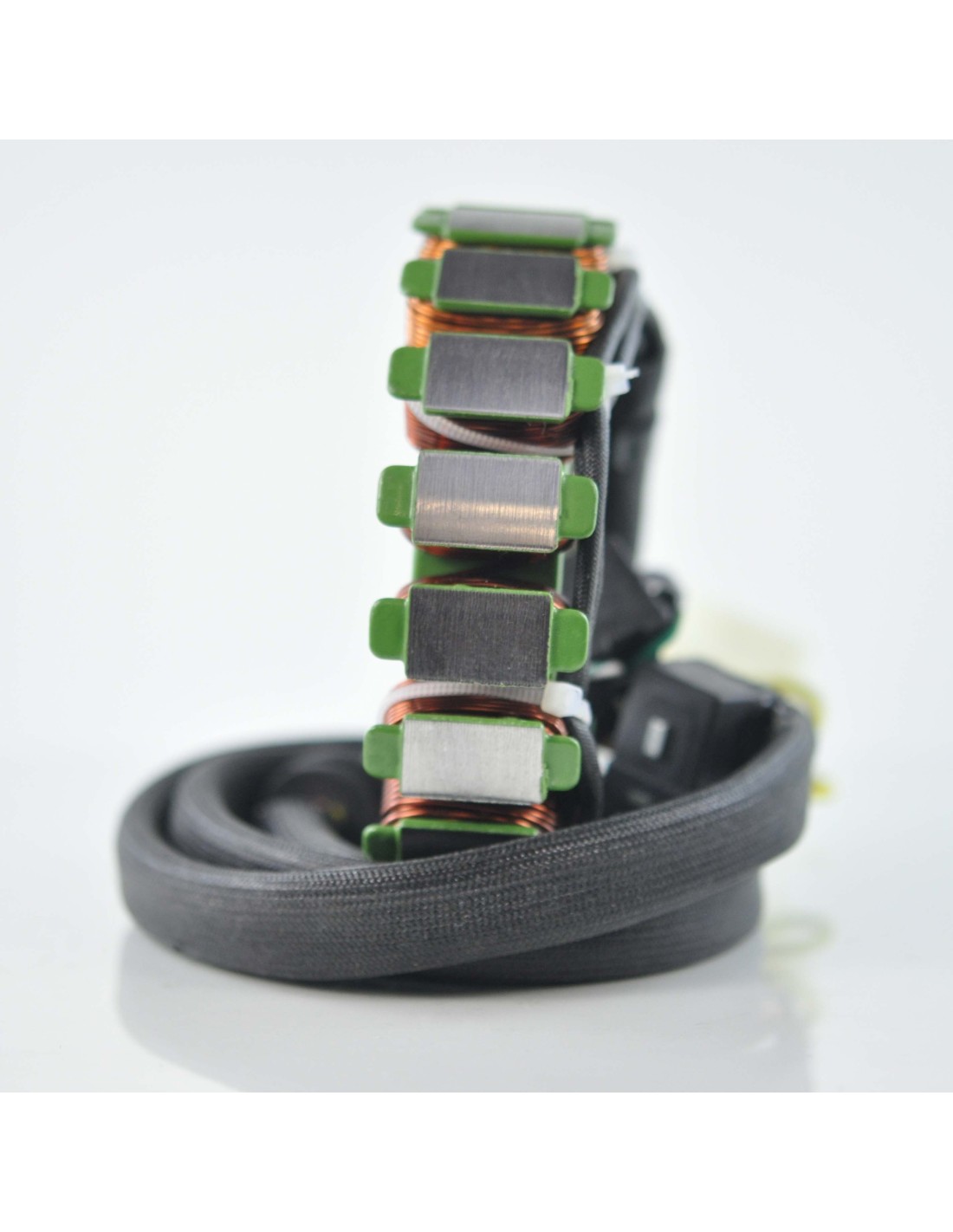

Stator Polaris 800 Switchback 600 Widetrak 600 800 Rush 600 800 RMK OEM 4012939 4012548 4012113

Stator Polaris

Resistant to 200 degrees Celsius

    2015
        Polaris
            600 IQ Widetrak EFI L/C
                Snowmobile 2015 Polaris 600 IQ Widetrak EFI L/C
    2014
        Polaris
            600 IQ Widetrak EFI L/C
                Snowmobile 2014 Polaris 600 IQ Widetrak EFI L/C
    2013
        Polaris
            600 IQ Widetrak EFI L/C
                Snowmobile 2013 Polaris 600 IQ Widetrak EFI L/C
            800 RMK Assault EFI L/C
                Snowmobile 2013 Polaris 800 RMK Assault EFI L/C 155
    2012
        Polaris
            600 IQ Widetrak EFI L/C
                Snowmobile 2012 Polaris 600 IQ Widetrak EFI L/C
            600 Pro-RMK EFI L/C
                Snowmobile 2012 Polaris 600 Pro-RMK EFI L/C 155 Electric Start
                Snowmobile 2012 Polaris 600 Pro-RMK EFI L/C 155
            600 RMK EFI L/C
                Snowmobile 2012 Polaris 600 RMK EFI L/C 155
                Snowmobile 2012 Polaris 600 RMK EFI L/C 144
            600 Rush EFI L/C
                Snowmobile 2012 Polaris 600 Rush EFI L/C
                Snowmobile 2012 Polaris 600 Rush EFI L/C ES
                Snowmobile 2012 Polaris 600 Rush EFI L/C Pro-Ride
            600 Rush Pro-R EFI L/C
                Snowmobile 2012 Polaris 600 Rush Pro-R EFI L/C
                Snowmobile 2012 Polaris 600 Rush Pro-R EFI L/C Electric Start
                Snowmobile 2012 Polaris 600 Rush Pro-R EFI L/C LX
            600 Switchback Adventure EFI L/C
                Snowmobile 2012 Polaris 600 Switchback Adventure EFI L/C
            600 Switchback EFI L/C
                Snowmobile 2012 Polaris 600 Switchback EFI L/C
                Snowmobile 2012 Polaris 600 Switchback EFI L/C Electric Start
            600 Switchback Pro-R EFI L/C
                Snowmobile 2012 Polaris 600 Switchback Pro-R EFI L/C
                Snowmobile 2012 Polaris 600 Switchback Pro-R EFI L/C Electric Start
            800 Pro-RMK EFI L/C
                Snowmobile 2012 Polaris 800 Pro-RMK EFI L/C 163
                Snowmobile 2012 Polaris 800 Pro-RMK EFI L/C 155
            800 RMK Assault EFI L/C
                Snowmobile 2012 Polaris 800 RMK Assault EFI L/C 155 ES
                Snowmobile 2012 Polaris 800 RMK Assault EFI L/C 155
            800 RMK EFI L/C
                Snowmobile 2012 Polaris 800 RMK EFI L/C International
                Snowmobile 2012 Polaris 800 RMK EFI L/C 155 Electric Start
                Snowmobile 2012 Polaris 800 RMK EFI L/C 155
            800 Rush EFI L/C
                Snowmobile 2012 Polaris 800 Rush EFI L/C
                Snowmobile 2012 Polaris 800 Rush EFI L/C ES
            800 Rush Pro-R EFI L/C
                Snowmobile 2012 Polaris 800 Rush Pro-R EFI L/C
                Snowmobile 2012 Polaris 800 Rush Pro-R EFI L/C ES
            800 Switchback Adventure EFI L/C
                Snowmobile 2012 Polaris 800 Switchback Adventure EFI L/C
            800 Switchback Assault EFI L/C
                Snowmobile 2012 Polaris 800 Switchback Assault EFI L/C 144
            800 Switchback EFI L/C
                Snowmobile 2012 Polaris 800 Switchback EFI L/C
                Snowmobile 2012 Polaris 800 Switchback EFI L/C Electric Start
            800 Switchback Pro-R EFI L/C
                Snowmobile 2012 Polaris 800 Switchback Pro-R EFI L/C
                Snowmobile 2012 Polaris 800 Switchback Pro-R EFI L/C Electrical Start
    2011
        Polaris
            600 IQ Widetrak EFI L/C
                Snowmobile 2011 Polaris 600 IQ Widetrak EFI L/C
            600 Rush EFI L/C
                Snowmobile 2011 Polaris 600 Rush EFI L/C
                Snowmobile 2011 Polaris 600 Rush EFI L/C ES
            600 Rush LX EFI L/C
                Snowmobile 2011 Polaris 600 Rush LX EFI L/C
            600 Rush Pro-R EFI L/C
                Snowmobile 2011 Polaris 600 Rush Pro-R EFI L/C
                Snowmobile 2011 Polaris 600 Rush Pro-R EFI L/C Electric Start
                Snowmobile 2011 Polaris 600 Rush Pro-R EFI L/C LX
            800 Pro-RMK EFI L/C
                Snowmobile 2011 Polaris 800 Pro-RMK EFI L/C 163
                Snowmobile 2011 Polaris 800 Pro-RMK EFI L/C 155
                Snowmobile 2011 Polaris 800 Pro-RMK EFI L/C ES
            800 RMK Assault EFI L/C
                Snowmobile 2011 Polaris 800 RMK Assault EFI L/C 155
            800 RMK EFI L/C
                Snowmobile 2011 Polaris 800 RMK EFI L/C 163 Electric Start
                Snowmobile 2011 Polaris 800 RMK EFI L/C 163
                Snowmobile 2011 Polaris 800 RMK EFI L/C International
                Snowmobile 2011 Polaris 800 RMK EFI L/C 155 Electric Start
                Snowmobile 2011 Polaris 800 RMK EFI L/C 155
            800 Rush Pro-R EFI L/C
                Snowmobile 2011 Polaris 800 Rush Pro-R EFI L/C
                Snowmobile 2011 Polaris 800 Rush Pro-R EFI L/C ES
                Snowmobile 2011 Polaris 800 Rush Pro-R EFI L/C LX
            800 Switchback Assault EFI L/C
                Snowmobile 2011 Polaris 800 Switchback Assault EFI L/C 144
    2010
        Polaris
            600 IQ Widetrak EFI L/C
                Snowmobile 2010 Polaris 600 IQ Widetrak EFI L/C
            600 Rush EFI L/C
                Snowmobile 2010 Polaris 600 Rush EFI L/C Pro-Ride
    2009
        Polaris
            600 HO IQ EFI L/C
                Snowmobile 2009 Polaris 600 HO IQ EFI L/C
                Snowmobile 2009 Polaris 600 HO IQ EFI L/C Euro
            600 IQ Shift Carb L/C
                Snowmobile 2009 Polaris 600 IQ Shift Carb L/C
                Snowmobile 2009 Polaris 600 IQ Shift Carb L/C Euro
            600 RMK EFI L/C
                Snowmobile 2009 Polaris 600 RMK EFI L/C 155 Euro
                Snowmobile 2009 Polaris 600 RMK EFI L/C 155
                Snowmobile 2009 Polaris 600 RMK EFI L/C 144 Euro
                Snowmobile 2009 Polaris 600 RMK EFI L/C 144

OEM
4012113
4012548
4012939

Dimensions :
Interior diameter : 53mm
Exterior diameter : 119mm
Thickness : 22mm
Length of wires stator to grommet : 60mm
Length of wires grommet to plug : 80mm
Length of pickup coil's wire to grommet : 110mm & 100mm

Other specifications :
Number of wires : 13

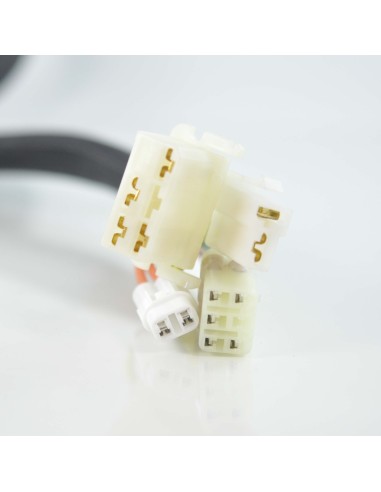

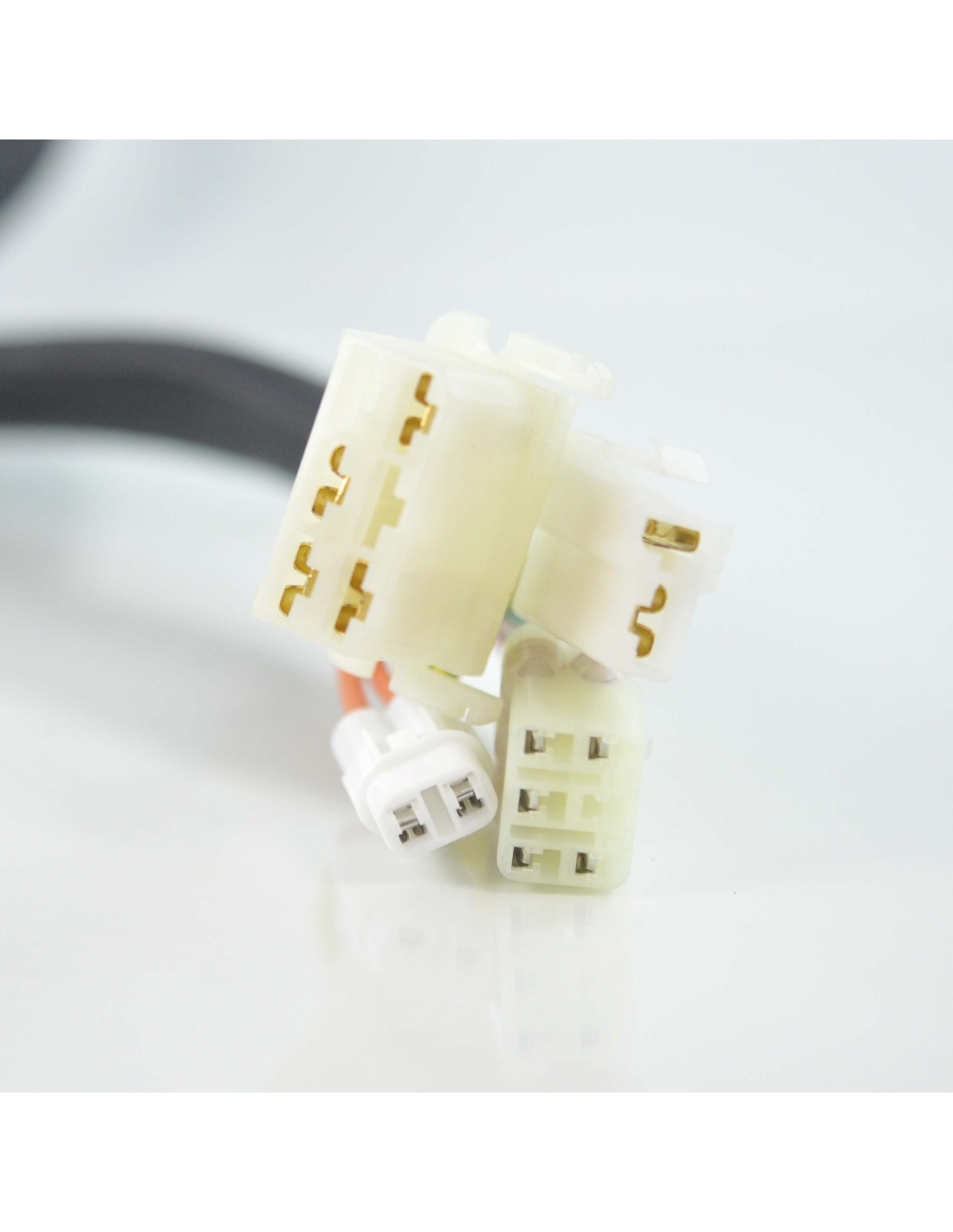

Number of plugs : 4
Number of pins : 13

Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4ohms +/-20%
Pickup : Green to White/Green = 195ohms +/-20%
Pickup : White to White/Red = 195ohms +/-20%
Source : Orange to Orange = 0.4ohms +/-20%
