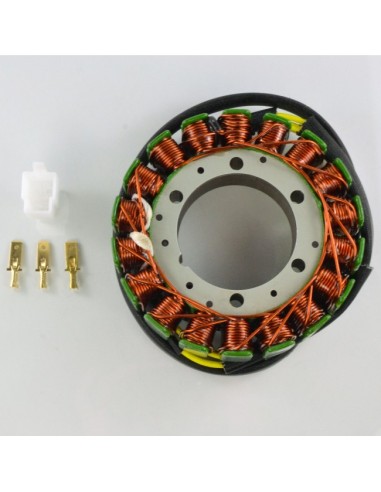

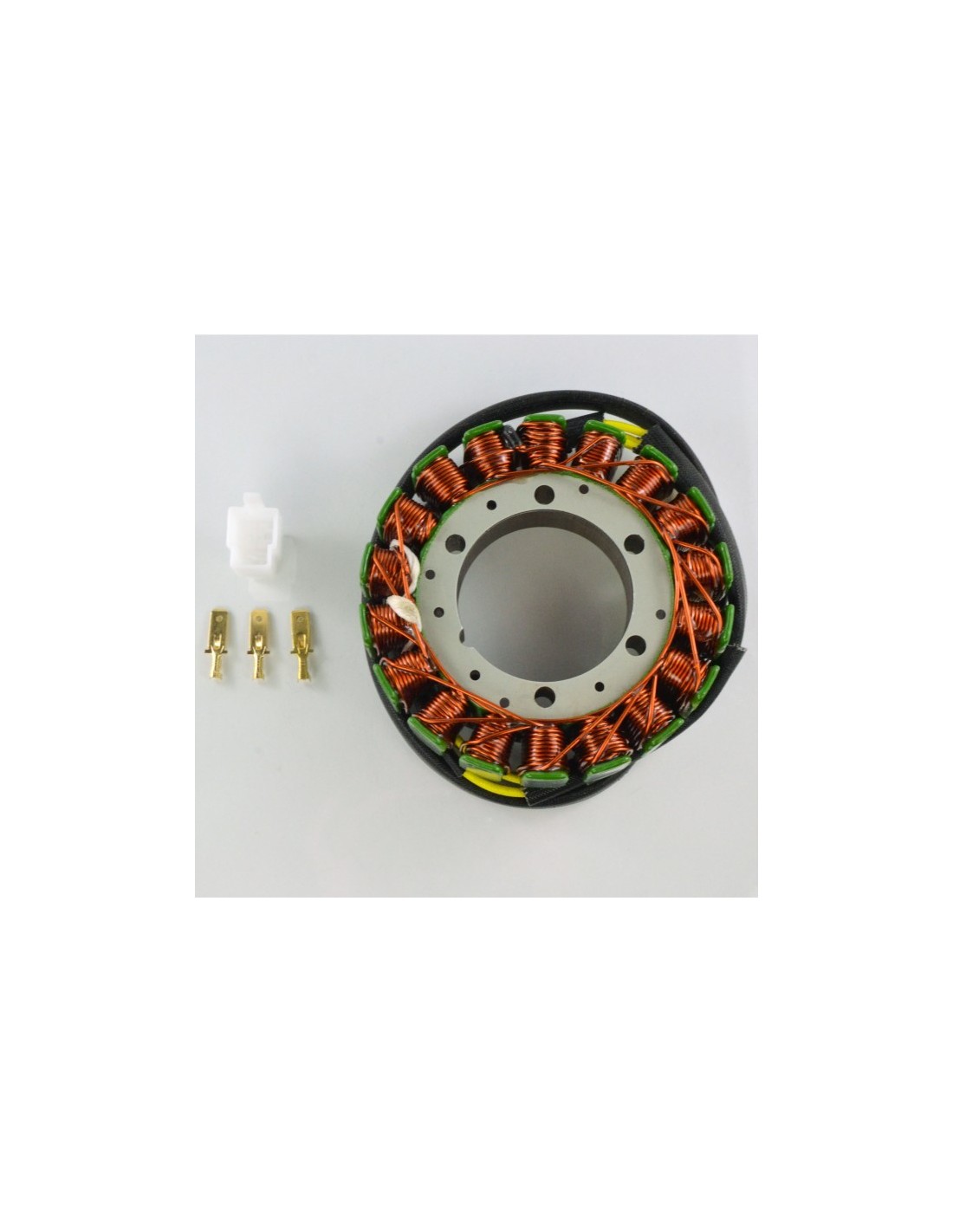

Stator Triumph Scrambler 900 Thruxton 900 Speedmaster 800 900 America 800 Bonneville 50 900 T100 OEM T1300076

Stator

2009 Triumph Bonneville
2009 Triumph Bonneville 50
2008 Triumph America 900
2008 Triumph Bonneville
2008 Triumph Bonneville T100
2008 Triumph Scrambler 900
2008 Triumph Speedmaster 900
2008 Triumph Speedmaster 900 2-Tone
2008 Triumph Thruxton 900
2007 Triumph America 900
2007 Triumph Bonneville
2007 Triumph Bonneville 900
2007 Triumph Bonneville T100
2007 Triumph Scrambler 900
2007 Triumph Speedmaster 900
2007 Triumph Speedmaster 900 2-Tone
2007 Triumph Thruxton 900
2006 Triumph America 800
2006 Triumph Bonneville
2006 Triumph Bonneville 900
2006 Triumph Bonneville America
2006 Triumph Bonneville T100
2006 Triumph Scrambler 900
2006 Triumph Speedmaster 900
2006 Triumph Thruxton 900
2005 Triumph America 800
2005 Triumph Bonneville
2005 Triumph Bonneville 900
2005 Triumph Bonneville America
2005 Triumph Bonneville T100
2005 Triumph Speedmaster 800
2005 Triumph Thruxton 900
2004 Triumph America 800
2004 Triumph Bonneville
2004 Triumph Bonneville 900
2004 Triumph Bonneville America
2004 Triumph Bonneville T100
2004 Triumph Speedmaster 800
2004 Triumph Speedmaster 900
2004 Triumph Thruxton 900
2003 Triumph America 800
2003 Triumph Bonneville 900
2003 Triumph Bonneville America
2003 Triumph Bonneville T100
2003 Triumph Speedmaster 800
2003 Triumph Speedmaster 900
2002 Triumph America 800
2002 Triumph Bonneville 900
2002 Triumph Bonneville America
2002 Triumph Bonneville T100
2001 Triumph America 800
2001 Triumph Bonneville 900
2001 Triumph Bonneville T100

OEM T1300076

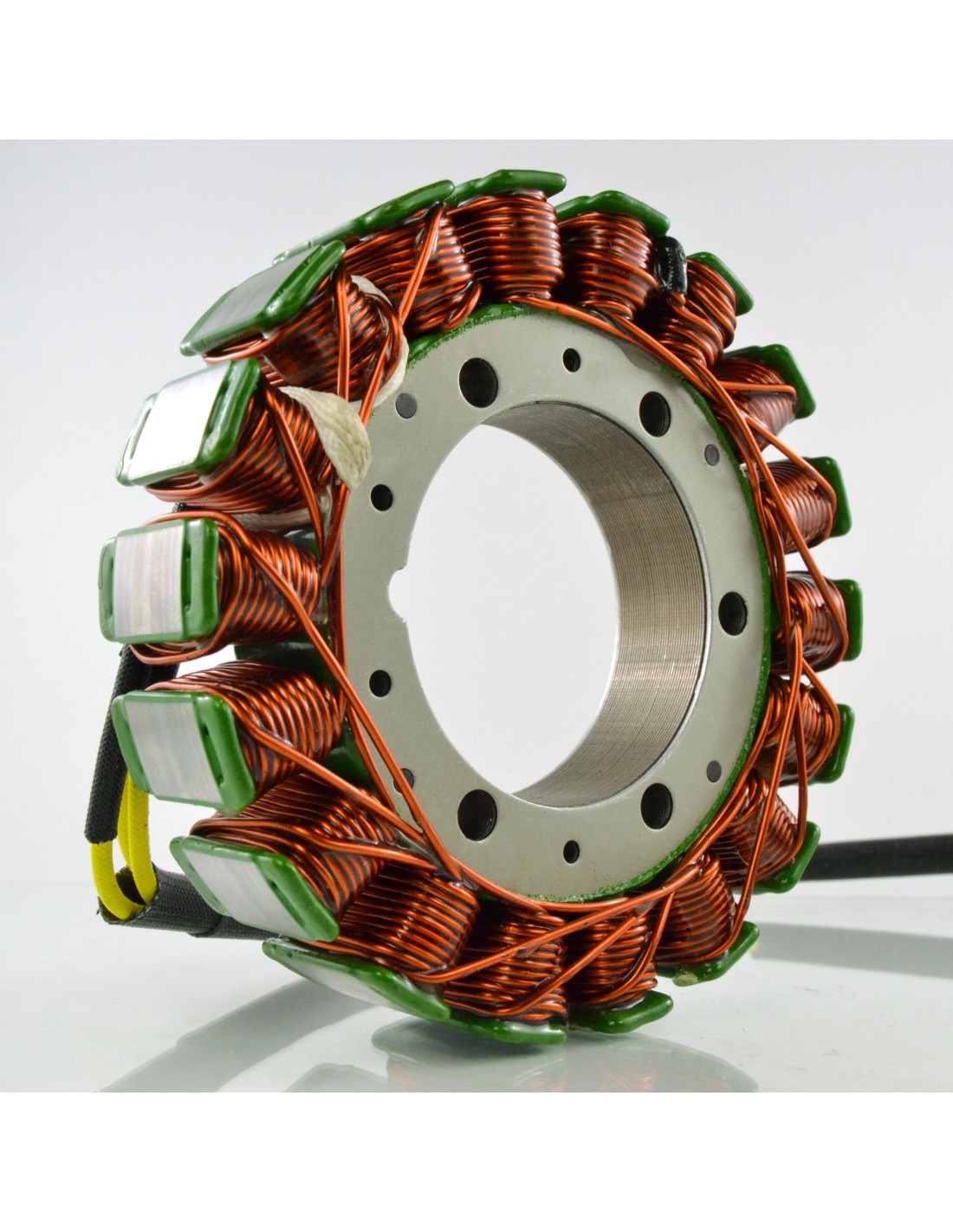

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 20 mm
Length of wires stator to grommet : 195 mm
Length of wires grommet to plug : 660 mm

Other specifications :
Number of wires : 3

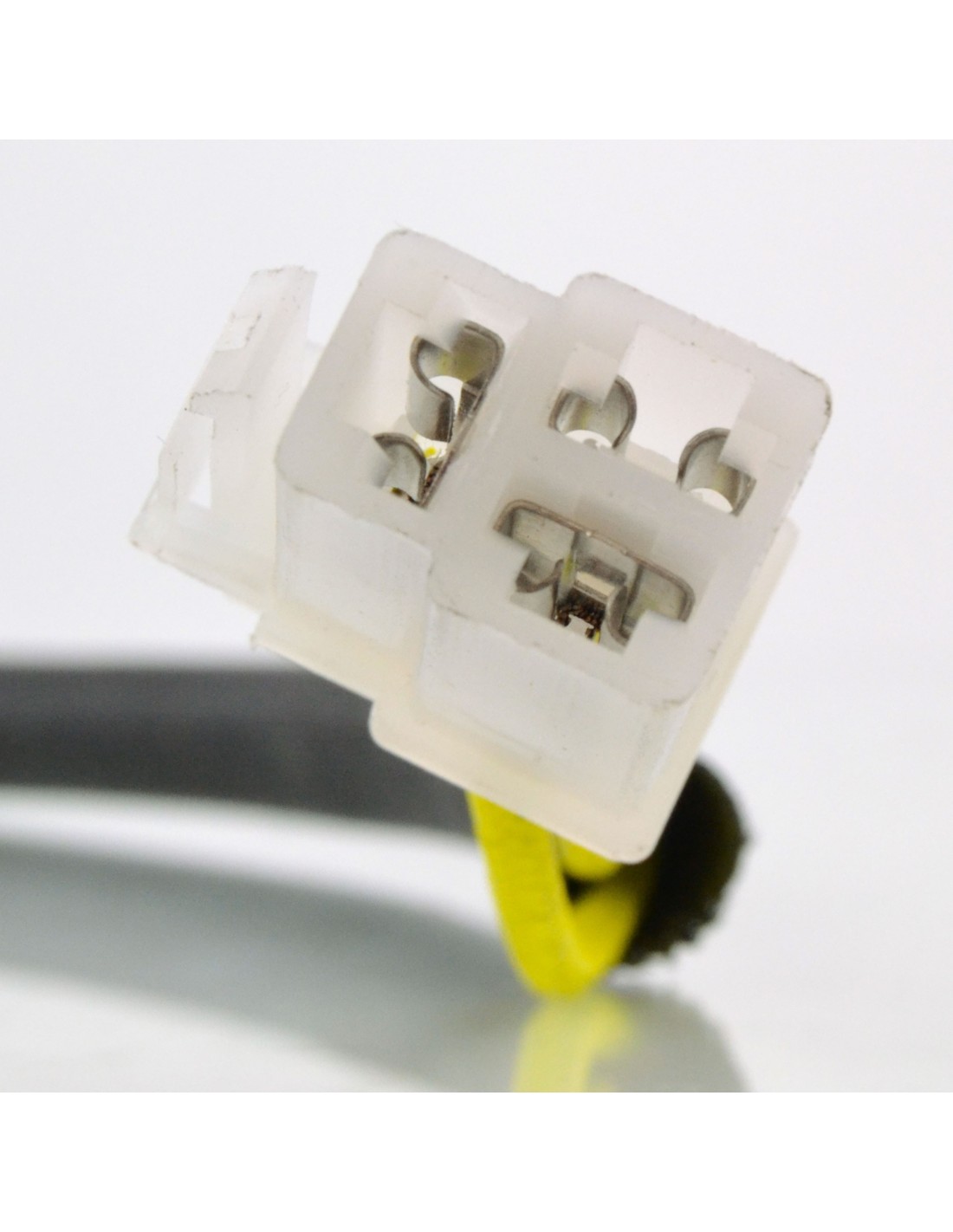

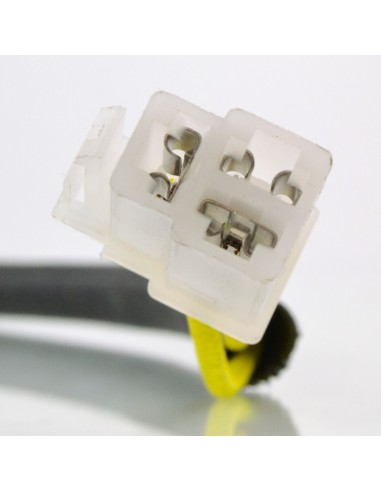

Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Yellow Between Yellow = 0.4 ohms +-20%
