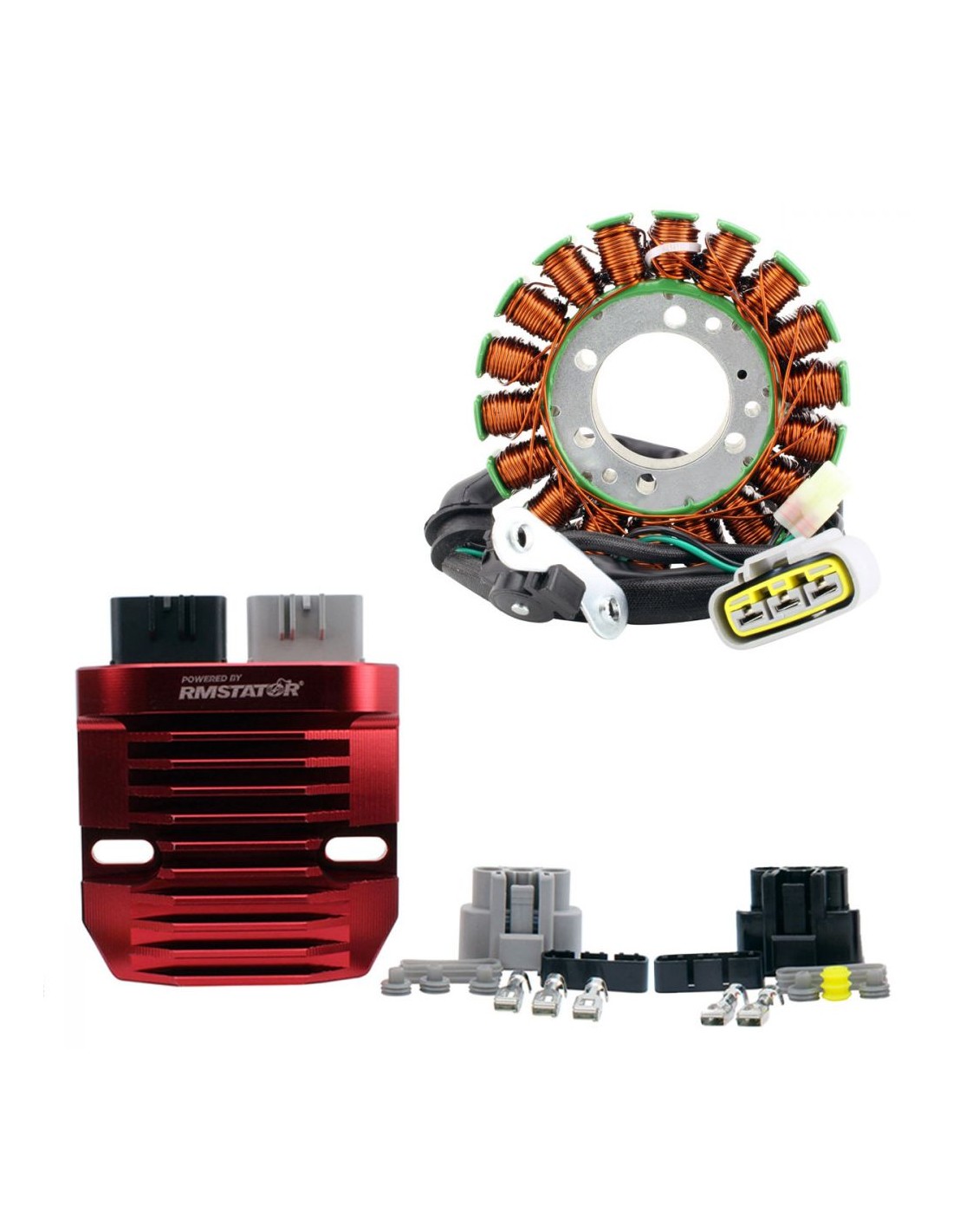

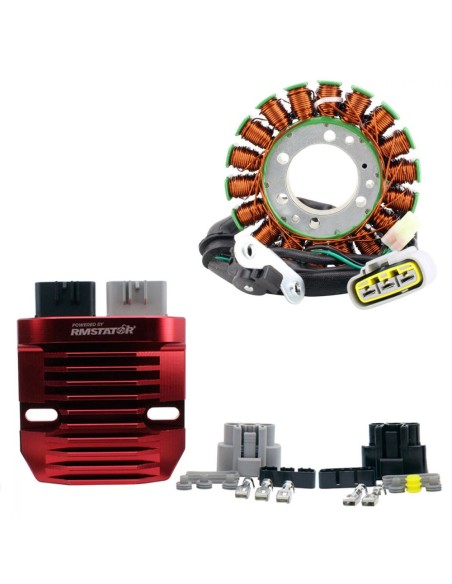

Stator Red Machined Alum Mosfet Regulator Triumph Street Triple 660 765 OEM T1300057 T1300205

Stator Red Machined Alum Mosfet Regulator Triumph Street Triple 660 765

2020 Triumph Street Triple 765 RS
2020 Triumph Street Triple 765 R
2020 Triumph Street Triple 660 S Lams Compliant
2020 Triumph Street Triple 660 S A2
2019 Triumph Street Triple 765 S
2019 Triumph Street Triple 765 RS
2019 Triumph Street Triple 765 R
2019 Triumph Street Triple 660 S Lams Compliant
2018 Triumph Street Triple 765 S
2018 Triumph Street Triple 765 RS
2018 Triumph Street Triple 765 R
2018 Triumph Street Triple 660 S Lams Compliant
2017 Triumph Street Triple 765 S
2017 Triumph Street Triple 765 RS
2017 Triumph Street Triple 765 R
2017 Triumph Street Triple 660 S Lams Compliant

OEM T1300057 T1300205

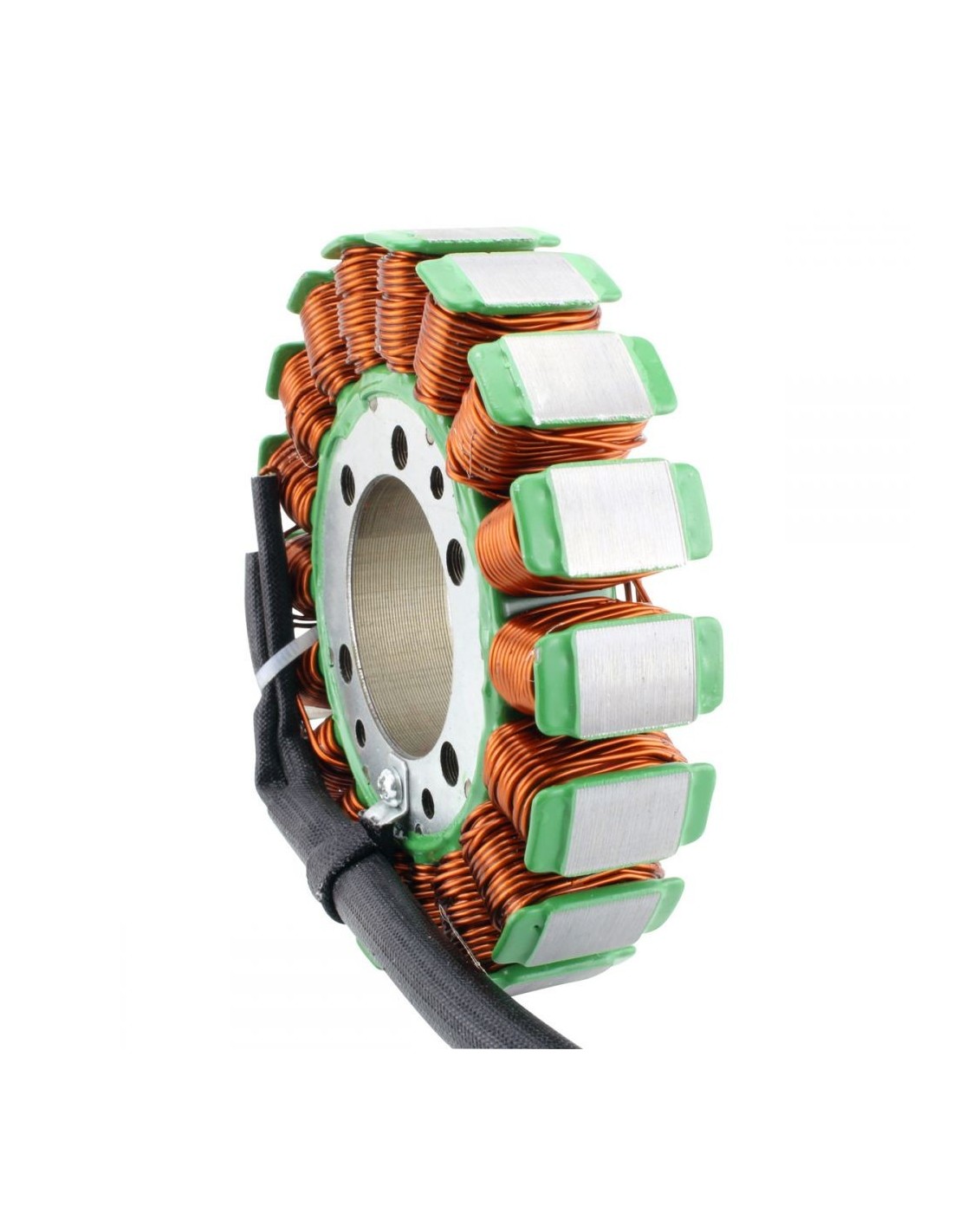

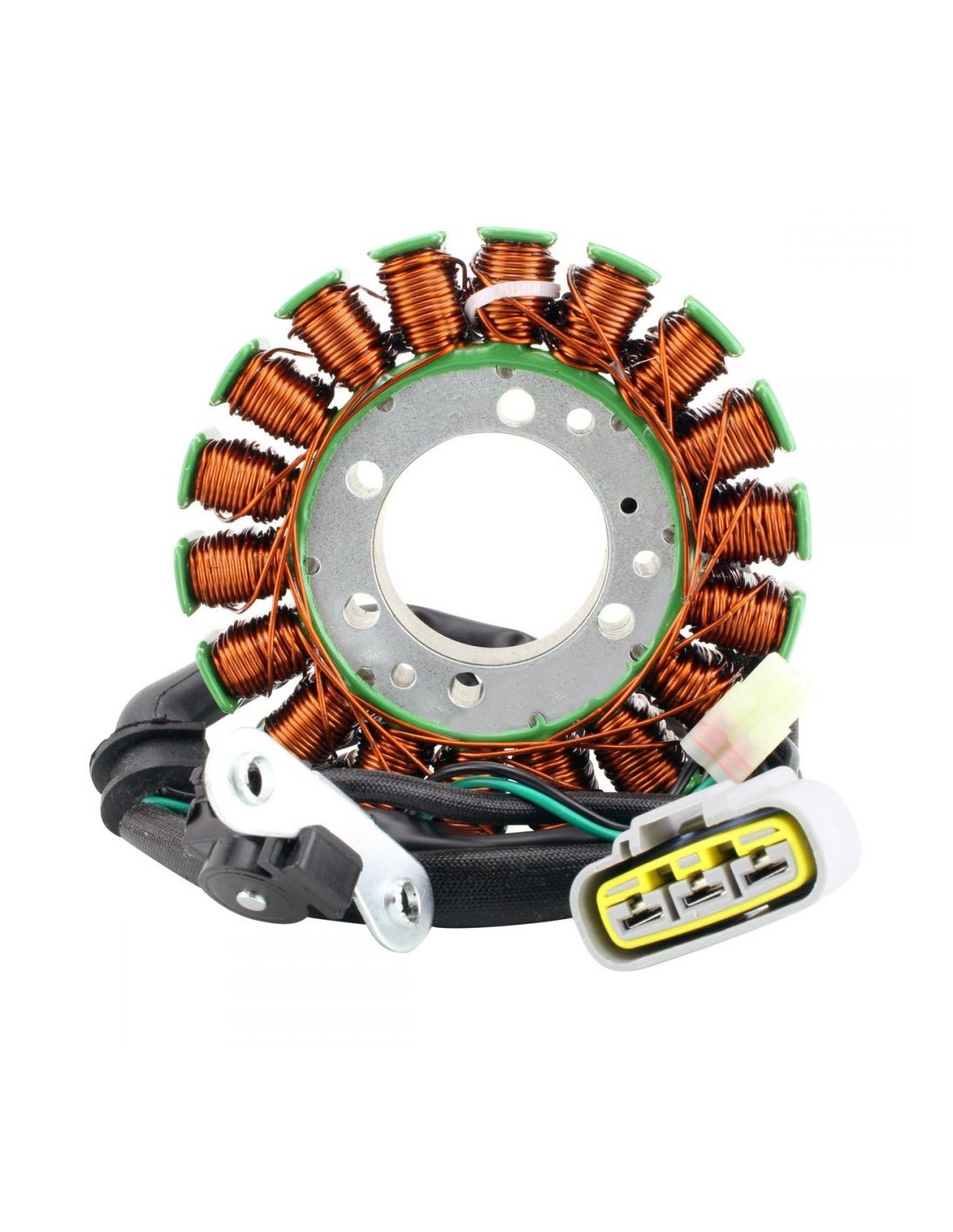

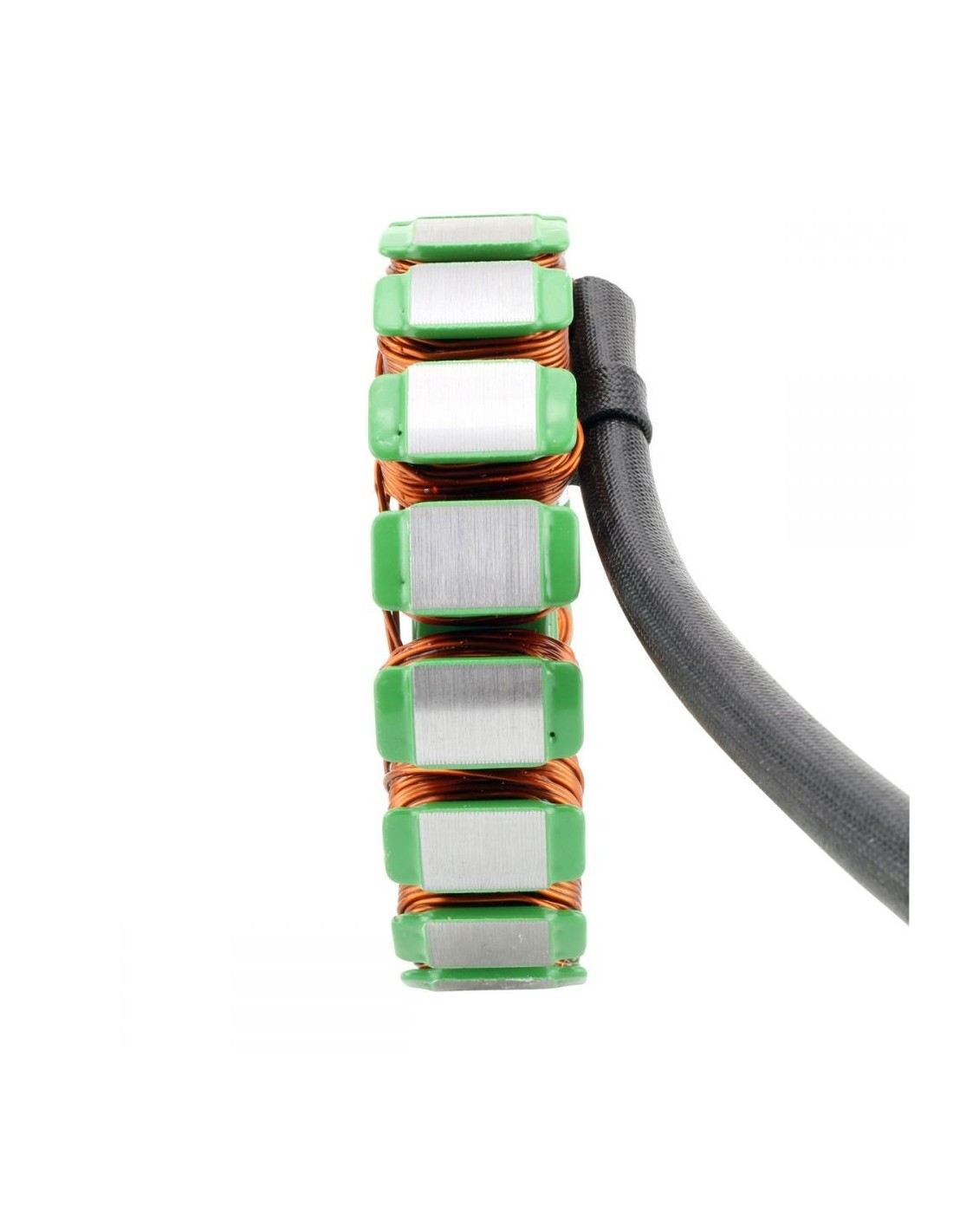

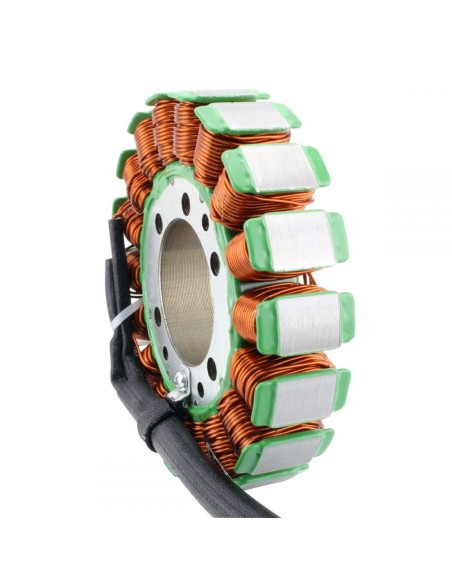

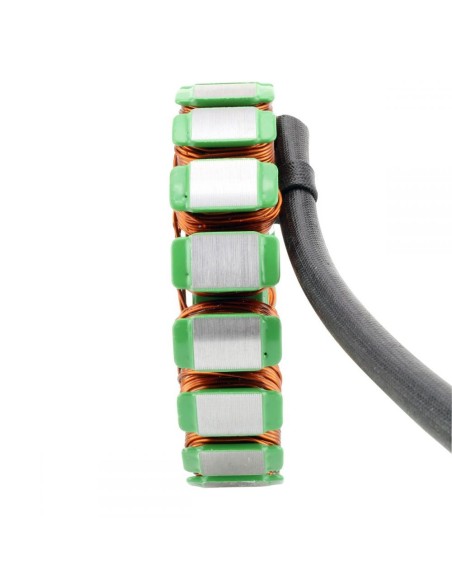

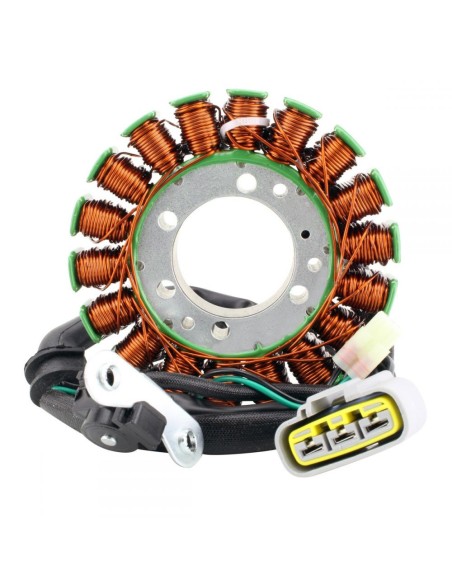

Dimensions Stator :

Interior diameter : 42 mm

Exterior diameter : 115 mm

Thickness : 16 mm

Length of wires stator to grommet : 250 mm

Length of wires grommet to plug # 1 : 195 mm

Length of wires grommet to plug # 2 : 500 mm

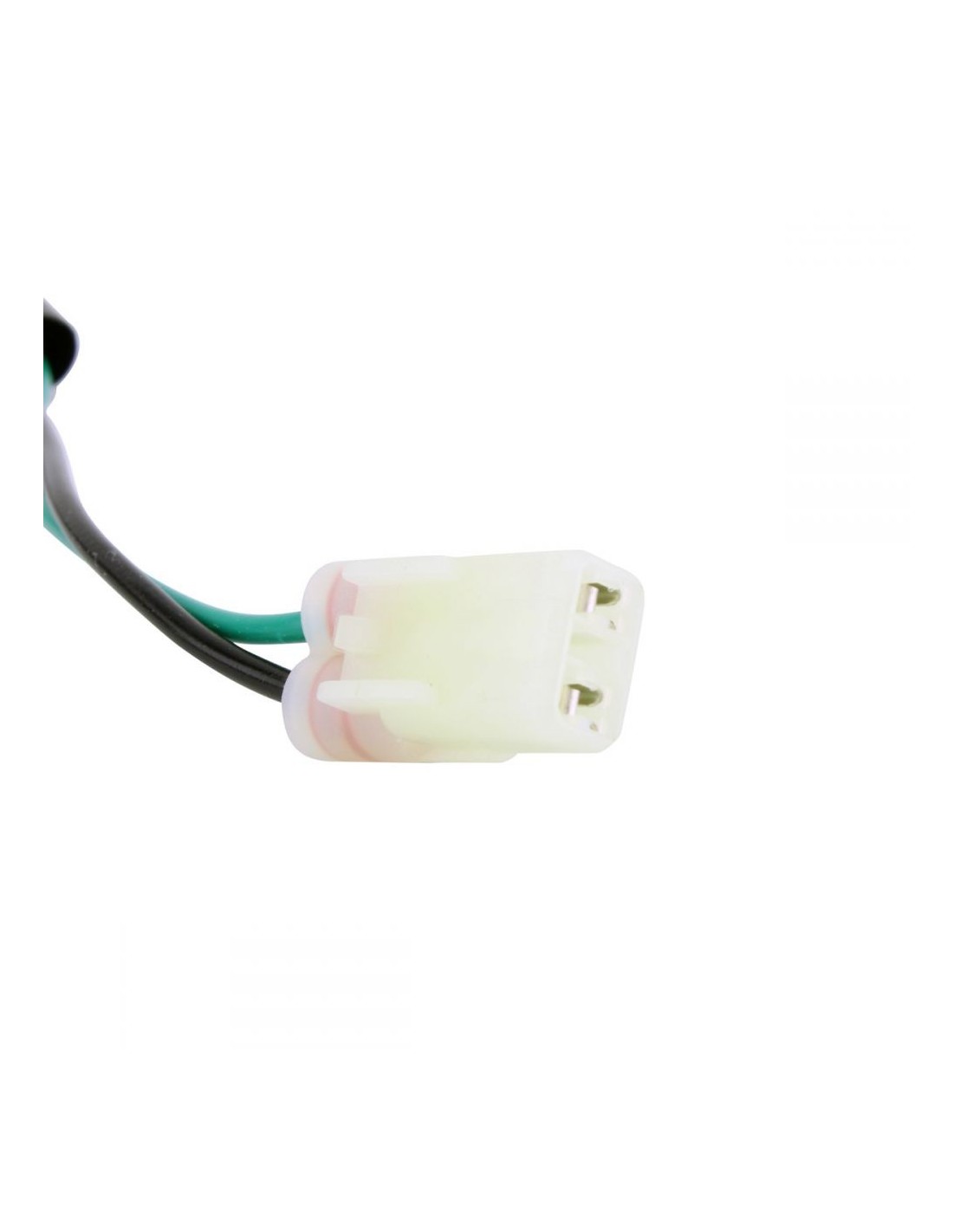

Length of pickup coil's wire to grommet : 280 mm

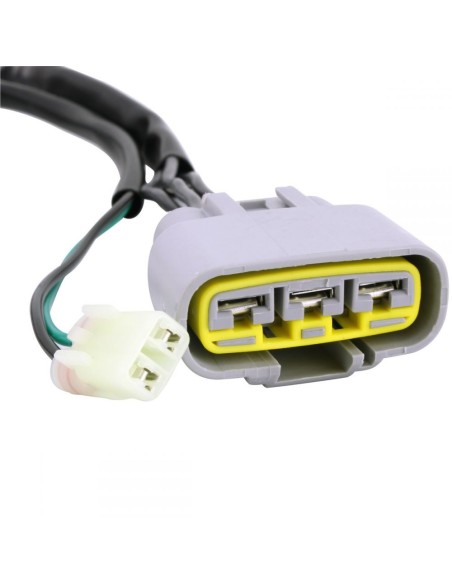

Other specifications :

Number of wires : 5

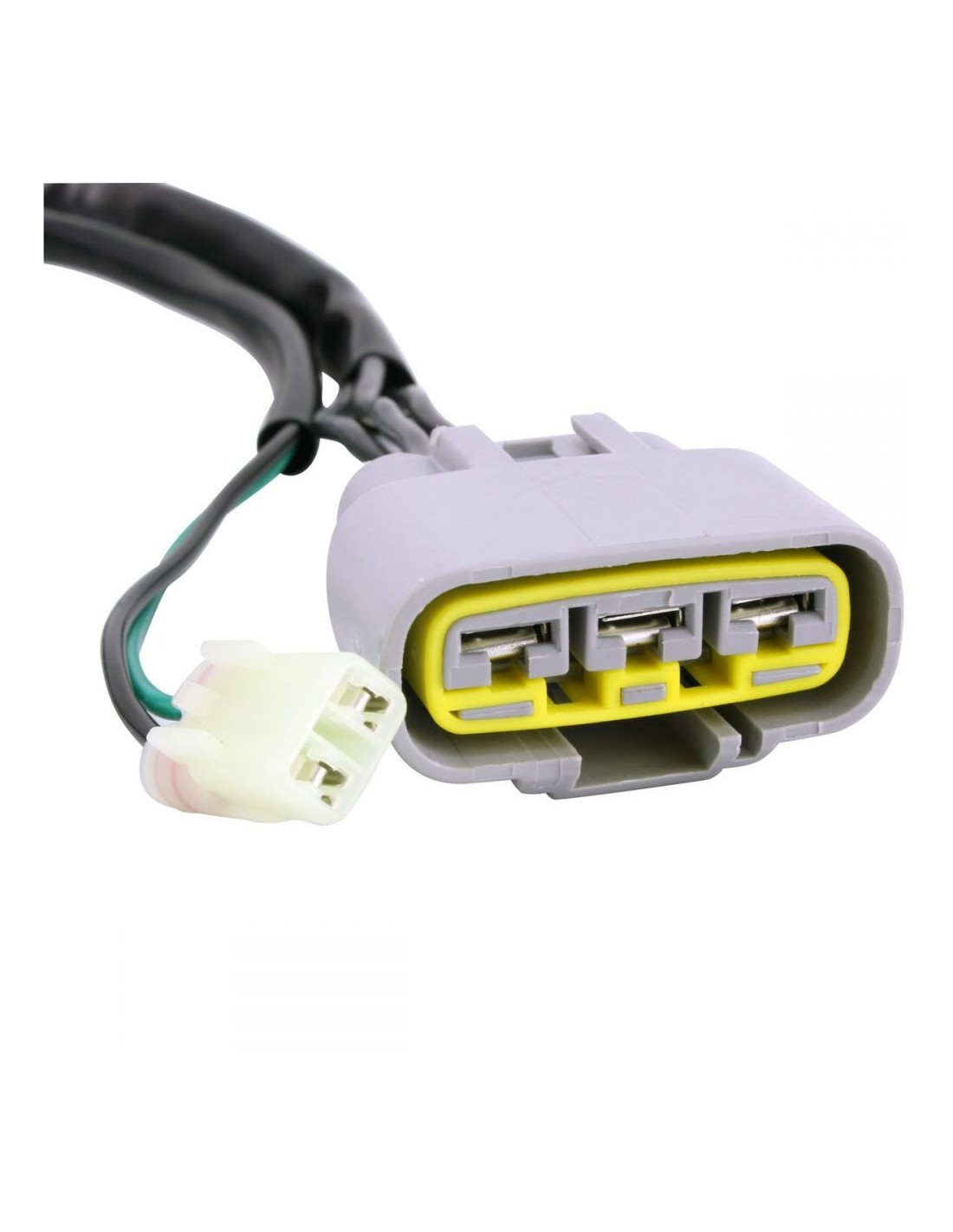

Number of plugs : 2

Number of pins : 5

Number of poles : 18

Wire to wire resistance :

Alternator : Between each Black = 0.6 ohms +-20%

Pickup : Green to Grey = 244 ohms +-20%

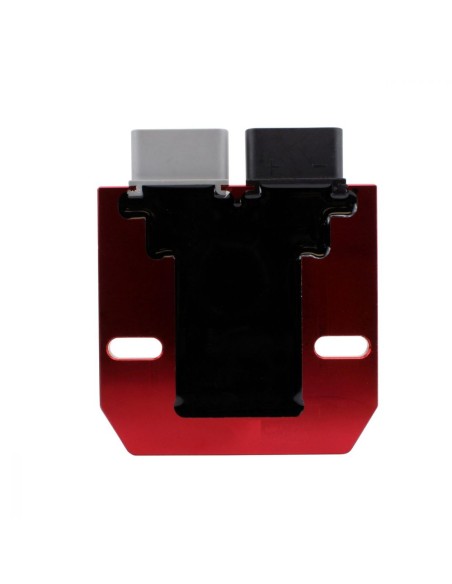

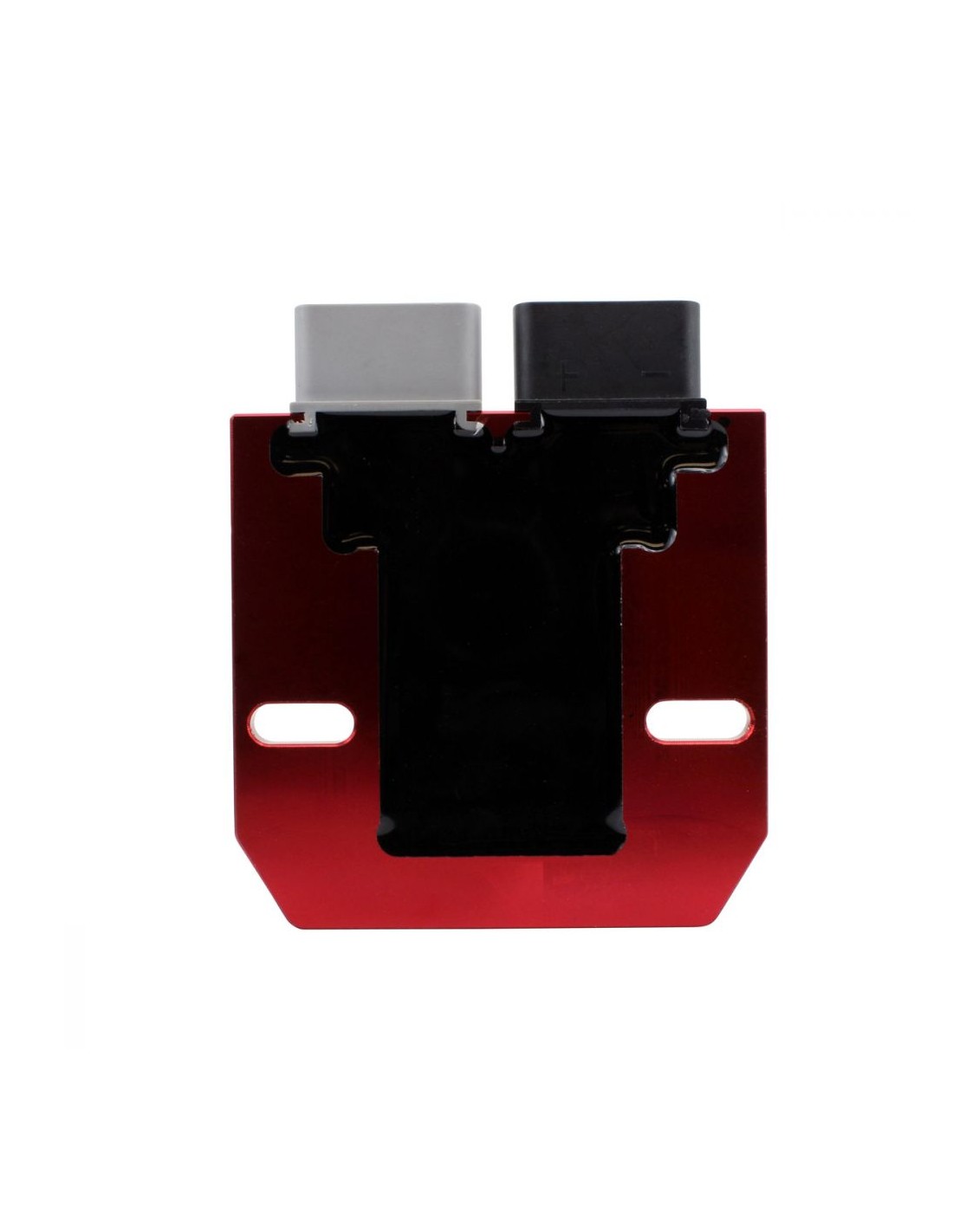

Dimensions Red Machined Aluminum Mosfet Regulator :

Width : 103 mm

Length : 103 mm

Height : 28 mm

Fixation holes center to center : 80 mm

Other specifications :

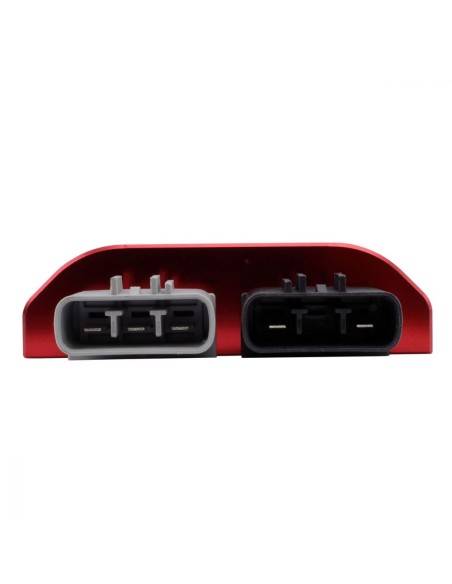

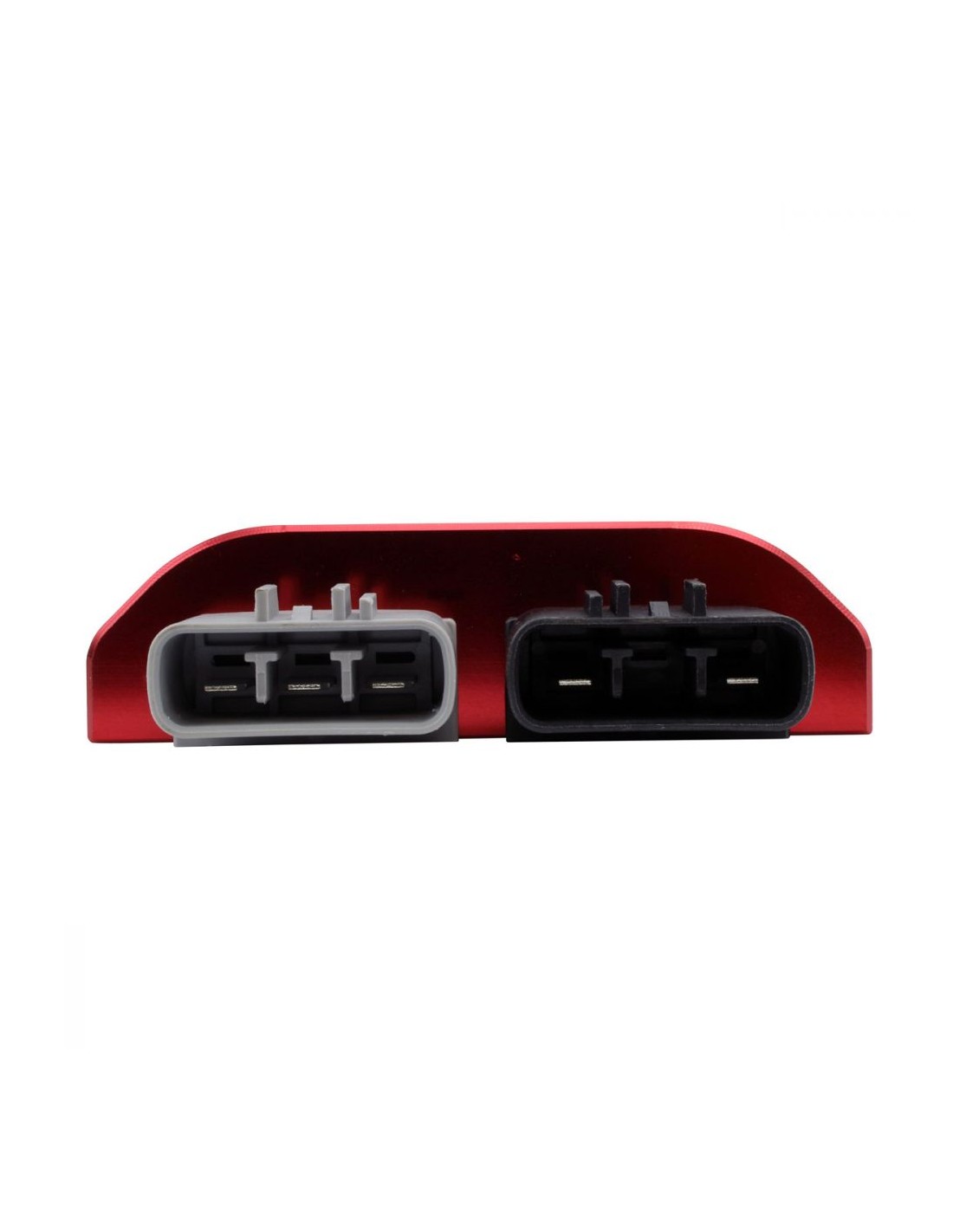

Number of plugs : 2

Number of pins : 5

Minimum Charging Voltage : 14.5 V +- 0.5 V

Maximum Charging Current : 50 A / 500 W

Open Circuit Voltage : 15 V

Operation Temperature : -20⁰C to 85⁰C
