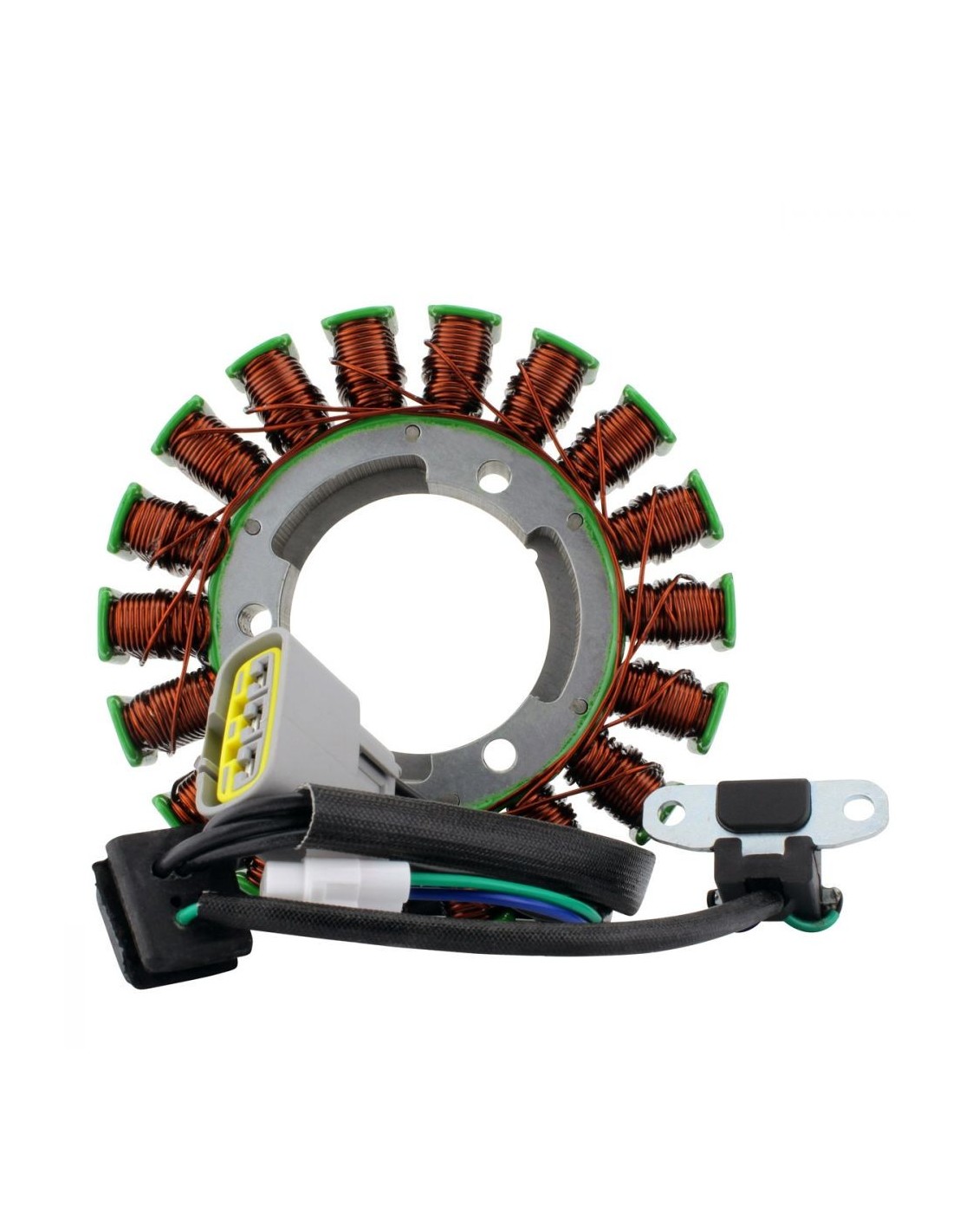

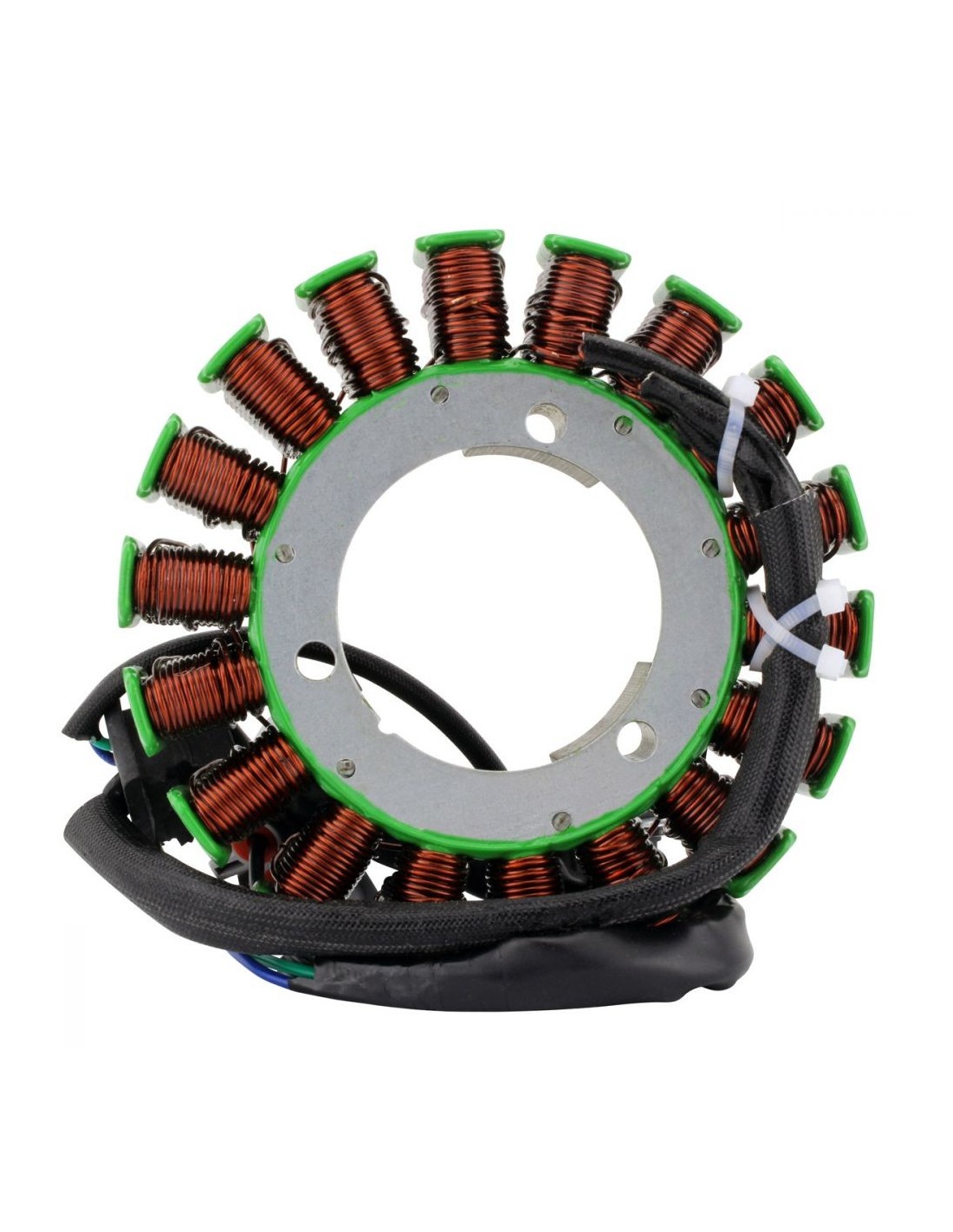

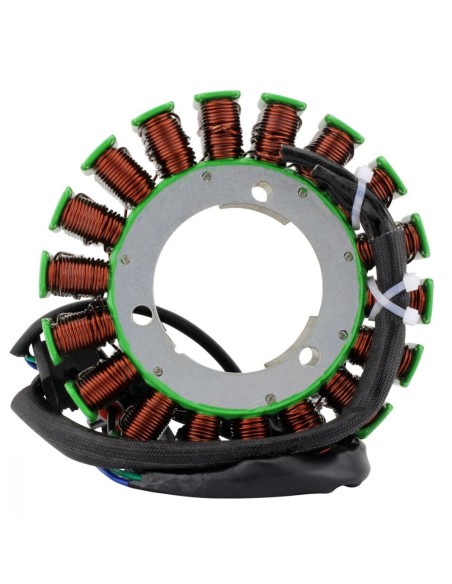

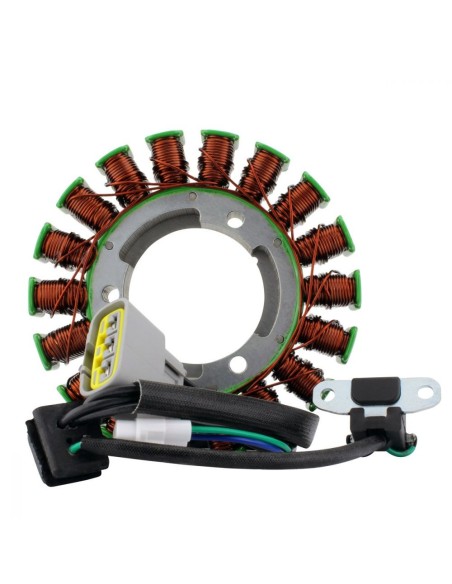

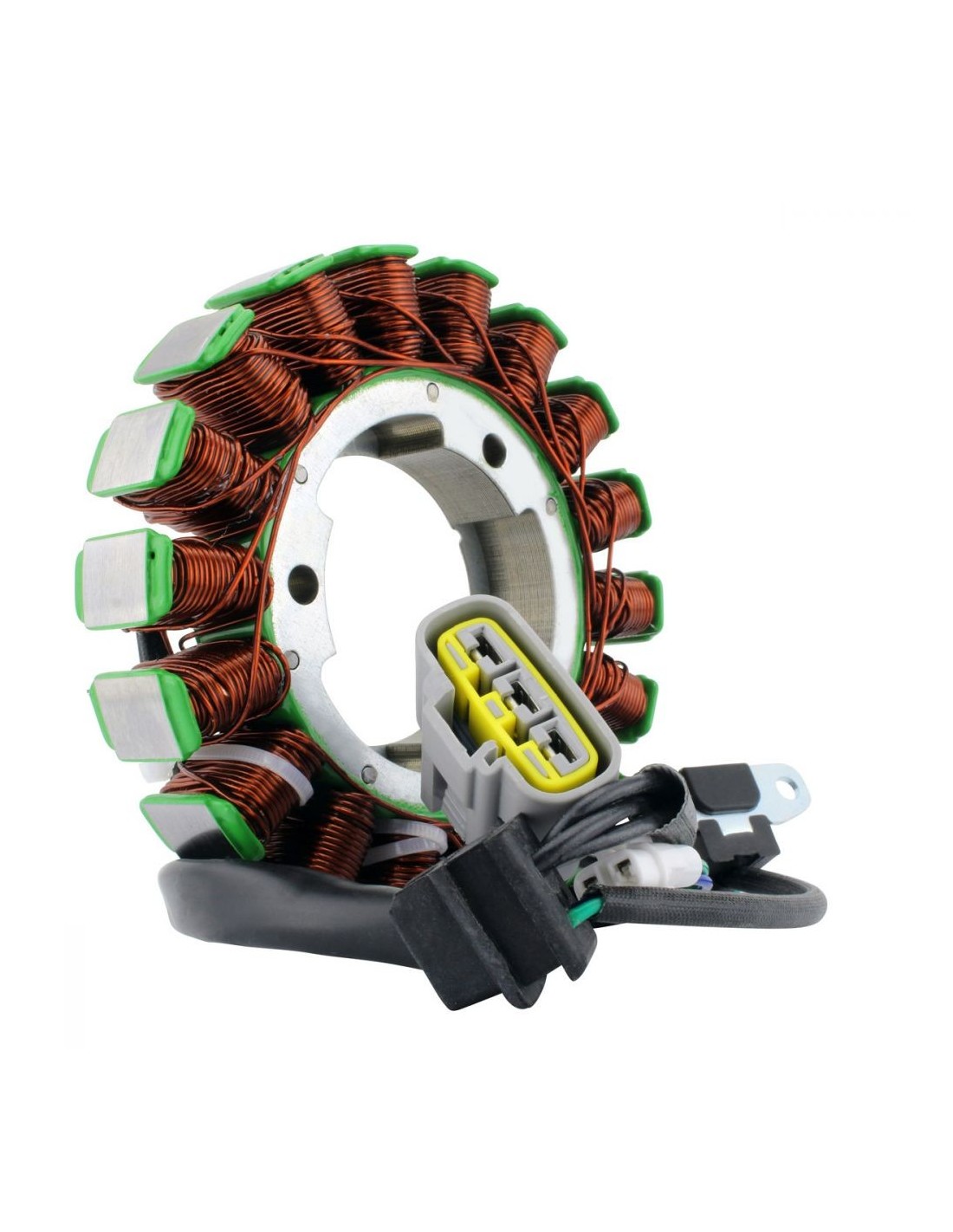

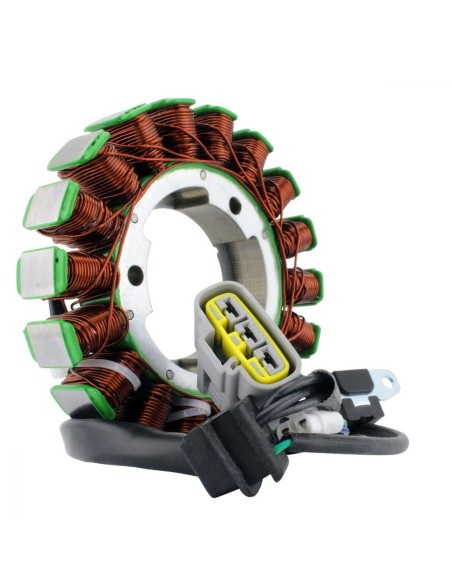

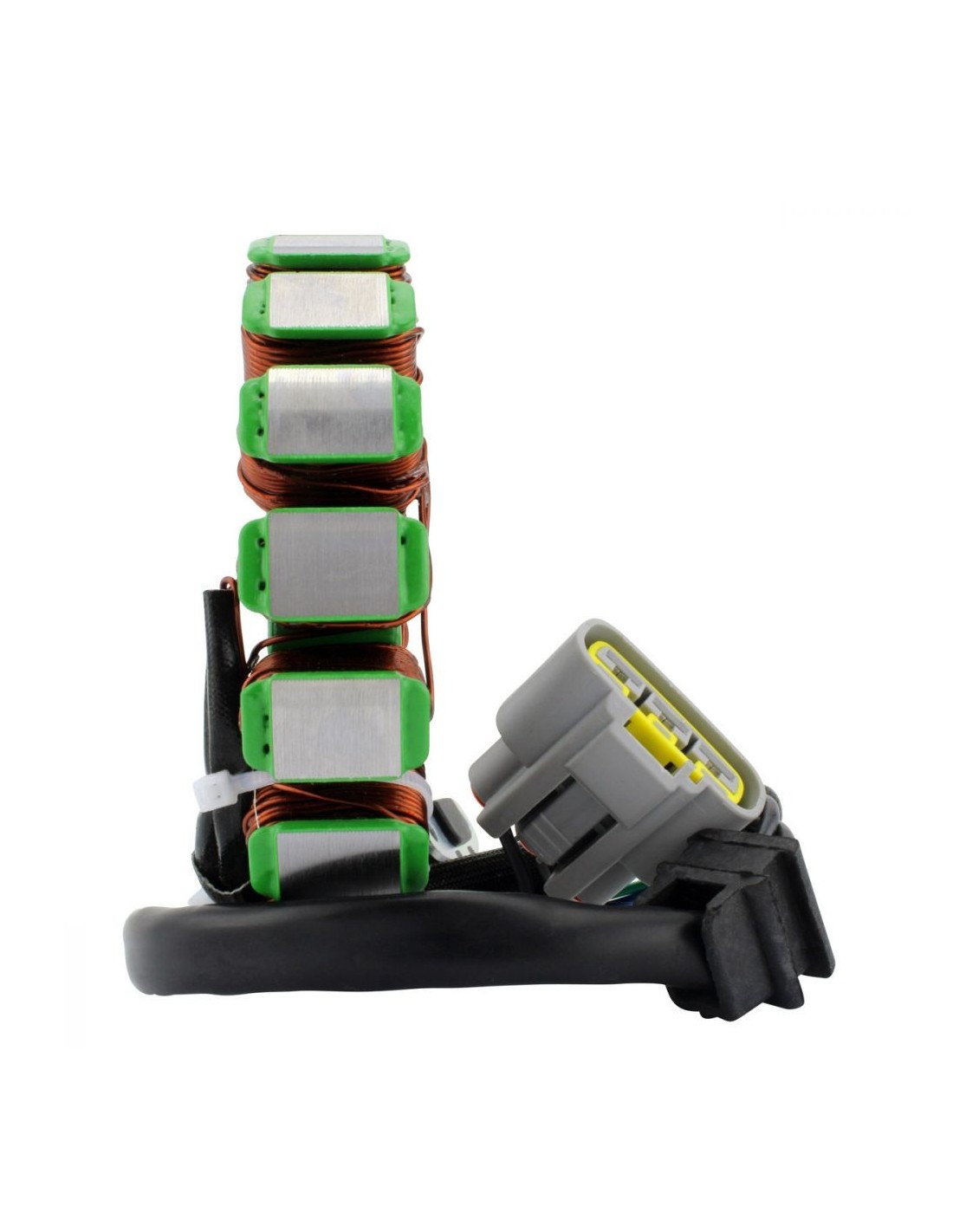

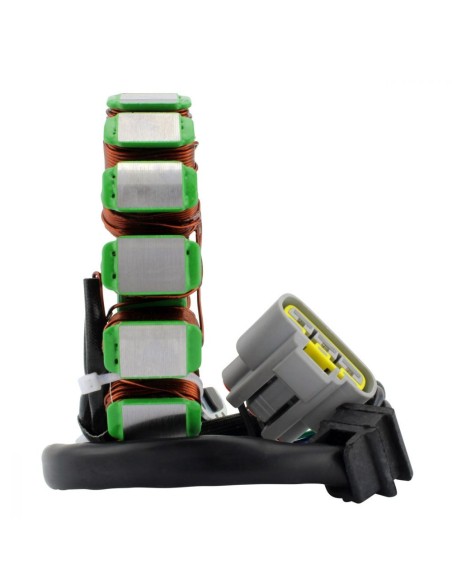

Stator Suzuki LTA750 KingQuad AXi OEM 32101-34K00
CARMS010-107459
5-7 Days
€199.20
Tax included
OEM 32101-34K00
2022 Suzuki LTA 750 KingQuad AXi
2021 Suzuki LTA 750 KingQuad AXi
2020 Suzuki LTA 750 KingQuad AXi
2019 Suzuki LTA 750 KingQuad AXi
OEM 32101-34K00
Dimensions :
Interior diameter : 54mm
Exterior diameter : 127mm
Thickness : 19mm
Length of wires stator to grommet : 195mm
Length of wires grommet to plug : 250mm & 270mm

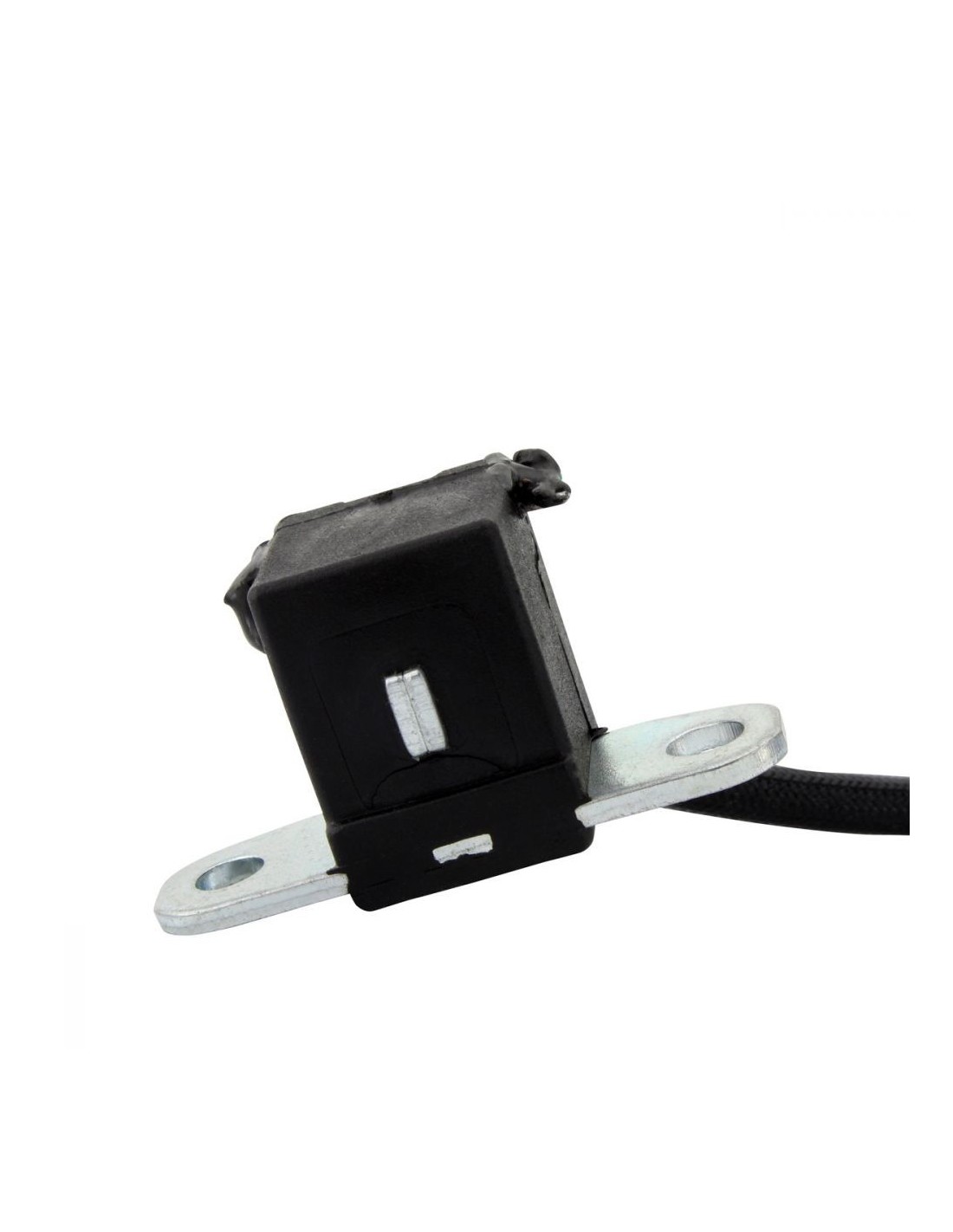

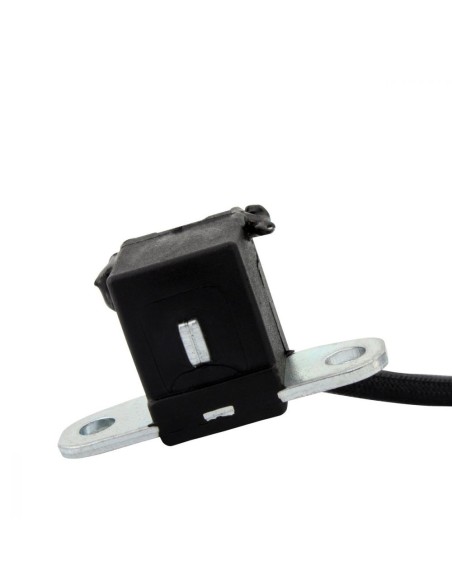

Length of pickup coil's wire to grommet : 130mm
Other specifications :
Number of wires : 5

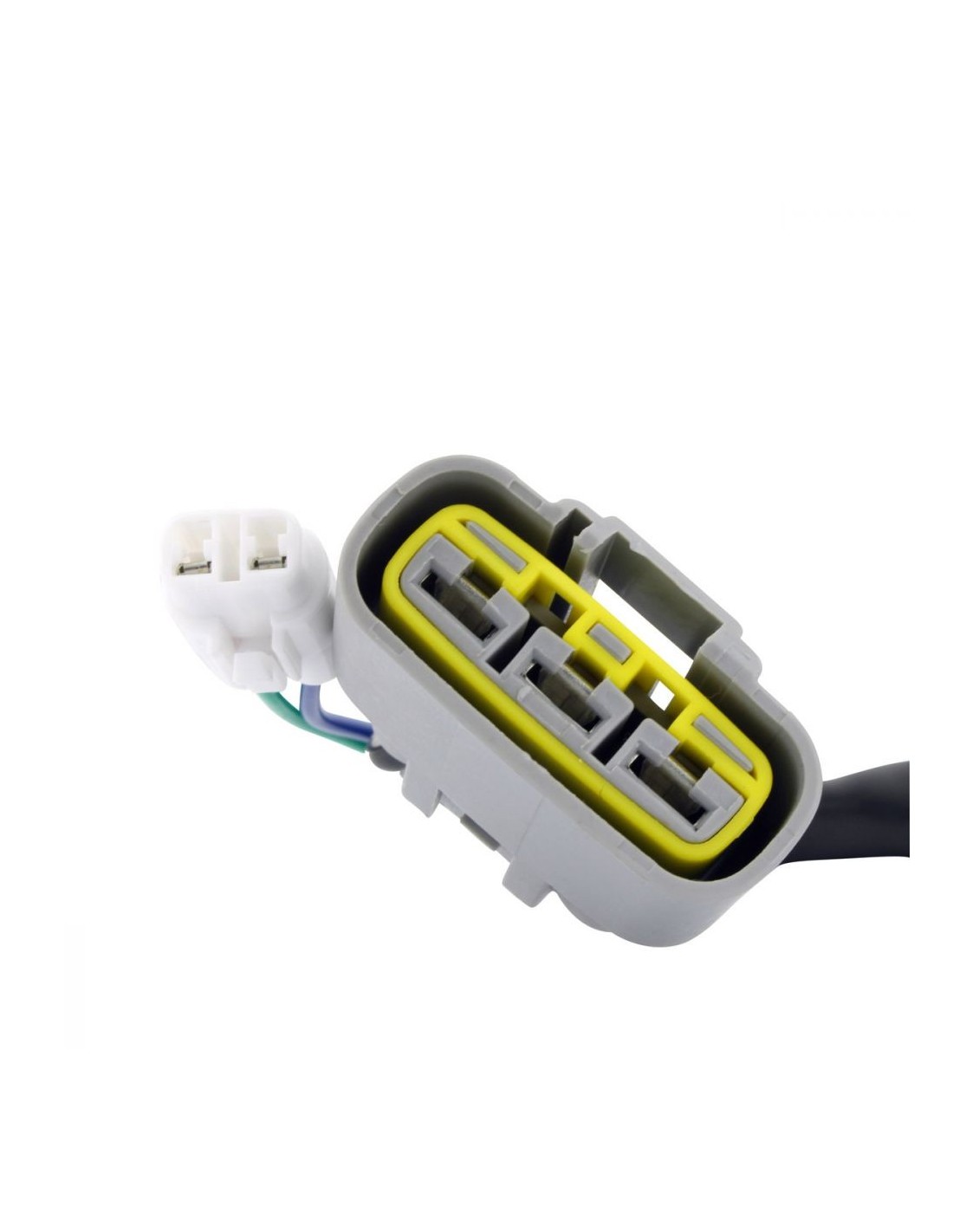

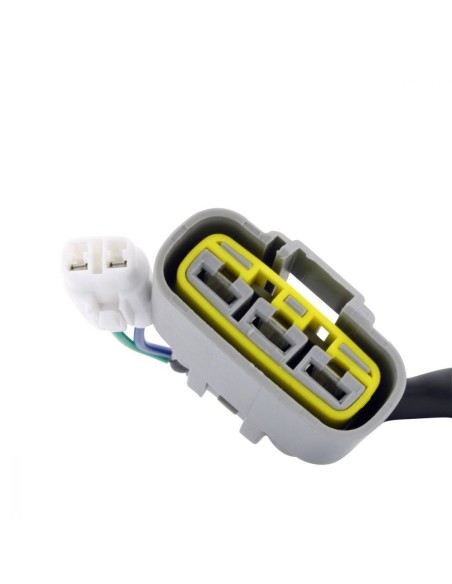

Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : = 0.6 ohms +/-20%
Pickup : Blue to White = 196 ohms +/-20%
