Kit Stator Regulator Rectifier Mosfet Yamaha 700 Viking OEM 1XD-81410-00-00 5B4-81410-00-00

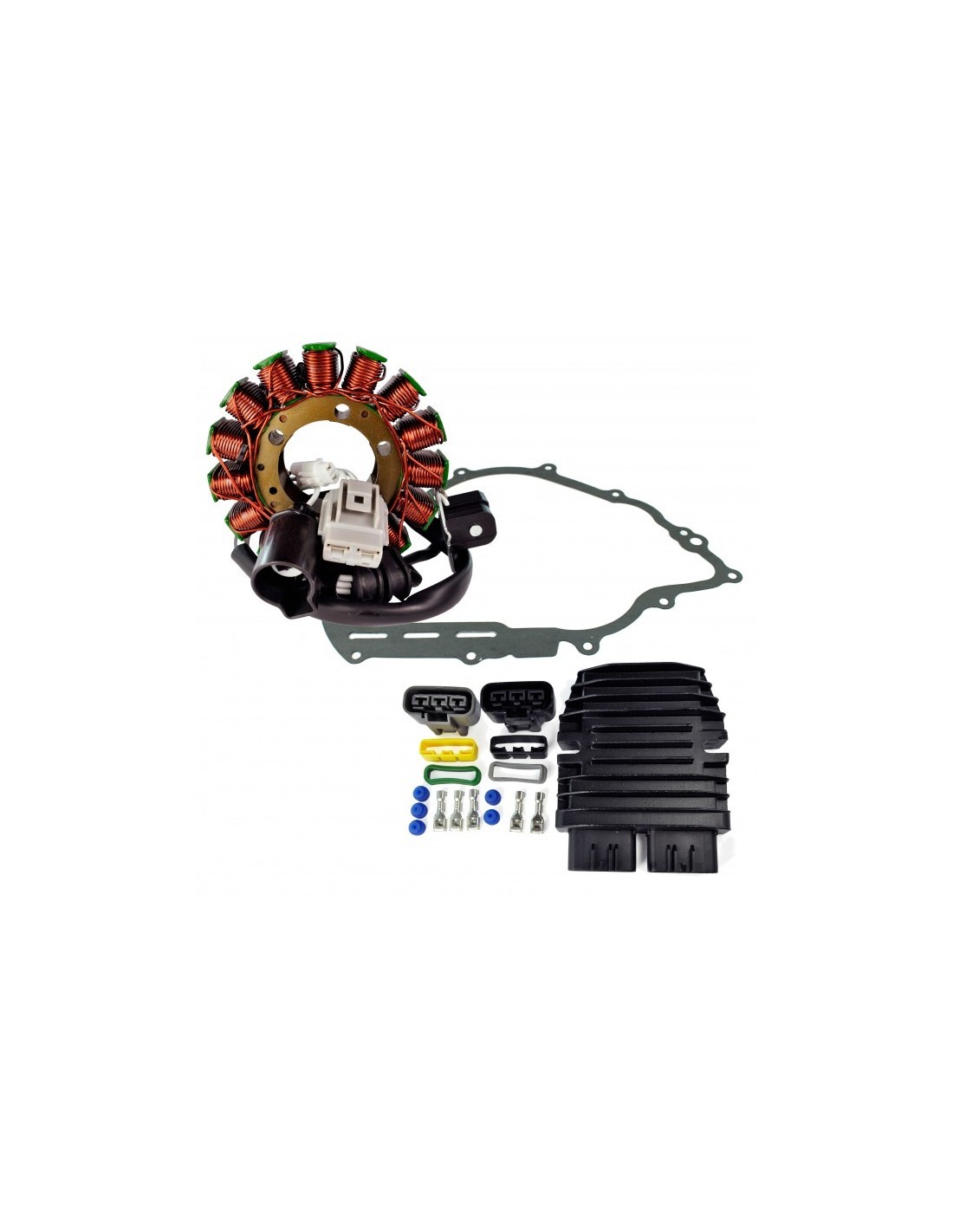

Stator - Regulator Rectifier - Stator Cover Gasket

Yamaha 700 Viking 2014-2024

Dimensions Stator :

Interior diameter : 41 mm

Exterior diameter : 105 mm

Thickness : 19 mm

Length of wires stator to grommet : 65 mm

Length of wires grommet to plug : 400 mm

Length of pickup coil's wire to grommet : 65 mm

Other specifications :

Number of wires : 5

Number of plugs : 3

Number of pins : 5

Wire to wire resistance :

Alternator : White to White = 0.4 ohms +/-20%

Pickup : White to Grey = 500 ohms +/-20%

Dimensions Mosfet Voltage Regulator Rectifier:

Width : 95 mm

Length : 110 mm

Height: 30 mm

Fixation holes center to center : 78 mm

Other specifications :

Number of plugs : 2

Number of pins : 6

Minimum Charging Voltage: 14.5 V +/- 0.5 V

Maximum Charging Current: 50 A / 500 W

Open Circuit Voltage: 15 V

Operation Temperature: -20⁰ to 85⁰

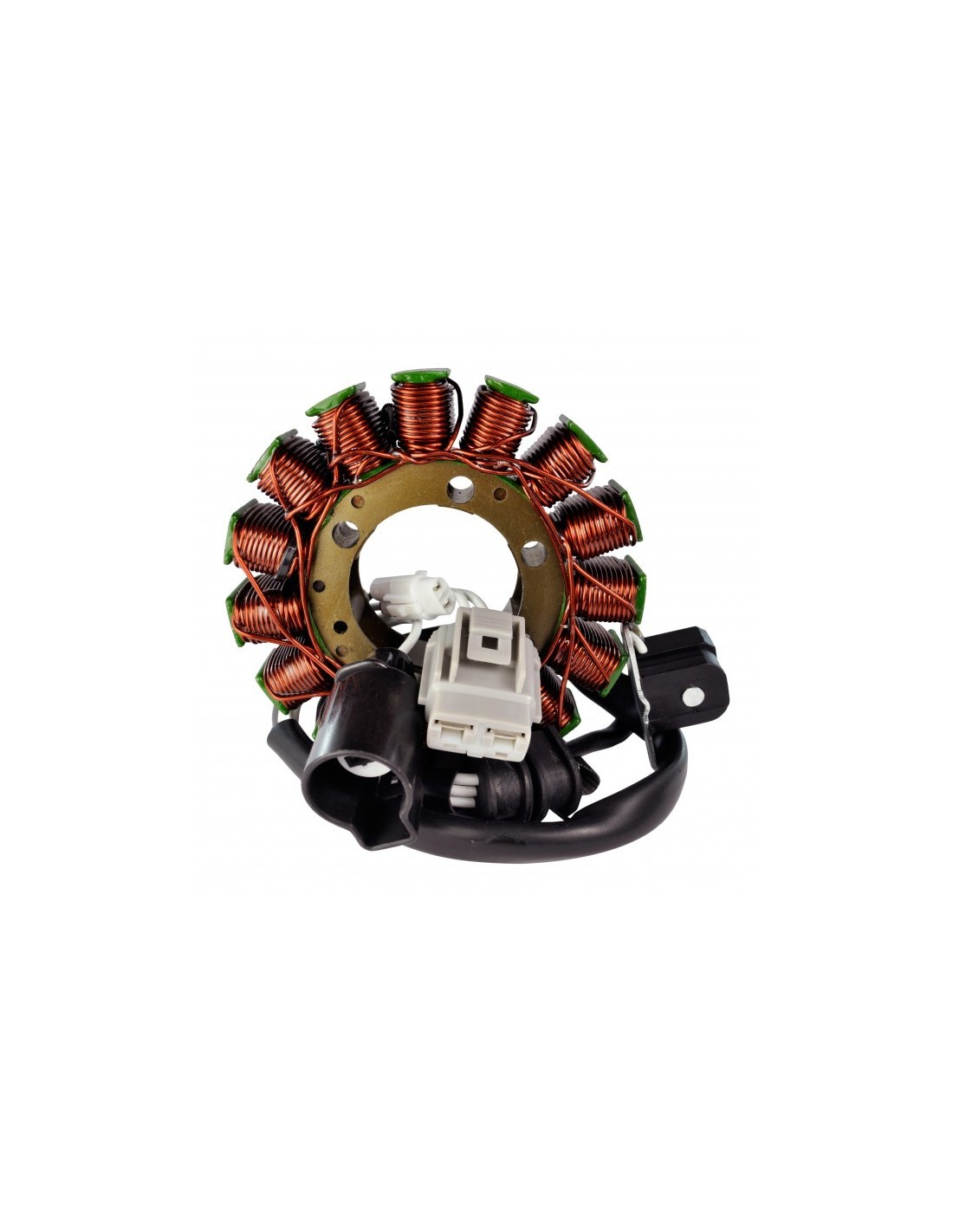

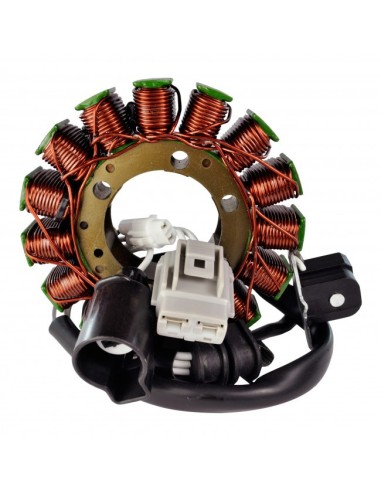

OEM Stator 5B4-81410-00-00
1XD-81410-00-00

• Stator Pick-Up Pulsar Coil
• Stator Cover Gasket
• Stator Highest grade copper windings, resistant to 200 degrees Celsius


• Regulator Rectifier

It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

Improved heat sink and charging capabilities

Before installing your new voltage regulator rectifier:
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
