CARM01191
7-8 Days
€208.00
Tax included

OEM 5B4-81410-00-00 1XD-81410-00-00



Stator

2014-2025 Yamaha YXM Viking 700

OEM 5B4-81410-00-00 / 1XD-81410-00-00

  • Stator Pick-Up Pulsar Coil
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Dimensions :
    Interior diameter : 41mm
    Exterior diameter : 105mm
    Thickness : 19mm
    Length of wires stator to grommet : 65mm
    Length of wires grommet to plug : 400mm
    Length of pickup coil's wire to grommet : 65mm

    Other specifications :
    Number of wires : 5

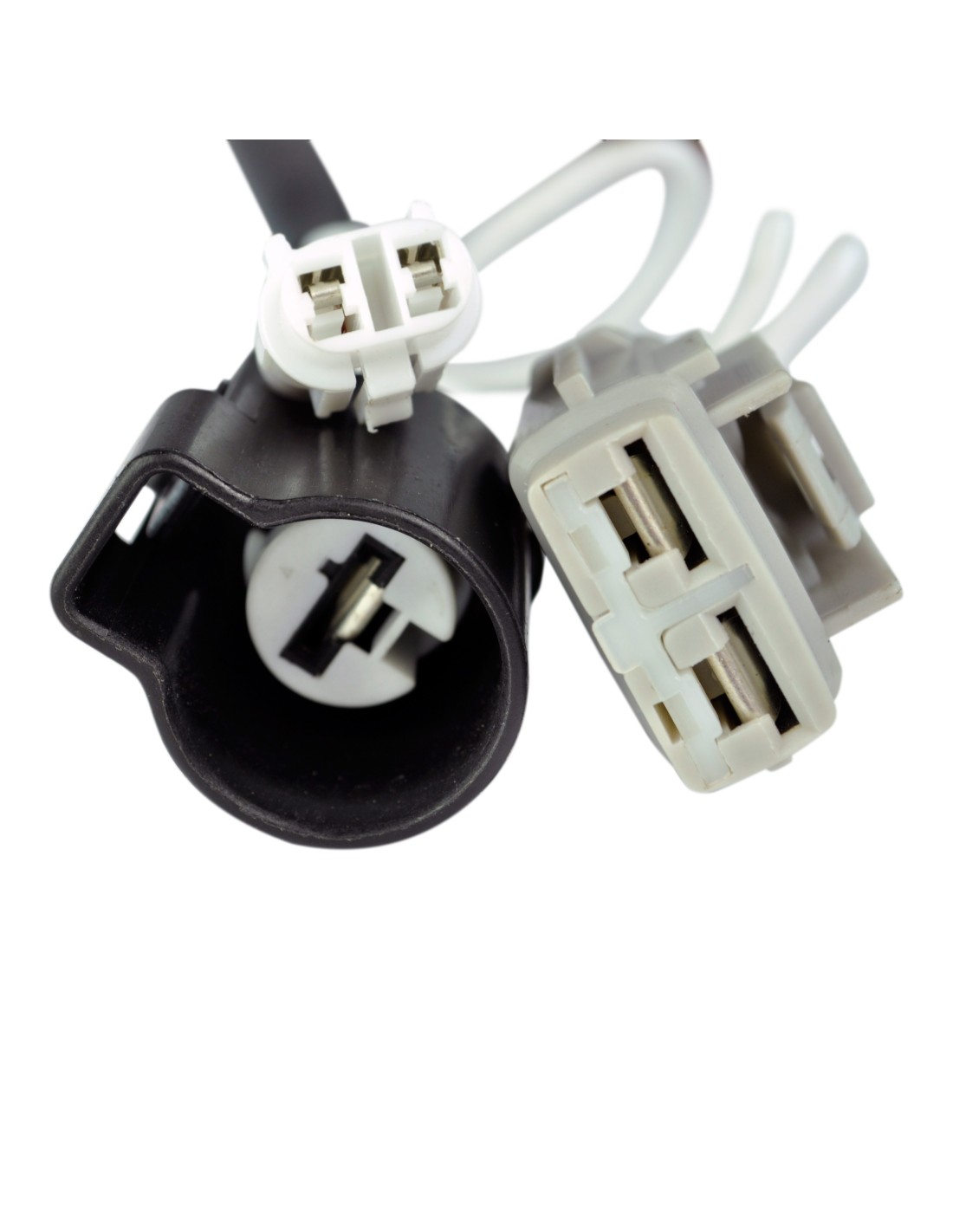

    Number of plugs : 3
    Number of pins : 5

    Wire to wire resistance :
    Alternator : White to White = 0.4ohms +/-20%
    Pickup : White to Grey = 500ohms +/-20%
