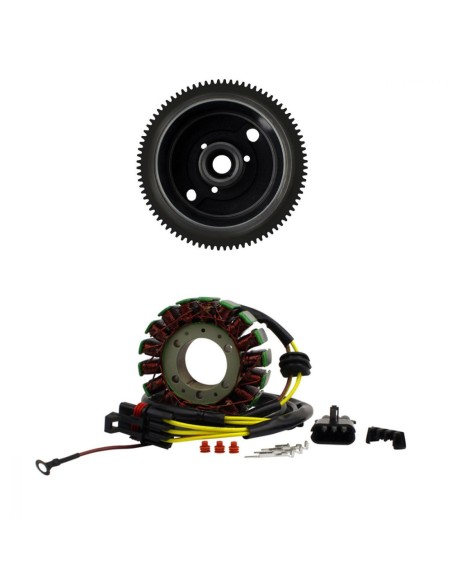

Stator Rotor Polaris Sportsman X2 800 Sportsman 800 EFI Sportsman 700 EFI OEM 4011609 2208144 4010912

2007 Polaris Sportsman X2 800

2007 Polaris Sportsman 800 EFI

2007 Polaris Sportsman 700 EFI

OEM 4011609 2208144 4010912

Please Note: This part only fits OEMs No 2208144 and 4010912 with 6369K and FF9538 stamping on the flywheel

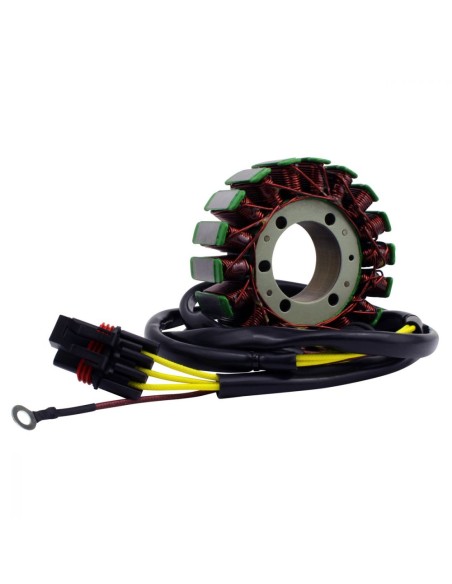

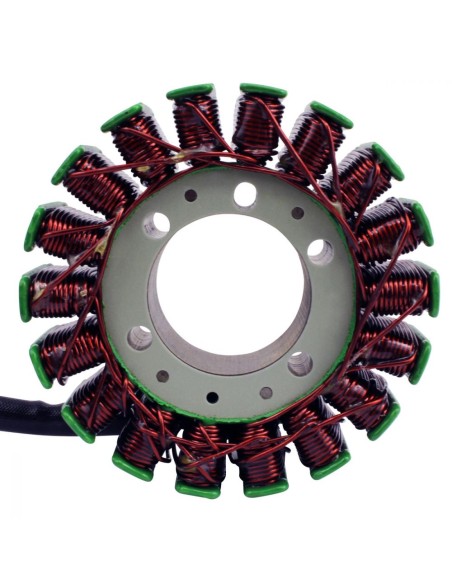

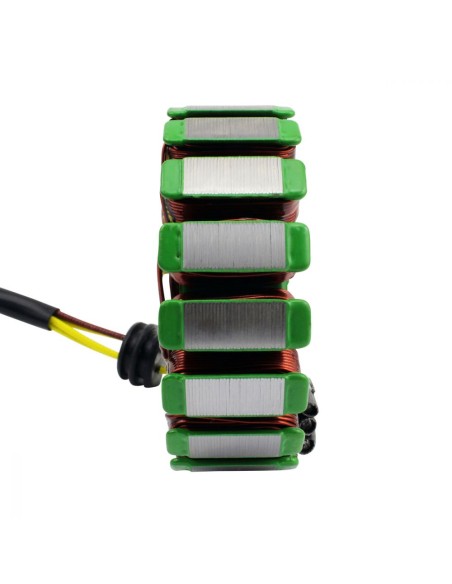

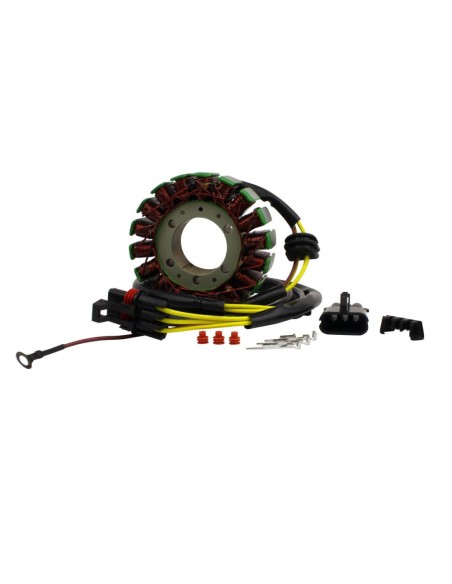

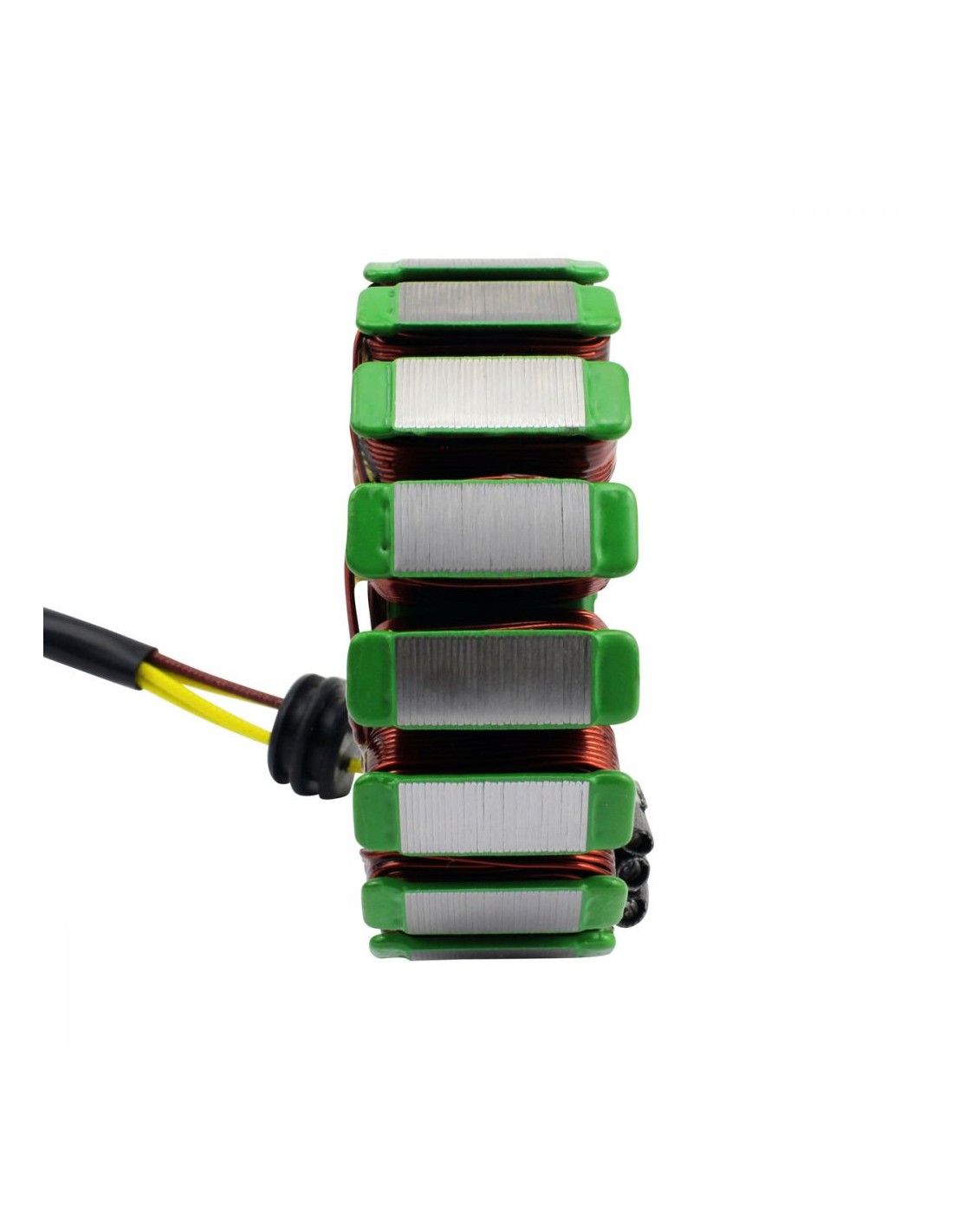

Stator:

Dimensions:

Interior diameter: 42 mm

Exterior diameter: 107 mm

Thickness: 25 mm

Length of wires stator to grommet: 140 mm

Length of wires grommet to plug: 1000 mm & 1350 mm

Other specifications:

Number of wires: 4

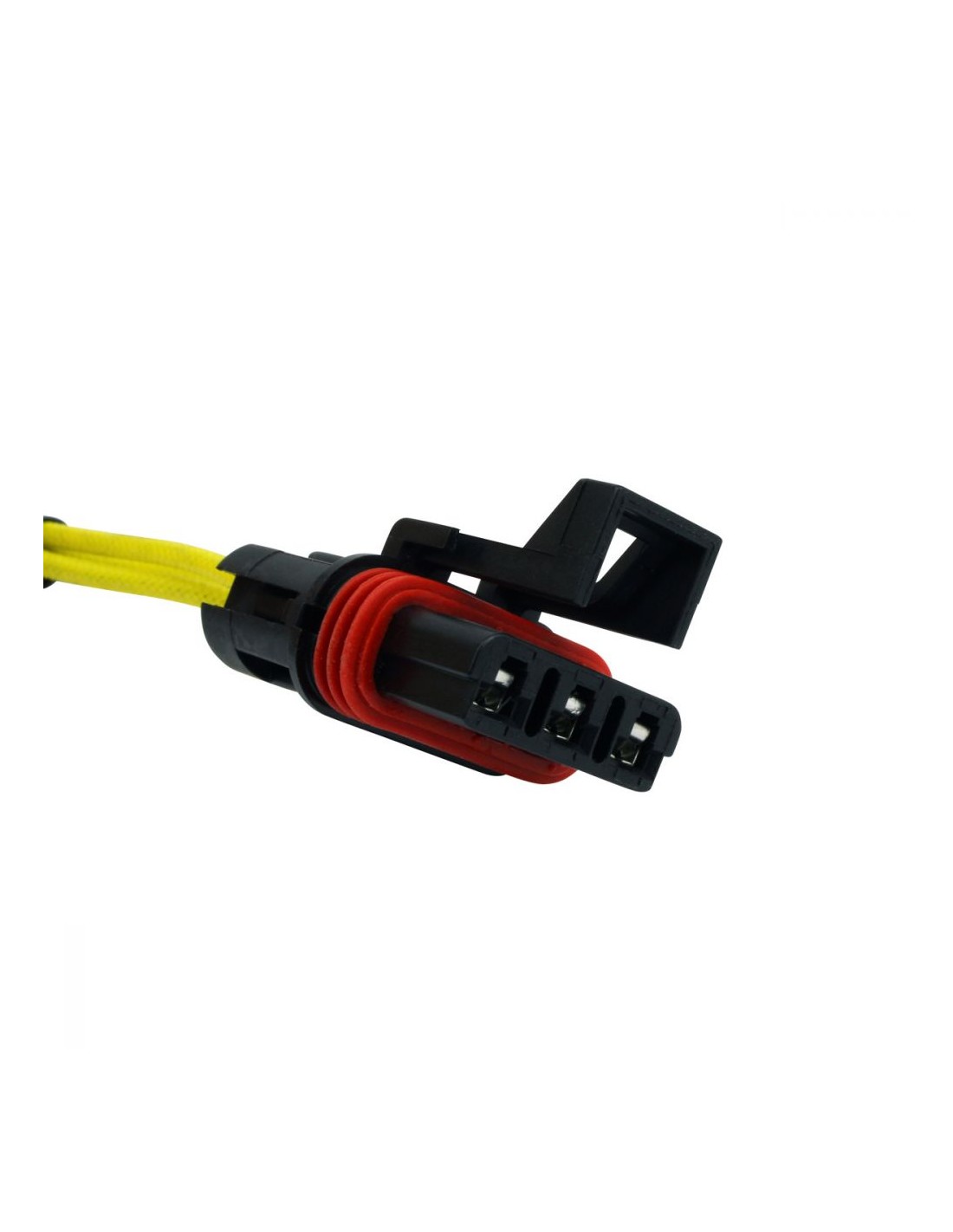

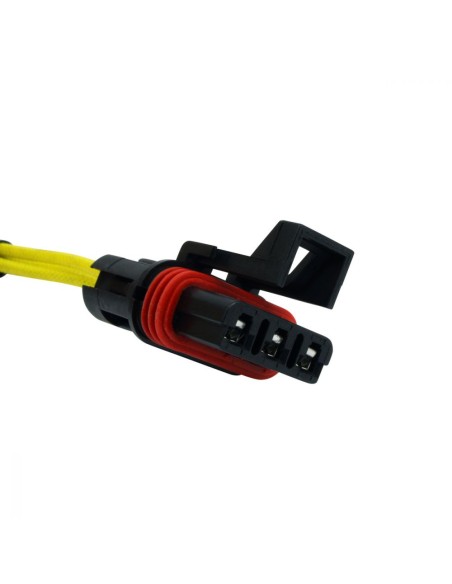

Number of plugs: 2

Number of pins: 4

Number of poles: 18

Wire to wire resistance:

Alternator: Yellow to Yellow = 0.3 ohms +/-20%

Alternator: Yellow to ground = O.L

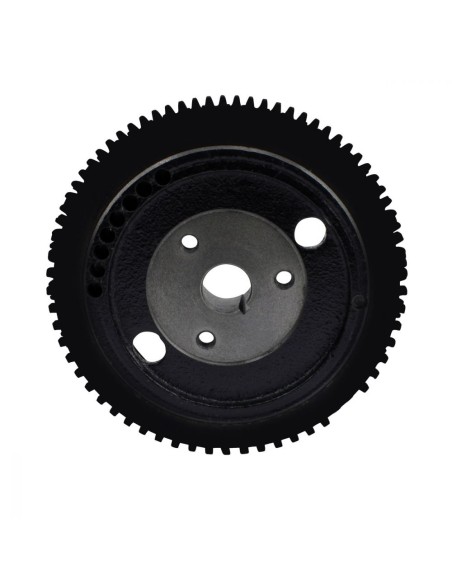

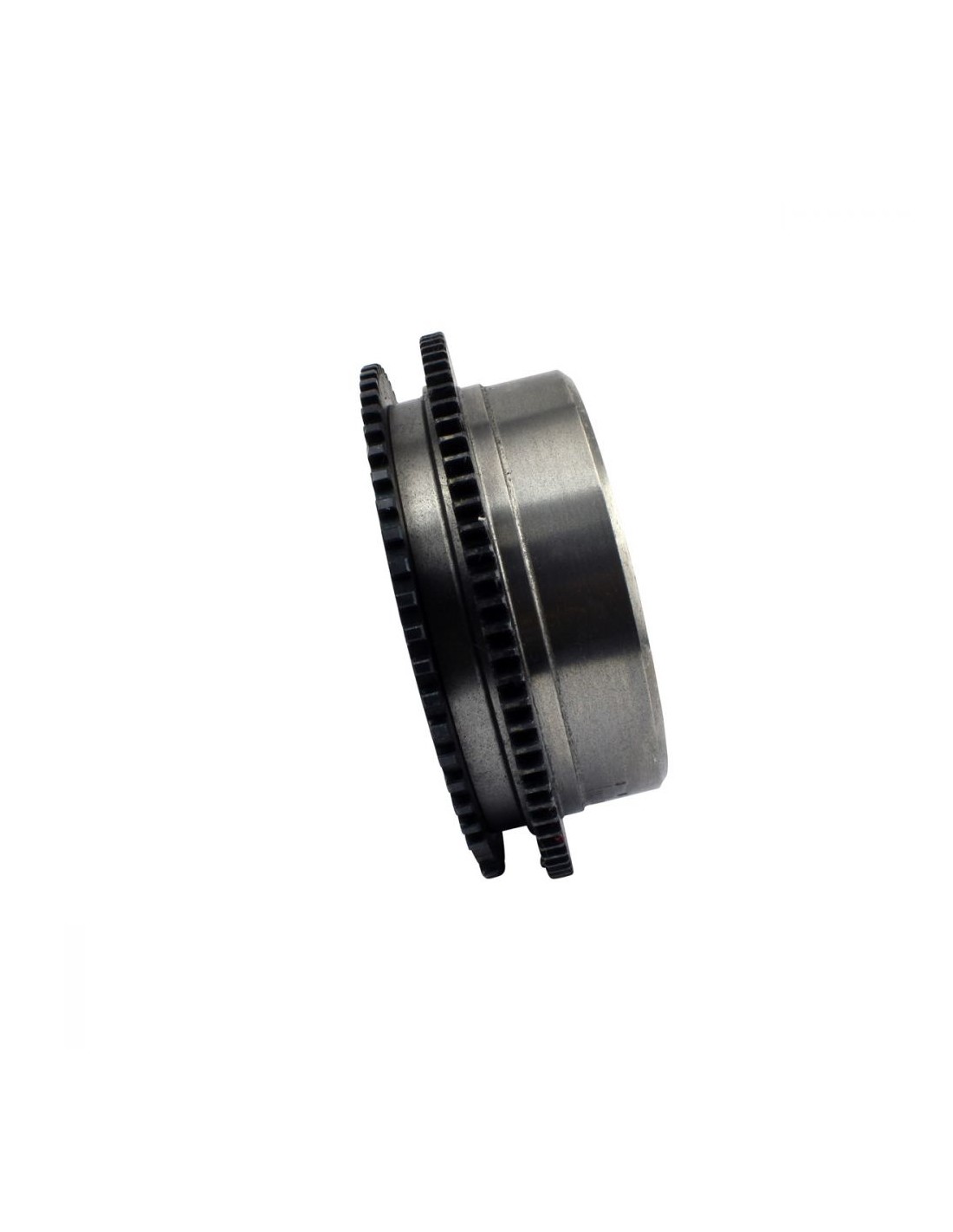

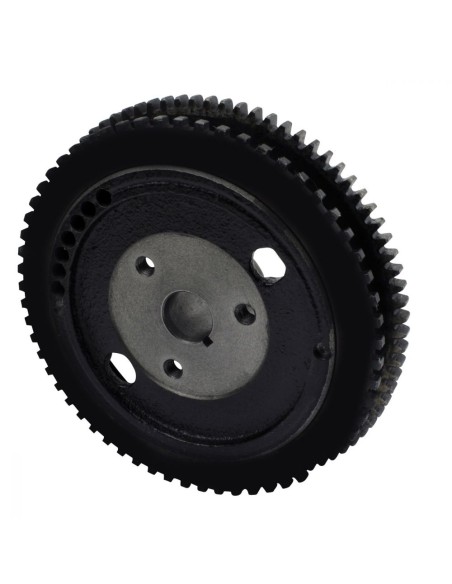

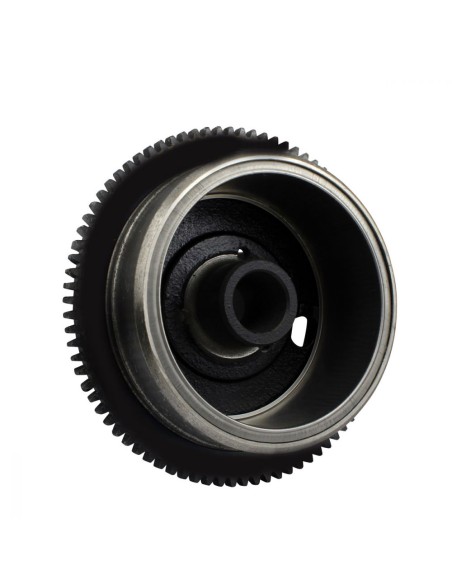

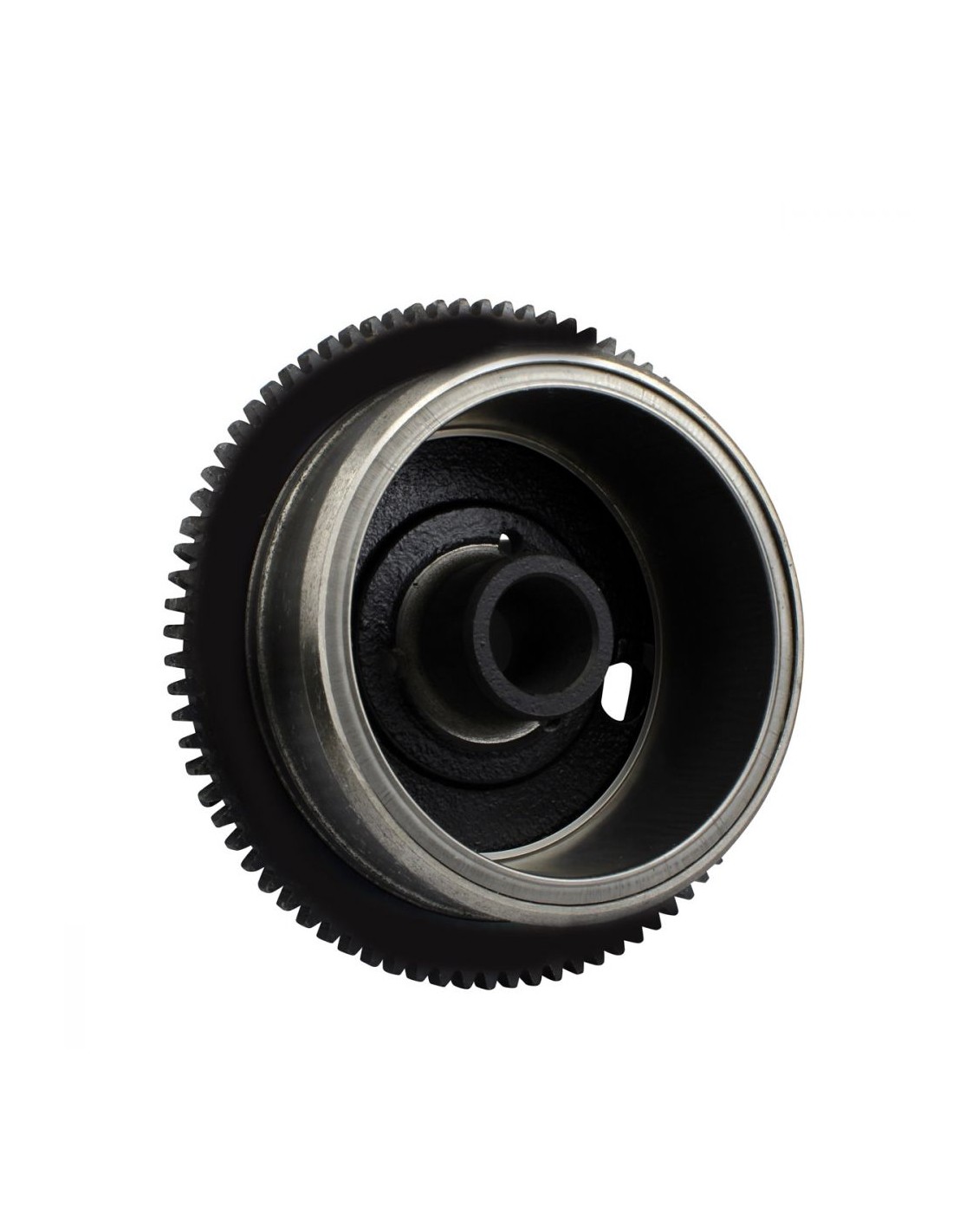

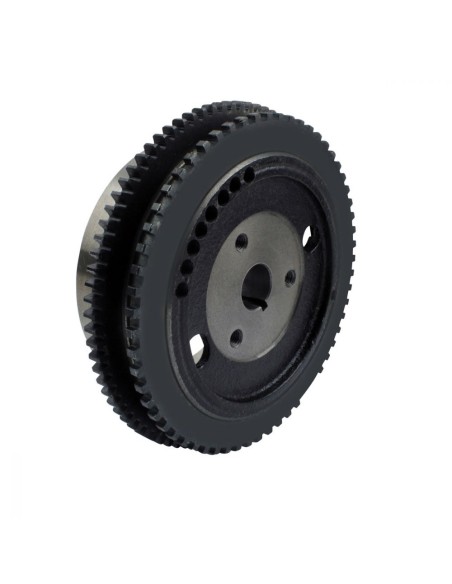

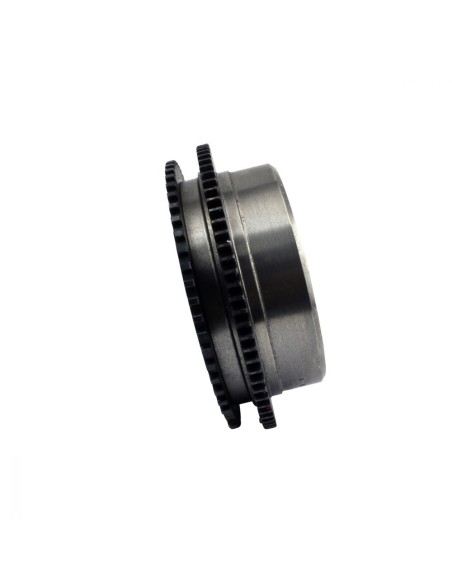

Flywheel:

Dimensions:

Exterior Diameter: 125 mm and 167 mm

Interior Diameter: 109 mm

Interior Diameter Center Housing: 27 mm

Exterior Diameter Center Housing: 40 mm

Thickness (exterior): 54 mm

Thickness (interior): 43 mm
