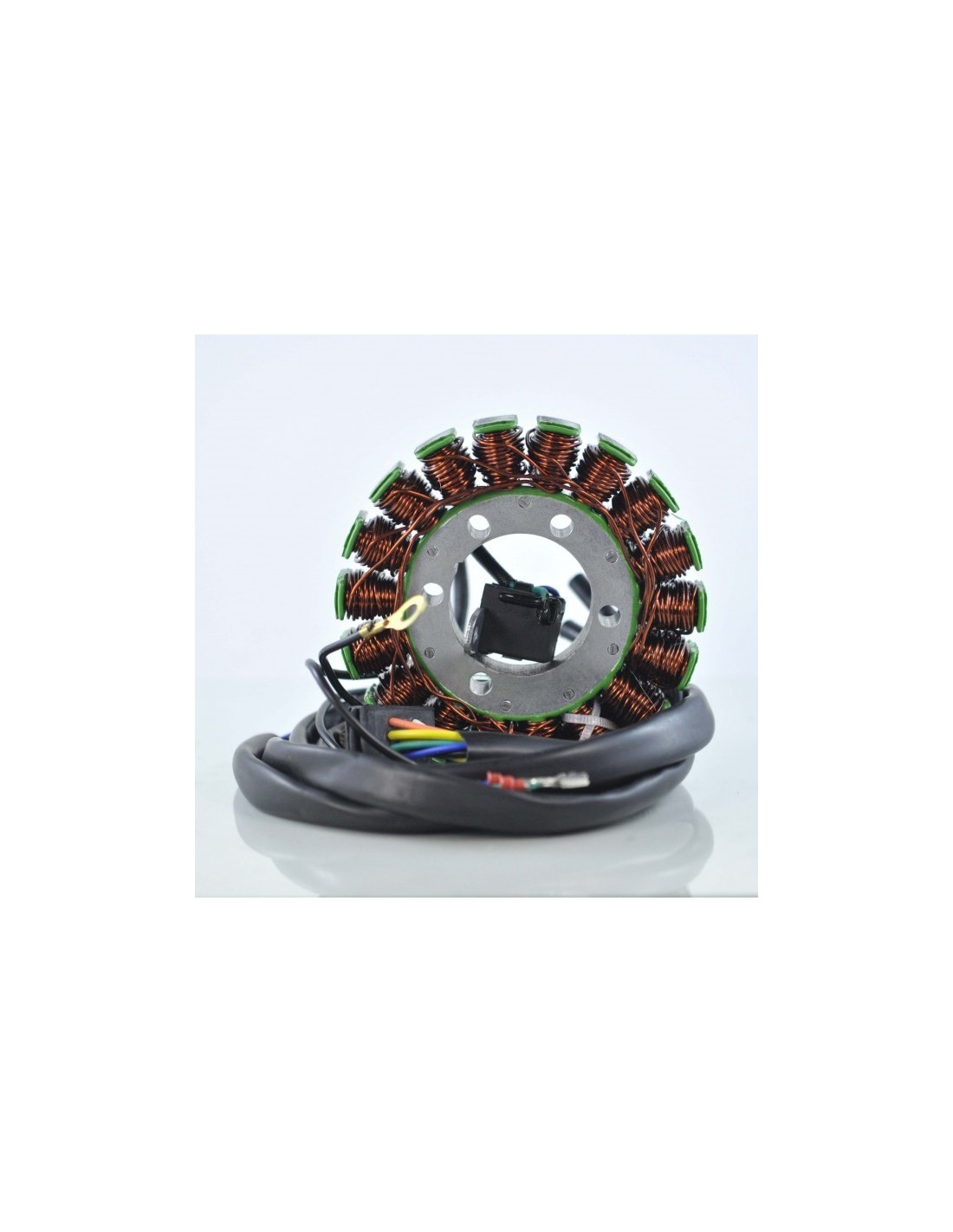

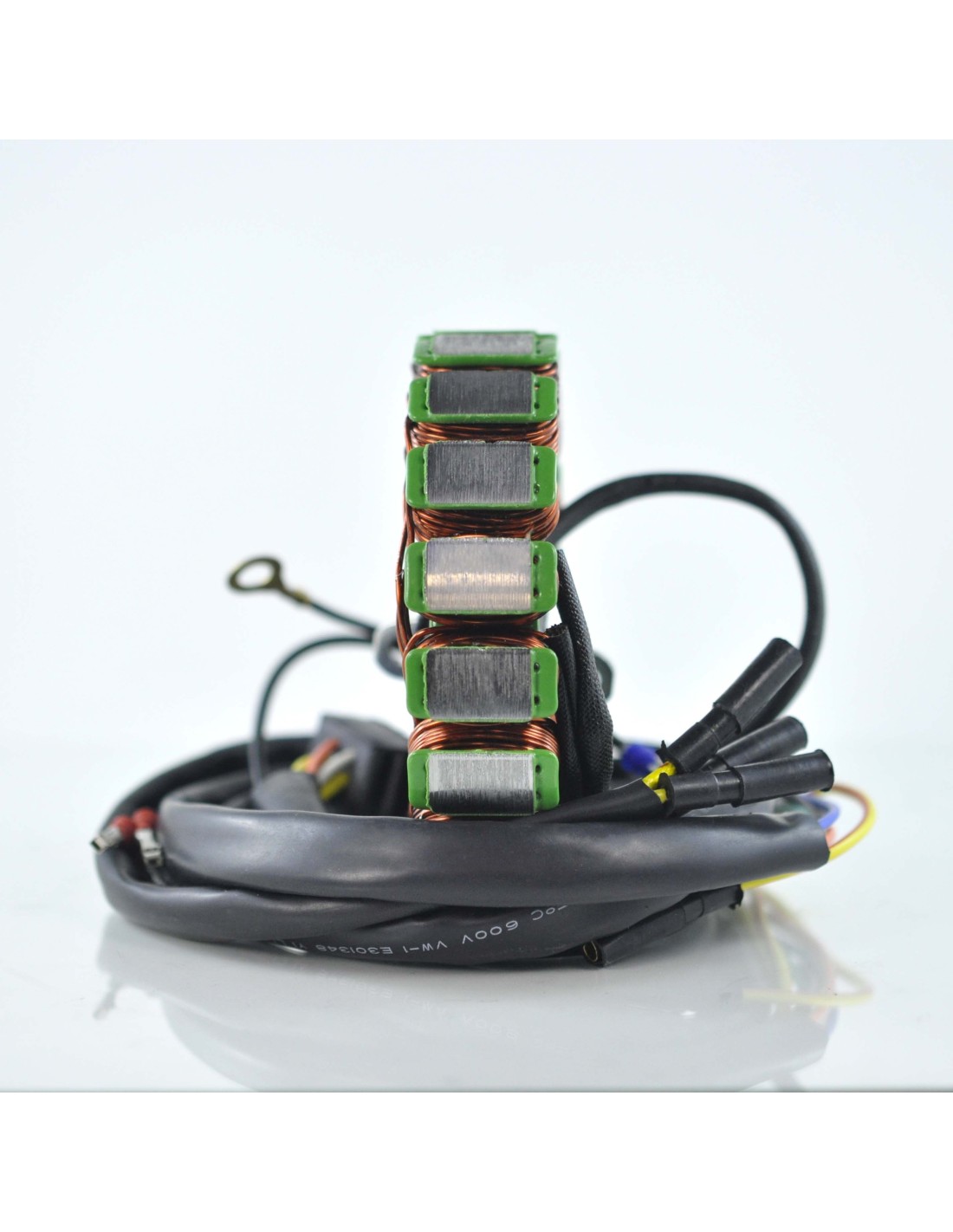

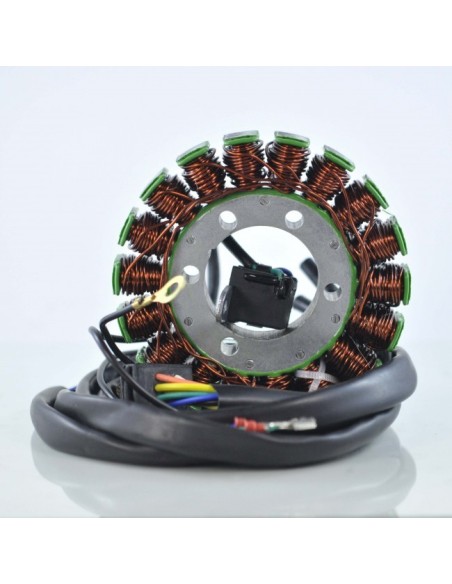

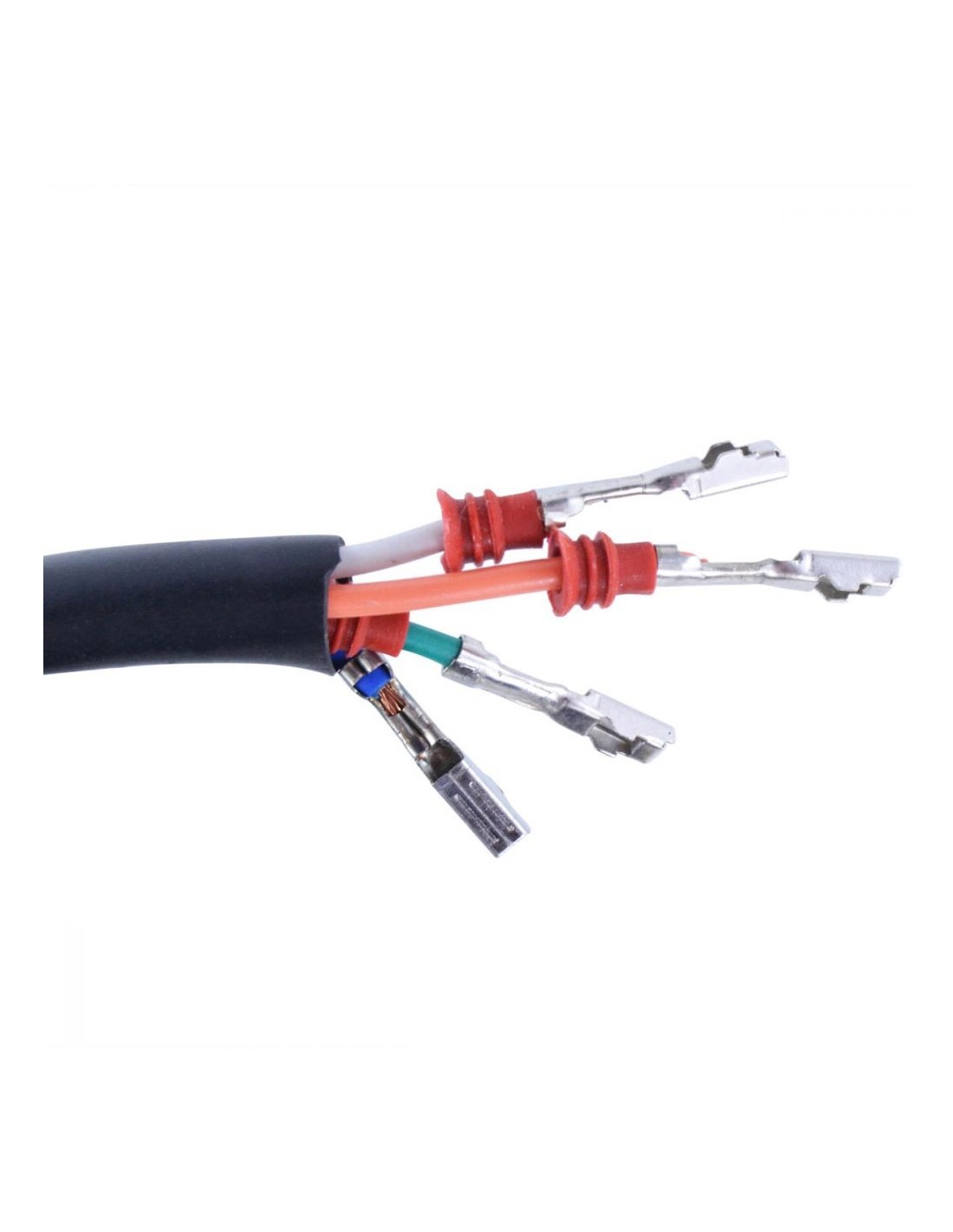

Stator Polaris Sportsman 700 OEM 4010901

2006 Polaris Sportsman 700 Carb

2005 Polaris Sportsman MV7

2005 Polaris Sportsman 700 Carb

2005 Polaris Sportsman 600

2004 Polaris Sportsman 700 Carb

2004 Polaris Sportsman 600

OEM
4010901

Dimensions :

Interior diameter : 40 mm

Exterior diameter : 107 mm

Thickness : 18 mm

Length of wires stator to grommet : 75 mm

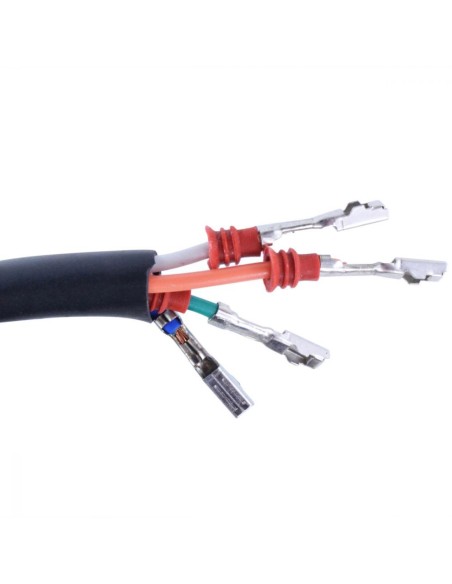

Length of wires grommet to plug : 900 mm & 950 mm & 1200 mm

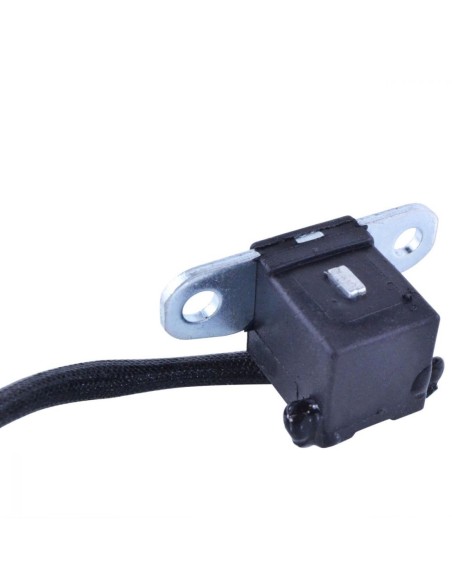

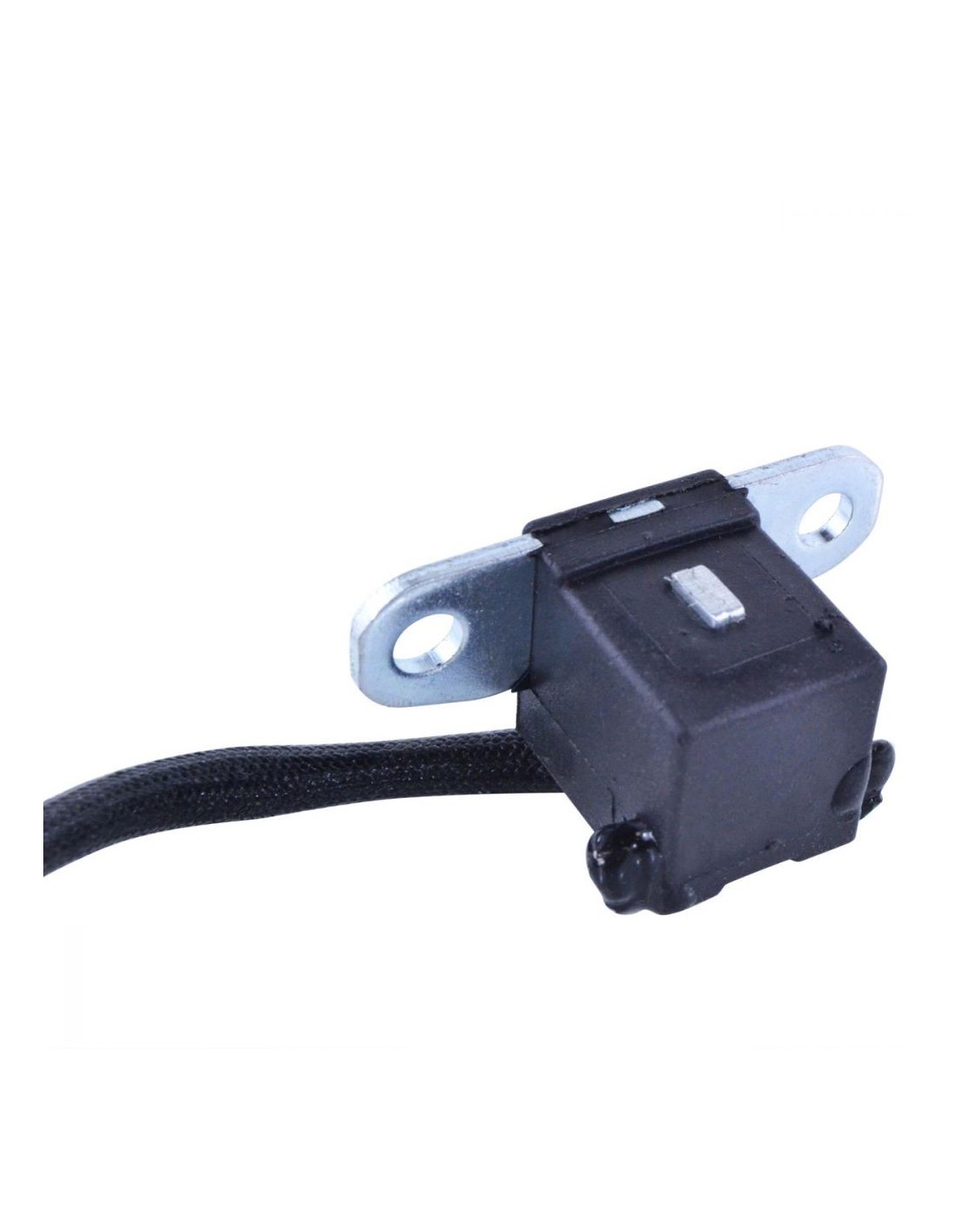

Length of pickup coil's wire to grommet : 200 mm

Other specifications :

Number of wires : 8

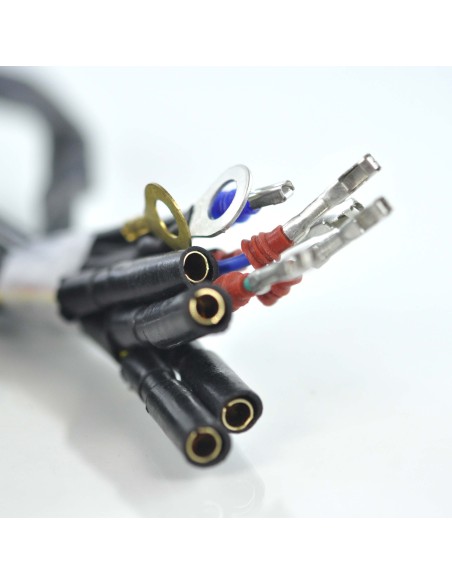

Number of plugs : 11

Number of pins : 11

Wire to wire resistance :

Alternator : Yellow/Red to Yellow = 0.4 ohms +/-20%

Alternator : Yellow to Ground = 0.L on display

Pickup : Blue to Green = 200 ohms +/-20%

Source : Red to White = 0.3 ohms +/-20%
