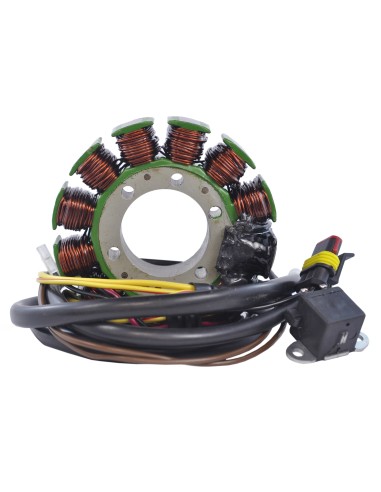

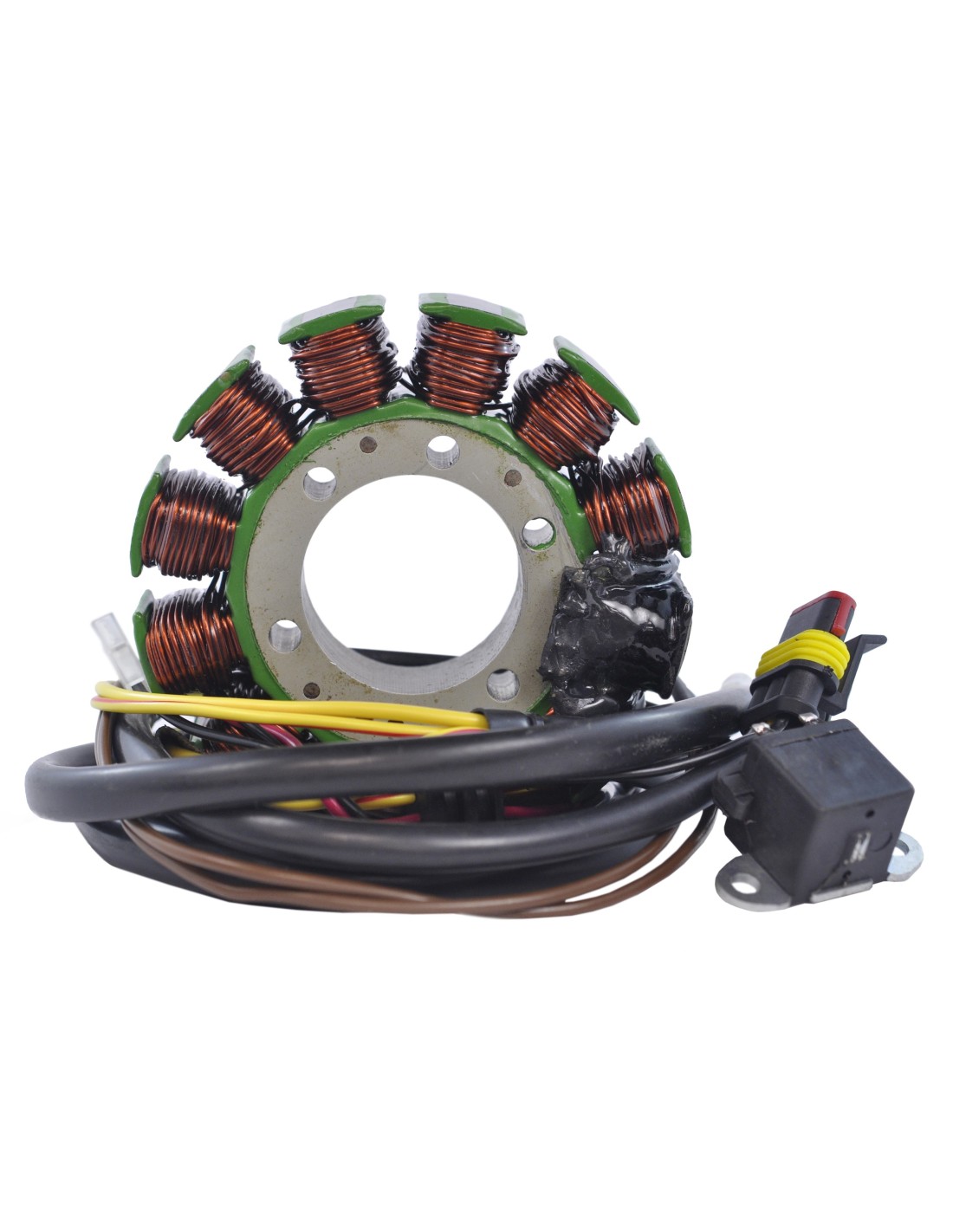

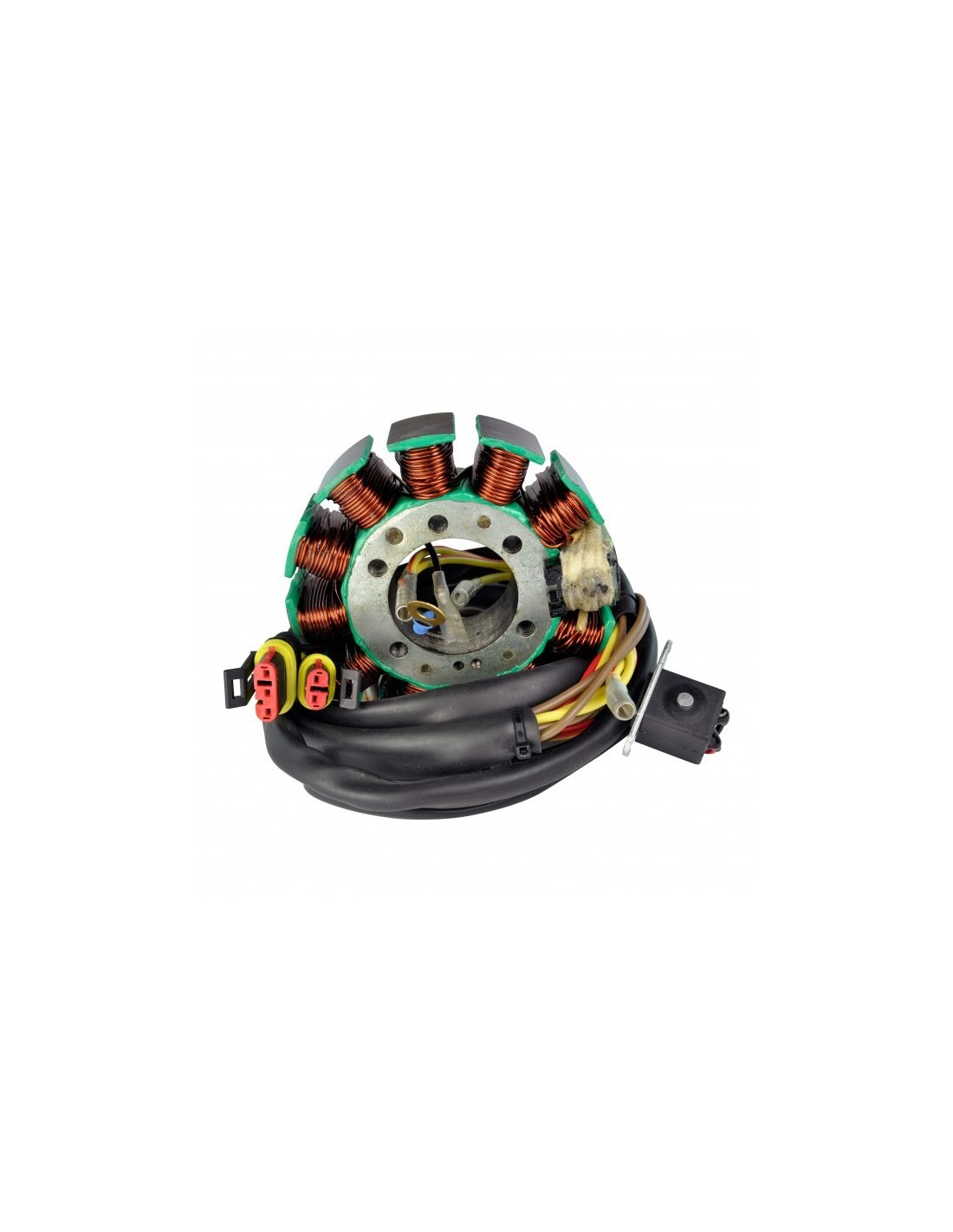

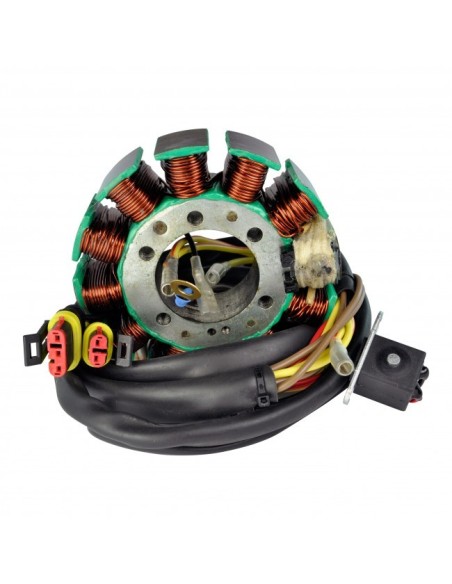

Stator Polaris 700 Sportsman OEM 2202602 2202603 4010709 4010901 4011103

• Stator
• Resistant to 200 degrees Celsius
• 2006 Polaris Sportsman 700
• 2005 Polaris Sportsman 600
• 2005 Polaris Sportsman 700
• 2005 Polaris Sportsman 700 Military Vehicule (MV7)
• 2004 Polaris Sportsman 600
• 2004 Polaris Sportsman 700
• 2003 Polaris Sportsman 600 4x4 Carb
• 2003 Polaris Sportsman 700 4x4
• 2003 Polaris Sportsman 700 Carb
• 2002 Polaris Sportsman 700
• 2002 Polaris Sportsman 700 Carb

• OEM
  2202602
  2202603
  4010709
  4010901
  4011103

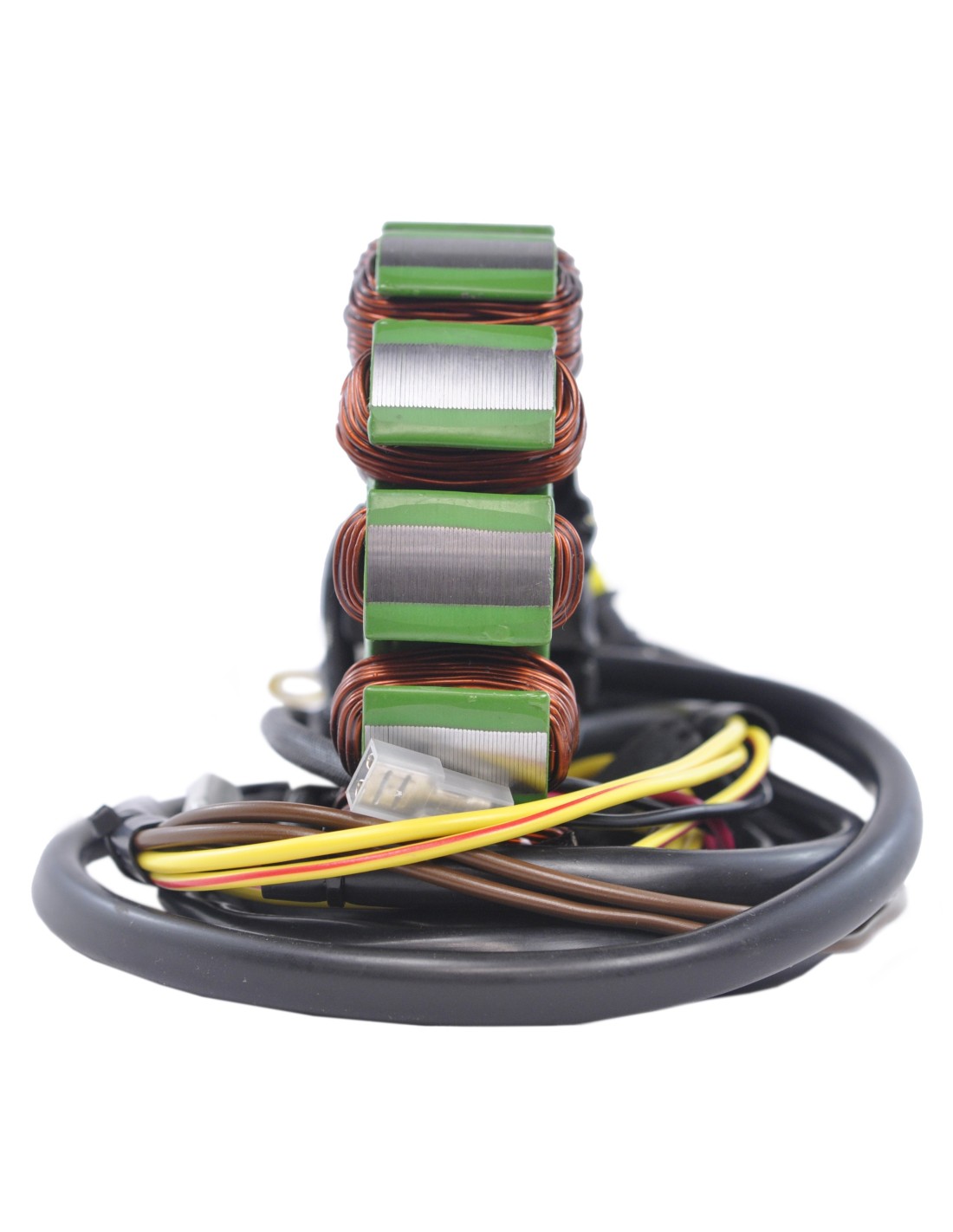

Dimensions :
Interior diameter : 40 mm
Exterior diameter : 108 mm
Thickness : 25 mm
Length of wires stator to grommet : 85 mm
Length of wires grommet to plug : 930 mm & 960 mm & 1300 mm
Length of pickup coil's wire to grommet : 160 mm

Other specifications :

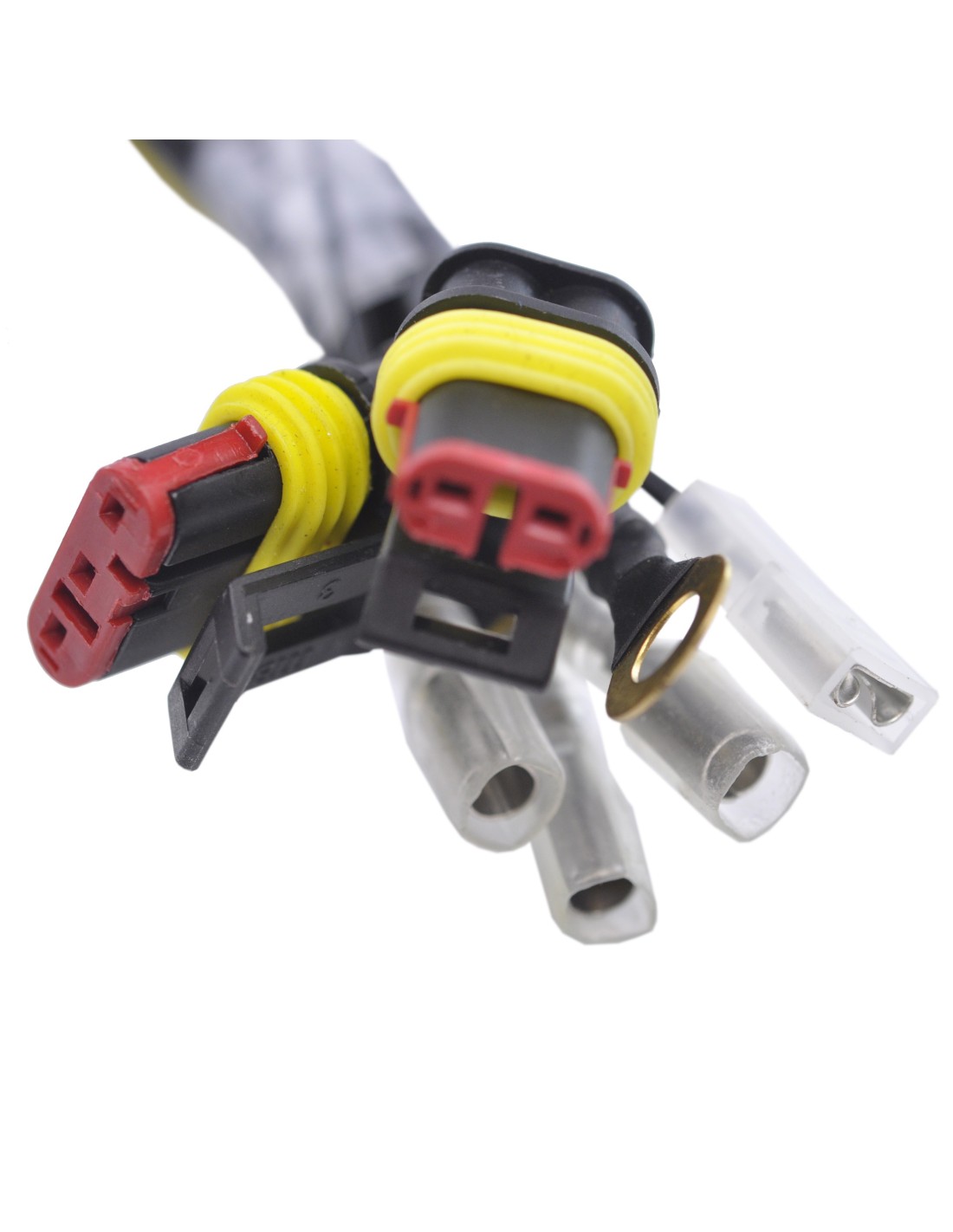

Number of wires : 10
Number of plugs : 7
Number of pins : 10

Wire to wire resistance :
Alternator : Yellow to Yellow/Red = 0.4 ohms +/-20%
Alternator : Yellow to Ground = 0.L on display
Pickup : Red to Black = 370 ohms +/-20%
Source : Brown to Yellow = 10 ohms +/-20%

This stator is compatible with the Ducati AC ignition system only. If you have a Kokusan DC ignition system, please refer to product CARM01330.

Sportsman 700 2005 has two possible stators. This stator is for Sportsmans build before 03/04/2005. For Sportsman build after 03/04/2005, please see product CARM01330.
