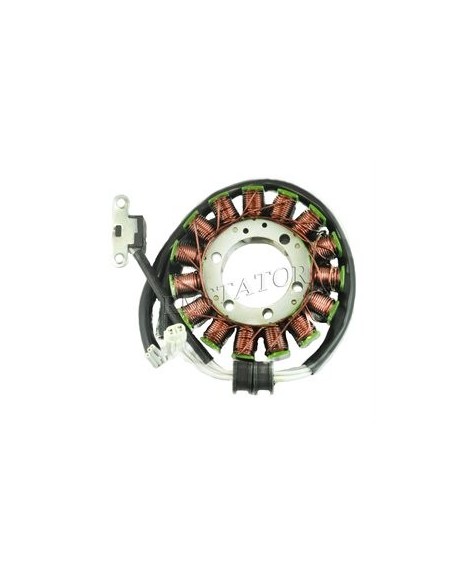

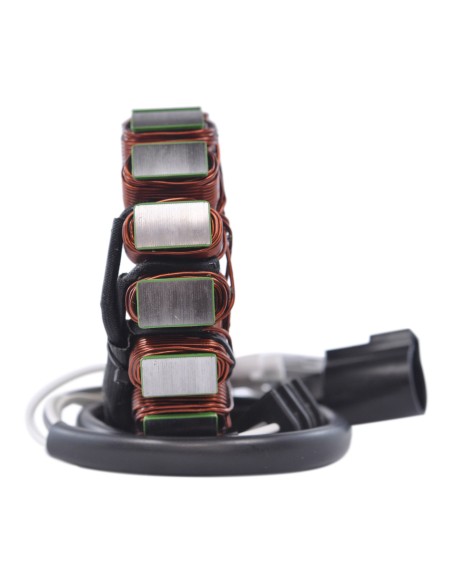

Stator Yamaha 700 Rhino OEM 1XD-81410-00-00 5B4-81410-00-00

Stator

2008 Yamaha YXR 700 Rhino FI
2009 Yamaha YXR 700 Rhino FI
2011 Yamaha YXR 700 Rhino FI

2008 Yamaha YXR 700 Rhino FI Special Edition
2009 Yamaha YXR 700 Rhino FI Special Edition
2012 Yamaha YXR 700 Rhino FI Special Edition

2008 Yamaha YXR 700 Rhino 4x4

2008 Yamaha YXR 700 Rhino FI Special Edition II
2009 Yamaha YXR 700 Rhino FI Special Edition II
2011 Yamaha YXR 700 Rhino
2012 Yamaha YXR 700 Rhino
2013 Yamaha YXR 700 Rhino

OEM 5B4-81410-00-00
1XD-81410-00-00

• Stator Pick-Up Pulsar Coil
• Highest grade copper windings, resistant to 200 degrees Celsius

Dimensions :
Interior diameter : 41mm
Exterior diameter : 105mm
Thickness : 19mm
Length of wires stator to grommet : 65mm
Length of wires grommet to plug : 400mm
Length of pickup coil's wire to grommet : 65mm

Other specifications :
Number of wires : 5
Number of plugs : 3
Number of pins : 5

Wire to wire resistance :
Alternator : White to White = 0.4ohms +/-20%
Pickup : White to Grey = 500ohms +/-20%
