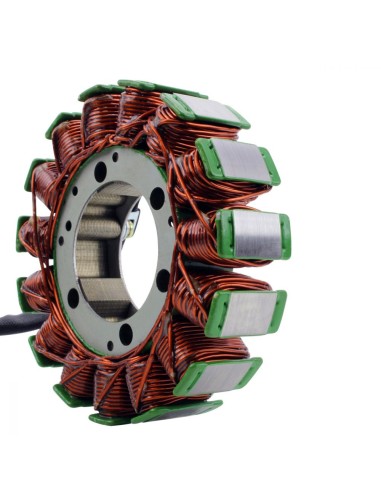

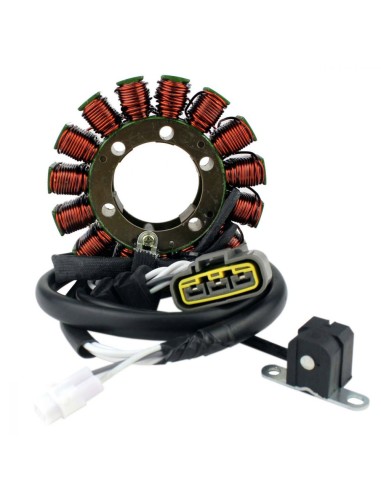

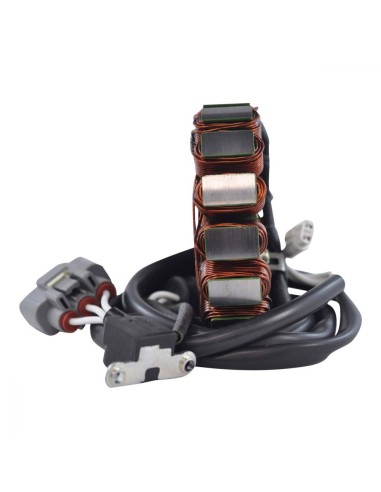

Stator Yamaha 700 Kodiak OEM 28P-81410-00-00 3B4-81410-00-00 28P-81410-01-00

CARM01004
5-7 Days
€214.80
Tax included

  • OEM 28P-81410-00-00 3B4-81410-00-00 28P-81410-01-00

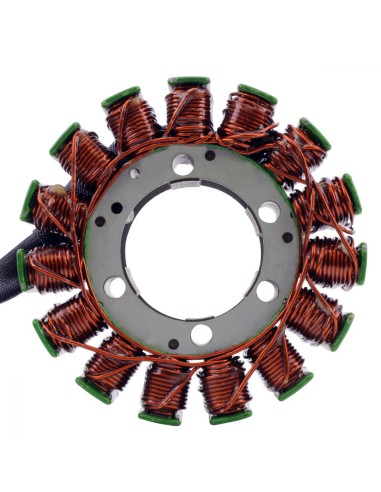

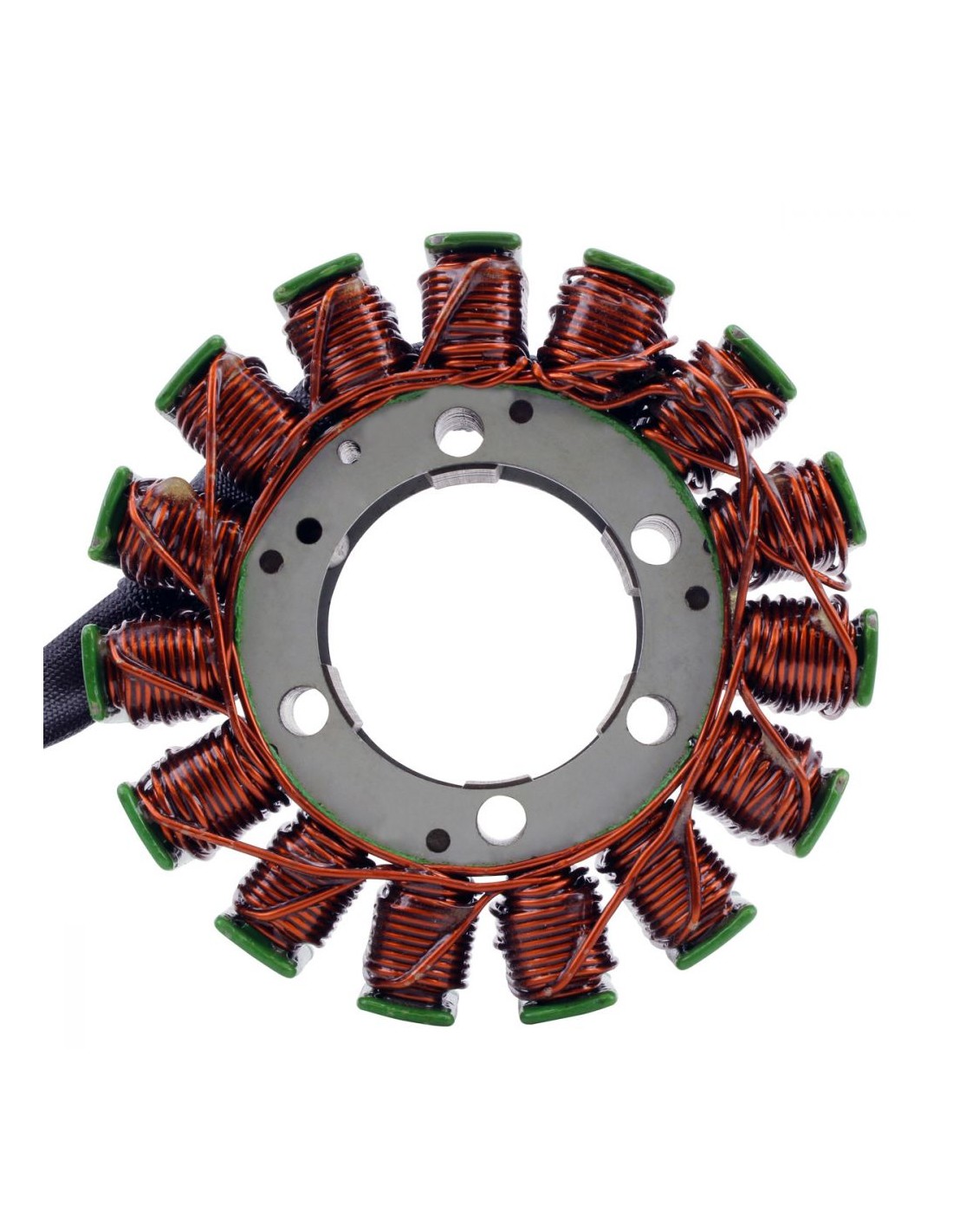

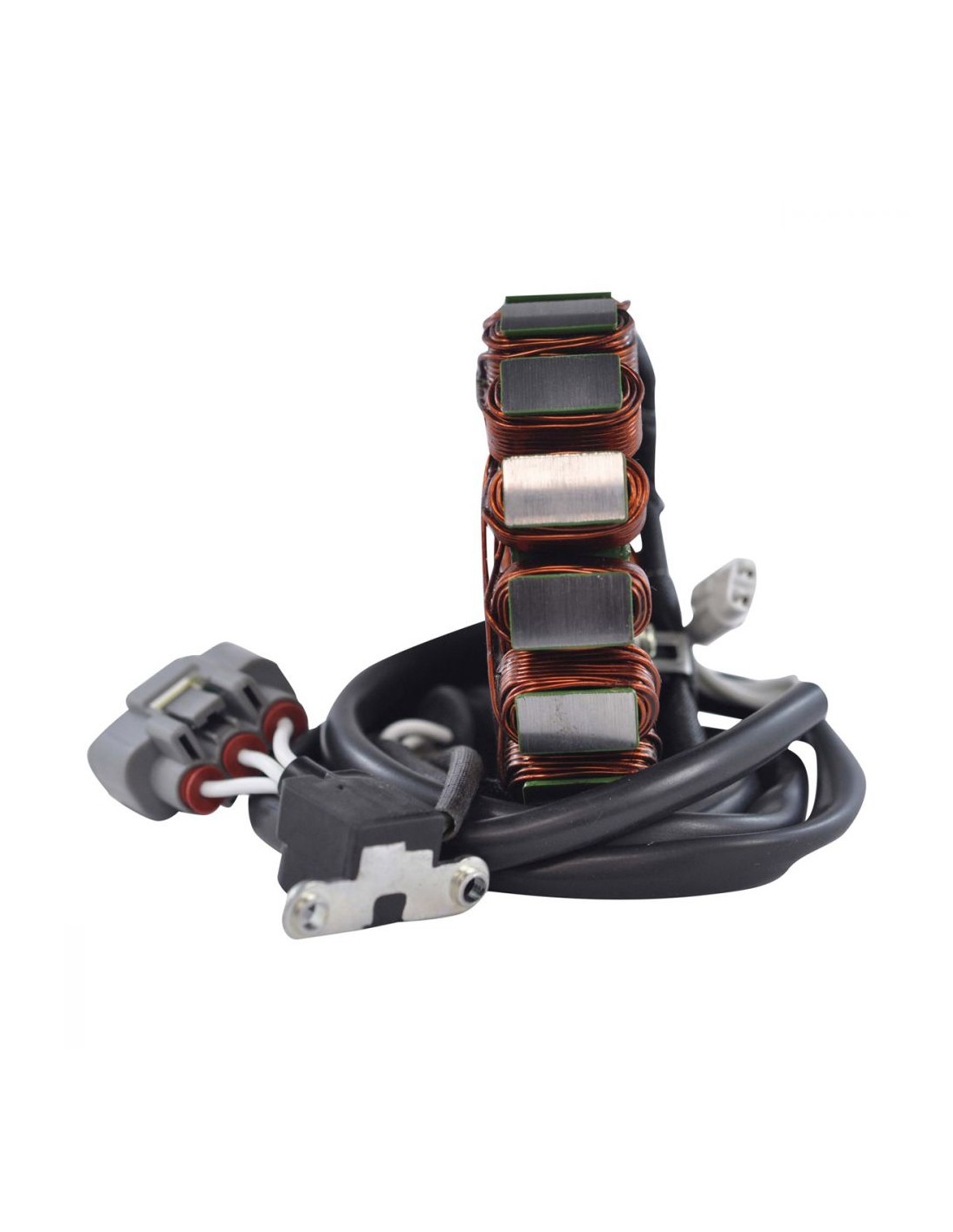

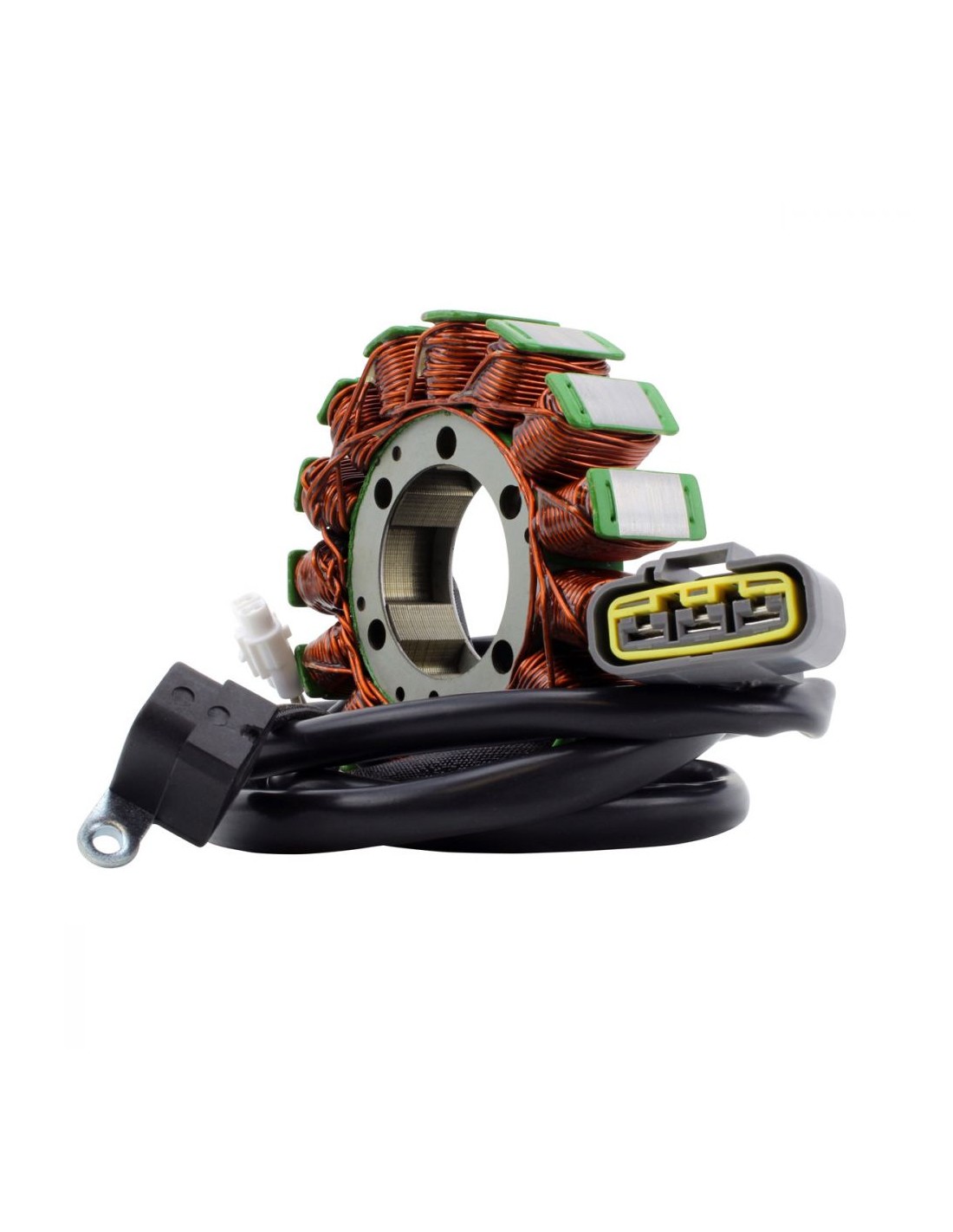

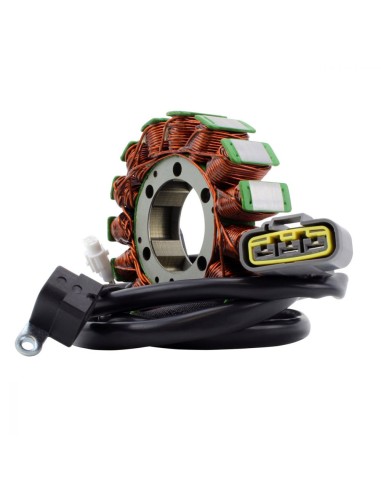

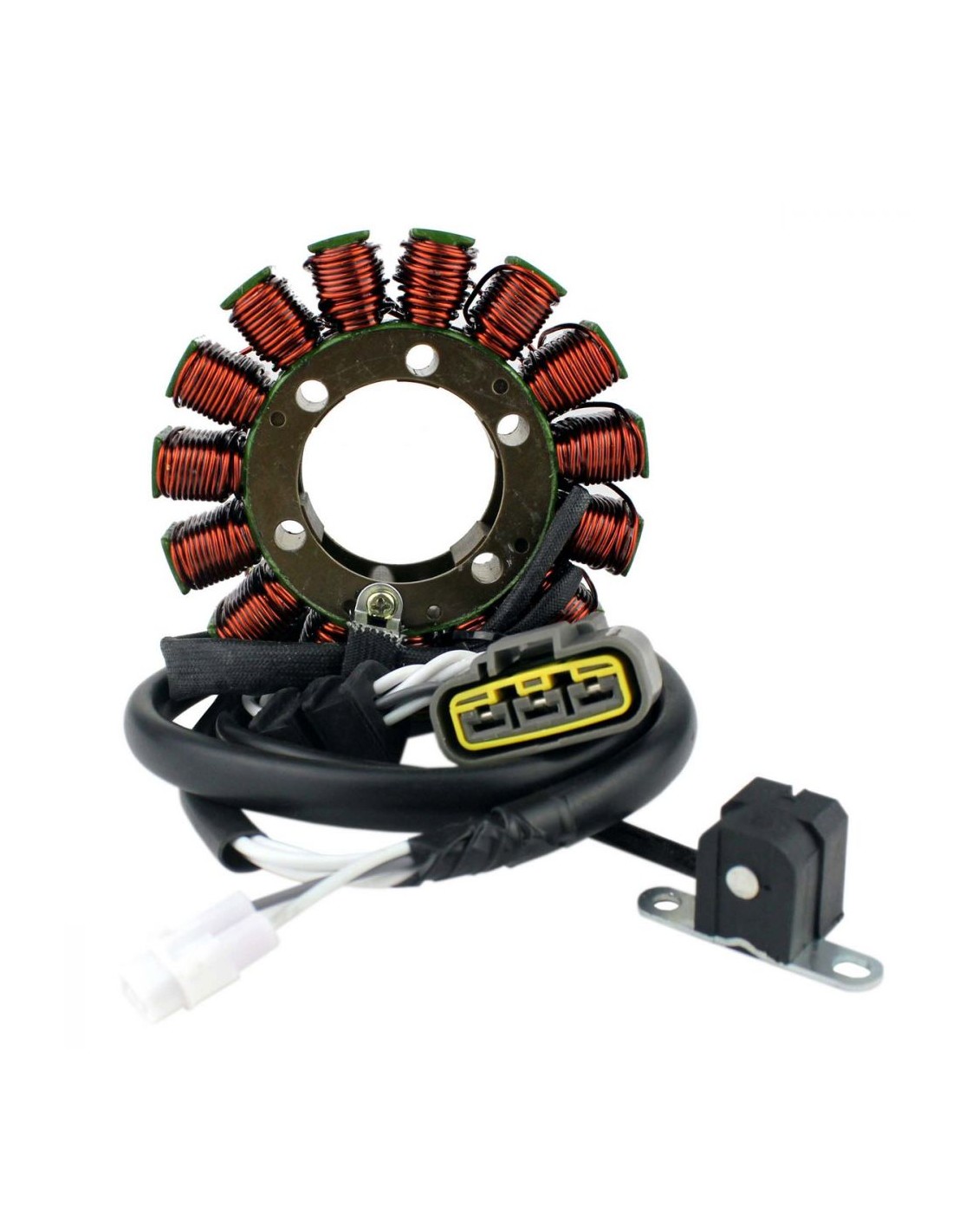

  • Stator - Highest grade copper windings, resistant to 200 degrees Celsius

  • 2019-2024 Yamaha YFM 700 Kodiak



    OEM 28P-81410-00-00
    3B4-81410-00-00
    28P-81410-01-00

  • Dimensions :
    Interior diameter : 45 mm
    Exterior diameter : 106 mm
    Thickness : 27 mm
    Length of wires stator to grommet : 100 mm
    Length of wires grommet to plug : 550 mm, 1100 mm
    Length of pickup coil's wire to grommet : 80 mm

    Other specifications :
    Number of wires : 5

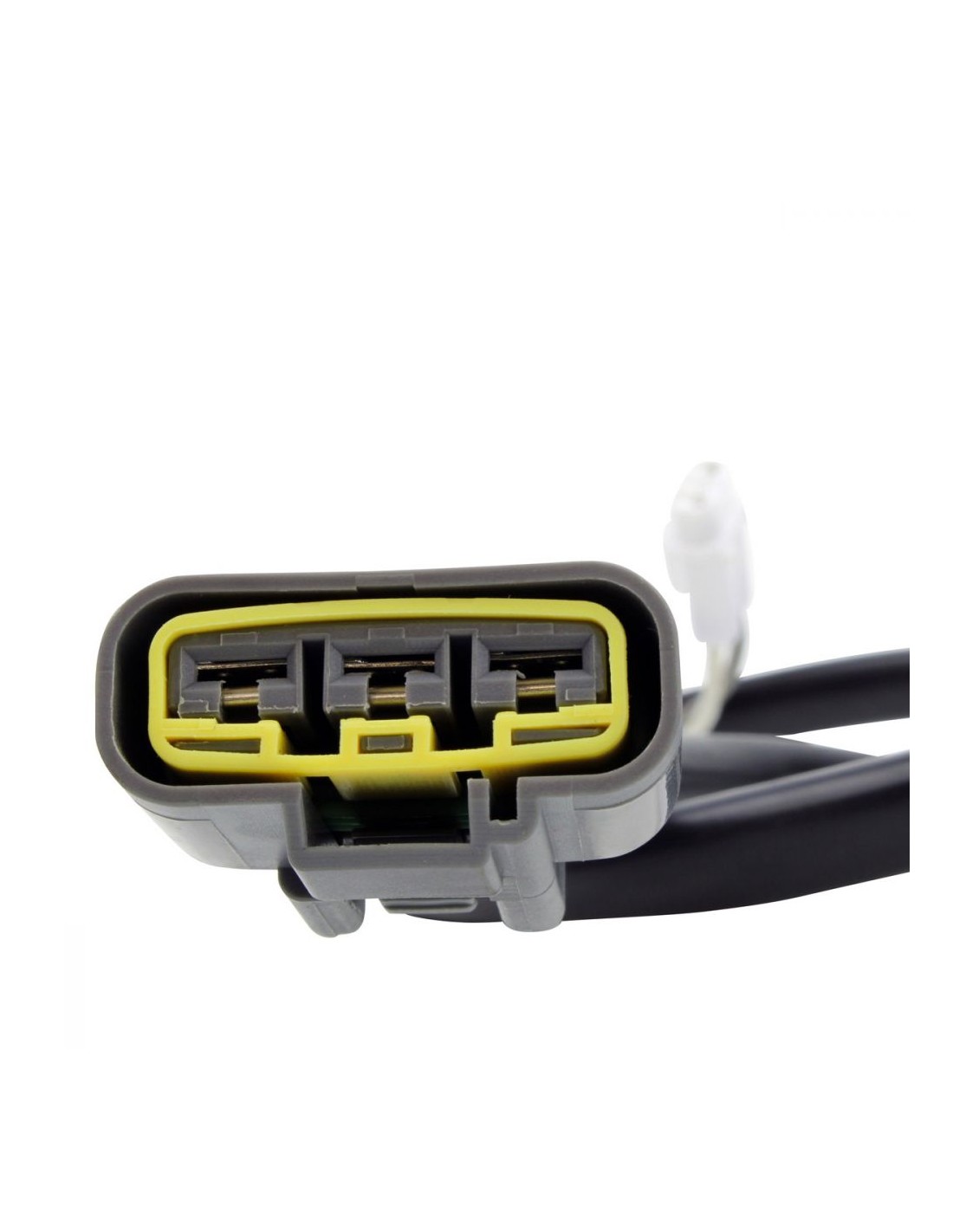

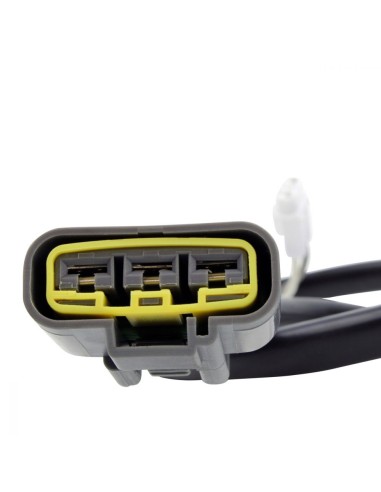

    Number of plugs : 2
    Number of pins : 5

    Wire to wire resistance :
    Alternator : White between each White = 0.4 ohms +/-20%
    Alternator : White to Ground = 0.L on Display
    Pickup : White to Grey = 500 ohms +/-20%
