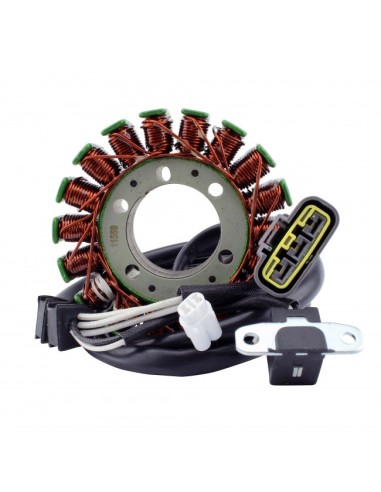

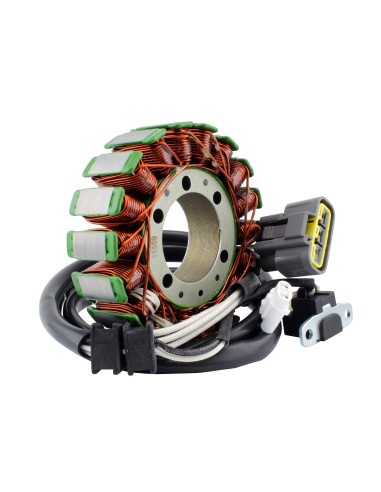

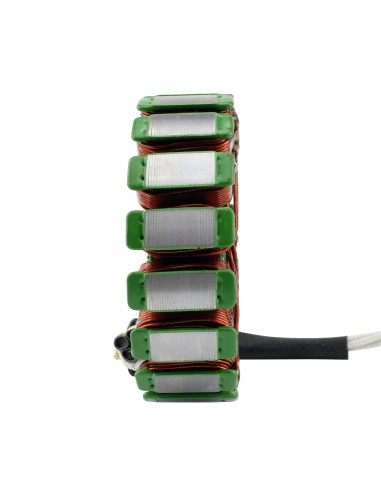

Stator Yamaha 700 Grizzly 700 Kodiak OEM B16-H1410-00-00
CARMS010-104902
5-7 Days
€238.80
Tax included
-
OEM B16-H1410-00-00
Stator - Highest grade copper windings, resistant to 200 degrees Celsius
2018 Yamaha YFM 700 Grizzly
2018 Yamaha YFM 700 Kodiak
2017 Yamaha YFM 700 Grizzly
2017 Yamaha YFM 700 Kodiak
2016 Yamaha YFM 700 Grizzly
2016 Yamaha YFM 700 Kodiak
2018 Yamaha YFM 700 Kodiak
2017 Yamaha YFM 700 Grizzly
2017 Yamaha YFM 700 Kodiak
2016 Yamaha YFM 700 Grizzly
2016 Yamaha YFM 700 Kodiak
OEM B16-H1410-00-00
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 66 mm
Thickness : 22 mm
Length of wires stator to grommet : 130 mm
Length of wires grommet to plug : 1096 mm
Length of pickup coil's wire to grommet : 115 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18
Interior diameter : 42 mm
Exterior diameter : 66 mm
Thickness : 22 mm
Length of wires stator to grommet : 130 mm
Length of wires grommet to plug : 1096 mm
Length of pickup coil's wire to grommet : 115 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18
Wire to wire resistance :
Alternator : Between each white = 0.4 ohms +-20%
Source : Black to White = 200 ohms +-20%
Alternator to ground = O.L
Alternator : Between each white = 0.4 ohms +-20%
Source : Black to White = 200 ohms +-20%
Alternator to ground = O.L
