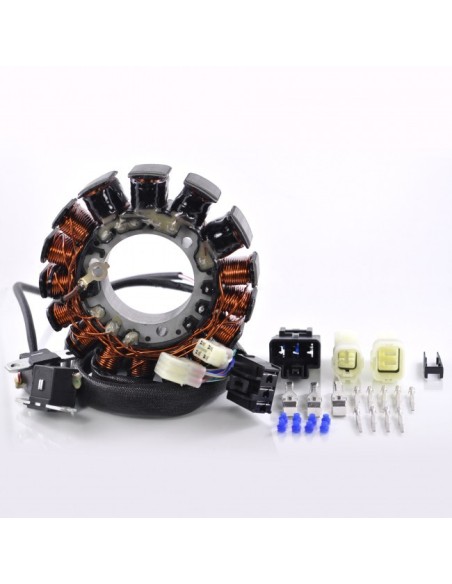

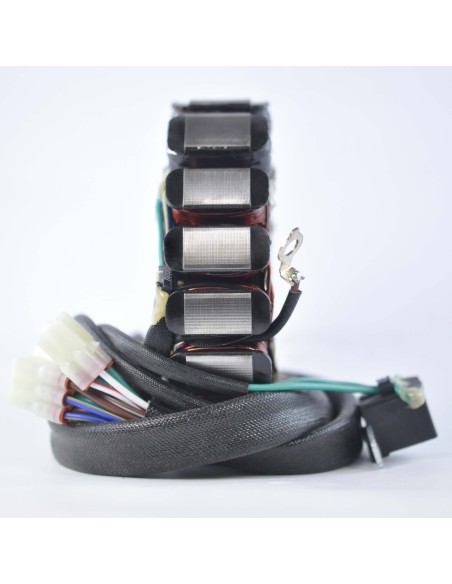

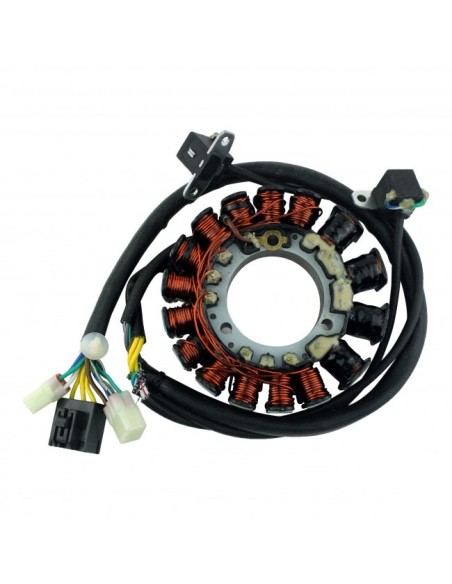

Stator Polaris 700 Classic 700 Fusion 700 RMK 900 Fusion 900 RMK 900 Switchback OEM 4011463 4010727

Stator

Resistant to 200 degrees Celsius

2015 Polaris 600 IQ EFI L/C

2014 Polaris 600 IQ EFI L/C

2013 Polaris 600 IQ EFI L/C

2012 Polaris 600 IQ EFI L/C

2012 Polaris 600 IQ Shift Carb L/C

2012 Polaris 600 IQ Shift EFI L/C

2011 Polaris 600 IQ EFI L/C

2011 Polaris 600 IQ Shift Carb L/C

2011 Polaris 600 RMK 144 EFI

2011 Polaris 600 RMK 155 EFI L/C

2011 Polaris 600 IQ Shift EFI L/C

2011 Polaris 600 Switchback Carb L/C

2011 Polaris 600 Switchback EFI L/C

2010 Polaris 700 RMK Carb L/C

2010 Polaris 600 Switchback Dragon EFI L/C

2010 Polaris 600 IQ EFI L/C

2010 Polaris 600 IQ Shift Carb L/C

2010 Polaris 600 Touring Carb L/C

2010 Polaris 600 RMK 144 EFI

2010 Polaris 600 RMK 155 EFI L/C

2010 Polaris 600 IQ Shift EFI L/C

2010 Polaris 600 Switchback Carb L/C

2010 Polaris 600 Switchback EFI L/C

2010 Polaris 700 RMK Dragon EFI L/C

2010 Polaris 700 RMK F/O Carb L/C

2010 Polaris 800 RMK Assault

2010 Polaris 800 Dragon RMK EFI L/C

2010 Polaris 800 IQ Dragon EFI L/C

2010 Polaris 800 IQ EFI L/C

2010 Polaris 800 RMK Carb L/C

2010 Polaris 800 RMK EFI L/C

2010 Polaris 800 Switchback EFI L/C

2010 Polaris 800 Switchback Dragon EFI L/C

2009 Polaris 700 RMK Carb L/C

2009 Polaris 600 Switchback Dragon EFI L/C

2009 Polaris 600 Dragon EFI L/C

2009 Polaris 600 IQ EFI L/C

2009 Polaris 600 Touring Carb L/C

2009 Polaris 600 Switchback Carb L/C

2009 Polaris 600 Switchback EFI L/C

2009 Polaris 700 RMK Dragon EFI L/C

2009 Polaris 700 RMK F/O Carb L/C

2009 Polaris 800 RMK Assault

2009 Polaris 800 Dragon RMK EFI L/C

2009 Polaris 800 IQ EFI L/C

2009 Polaris 800 RMK Carb L/C

2009 Polaris 800 RMK EFI L/C

2009 Polaris 800 Switchback EFI L/C

2009 Polaris 800 Dragon EFI L/C

2009 Polaris 800 Switchback Dragon EFI L/C

2008 Polaris 700 RMK Carb L/C

2008 Polaris 600 Switchback Dragon EFI L/C

2008 Polaris 600 IQ EFI L/C

2008 Polaris 600 Touring Carb L/C

2008 Polaris 600 RMK 155 EFI L/C

2008 Polaris 600 Switchback Carb L/C

2008 Polaris 600 Switchback EFI L/C

2008 Polaris 700 RMK Dragon EFI L/C

2008 Polaris 700 Switchback Dragon EFI L/C

2008 Polaris 700 IQ EFI L/C

2008 Polaris 700 RMK F/O Carb L/C

2008 Polaris 700 Switchback EFI L/C

2008 Polaris 800 Dragon RMK EFI L/C

2008 Polaris 800 IQ EFI L/C

2008 Polaris 600 IQ Dragon EFI L/C

2007 Polaris 600 HO Cleanfire EFI L/C

2007 Polaris 600 HO IQ Cleanfire EFI L/C

2007 Polaris 700 Cleanfire Dragon EFI L/C

2006 Polaris 700 RMK Carb L/C

2006 Polaris 700 Classic Carb L/C

2006 Polaris 700 Classic Touring Carb L/C

2006 Polaris 900 Fusion EFI L/C

2006 Polaris 900 RMK EFI L/C

2006 Polaris 900 Switchback EFI L/C

2006 Polaris 700 Fusion EFI L/C

2006 Polaris 700 RMK 144 In F/O -- Up to 2001/01/03

2006 Polaris 700 RMK 151 In Carb L/C

2006 Polaris 700 RMK 159 In Carb L/C

2005 Polaris 900 Fusion EFI L/C

2005 Polaris 900 RMK EFI L/C

2005 Polaris 900 Switchback EFI L/C

OEM

4010727

4011463

4011449

Pick up pulsar coil included

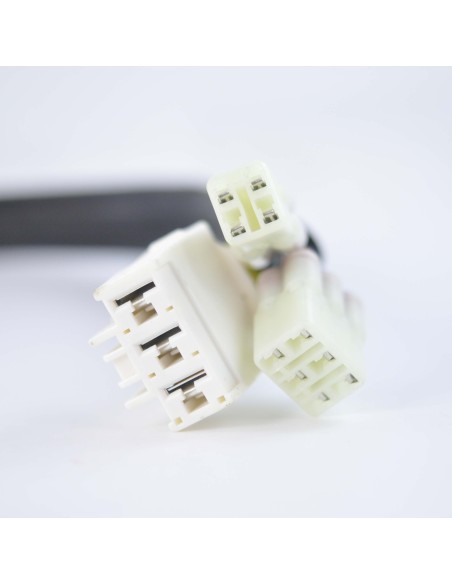

Connector included


Dimensions :
Interior diameter : 53 mm
Exterior diameter : 127 mm
Thickness : 21 mm
Length of wires stator to plug: 600 mm
Length of pickup coil's wire to grommet : 275 mm

Other specifications :
Number of wires : 13
Number of plugs : 3
Number of pins :13

Wire to wire resistance :
Alternator : Yellow between each yellow = 0.4ohms +/-20%
Pickup : Green to white/green = 195 ohms +/-20%
Pickup 2 : White to White/Red = 190 ohms +/-20%
Source : Green/ Yellow to Brown/White= 15ohms +/-20%
Source2 : Green/ Yellow to Green/Red= 15ohms +/-20%
Other:Blue/ Yellow to Blue/Yellow=2.7ohms +/-20%
