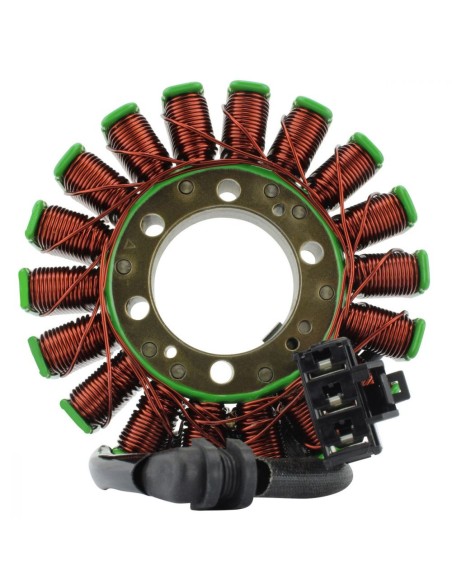

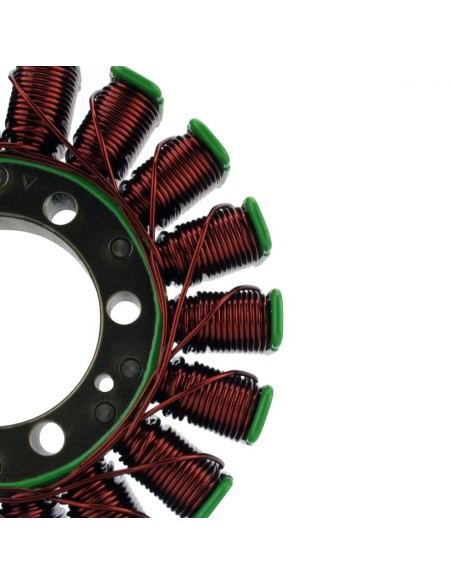

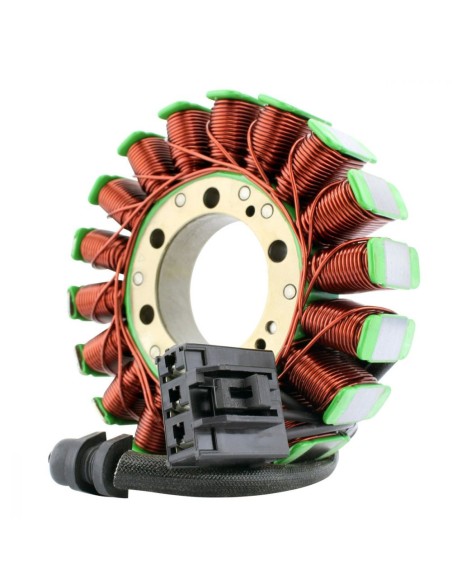

Stator Triumph Street Triple 675R Street Triple 675 OEM T1303139

Stator

2018 Triumph Street Triple 675 R
2018 Triumph Street Triple 675
2017 Triumph Street Triple 675 R
2017 Triumph Street Triple 675
2016 Triumph Street Triple 675 R
2016 Triumph Street Triple 675
2015 Triumph Street Triple 675 R
2015 Triumph Street Triple 675
2014 Triumph Street Triple 675 R
2014 Triumph Street Triple 675
2013 Triumph Street Triple 675 R
2013 Triumph Street Triple 675
2012 Triumph Street Triple 675 R
2012 Triumph Street Triple 675
2011 Triumph Street Triple 675 R
2011 Triumph Street Triple 675
2010 Triumph Street Triple 675 R
2010 Triumph Street Triple 675
2009 Triumph Street Triple 675 R
2009 Triumph Street Triple 675
2008 Triumph Street Triple 675 R
2008 Triumph Street Triple 675
2007 Triumph Street Triple 675

OEM T1303139

Dimensions:
Interior diameter: 42mm
Exterior diameter: 115mm
Thickness: 18mm
Length of wires stator to grommet: 100mm
Length of wires grommet to plug: 200mm

Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 18
Wire to wire resistance:
Alternator: Black to Black = 0.6 ohms +-20%
Alternator: to ground = O.L

Street Triple Standard
This part will only fit Street Triple Standard with a VIN HIGHER than 560477 and an engine number BETWEEN 616233 and 624372 or HIGHER than 626867.

If your vehicle has a VIN HIGHER than 560477 and with an engine number LOWER than 616232 or BETWEEN 624373 and 626866, refer to CARMS010-106948.

If your vehicle has a VIN LOWER than 354281, please refer to RM01348. If your vehicle has a VIN BETWEEN 354282 and 560476, please refer to CARM01389.

Street Triple R 2008 to 2020
This part will only fit Street Triple R with a VIN HIGHER than 560477 and an engine number BETWEEN 616233 and 624372 or HIGHER than 626867.

If your vehicle does not correspond to the requirements above, refer to part CARMS010-106948.
