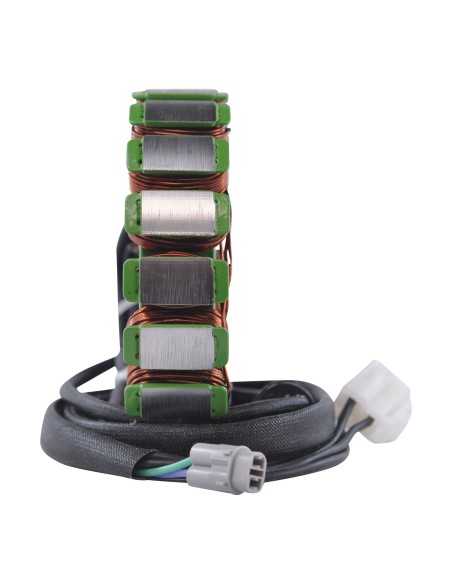

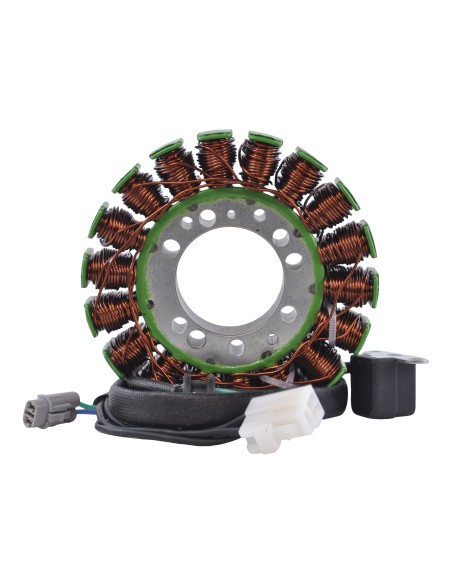

Stator Triumph Street Triple 675 OEM T1300039

Stator

Resistant to 200 degrees Celsius

2006-2017  Triumph,  Street Triple 675

Street Triple R 2008-2020
This part will only fit Street triple R with a VIN LOWER than 560476. For vehicle with a VIN HIGHER than 45677 and an engine # LOWER than 616232 or Higher than 624373, refer to CARMS010-106948. For vehicle with a VIN HIGHER than 560477 and an engine # BETWEEN 616233 and 624372, refer to CACARMS010-107391 OEM T1303139.

Exterior Diameter: 115mm
Interior Diameter: 42mm
Thickness: 21mm

Harness length stator to grommet: 180 mm
Harness length grommet to plug: 140 mm
Pickup Coil`s length to grommet: 105 mm

Other specifications:

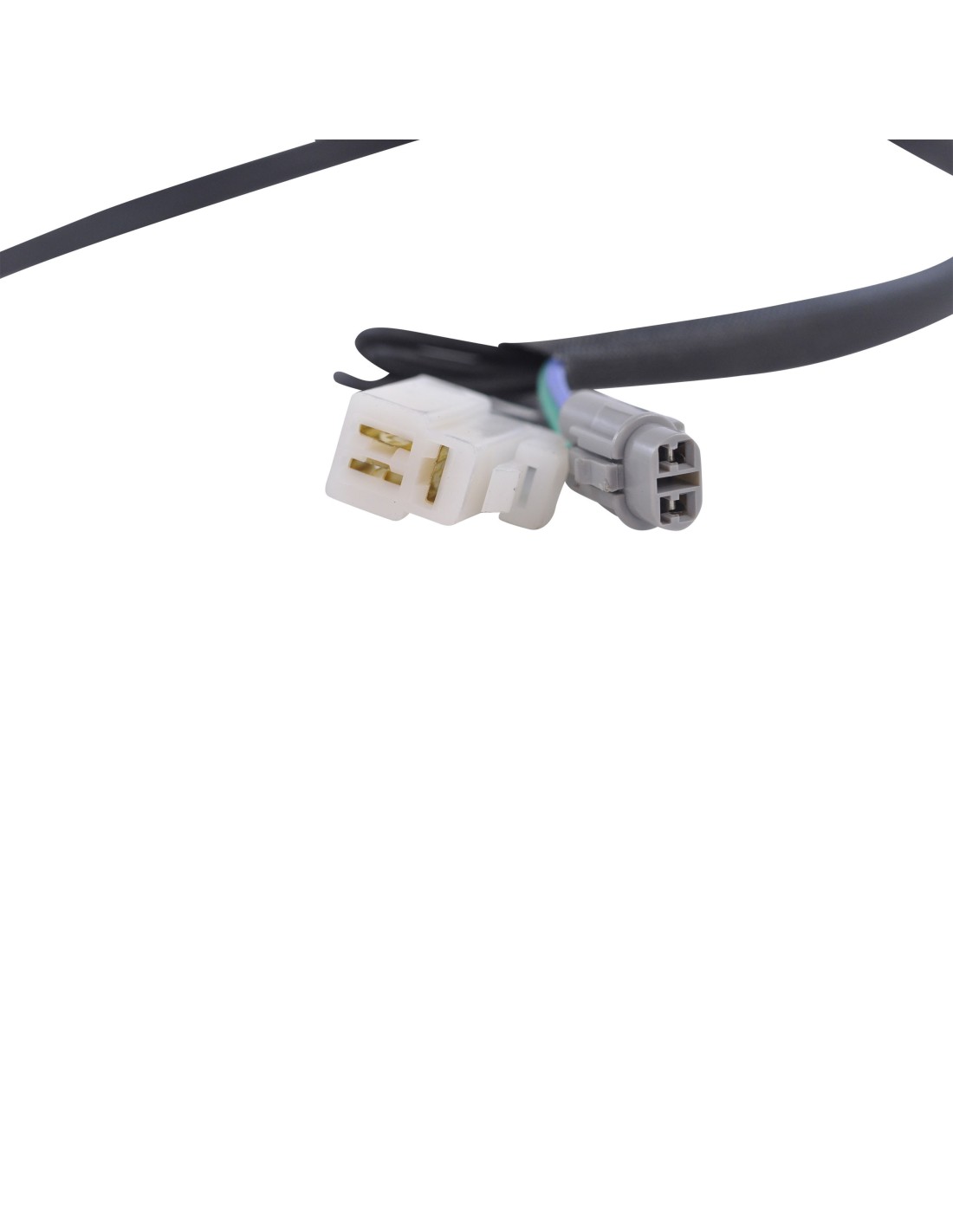

Number of wires: 5
Number of plugs: 2
Number of pins: 5

Wire to wire resistance:
Alternator: black between each black = 0.5 ohms +/-20%
Pickup: green to blue = 230 ohms =+/-20%

OEM T1300039
