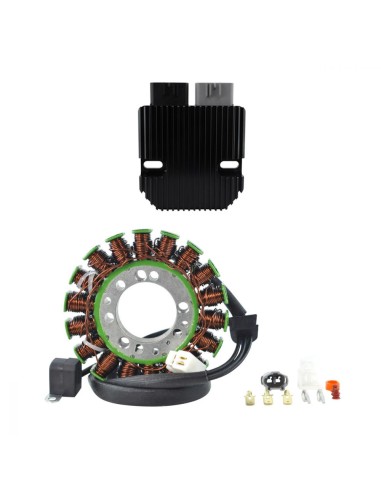

Revolt Voltage Regulator Stator Triumph Daytona 675 Street Triple 675 675R OEM T1300039

2020 Triumph Street Triple 675 R

2020 Triumph Street Triple 675

2020 Triumph Daytona 675

2019 Triumph Street Triple 675 R

2019 Triumph Daytona 675

2018 Triumph Street Triple 675 R

2018 Triumph Daytona 675

2017 Triumph Street Triple 675 R

2017 Triumph Daytona 675

2016 Triumph Street Triple 675 R

2016 Triumph Daytona 675

2015 Triumph Street Triple 675 R

2015 Triumph Daytona 675

2014 Triumph Street Triple 675 R

2014 Triumph Daytona 675

2013 Triumph Street Triple 675 R

2013 Triumph Street Triple 675

2013 Triumph Daytona 675

2012 Triumph Street Triple 675 R

2012 Triumph Street Triple 675

2012 Triumph Daytona 675

2011 Triumph Street Triple 675 R

2011 Triumph Street Triple 675

2011 Triumph Daytona 675

2010 Triumph Street Triple 675 R

2010 Triumph Street Triple 675

2010 Triumph Daytona 675

2009 Triumph Street Triple 675 R

2009 Triumph Street Triple 675

2009 Triumph Daytona 675

2008 Triumph Street Triple 675 R

2008 Triumph Street Triple 675

2008 Triumph Daytona 675

2007 Triumph Daytona 675

2006 Triumph Daytona 675

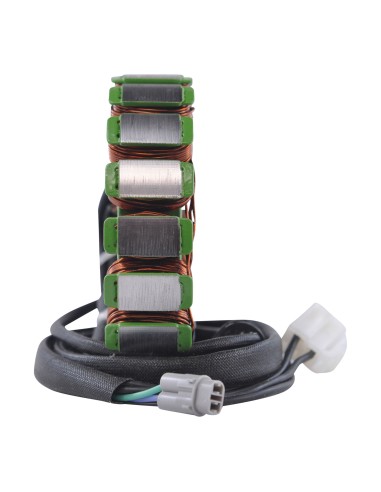

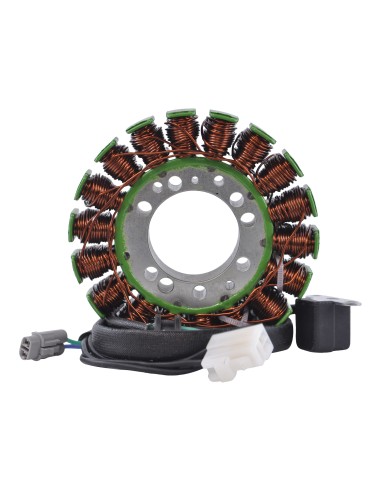

Stator

Resistant to 200 degrees Celsius

Exterior Diameter: 115mm
Interior Diameter: 42mm
Thickness: 21mm

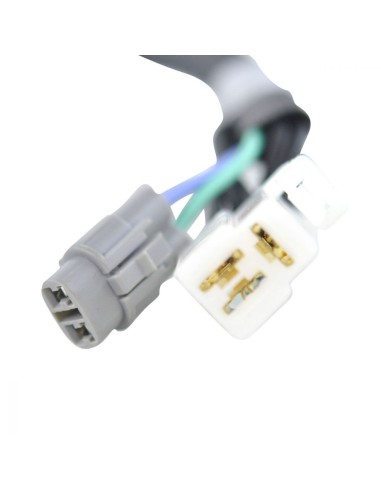

Harness length stator to grommet: 180 mm
Harness length grommet to plug: 140 mm
Pickup Coil`s length to grommet: 105 mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5

Wire to wire resistance:
Alternator: black between each black = 0.5 ohms +/-20%
Pickup: green to blue = 230 ohms =+/-20%

OEM T1300039 T1300823

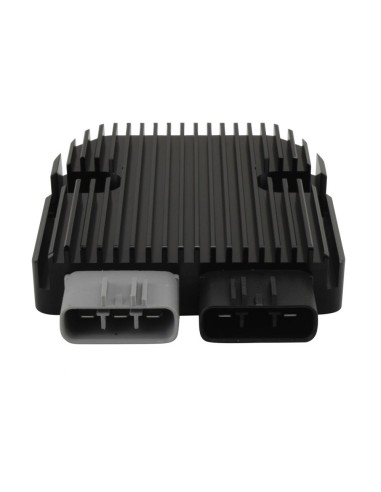

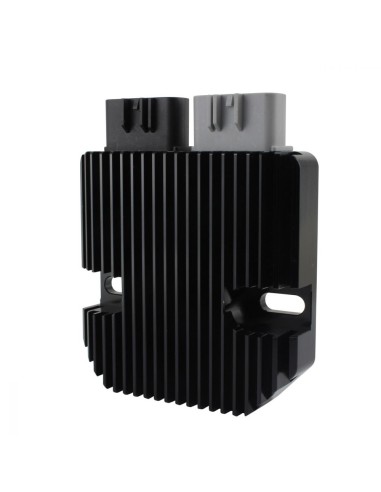

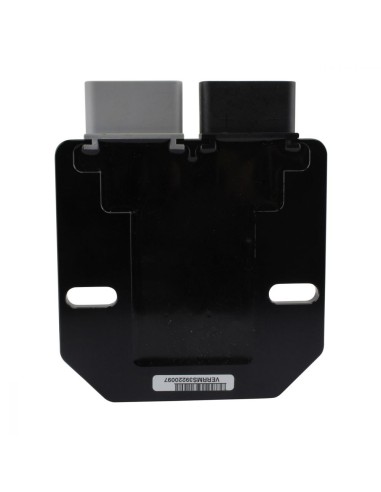

REVOLT Voltage Regulator Rectifier:

Width: 103mm

Length: 102 mm

Height: 26mm

Fixing holes center to center: 78 mm

Other specifications:

Number of plugs: 2

Number of pins: 5

Number of wires: 0

Minimum Charging Voltage: 14.5V +/- 0.5V

Maximum Charging Current: 50A / 500W

Open Circuit Voltage: <15V

Operating Temperature: -20°C to 85°C

RUNS 50% COOLER THAN OEM

2 years of R&D and careful choice of top graded performance components dramatically reduce failure rate by running substantially cooler than the best OEM and competitors’ products.

SOLVES THE MAJOR CAUSE OF FAILURE

REVOLT is the only voltage regulator rectifier on the market with a redesigned rectifier circuit to considerably improve reliability.

DISSIPATE HEAT 45% BETTER THAN OEM

Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.

REVOLT is engineered, designed, and manufactured in USA under strict USA-based quality control standards.
