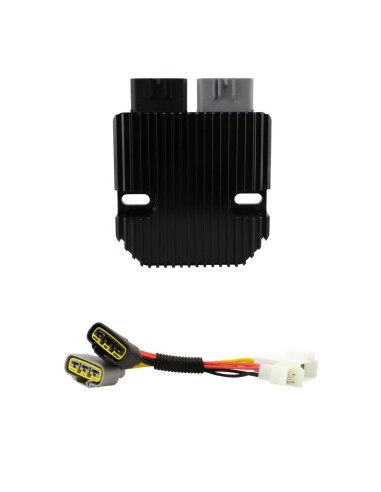

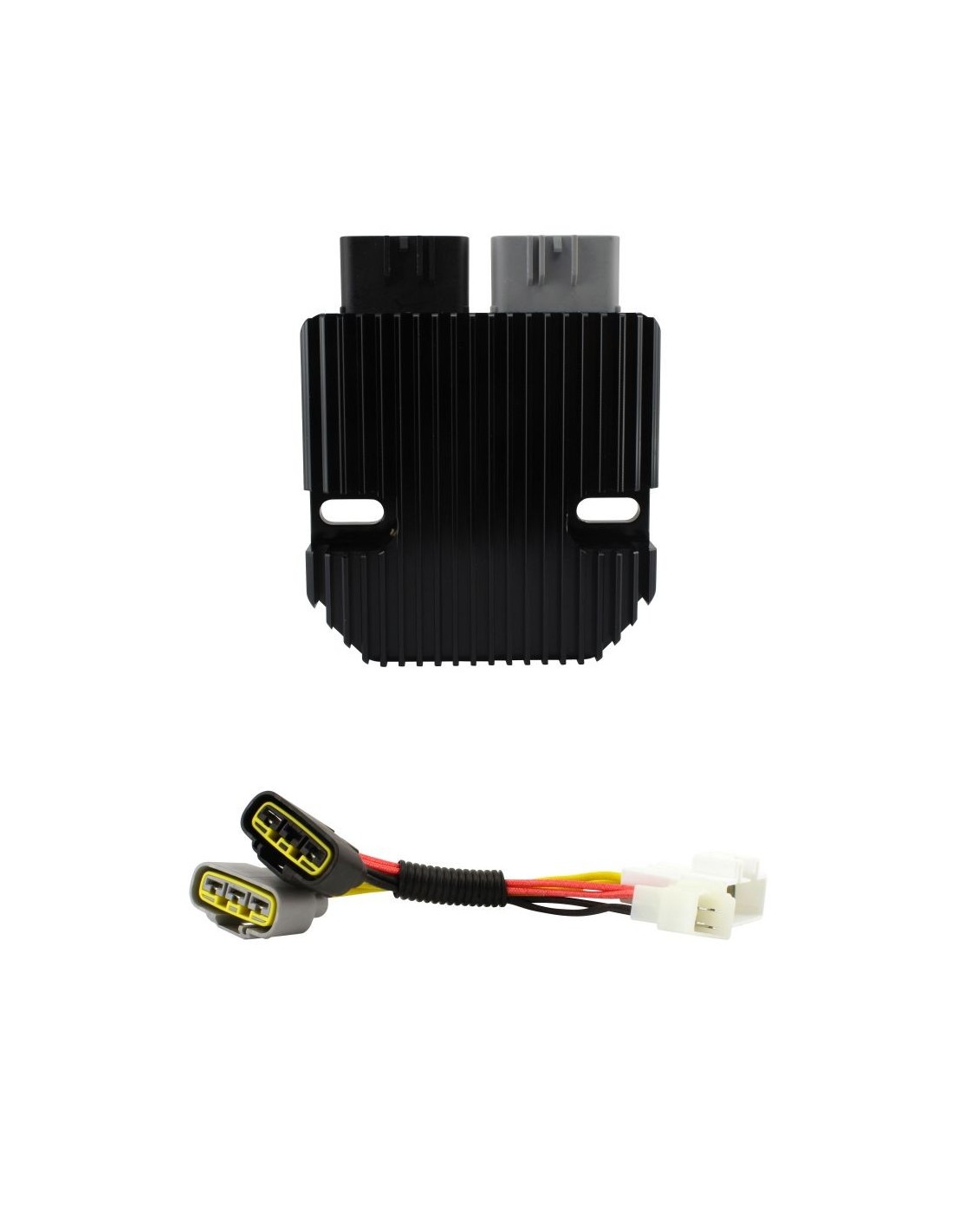

REVOLT Regulator Rectifier Triumph Daytona 675R Daytona 675 OEM T1305123

2020 Triumph Daytona 675 R
2020 Triumph Daytona 675
2019 Triumph Daytona 675 R
2019 Triumph Daytona 675
2018 Triumph Daytona 675 R
2018 Triumph Daytona 675
2017 Triumph Daytona 675 R
2017 Triumph Daytona 675
2016 Triumph Daytona 675 R
2016 Triumph Daytona 675
2015 Triumph Daytona 675 R
2015 Triumph Daytona 675
2014 Triumph Daytona 675 R
2014 Triumph Daytona 675
2013 Triumph Daytona 675 R
2013 Triumph Daytona 675
2012 Triumph Daytona 675 R
2012 Triumph Daytona 675
2011 Triumph Daytona 675 R
2011 Triumph Daytona 675
2010 Triumph Daytona 675 R
2010 Triumph Daytona 675
2009 Triumph Daytona 675 R
2009 Triumph Daytona 675
2008 Triumph Daytona 675 R
2008 Triumph Daytona 675
2007 Triumph Daytona 675 R
2007 Triumph Daytona 675
2006 Triumph Daytona 675 R
2006 Triumph Daytona 675

OEM T1305123

REVOLT Voltage Regulator Rectifier:
Width: 103mm
Length: 102 mm
Height: 26mm
Fixing holes center to center: 78 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 50A / 500W
Open Circuit Voltage: <15V
Operating Temperature: -20°C to 85°C

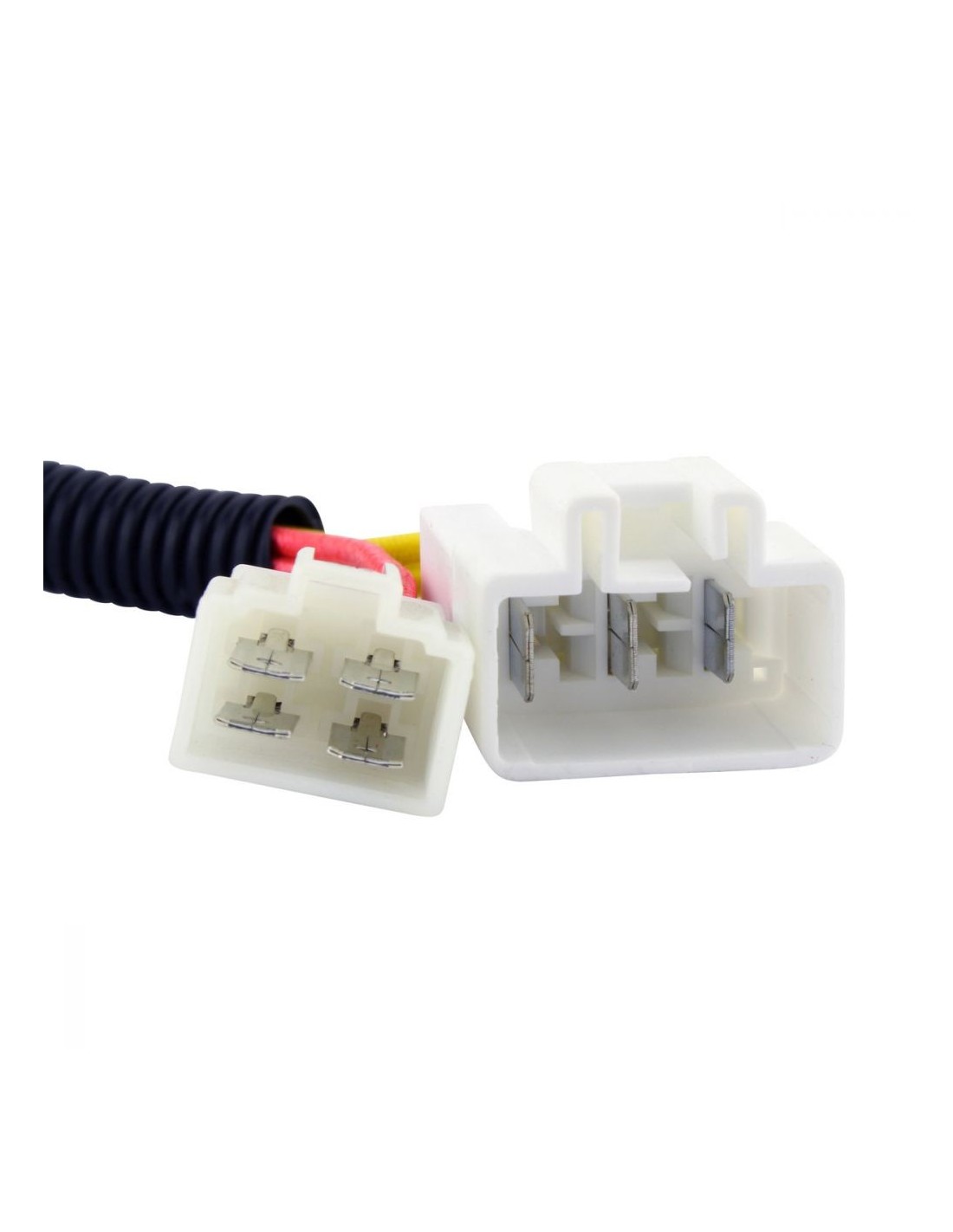

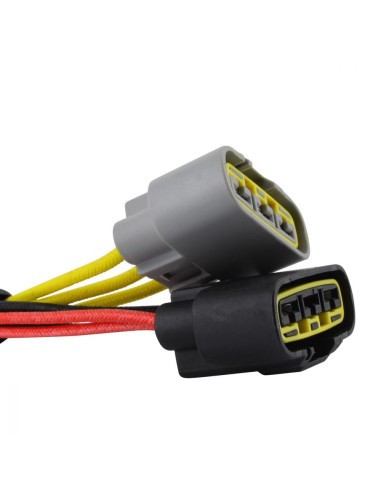

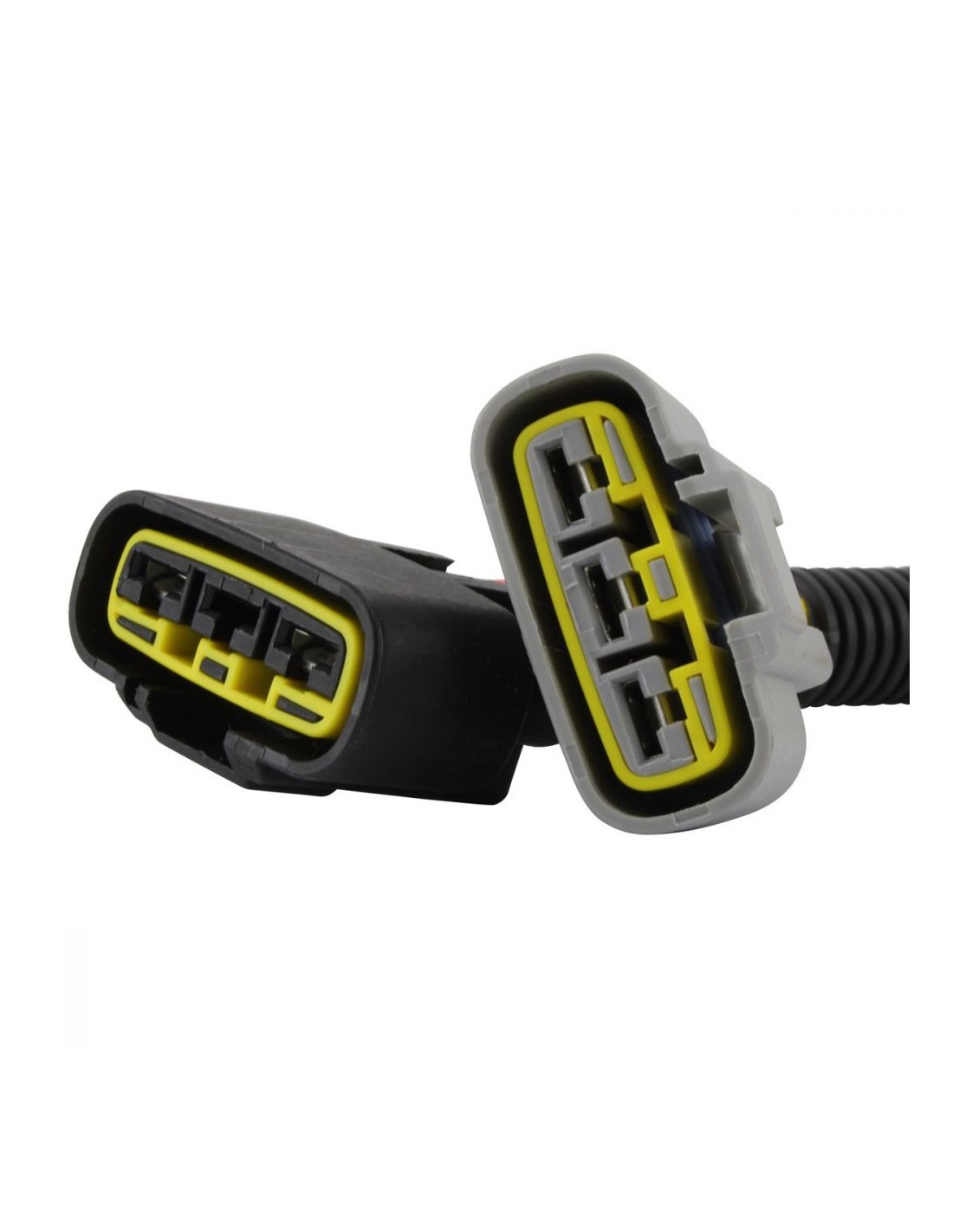

REVOLT Harness
Wire length: 150mm
Number of yellow wires: 3
Number of red wires: 1
Number of green wires: 1
Number of plugs: 3

RUNS 50% COOLER THAN OEM
2 years of R&D and careful choice of top graded performance components dramatically reduce failure rate by running substantially cooler than the best OEM and competitors’ products.

SOLVES THE MAJOR CAUSE OF FAILURE
REVOLT is the only voltage regulator rectifier on the market with a redesigned rectifier circuit to considerably improve reliability.

DISSIPATE HEAT 45% BETTER THAN OEM

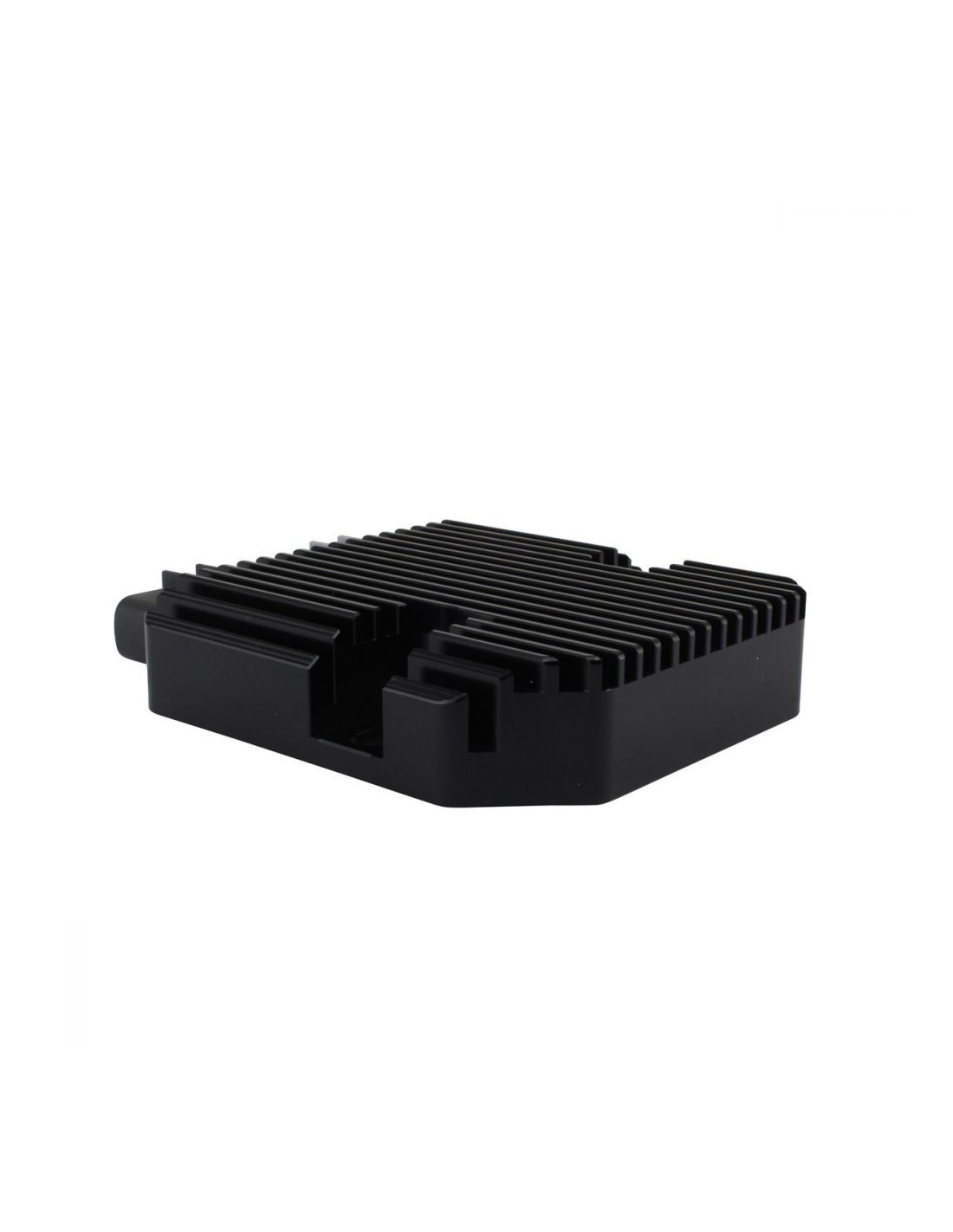

Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.

REVOLT is engineered, designed, and manufactured in USA under strict USA-based quality control standards.
