Stator + Regulator Rectifier Mosfet Triumph Daytona 675 OEM T1300039 T1300823

Stator + Regulator Rectifier Mosfet Triumph Daytona 675

    2017 Triumph Daytona 675
    2016 Triumph Daytona 675
    2015 Triumph Daytona 675
    2014 Triumph Daytona 675
    2013 Triumph Daytona 675
    2012 Triumph Daytona 675 R
    2012 Triumph Daytona 675
    2011 Triumph Daytona 675 SE
    2011 Triumph Daytona 675 R
    2011 Triumph Daytona 675
    2010 Triumph Daytona 675
    2009 Triumph Daytona 675
    2008 Triumph Daytona 675
    2007 Triumph Daytona 675
    2006 Triumph Daytona 675

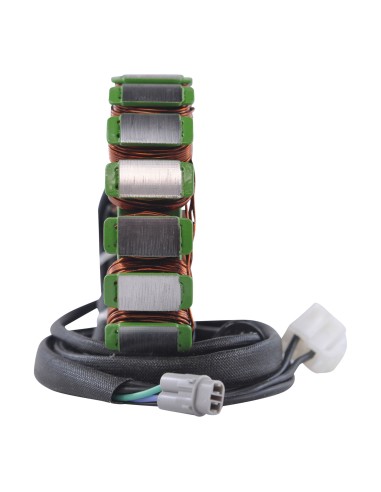

Stator

Resistant to 200 degrees Celsius

Exterior Diameter: 115mm
Interior Diameter: 42mm
Thickness: 21mm

Harness length stator to grommet: 180 mm
Harness length grommet to plug: 140 mm
Pickup Coil`s length to grommet: 105 mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5

Wire to wire resistance:
Alternator: black between each black = 0.5 ohms +/-20%
Pickup: green to blue = 230 ohms =+/-20%

 OEM T1300039 T1300823

Regulator Rectifier Mosfet

Improved heat sink and charging capabilities

• It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

Number of wires : 7
Number of pins : 7
Bracket center to center: 75 mm
Thickness: 30 mm
Height: 82 mm
