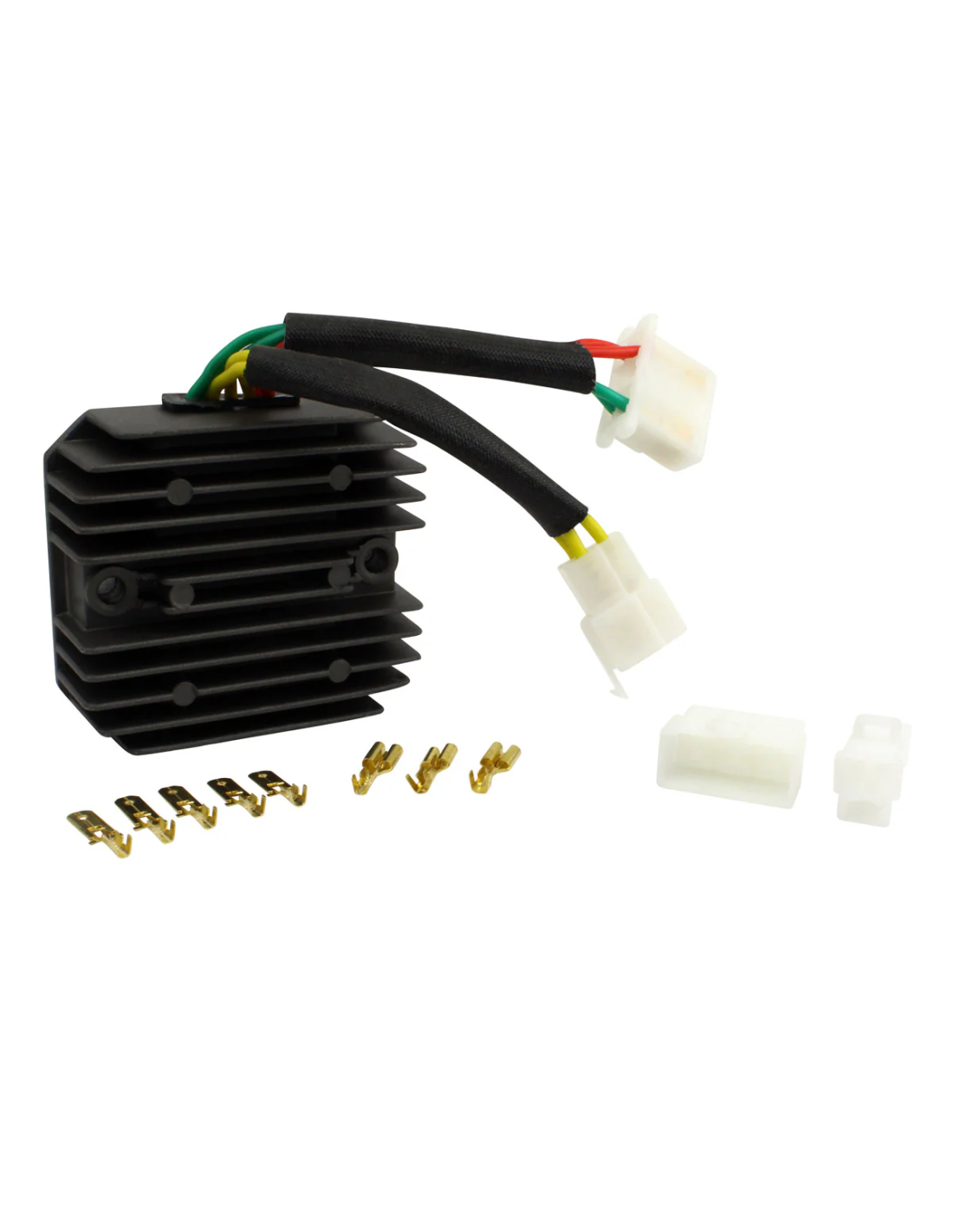

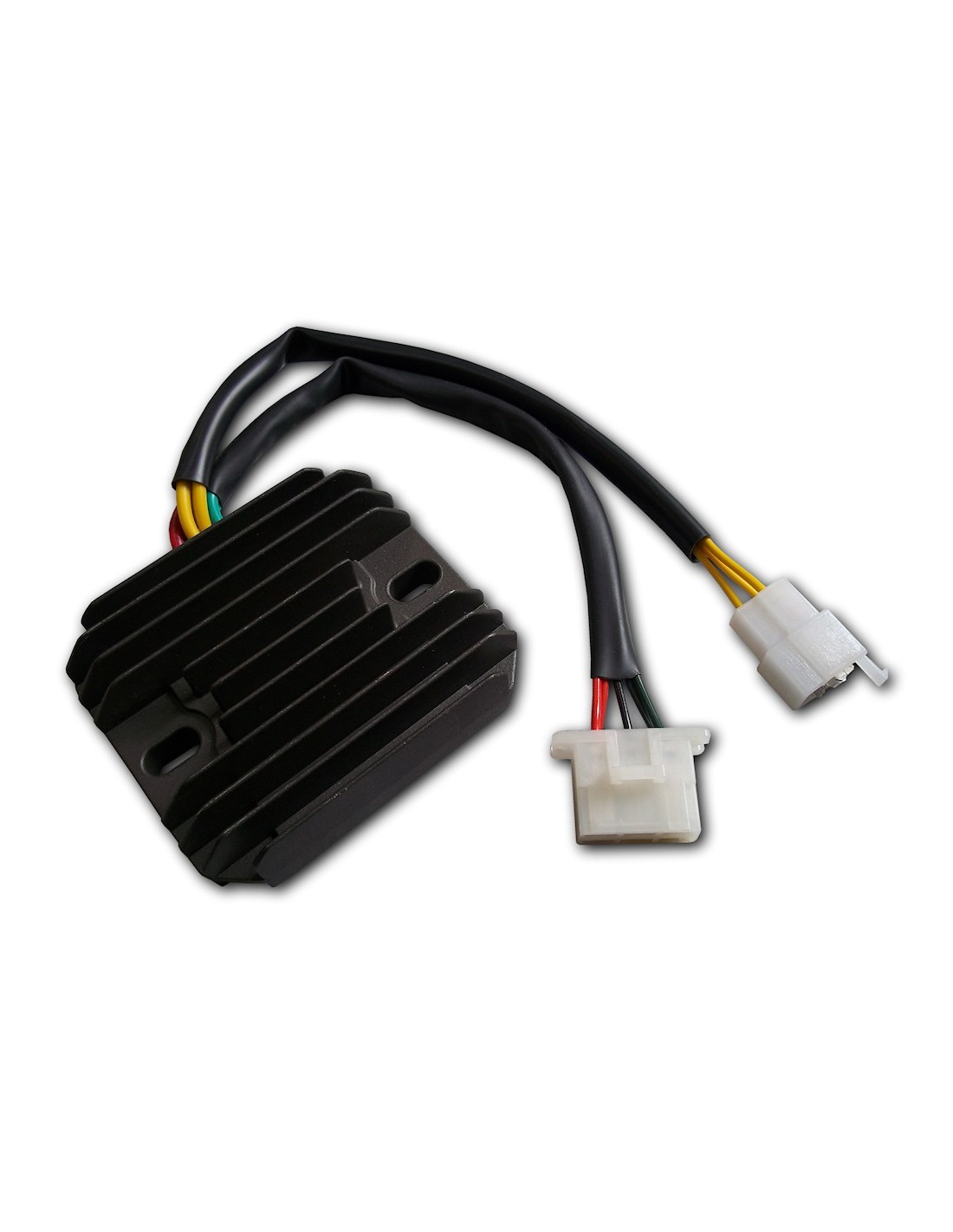

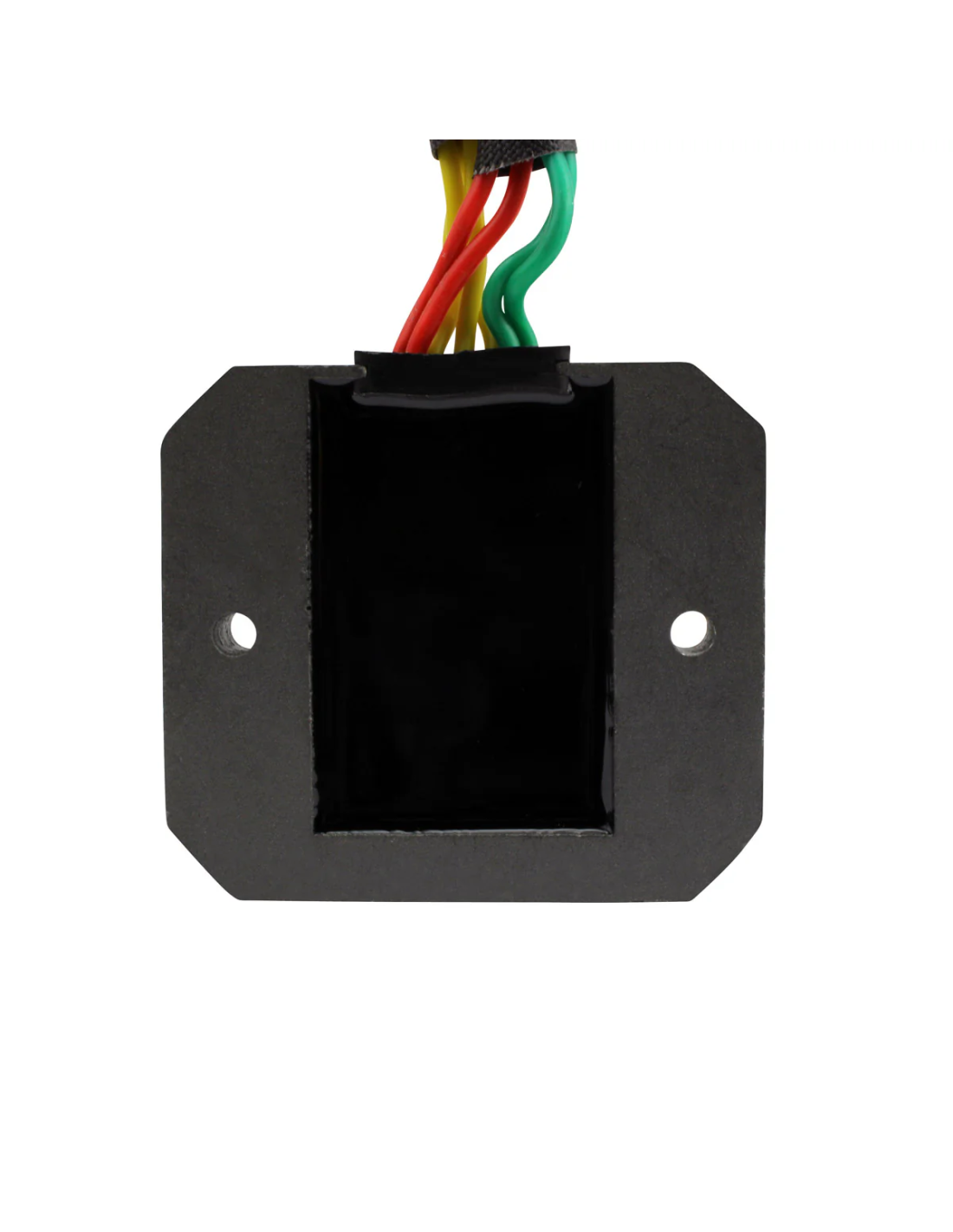

Regulator Rectifier Honda-600 Transalp 650 Africa Twin OEM 31600-MS6-921 31600-MM9-000

Regulator Rectifier

2000 Honda XL 600 V Transalp

1999 Honda XL 600 V Transalp

1998 Honda XL 600 V Transalp

1997 Honda XL 600 V Transalp

1996 Honda XL 600 V Transalp

1995 Honda XL 600 V Transalp

1994 Honda XL 600 V Transalp

1993 Honda XL 600 V Transalp

1992 Honda XL 600 V Transalp

1991 Honda XL 600 V Transalp

1990 Honda XL 600 V Transalp

1990 Honda XRV 650 Africa Twin

1989 Honda XL 600 V Transalp

1989 Honda XRV 650 Africa Twin

1988 Honda XL 600 V Transalp

1988 Honda XRV 650 Africa Twin

1987 Honda XL 600 V Transalp

OEM 31600-MS6-921

31600-MM9-000

Dimensions:

Width: 83 mm

Length: 90 mm

Height: 28 mm

Stator wires length: 110 mm

Battery wires length: 85 mm

Distance between fixation holes center to center: 68 mm

Other specifications:

Number of plugs: 2

Number of pins: 7

Number of wires: 7

Minimum Charging Voltage: 14.5 V +- 0.5 V

Maximum Charging Current: 50 A / 500 W

Open Circuit Voltage: < 15 V

Operation Temperature: -20°C to 85°C
