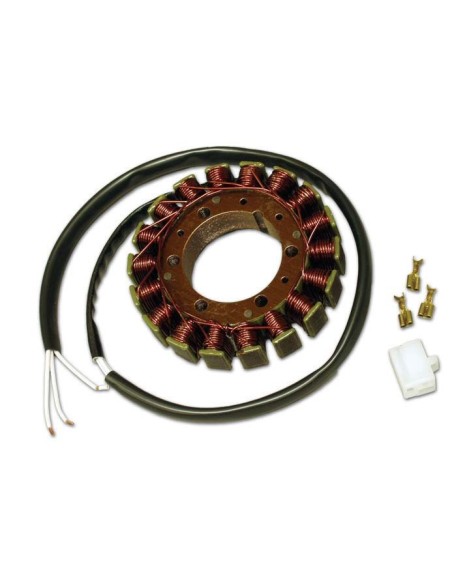

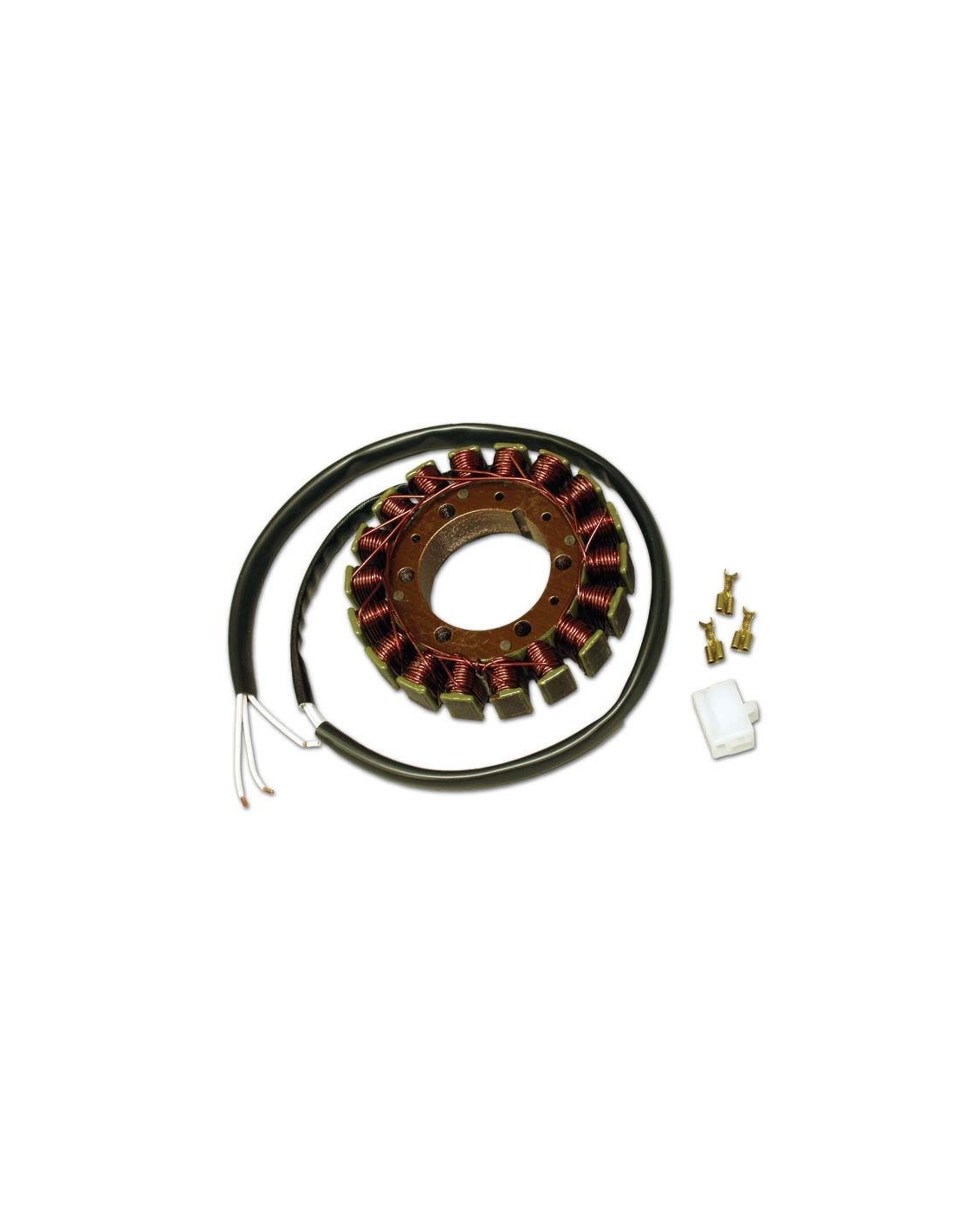

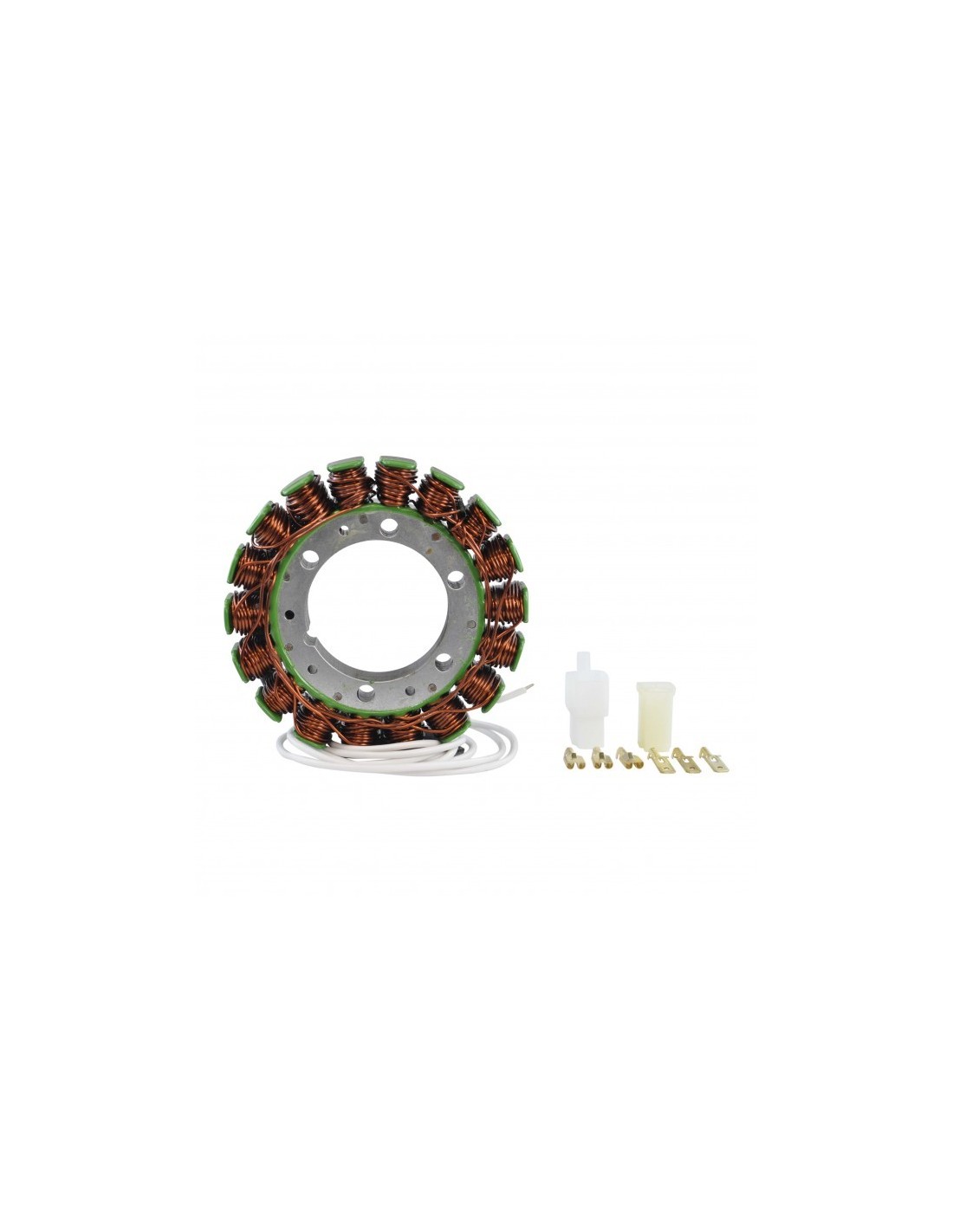

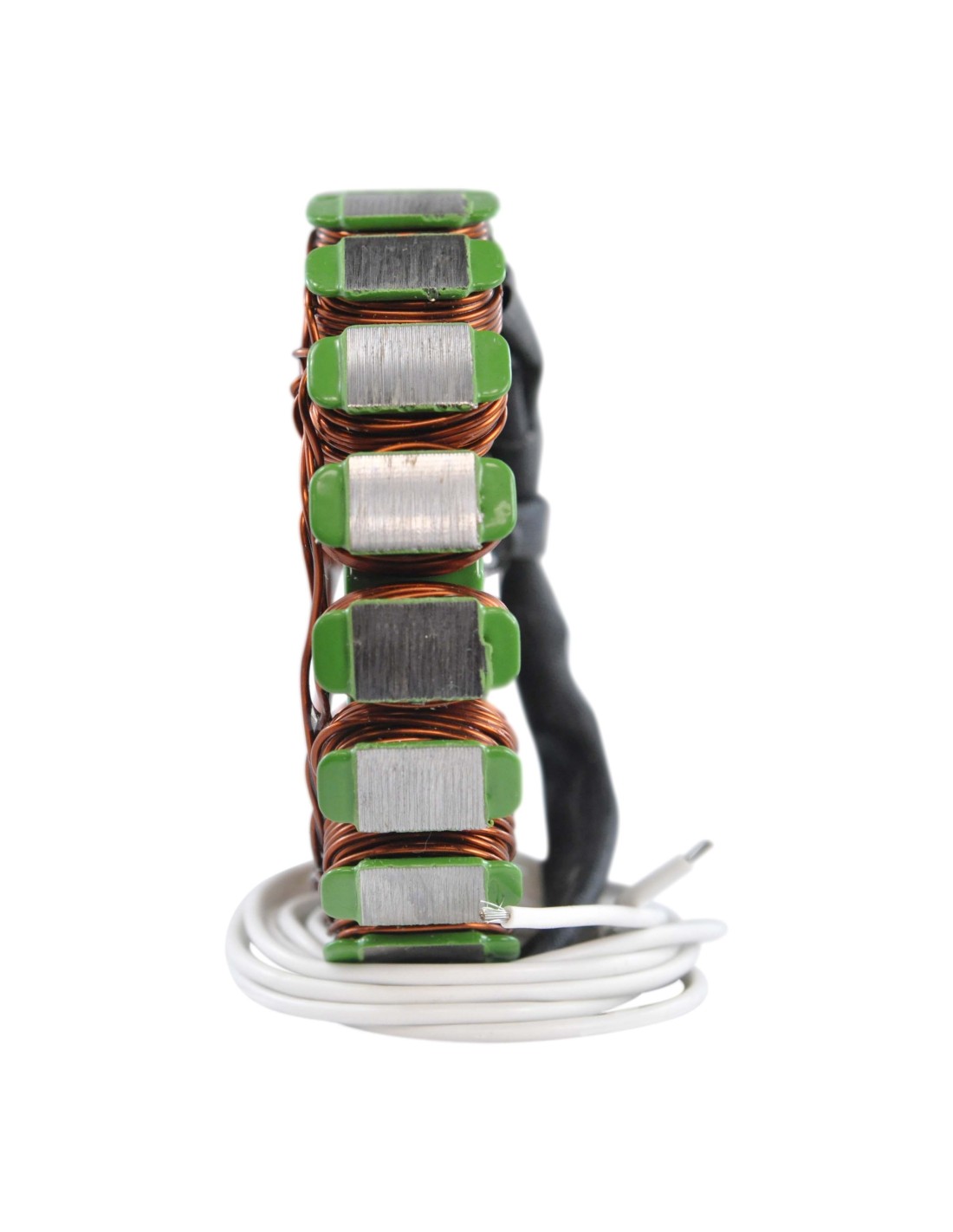

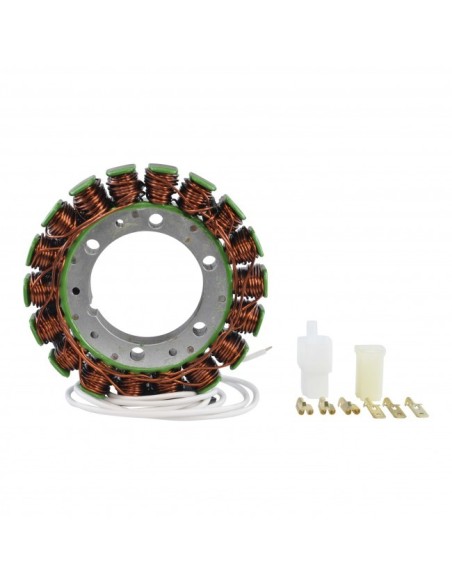

Stator Allumage Honda NV400 VT400 NV650 XL650V Transalp XRV750 Africa Twin OEM 31120-MAS-004 31120-MCJ-003

Stator

NV400C Steed VLX (1995-1997)
VT400C Shadow (1983-1986),
NV600C Steed (1993-1994)
NV650C (1983)
XL650V Transalp (2000-2006)
XRV750 Africa Twin (1990-2000)

OEM 31120-MR1-004 / 31120-MAV-003 / 31120-MF8-004 / 31120-MF5-004 / 31120-MF8-000 / 31120-MZ8-G21 / 31120-MZ8-H01 / 31120-MCB-601 / 31120-MCB-611 / 31120-MV1-004 / 31120-MY1-004 / 32101-38A10 / 32101-38A00 / 32101-10F00 / 32101-10F01

Resistant to 200 degrees Celsius

• Dimensions:

Interior diameter: 53 mm

Exterior diameter: 114 mm

Thickness: 16 mm

Length of wires stator to grommet: 1220 mm

Other specifications :

Number of wires: 3

Number of pins: 3

Wire to wire resistance :

Alternator: White Between each White = 0.2 ohms +/-20%
