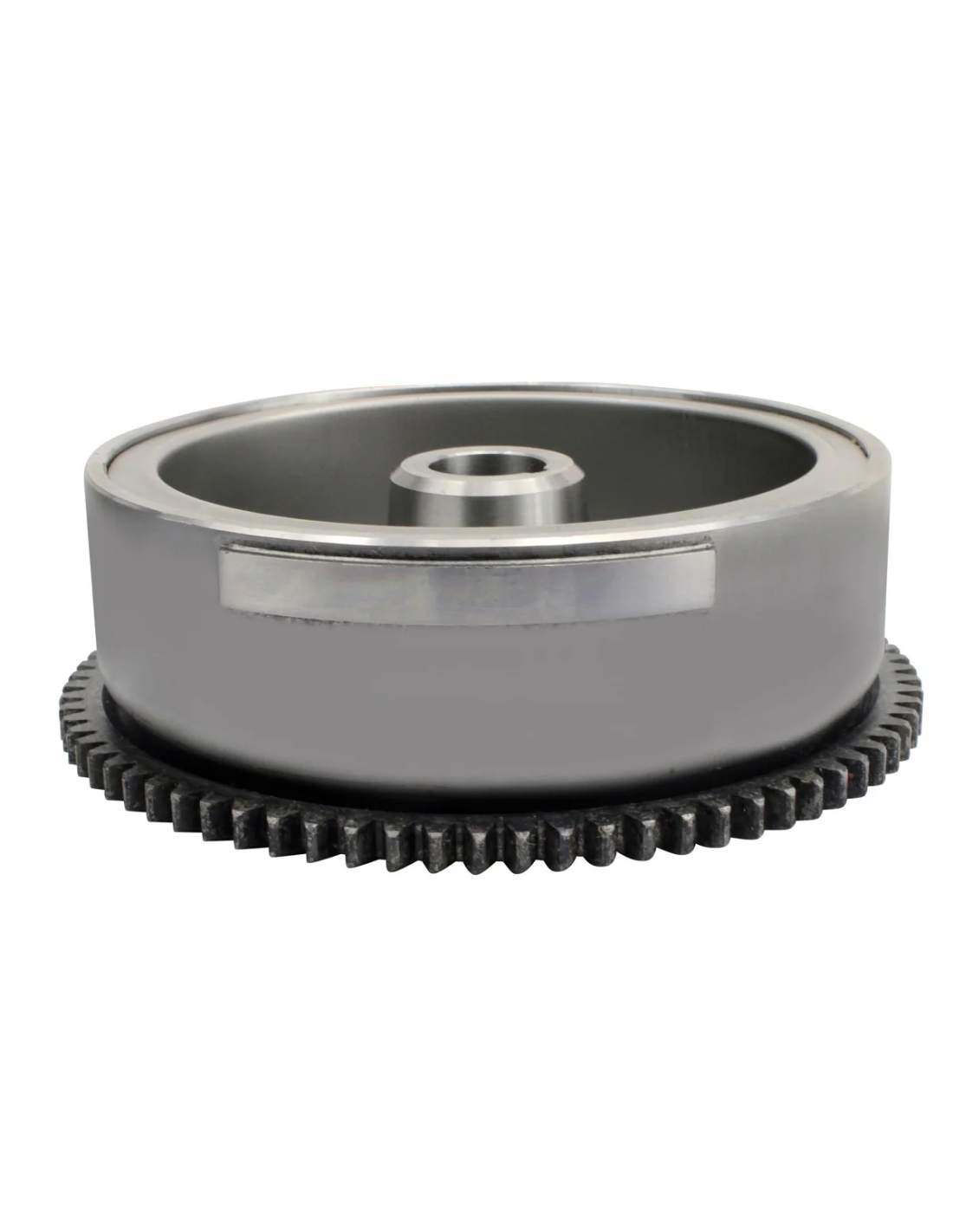

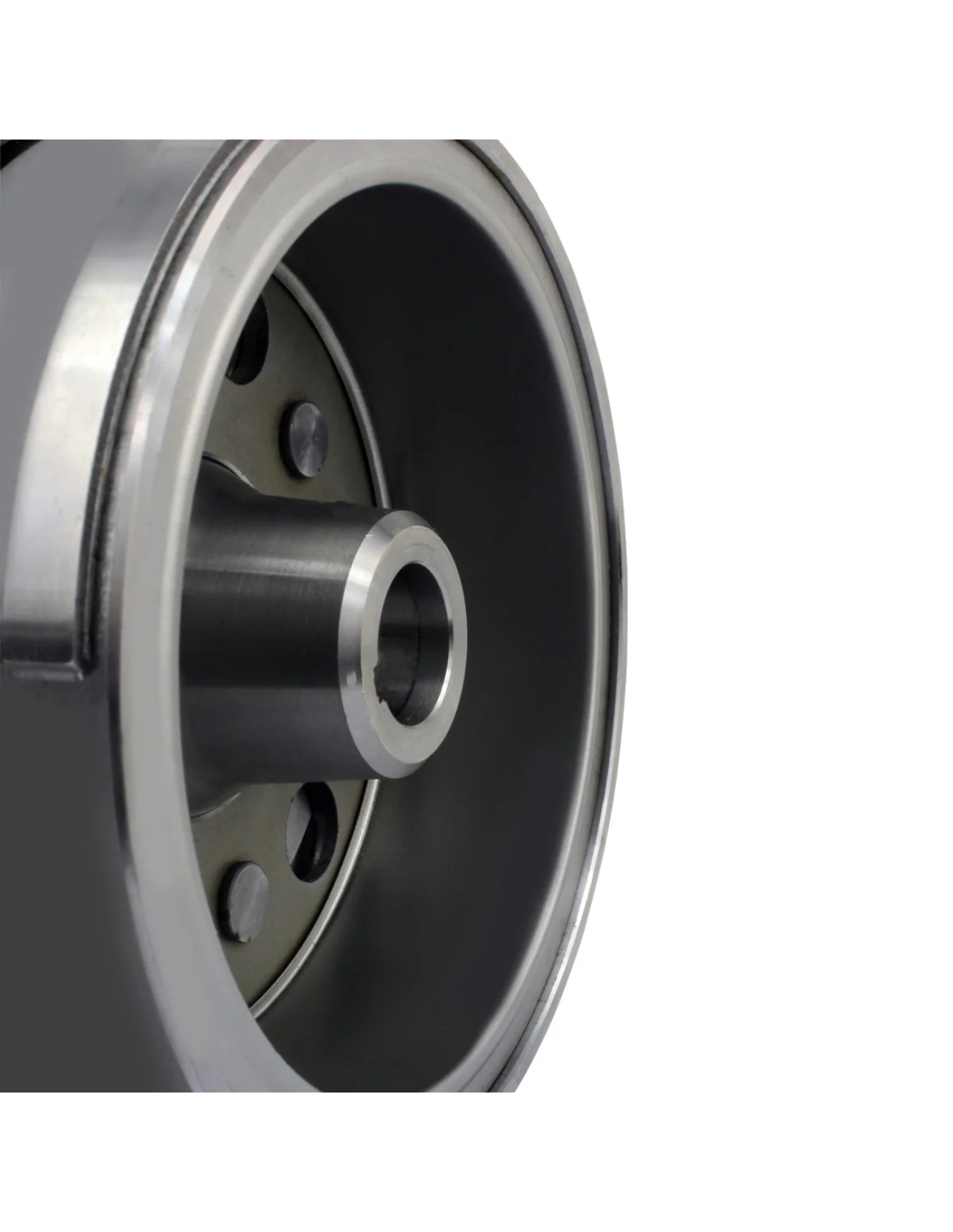

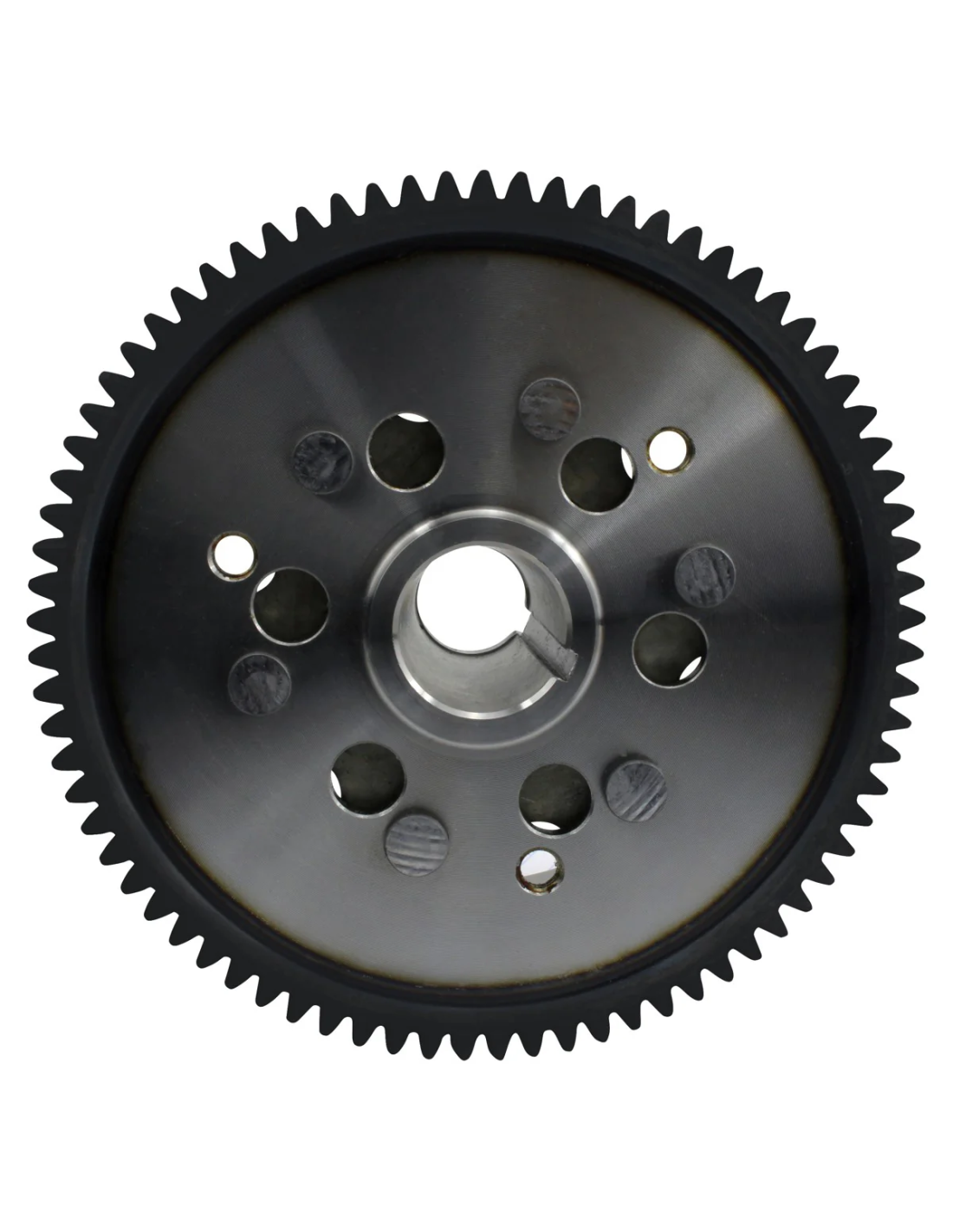

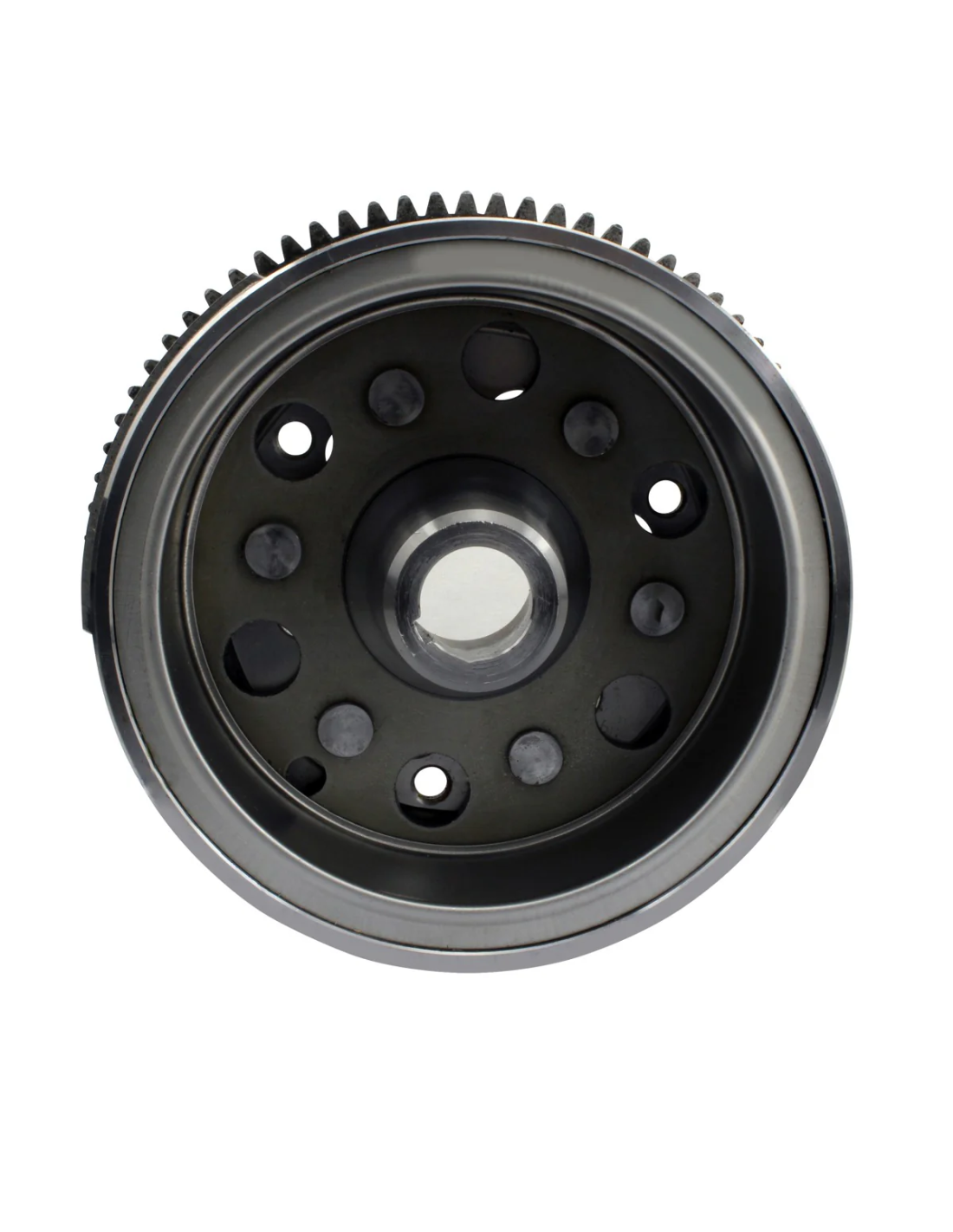

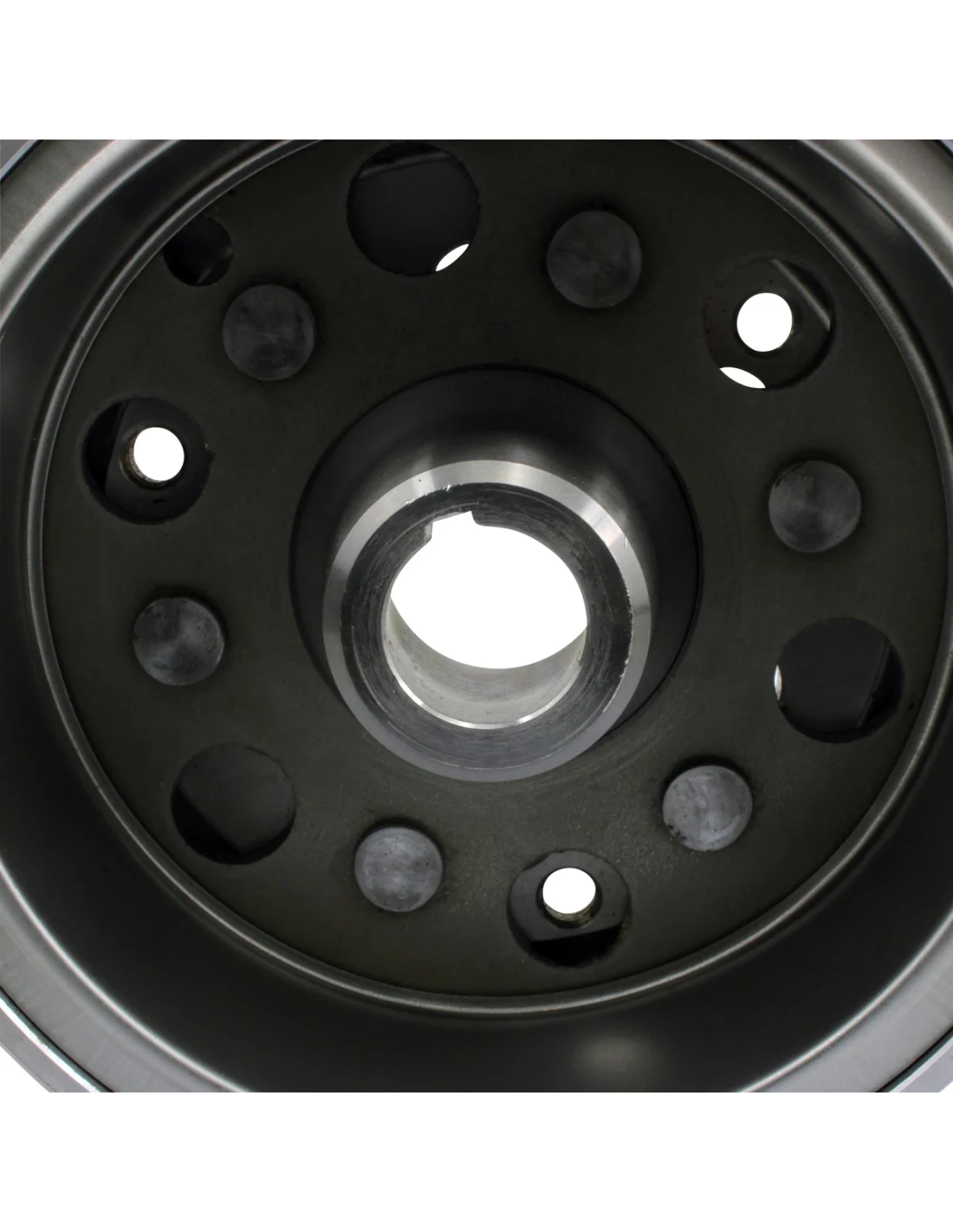

Rotor Improved Capped Magneto Flywheel Ring Gear Yamaha 600 Grizzly OEM 4WV-85550-00-00 5GT-85550-00-00

2001 Yamaha YFM 600 Grizzly

2000 Yamaha YFM 600 Grizzly

1999 Yamaha YFM 600 Grizzly

1998 Yamaha YFM 600 Grizzly

Dimensions:

Exterior Diameter: 143 mm & 157 mm

Interior Diameter: 117 mm

Interior Diameter Center Housing: 21 mm

Exterior Diameter Center Housing: 35 mm

Thickness (exterior): 50 mm

Thickness (interior): 37 mm

OEM 4WV-85550-00-00 5GT-85550-00-00

• Built to OEM size
• Fits precisely in your ride
• Improved epoxy
• Uses high temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.
• High grade steel capping
• Prevents harsh additives in motor oil from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.
• Eliminates crankshaft vibrations for longer engine longevity.
