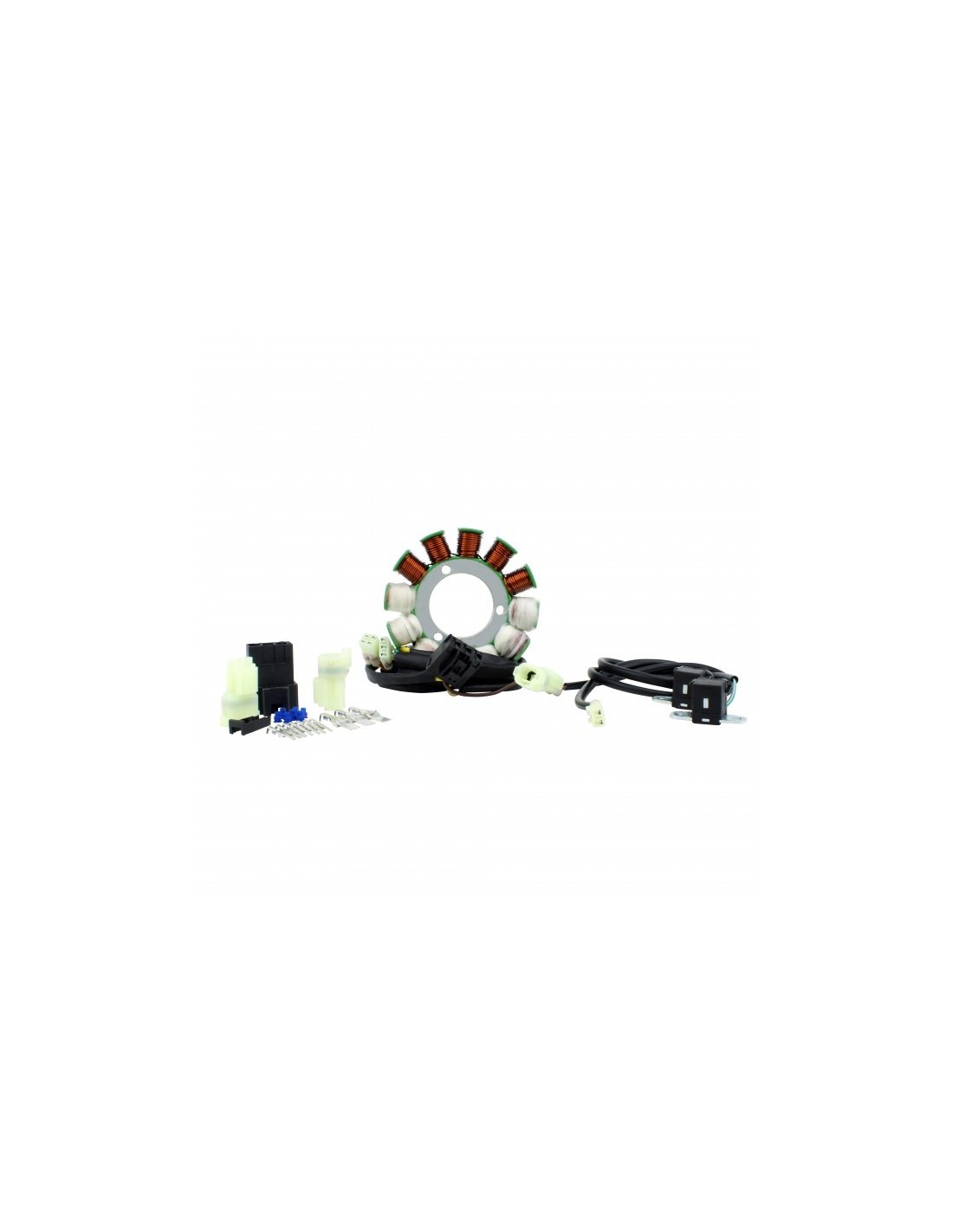

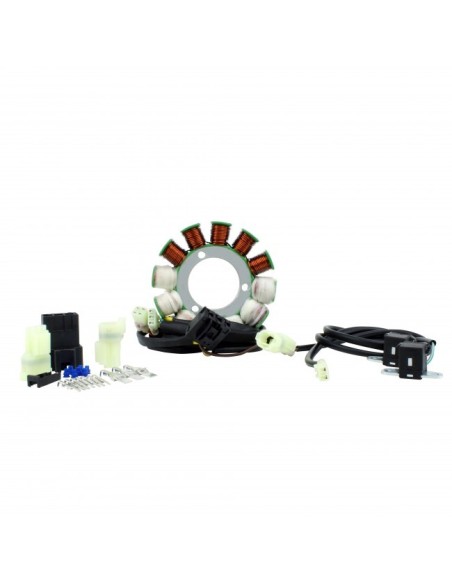

Stator Arctic Cat Norseman 6000 Pantera 6000 XF6000 M6000 ZR6000 OEM 0902-017
CARMS010-105897
5-7 Days
€238.00
Tax included
OEM 0902-017

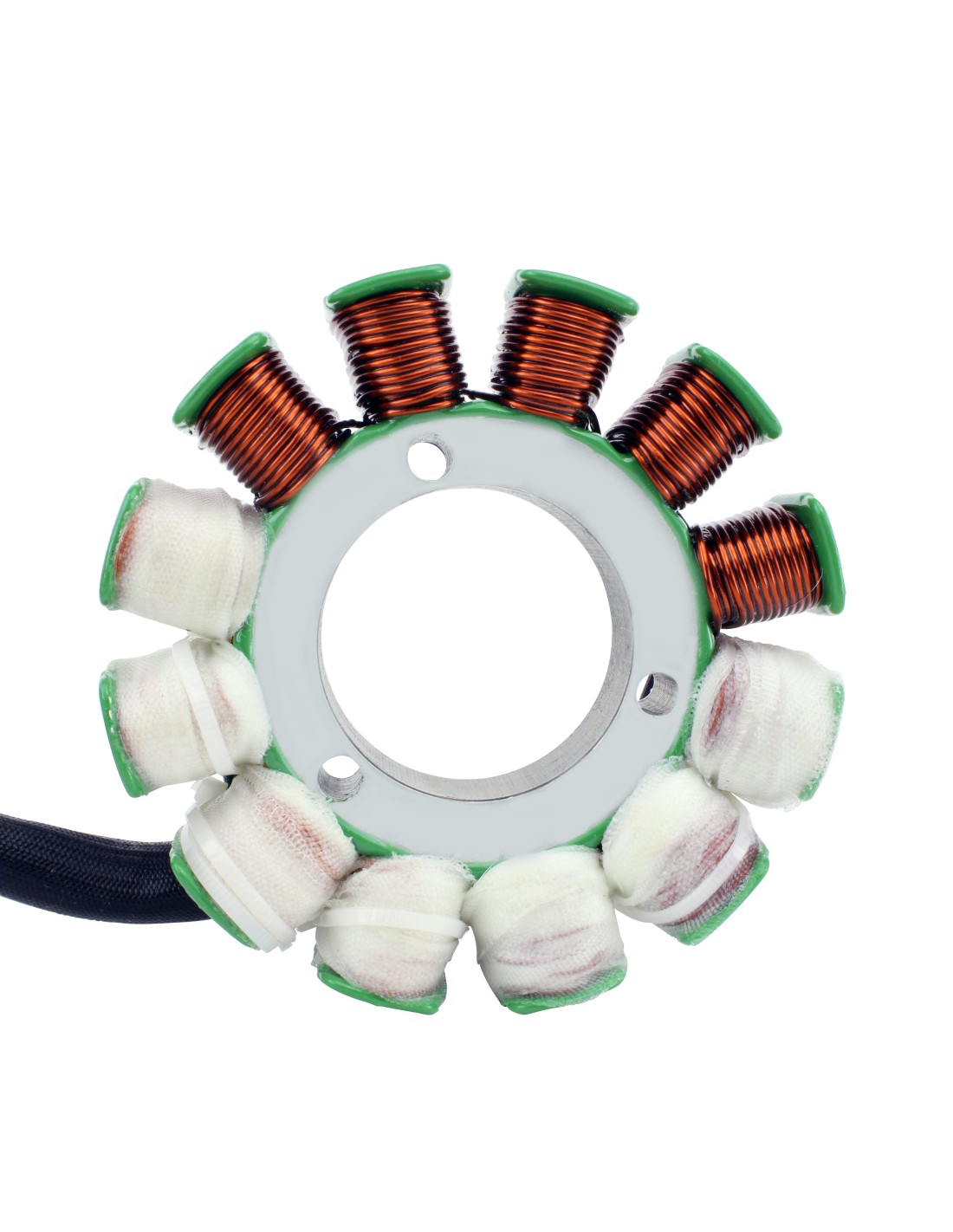

Stator
2018 Arctic Cat M 6000
2018 Arctic Cat Norseman 6000 ES
2018 Arctic Cat Pantera 6000 ES
2018 Arctic Cat XF 6000 Cross Country
2018 Arctic Cat XF 6000 Crosstour
2018 Arctic Cat XF 6000 High Country
2018 Arctic Cat ZR 6000
2018 Arctic Cat ZR 6000 Crosstrek
2018 Arctic Cat ZR 6000 El Tigre
2018 Arctic Cat ZR 6000 Sno Pro
2017 Arctic Cat M 6000
2017 Arctic Cat XF 6000 Cross Country
2017 Arctic Cat XF 6000 Crosstrek
2017 Arctic Cat XF 6000 High Country
2017 Arctic Cat ZR 6000
2017 Arctic Cat ZR 6000 El Tigre
2017 Arctic Cat ZR 6000 Sno Pro
2016 Arctic Cat M 6000
2016 Arctic Cat M 6000 LTD
2016 Arctic Cat M 6000 LTD ES
2016 Arctic Cat XF 6000 Crosstrek
2016 Arctic Cat XF 6000 High Country
2016 Arctic Cat ZR 6000
2016 Arctic Cat ZR 6000 El Tigre
2016 Arctic Cat ZR 6000 Sno Pro
2015 Arctic Cat M 6000
2015 Arctic Cat XF 6000 Cross Country
2015 Arctic Cat XF 6000 Crosstour
2015 Arctic Cat XF 6000 High Country Sno Pro
2015 Arctic Cat XF 6000 LXR
2015 Arctic Cat XF 6000 Sno Pro ES
2015 Arctic Cat XF 6000 Sno Pro ES LTD
2015 Arctic Cat ZR 6000
2015 Arctic Cat ZR 6000 El Tigre
2015 Arctic Cat ZR 6000 Sno Pro
2015 Arctic Cat ZR 6000 Sno Pro RR
2014 Arctic Cat M 6000 Sno Pro
2014 Arctic Cat ZR 6000 El Tigre
2014 Arctic Cat ZR 6000 Sno Pro RR
2018 Arctic Cat Norseman 6000 ES
2018 Arctic Cat Pantera 6000 ES
2018 Arctic Cat XF 6000 Cross Country
2018 Arctic Cat XF 6000 Crosstour
2018 Arctic Cat XF 6000 High Country
2018 Arctic Cat ZR 6000
2018 Arctic Cat ZR 6000 Crosstrek
2018 Arctic Cat ZR 6000 El Tigre
2018 Arctic Cat ZR 6000 Sno Pro
2017 Arctic Cat M 6000
2017 Arctic Cat XF 6000 Cross Country
2017 Arctic Cat XF 6000 Crosstrek
2017 Arctic Cat XF 6000 High Country
2017 Arctic Cat ZR 6000
2017 Arctic Cat ZR 6000 El Tigre
2017 Arctic Cat ZR 6000 Sno Pro
2016 Arctic Cat M 6000
2016 Arctic Cat M 6000 LTD
2016 Arctic Cat M 6000 LTD ES
2016 Arctic Cat XF 6000 Crosstrek
2016 Arctic Cat XF 6000 High Country
2016 Arctic Cat ZR 6000
2016 Arctic Cat ZR 6000 El Tigre
2016 Arctic Cat ZR 6000 Sno Pro
2015 Arctic Cat M 6000
2015 Arctic Cat XF 6000 Cross Country
2015 Arctic Cat XF 6000 Crosstour
2015 Arctic Cat XF 6000 High Country Sno Pro
2015 Arctic Cat XF 6000 LXR
2015 Arctic Cat XF 6000 Sno Pro ES
2015 Arctic Cat XF 6000 Sno Pro ES LTD
2015 Arctic Cat ZR 6000
2015 Arctic Cat ZR 6000 El Tigre
2015 Arctic Cat ZR 6000 Sno Pro
2015 Arctic Cat ZR 6000 Sno Pro RR
2014 Arctic Cat M 6000 Sno Pro
2014 Arctic Cat ZR 6000 El Tigre
2014 Arctic Cat ZR 6000 Sno Pro RR
OEM 0902-017
Dimensions :
Interior diameter : 45 mm
Exterior diameter : 110 mm
Thickness : 35 mm
Other specifications :
Number of wires : 11
Number of plugs : 3
Number of pins : 11
Number of poles : 12
Interior diameter : 45 mm
Exterior diameter : 110 mm
Thickness : 35 mm
Other specifications :
Number of wires : 11
Number of plugs : 3
Number of pins : 11
Number of poles : 12
Wire to wire resistance :
Alternator 3p : Yellow between each Yellow = 0.2 ohms +-20%
Alternator 1p #1 : White/Blue between each White/Blue = 17.2 ohms +-20%
Alternator 1p #2 : Orange between each Orange = 2 ohms +-20%

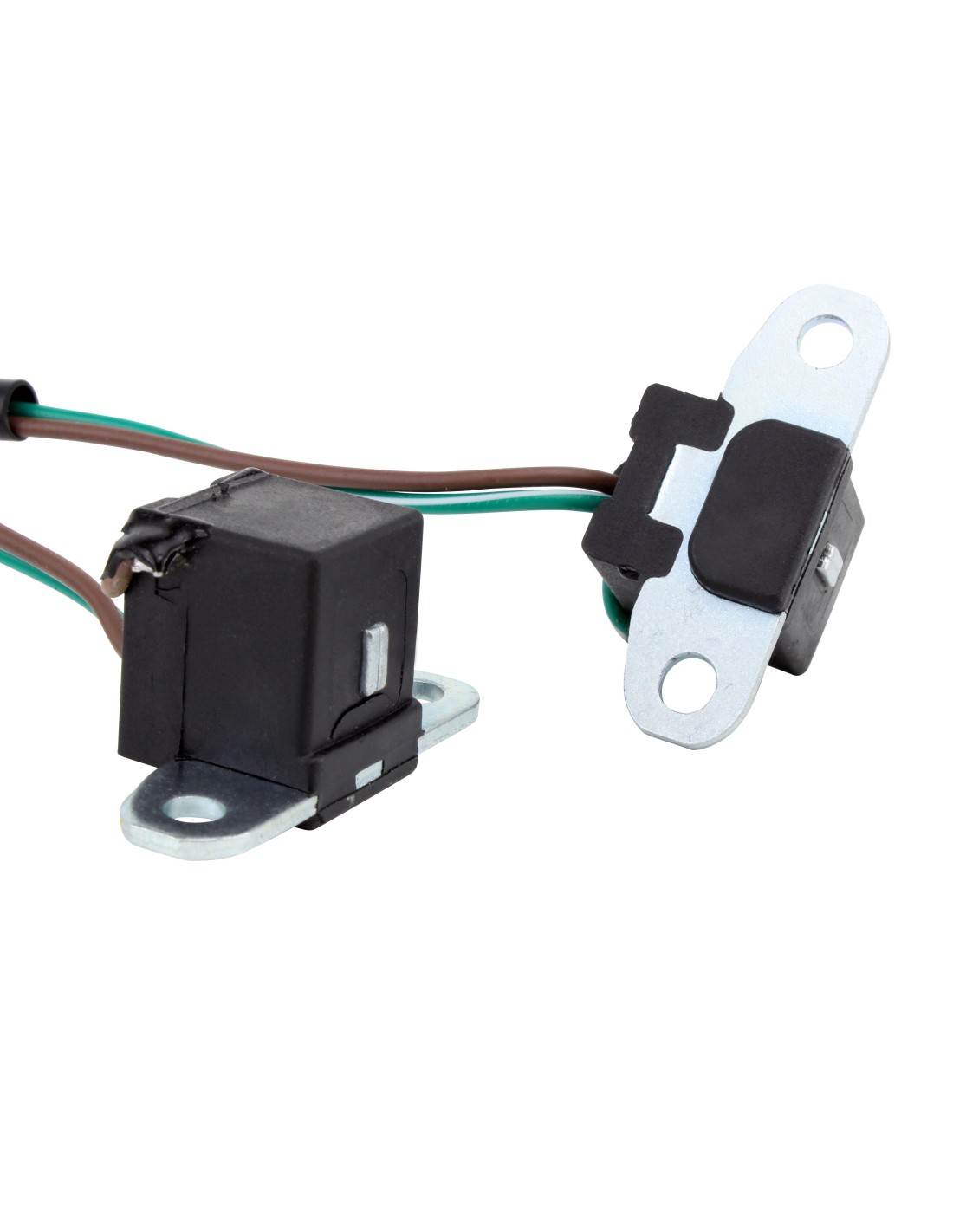

Pickup #1 : Brown to Green/White = 200 ohms +-20%
Pickup #2 : Brown to Green/White = 201 ohms +-20%
Alternator to ground = O.L
Alternator 3p : Yellow between each Yellow = 0.2 ohms +-20%
Alternator 1p #1 : White/Blue between each White/Blue = 17.2 ohms +-20%
Alternator 1p #2 : Orange between each Orange = 2 ohms +-20%
Pickup #1 : Brown to Green/White = 200 ohms +-20%
Pickup #2 : Brown to Green/White = 201 ohms +-20%
Alternator to ground = O.L
