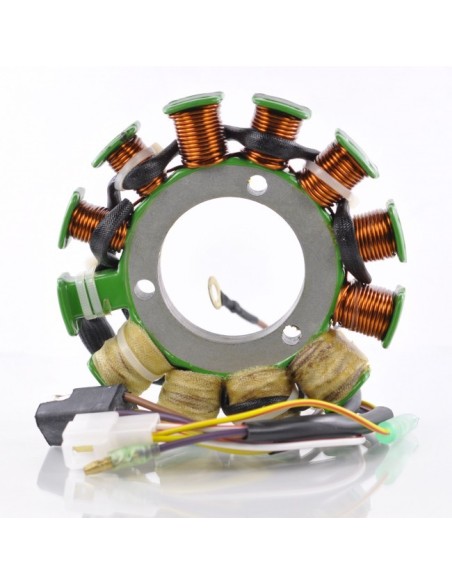

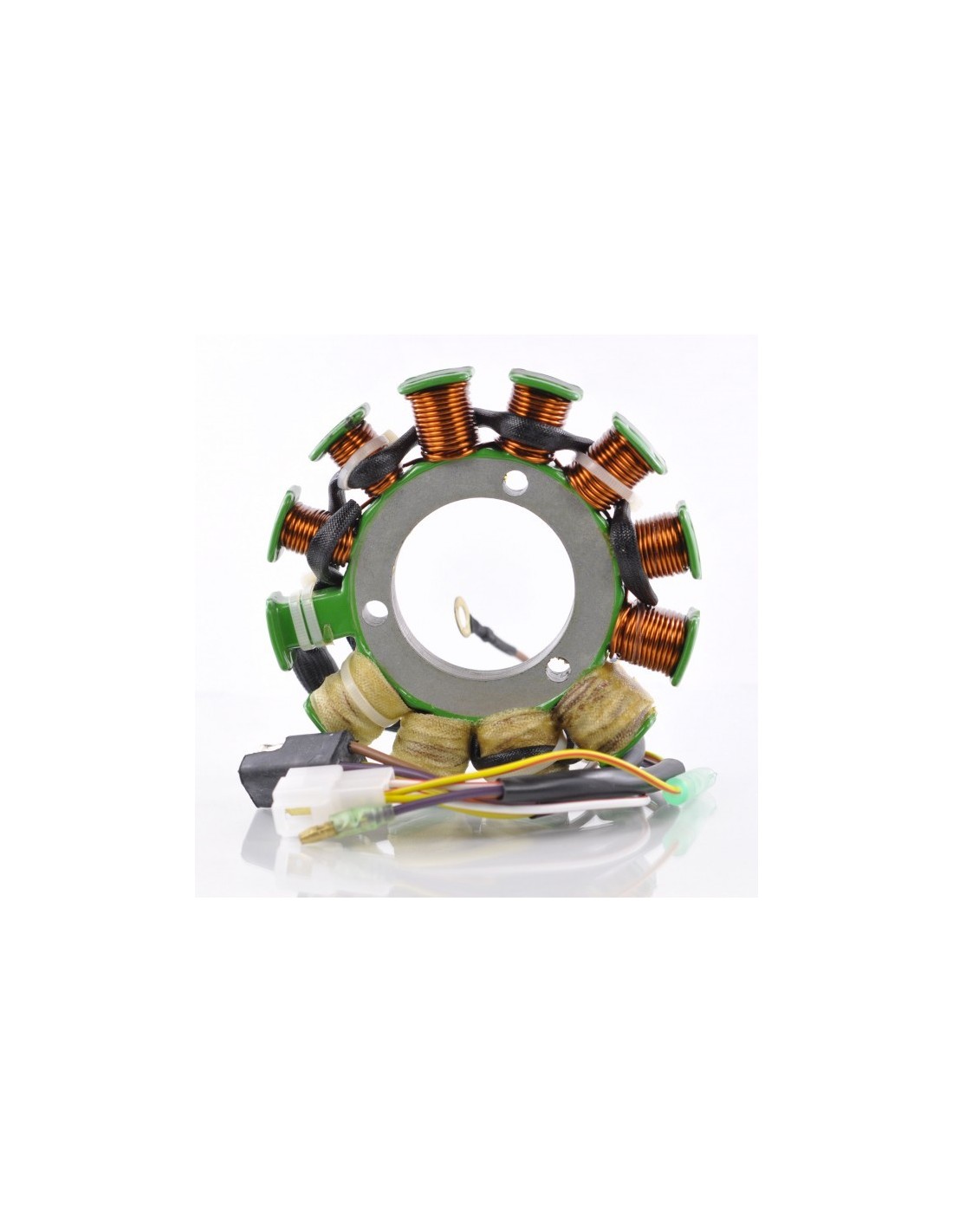

Stator Arctic Cat Mountain Cat 600 ZR600 OEM 3005-666
CARM01470
5-7 Days
€238.00
Tax included
OEM 3005-666
Stator
2001 Arctic Cat Mountain Cat 600 Carb L/C
2001 Arctic Cat ZR 600 Carb L/C
2001 Arctic Cat ZR 600 Carb L/C
OEM 3005-666
Dimensions :
Interior diameter : 48 mm
Exterior diameter : 115 mm
Thickness : 15 mm
Length of wires stator to grommet : 250 mm
Other specifications :

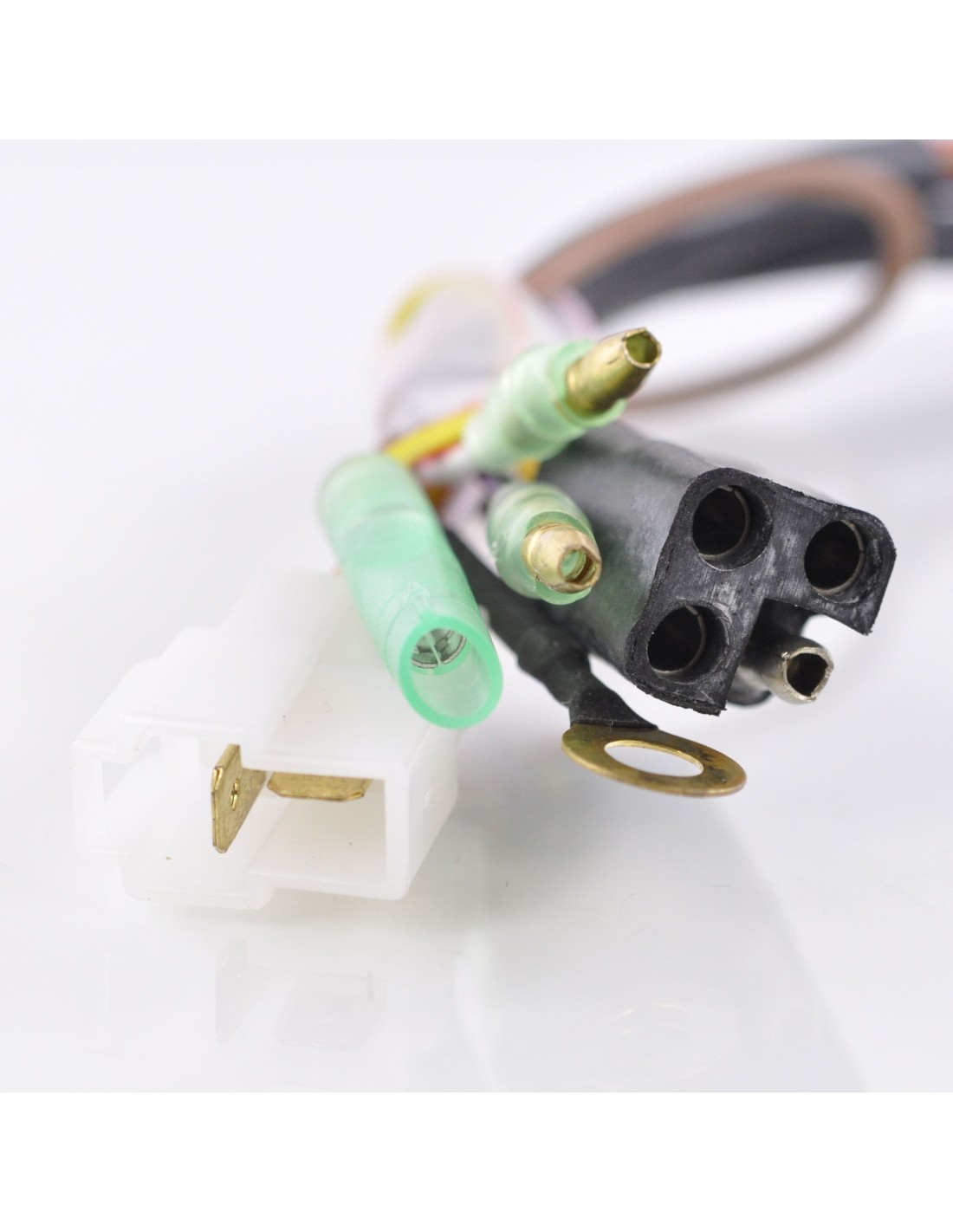

Number of wires : 9
Number of plugs : 5
Number of pins : 10
Interior diameter : 48 mm
Exterior diameter : 115 mm
Thickness : 15 mm
Length of wires stator to grommet : 250 mm
Other specifications :
Number of wires : 9
Number of plugs : 5
Number of pins : 10
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4 ohms +/-20%
Source : Yellow/Red to Red/Yellow = 1.4 ohms +/-20%
Alternator : Yellow to Yellow = 0.4 ohms +/-20%
Source : Yellow/Red to Red/Yellow = 1.4 ohms +/-20%
