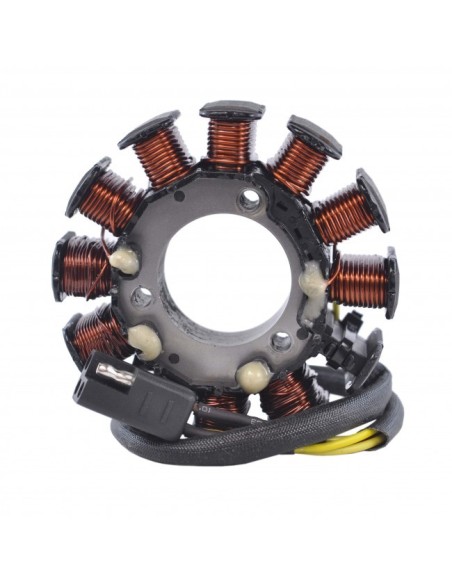

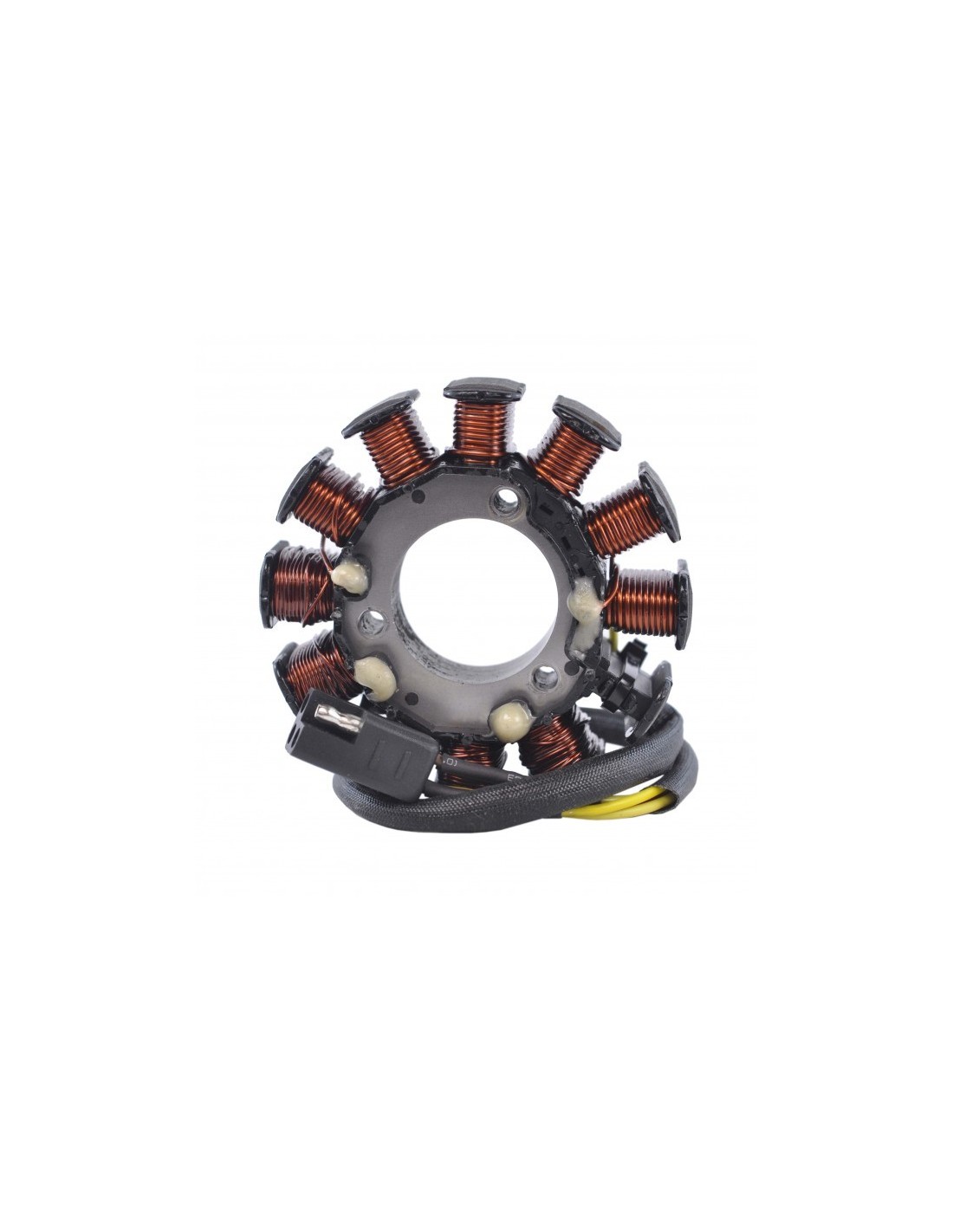

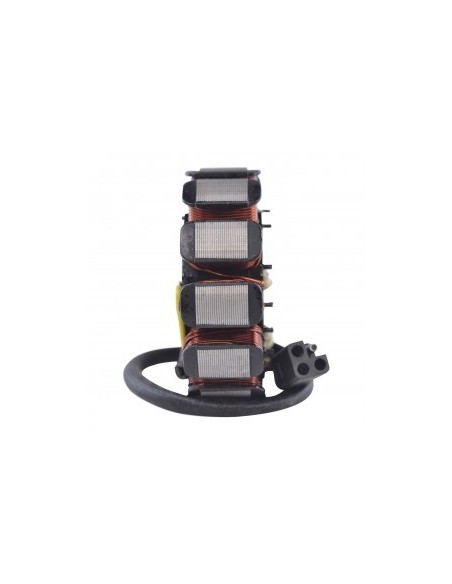

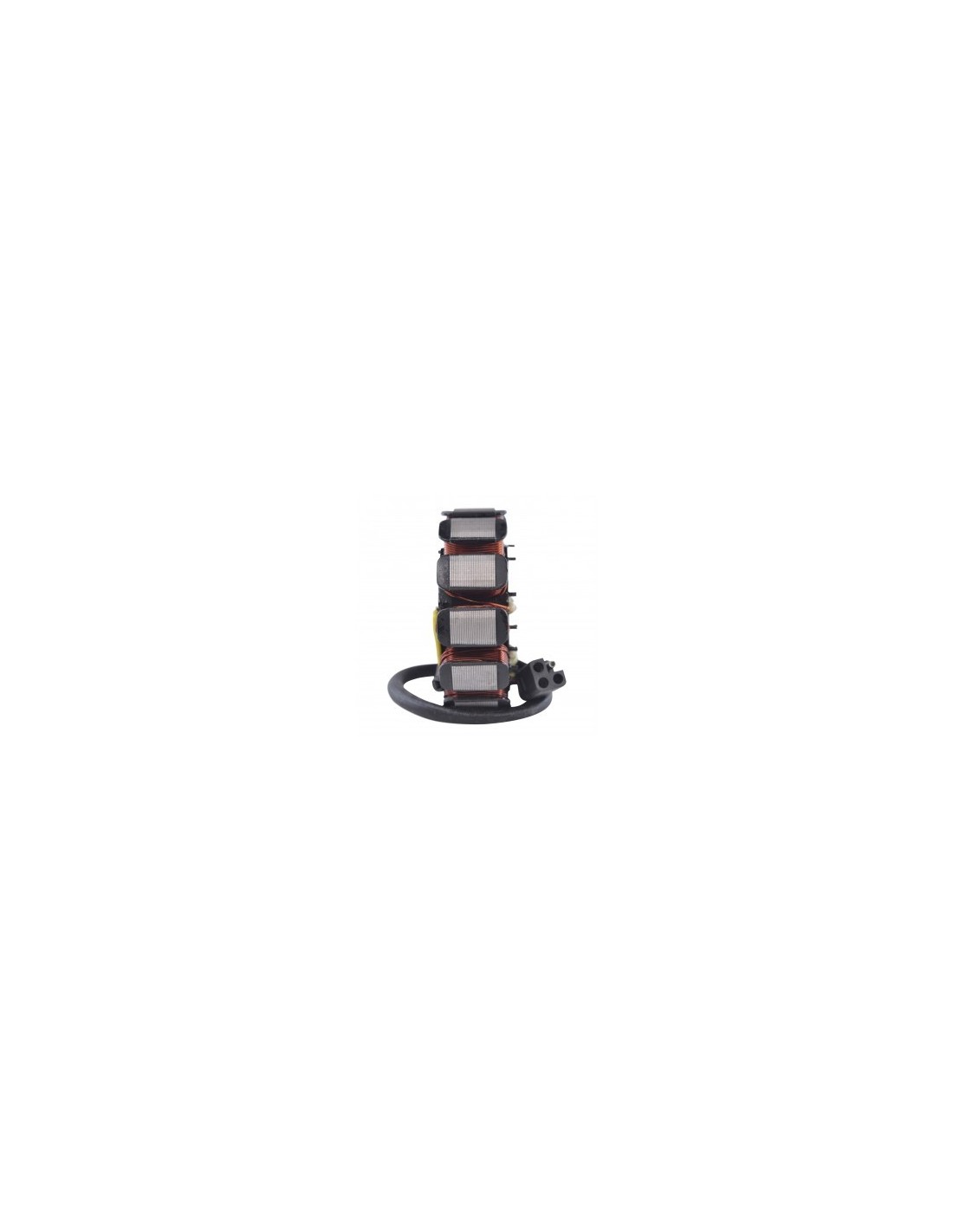

Stator Arctic Cat F6 600 Sno Pro 440 Sno Pro F5 Firecat 500 F6 Firecat 600 F7 Firecat 700 Sabercat 600 OEM 3006-734 3006-705

Stator

2013 Arctic Cat F6 600 Sno Pro Carb L/C
2013 Arctic Cat F6 600 Sno Pro Carb L/C Cross Country
2012 Arctic Cat F6 600 Sno Pro Carb L/C
2012 Arctic Cat F6 600 Sno Pro Carb L/C Cross Country
2011 Arctic Cat F6 600 Sno Pro Carb L/C Cross Country
2011 Arctic Cat F6 600 Sno Pro Carb L/C Sno Cross
2010 Arctic Cat F6 600 Sno Pro Carb L/C
2010 Arctic Cat F6 600 Sno Pro Carb L/C Cross Country
2009 Arctic Cat F6 600 Sno Pro Carb L/C
2008 Arctic Cat F6 600 Sno Pro Carb L/C
2007 Arctic Cat F6 600 Sno Pro Carb L/C Modified
2006 Arctic Cat F5 Firecat 500 Carb L/C
2006 Arctic Cat F5 Firecat 500 Sno Pro Carb L/C
2006 Arctic Cat F7 Firecat 700 Carb L/C
2006 Arctic Cat F7 Firecat 700 Sno Pro Carb L/C
2006 Arctic Cat M7 700 Carb L/C
2005 Arctic Cat 440 Sno Pro Carb L/C
2005 Arctic Cat F5 Firecat 500 Carb L/C
2005 Arctic Cat F5 Firecat 500 Sno Pro Carb L/C
2005 Arctic Cat F7 Firecat 700 Carb L/C
2005 Arctic Cat F7 Firecat 700 Sno Pro Carb L/C
2004 Arctic Cat 440 Sno Pro Carb L/C
2004 Arctic Cat F5 Firecat 500 Carb L/C
2004 Arctic Cat F5 Firecat 500 Sno Pro Carb L/C
2004 Arctic Cat F6 Firecat 600 Carb L/C
2004 Arctic Cat F6 Firecat 600 Sno Pro Carb L/C
2004 Arctic Cat F7 Firecat 700 Carb L/C
2004 Arctic Cat F7 Firecat 700 Sno Pro Carb L/C
2004 Arctic Cat Sabercat 600 Carb L/C
2004 Arctic Cat Sabercat 600 Carb L/C LX

OEM 3006-705
3006-734

Dimensions :
Interior diameter : 38mm
Exterior diameter : 100mm
Thickness : 20mm
Length of wires stator to plug : 325mm

Other specifications :
Number of wires : 4

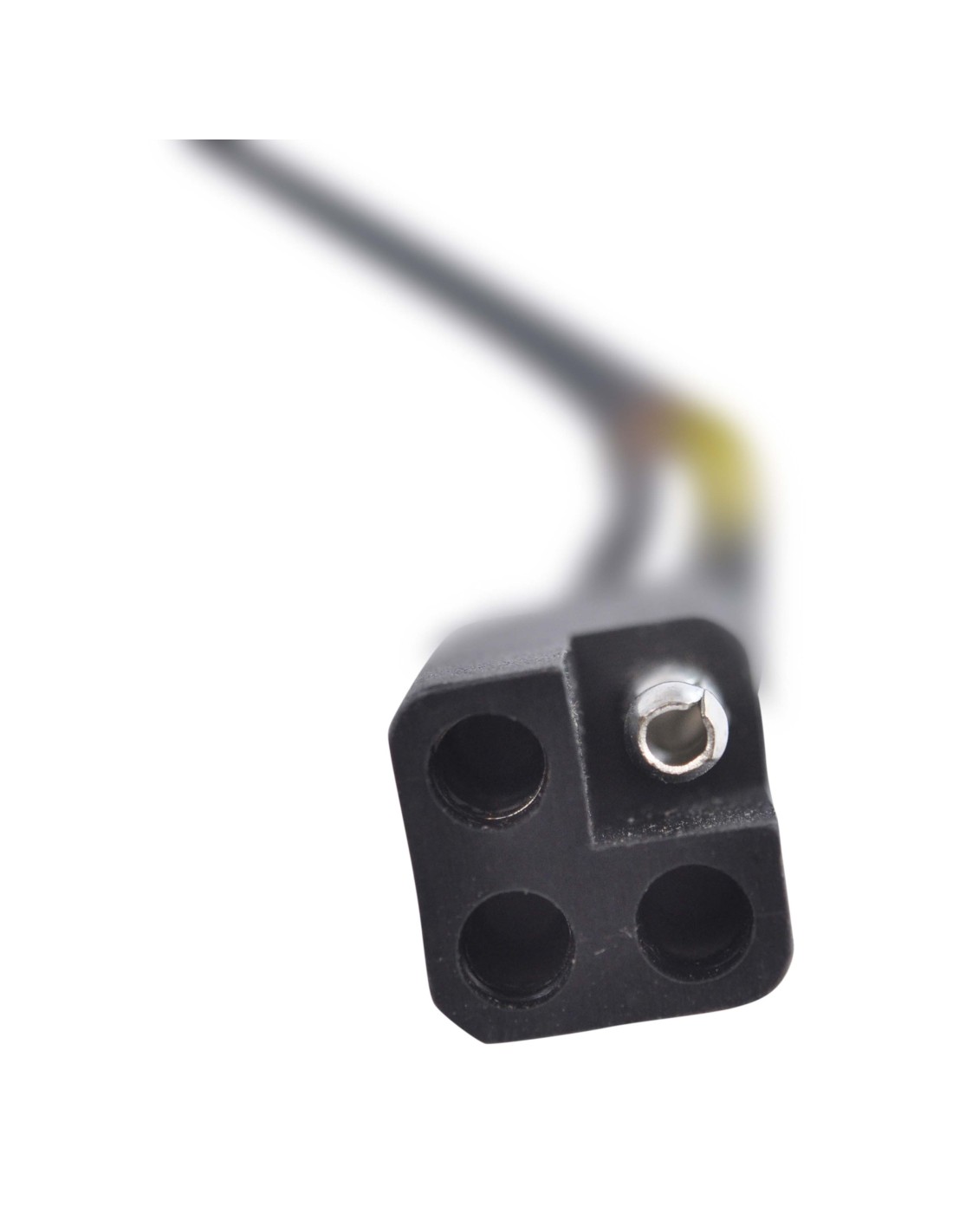

Number of plugs : 1
Number of pins : 4

Wire to wire resistance :
Alternator : Yellow/Red to Black = 0.4 ohms +/-20%
Source : Yellow to Brown = 1.0 ohms +/-20%
