Stator Allumage Polaris 600RMK 600XC 700 Classic 700RMK 700SK 700XC OEM 4060185 4060206 4060213 4060187 4060140

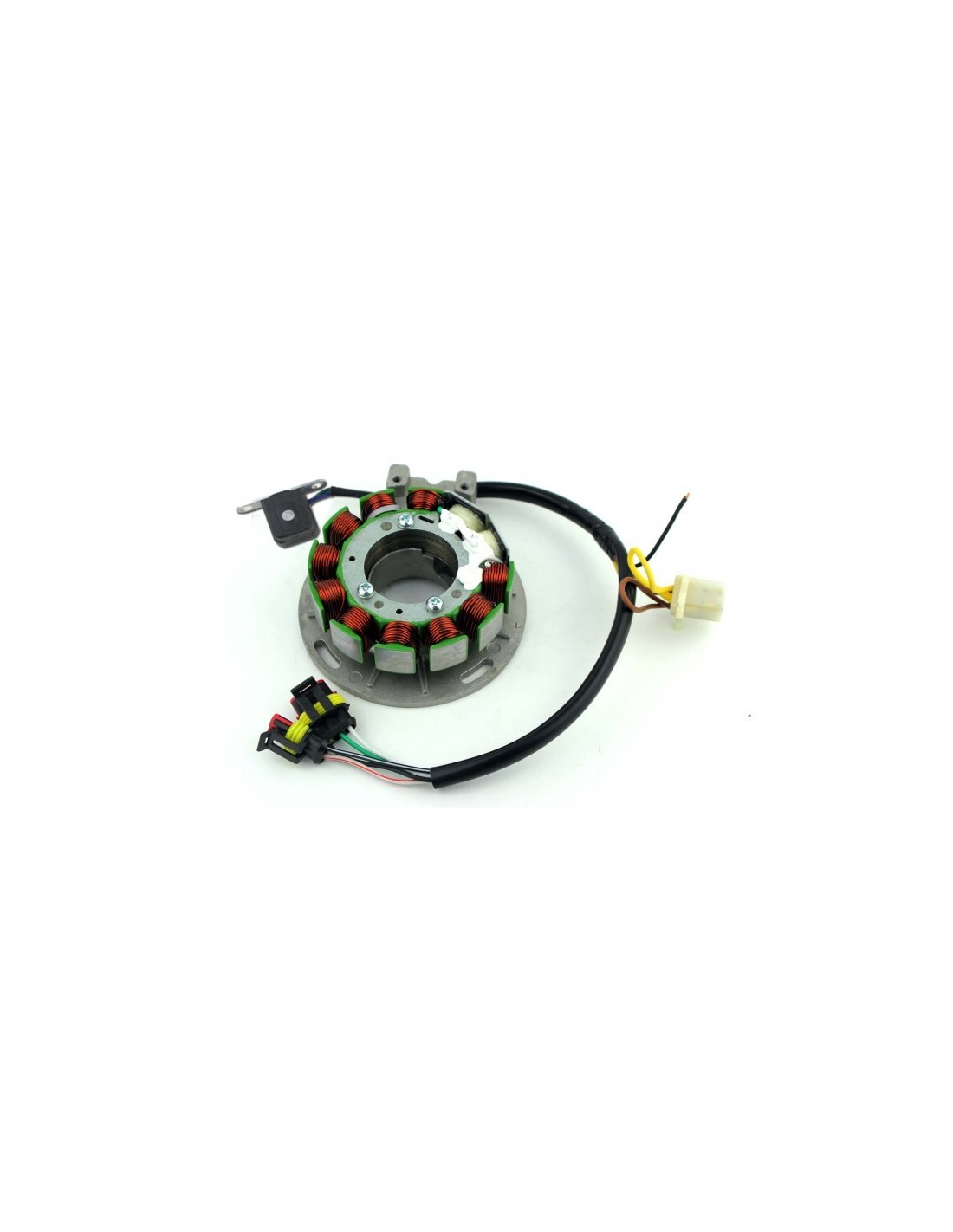

Stator
Resistant to 200 degrees Celsius

Polaris
600 RMK Carb L/C
1999 Polaris 600 RMK Carb L/C
2000 Polaris 600 RMK Carb L/C
Euro
1999 Polaris 600 RMK Carb L/C Euro
600 XC SP Carb L/C
1999 Polaris 600 XC SP Carb L/C
600 XC Deluxe
2000 Polaris 600 XC Deluxe
700 Classic Carb L/C
2001 Polaris 700 Classic Carb L/C
700 RMK Carb L/C
1999 Polaris 700 RMK Carb L/C
2000 Polaris 700 RMK Carb L/C
700 SKS Carb L/C
1999 Polaris 700 SKS Carb L/C
2000 Polaris 700 SKS Carb L/C
2001 Polaris 700 SKS Carb L/C
700 XC Deluxe Carb L/C
2000 Polaris 700 XC Deluxe Carb L/C
700 XC SP Carb L/C
1999 Polaris 700 XC SP Carb L/C
2000 Polaris 700 XC SP Carb L/C

OEM 4060213
4060140
4060185
4060187

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 110 mm
Thickness : 33 mm
Length of wires stator to plug : 200mm & 340
Length of wires pickup coil to plug: 400mm

Other specifications :
Number of wires : 8
Number of plugs : 4
Number of pins : 10

Wire to wire resistance :
Alternator : Yellow to Brown = 0.4 ohms +/-20%
Pickup : White/Red to Black/White = 244 ohms +/-20%
Source : White to Green = 25 ohms +/-20%
