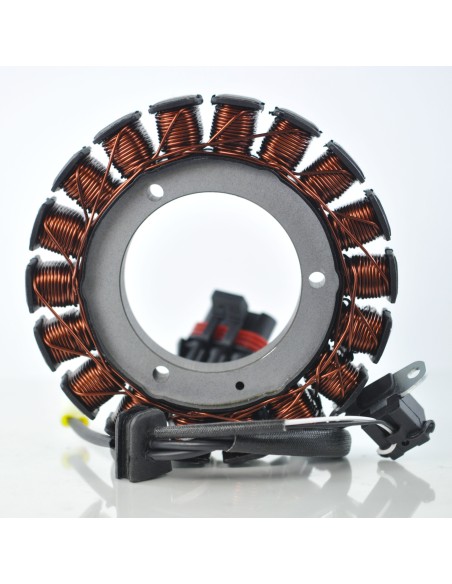

Stator Polaris Sportsman 550 XP LE EFI EPS X2 Touring Forest OEM 3090155 3090219

2014 Polaris Sportsman 550 EFI
2014 Polaris Sportsman 550 EPS EFI
2014 Polaris Sportsman 550 Forest EFI
2014 Polaris Sportsman 550 Touring EPS EFI
2014 Polaris Sportsman 550 XP EPS EFI
2014 Polaris Sportsman 550 XP EPS HD EFI
2014 Polaris Sportsman X2 550 EFI
2014 Polaris Sportsman X2 550 EPS EFI
2014 Polaris Sportsman X2 550 EPS LE EFI
2013 Polaris Sportsman 550 EFI
2013 Polaris Sportsman 550 EPS EFI
2013 Polaris Sportsman 550 Forest EFI
2013 Polaris Sportsman 550 Touring EPS EFI
2013 Polaris Sportsman X2 550 EFI
2012 Polaris Sportsman 550 EFI
2012 Polaris Sportsman 550 EPS EFI
2012 Polaris Sportsman 550 Forest EFI
2012 Polaris Sportsman 550 Touring EPS EFI
2012 Polaris Sportsman 550 XP Touring EPS LE EFI
2012 Polaris Sportsman X2 550 EFI
2011 Polaris Sportsman 550 EFI
2011 Polaris Sportsman 550 EPS EFI
2011 Polaris Sportsman 550 Forest EFI
 2011 Polaris Sportsman 550 Touring EPS EFI
2011 Polaris Sportsman X2 550 EFI
2010 Polaris Sportsman 550 EPS EFI
2010 Polaris Sportsman 550 Touring EPS EFI
2010 Polaris Sportsman 550 XP EFI
2010 Polaris Sportsman X2 550 EFI
2009 Polaris Sportsman 550 XP EFI

OEM
3090219
3090155

Dimensions :
Interior diameter : 69 mm
Exterior diameter : 144 mm

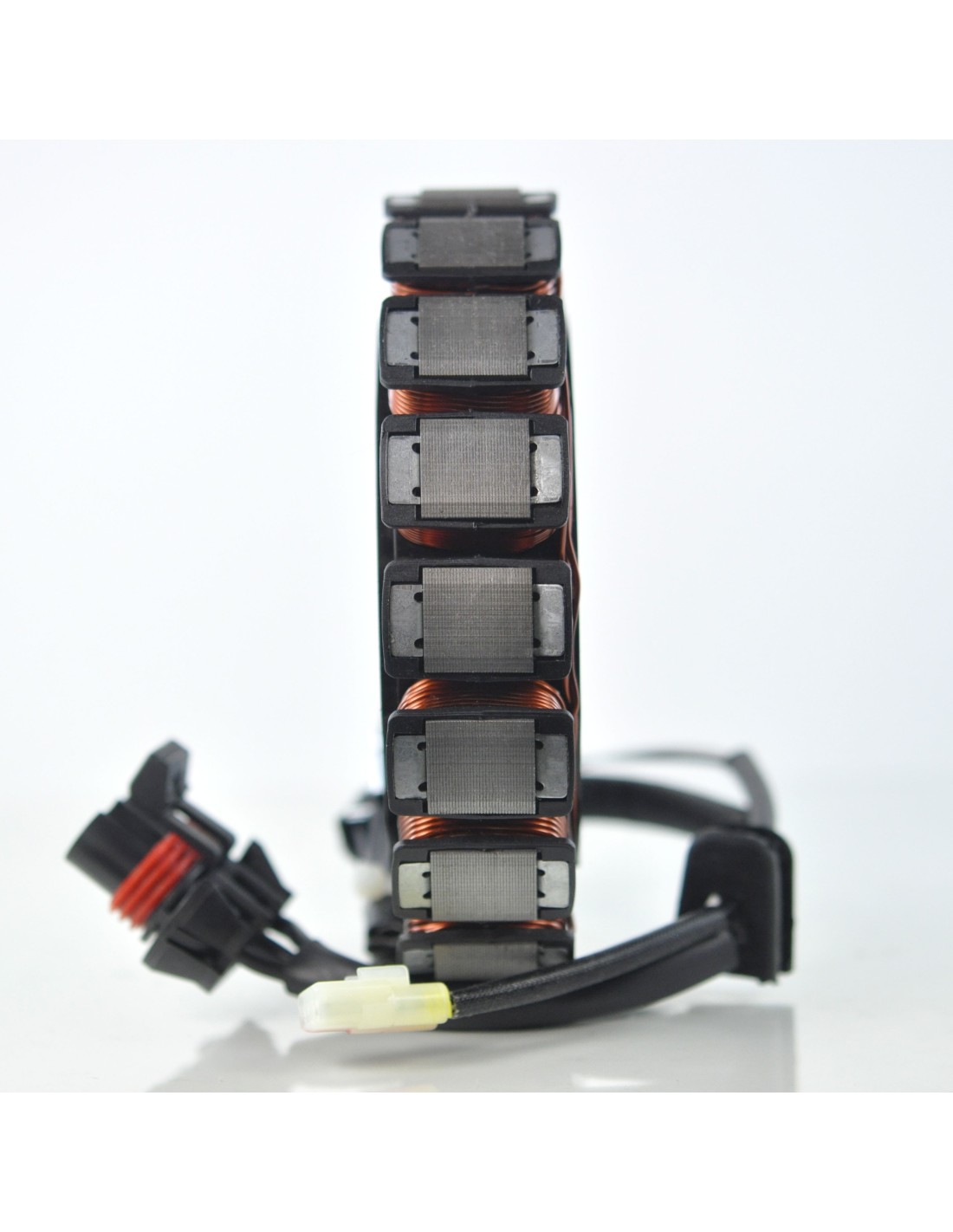

Thickness : 20 mm
Length of wires stator to grommet : 195 mm
Length of wires grommet to plug : 110 mm
Length of pickup coil's wire to grommet : 45 mm
Other specifications :
Number of wires : 5

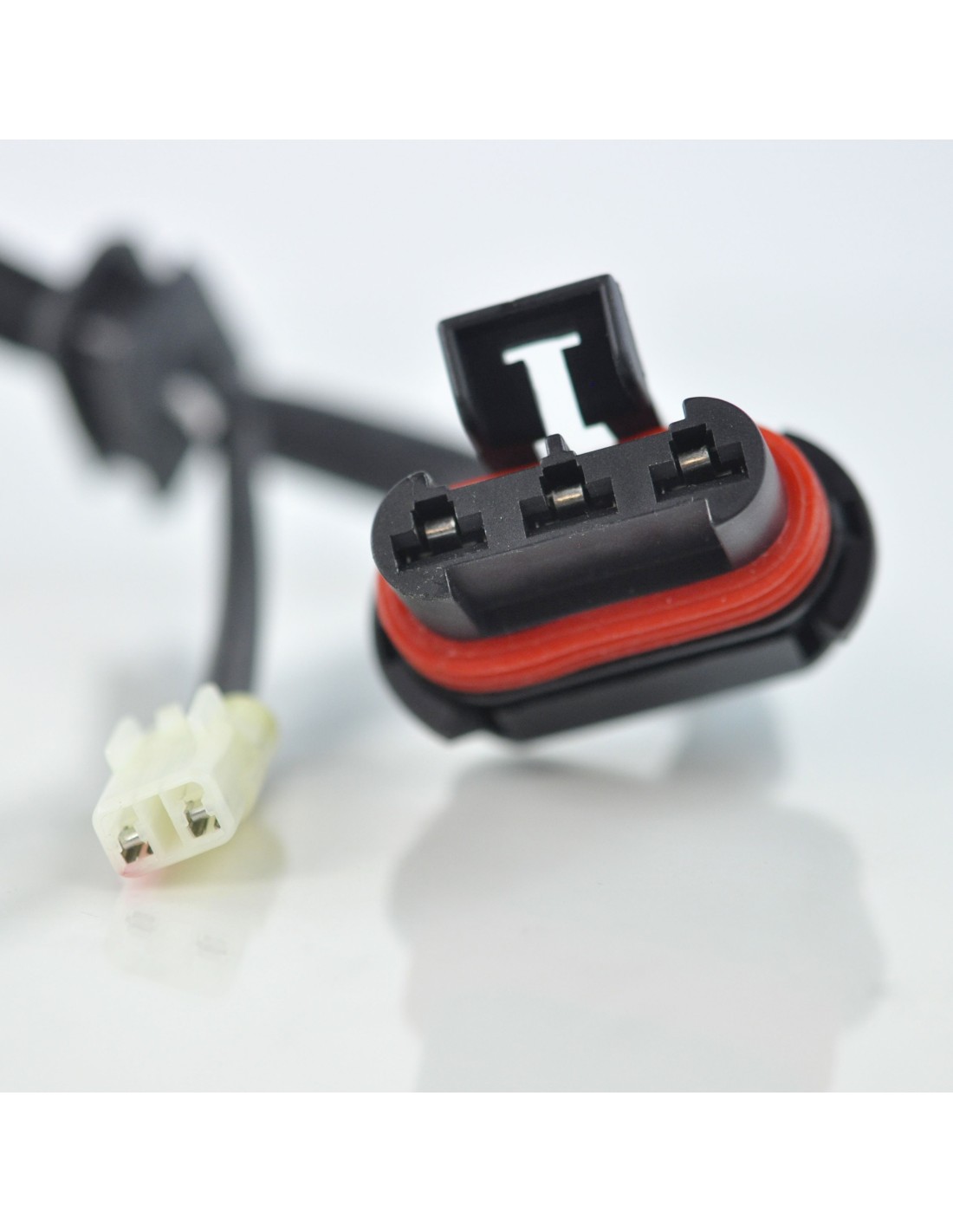

Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : Yellow Between Each Yellow = 0.2 ohms +/-20%
Pickup : White to Grey = 195 ohms +/-20%
