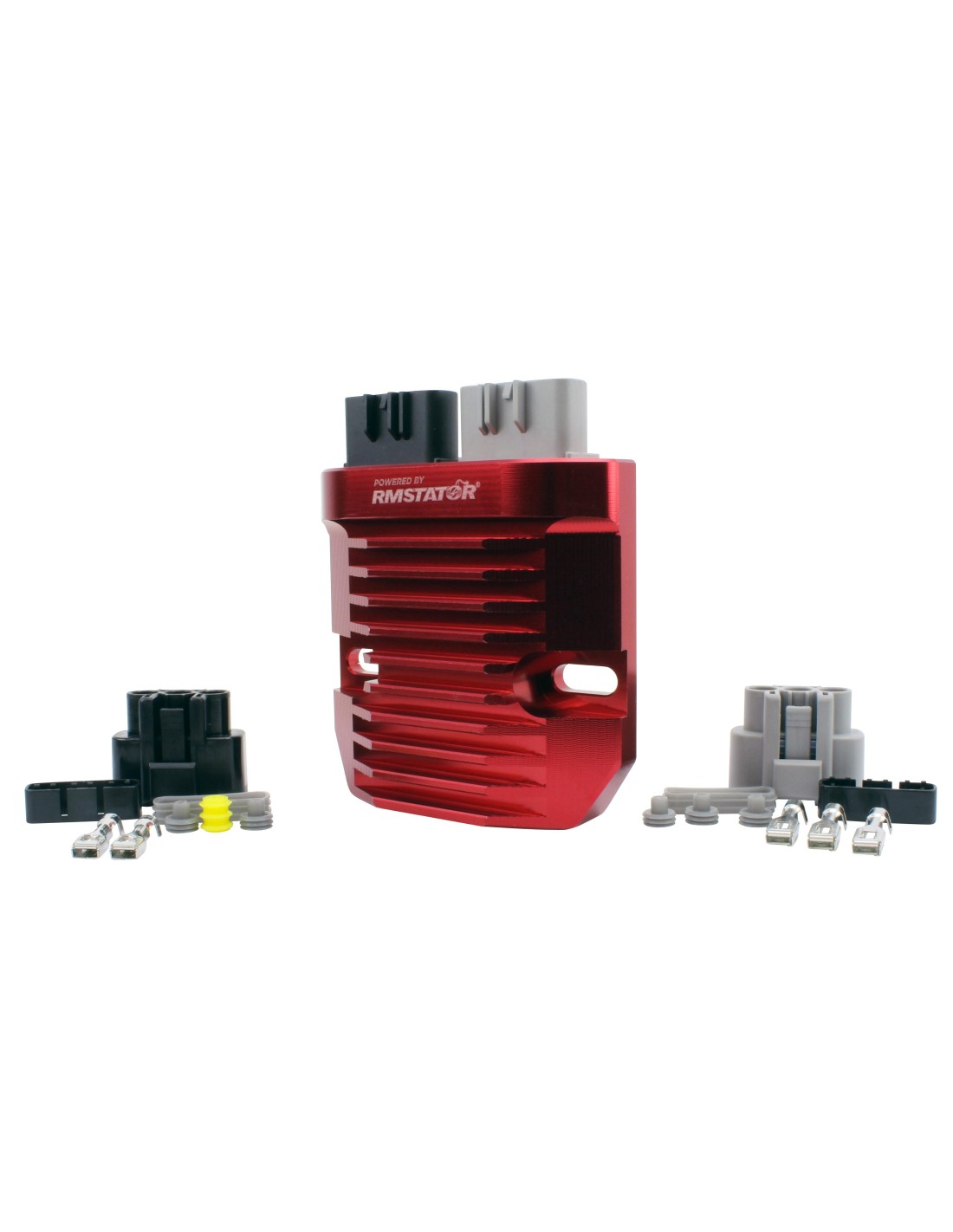

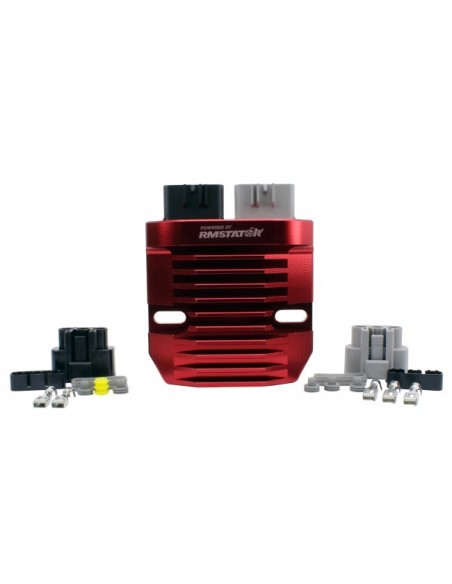

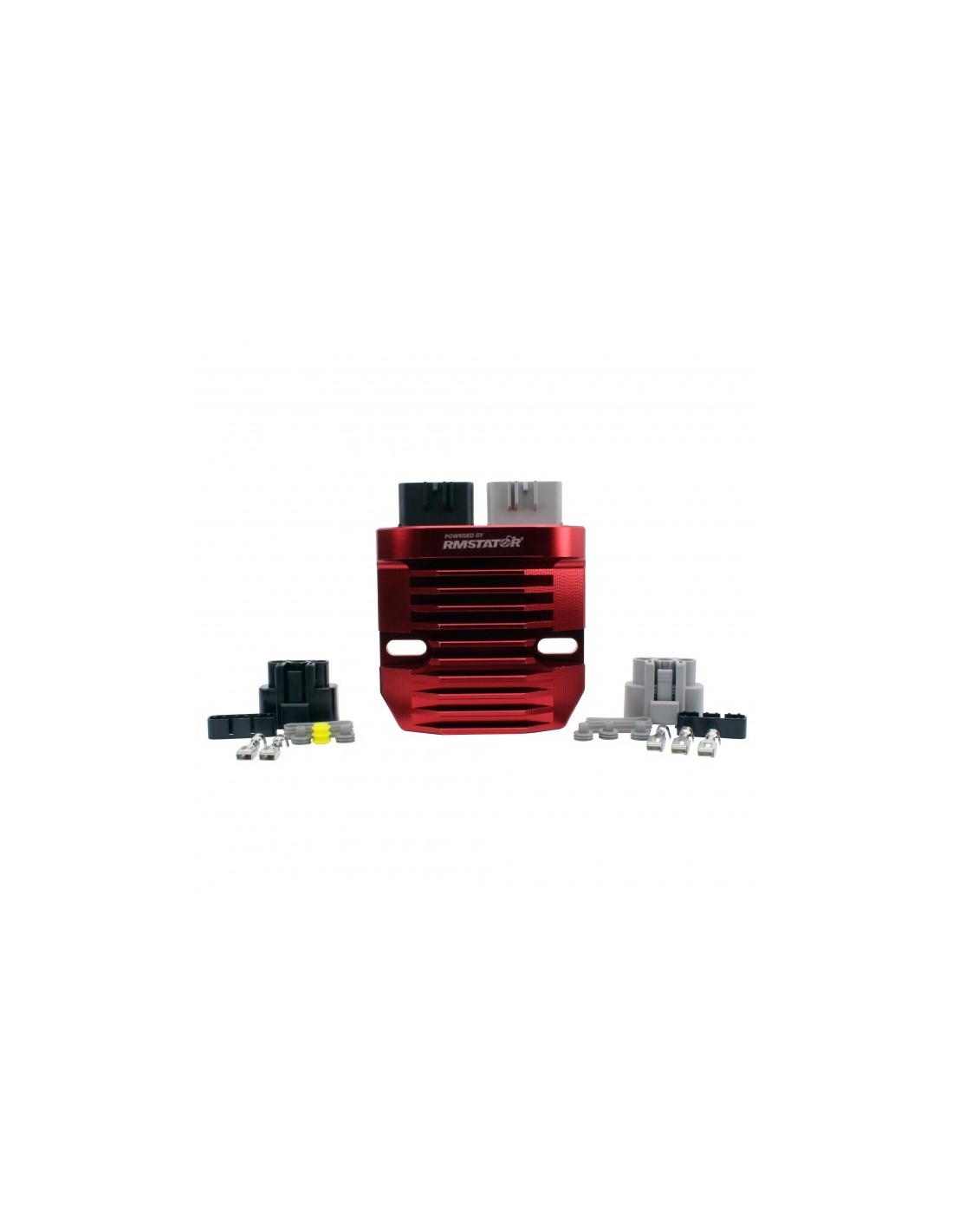

Aluminum Mosfet Regulator Yamaha 700 Grizzly 550 Grizzly Rhino 700 OEM 1D7-81960-00-00 1D7-81960-01-00 27D-81960-00-00

CARMS022-105928

New product

OEM 1D7-81960-00-00 1D7-81960-01-00 27D-81960-00-00

More details

2 Items

7-8 Days

149,17 € tax incl.

More info

  • Regulator Rectifier
  • 2009 Yamaha YFM 550 Grizzly 4x4 FI EPS
    2010 Yamaha YFM 550 Grizzly 4x4 FI EPS

    2009 Yamaha YFM 550 Grizzly 4x4 FI EPS Special Edition

    2009 Yamaha YFM 550 Grizzly 4x4 FI
    2010 Yamaha YFM 550 Grizzly 4x4 FI

    2011 Yamaha YFM 550 Grizzly 4x4 EPS
    2012 Yamaha YFM 550 Grizzly 4x4 EPS
    2013 Yamaha YFM 550 Grizzly 4x4 EPS

    2011 Yamaha YFM 550 Grizzly 4x4
    2012 Yamaha YFM 550 Grizzly 4x4
    2013 Yamaha YFM 550 Grizzly 4x4

    2014 Yamaha YFM 550 Grizzly FI

    2014 Yamaha YFM 550 Grizzly FI EPS

    2007 Yamaha YFM 700 Grizzly Ducks Unlimited Edition
    2008 Yamaha YFM 700 Grizzly Ducks Unlimited Edition

    2007 Yamaha YFM 700 Grizzly Outdoorsman Edition
    2007 Yamaha YFM 700 Grizzly
    2008 Yamaha YFM 700 Grizzly

    2007 Yamaha YFM 700 Grizzly Special Edition Silver

    2008 Yamaha YFM 700 Grizzly Power Steering

    2008 Yamaha YFM 700 Grizzly Special Edition

    2008 Yamaha YFM 700 Grizzly EPS

    2009 Yamaha YFM 700 Grizzly 4x4 FI
    2010 Yamaha YFM 700 Grizzly 4x4 FI

    2009 Yamaha YFM 700 Grizzly 4x4 FI EPS
    2010 Yamaha YFM 700 Grizzly 4x4 FI EPS

    2009 Yamaha YFM 700 Grizzly 4x4 EPS Special Edition
    2011 Yamaha YFM 700 Grizzly 4x4 EPS Special Edition
    2012 Yamaha YFM 700 Grizzly 4x4 EPS Special Edition
    2013 Yamaha YFM 700 Grizzly 4x4 EPS Special Edition

    2010 Yamaha YFM 700 Grizzly 4x4 FI EPS Special Edition

    2011 Yamaha YFM 700 Grizzly 4x4 EPS
    2012 Yamaha YFM 700 Grizzly 4x4 EPS
    2013 Yamaha YFM 700 Grizzly 4x4 EPS

    2011 Yamaha YFM 700 Grizzly 4x4
    2012 Yamaha YFM 700 Grizzly 4x4
    2013 Yamaha YFM 700 Grizzly 4x4

    2014 Yamaha YFM 700 Grizzly FI

    2014 Yamaha YFM 700 Grizzly FI EPS Special Edition

    2014 Yamaha YFM 700 Grizzly FI EPS

    2008 Yamaha YXR 700 Rhino FI Special Edition
    2009 Yamaha YXR 700 Rhino FI Special Edition
    2012 Yamaha YXR 700 Rhino FI Special Edition

    2008 Yamaha YXR 700 Rhino 4x4
    2009 Yamaha YXR 700 Rhino 4x4
    2011 Yamaha YXR 700 Rhino 4x4
    2012 Yamaha YXR 700 Rhino 4x4

    2008 Yamaha YXR 700 Rhino FI
    2009 Yamaha YXR 700 Rhino FI
    2011 Yamaha YXR 700 Rhino FI

    2008 Yamaha YXR 700 Rhino FI Special Edition II
    2009 Yamaha YXR 700 Rhino FI Special Edition II

    2008 Yamaha YXR 700 Rhino 4x4 Special Edition
    2009 Yamaha YXR 700 Rhino 4x4 Special Edition
    2011 Yamaha YXR 700 Rhino
    2012 Yamaha YXR 700 Rhino
    2013 Yamaha YXR 700 Rhino



    It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

    Improved heat sink and charging capabilities

    Before installing your new voltage regulator rectifier:
    Check the AC output of the stator.
    Replace any burned or corroded connectors on stator and regulator/rectifier
    Check and repair any melted wiring.
    Use hi-temp dielectric grease on all connectors.


  • Dimensions:
    Width: 103 mm
    Length: 103 mm
    Height: 28 mm
    Fixation holes center to center: 80 mm
    Other specifications:

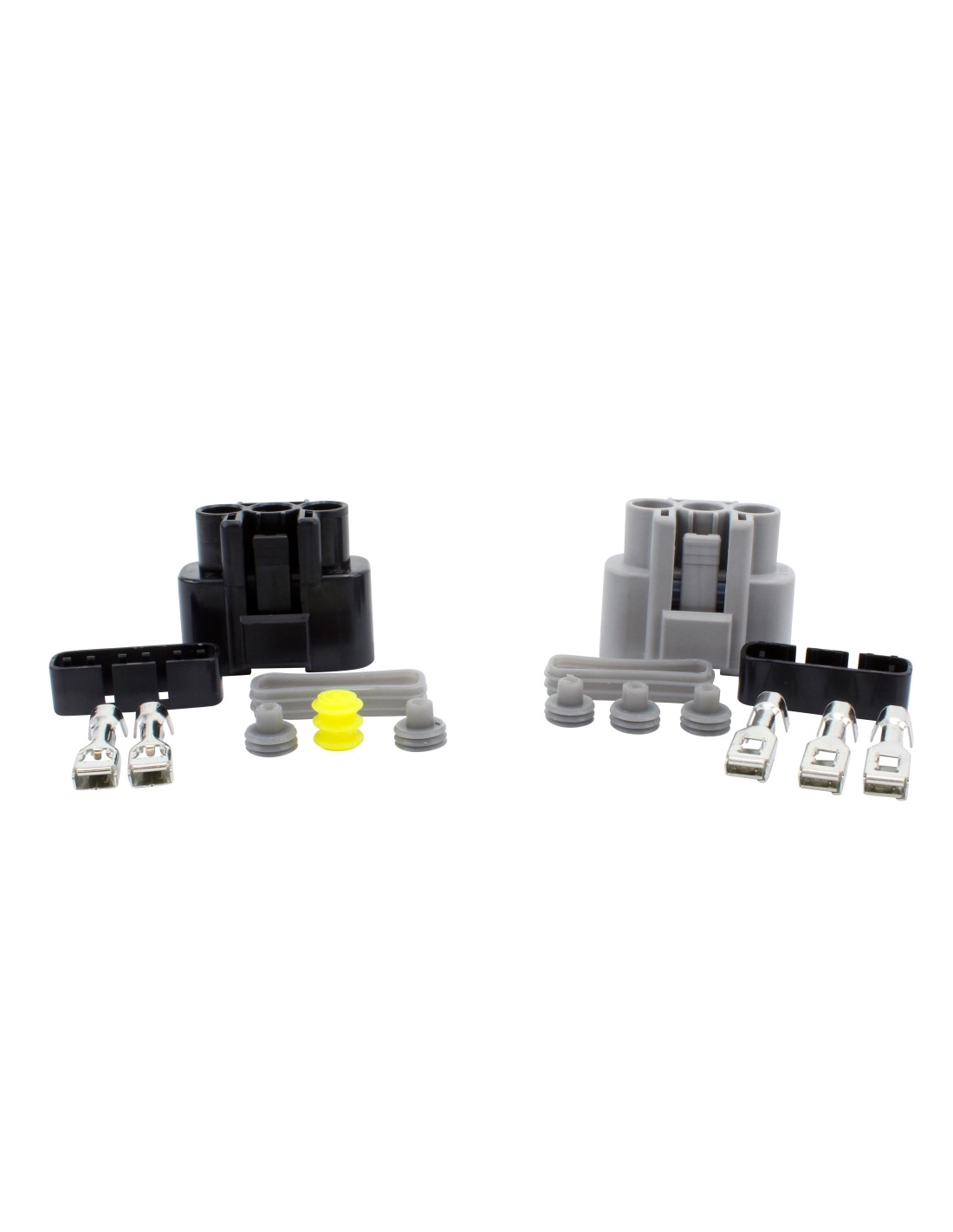

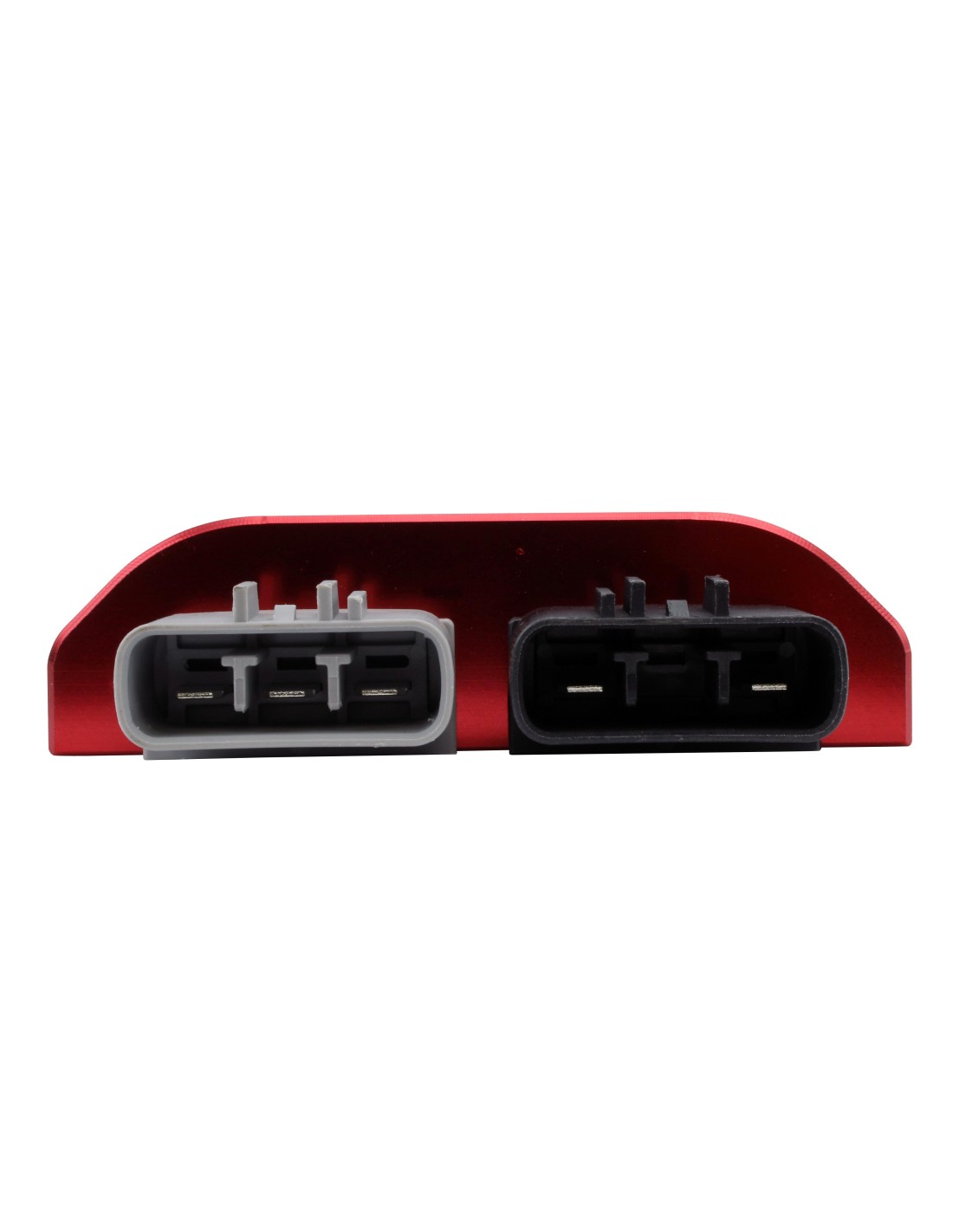

    Number of plugs: 2
    Number of pins: 5
    Number of wires: 0
    Minimum Charging Voltage: 14.5 V +- 0.5 V
    Maximum Charging Current: 50 A / 500 W
    Open Circuit Voltage: 15 V
    Operation Temperature: -20⁰ to 85⁰

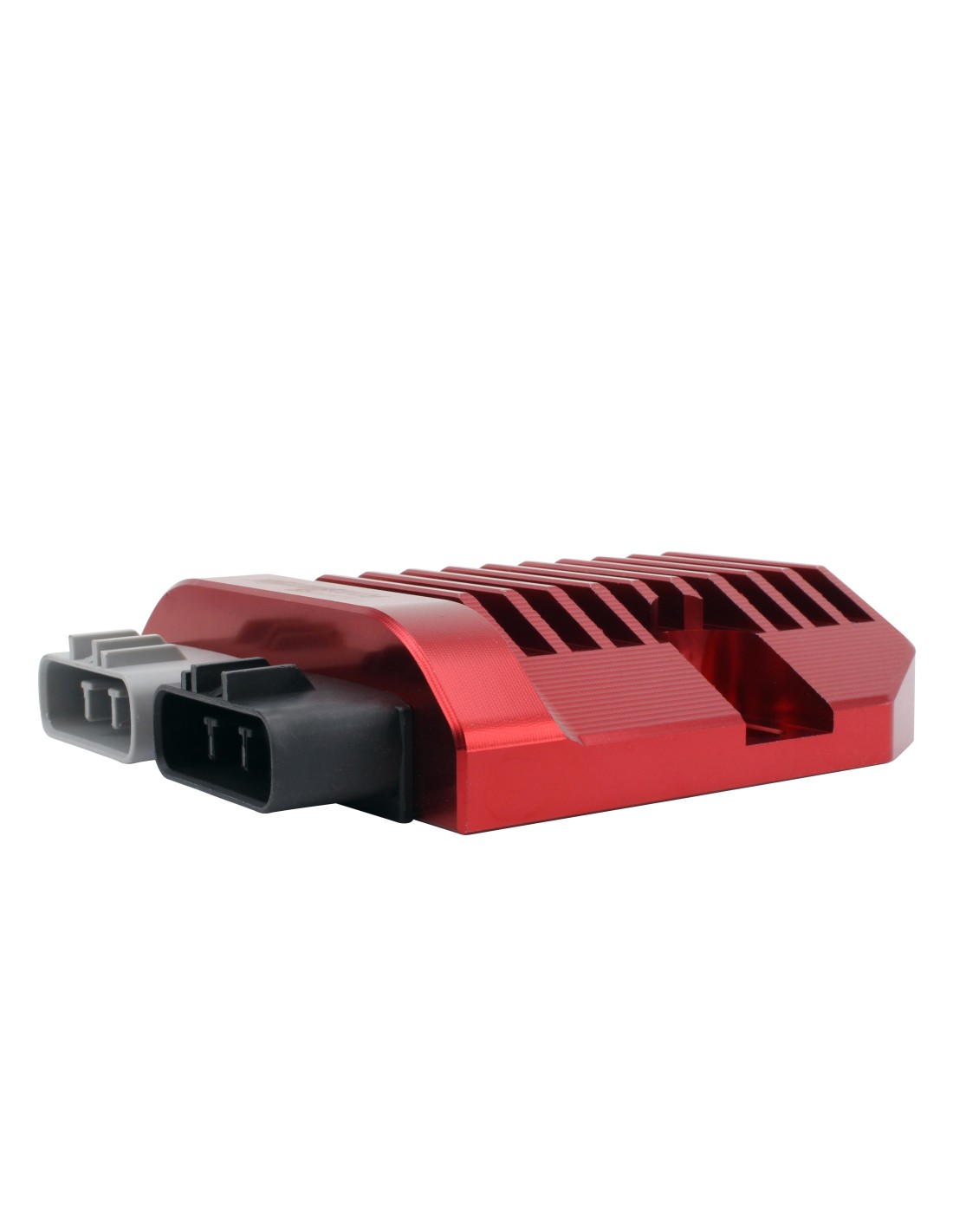

    Our new machined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.
