SurePower Regulator Bypass Kit Sportsman 500 Ranger 500 700 OEM 4011240 4011657 4011226 4011517 4011089 4011090 4011375 4011598

2009 Polaris Ranger 500 Carb

2008 Polaris Ranger 500 Carb

2008 Polaris Ranger 500 4x4

2007 Polaris Sportsman X2 500

2007 Polaris Sportsman 500 EFI

2007 Polaris Ranger 500 EFI 4x4

2007 Polaris Ranger 500 Carb

2007 Polaris Ranger 500 4x4

2006 Polaris Sportsman X2 500

2006 Polaris Sportsman 500 EFI

2006 Polaris Ranger 700 XP

2006 Polaris Ranger 700 6x6 EFI

2006 Polaris Ranger 500 EFI 4x4

2006 Polaris Ranger 500 Carb

2006 Polaris Ranger 500 4x4

2005 Polaris Ranger 700 XP

2005 Polaris Ranger 500 Carb

2005 Polaris Ranger 500 4x4

This replacement kit is only meant to the bypass the internal voltage regulator on Polaris ATV/UTVs that use the large silver SurePower ECM module with 2 large wiring connectors on opposite sides of the unit. Please confirm your OEM part number on your unit matches the list below.

OEM 4011240 4011657 4011226 4011517 4011089 4011090 4011375 4011598

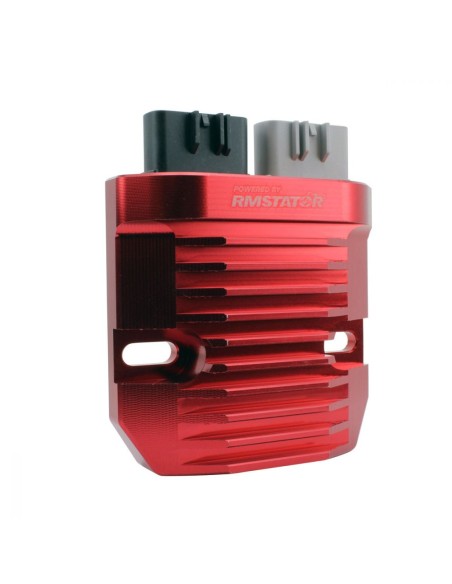

Red Machined Aluminum Mosfet Regulator :

Width: 103 mm

Length: 103 mm

Height: 28 mm

Fixation holes center to center: 80 mm

Other specifications:

Number of plugs: 2

Number of pins: 5

Minimum Charging Voltage: 14.5 V +/- 0.5 V

Maximum Charging Current: 50 A / 500 W

Open Circuit Voltage: < 15 V

Operation Temperature: -20° C to 85°C

Polaris Surepower Module Regulator bypass Harness

Wires length : 1000 mm

Number of yellow wires : 3

Number of red wires : 1

Number of black wires : 1

Number of plugs : 3

Download our complete installation instruction (PDF)

https://go.rmstator.com/documents/installation-instructions/Installation-Instruction-RMS900-108112-EN.pdf
