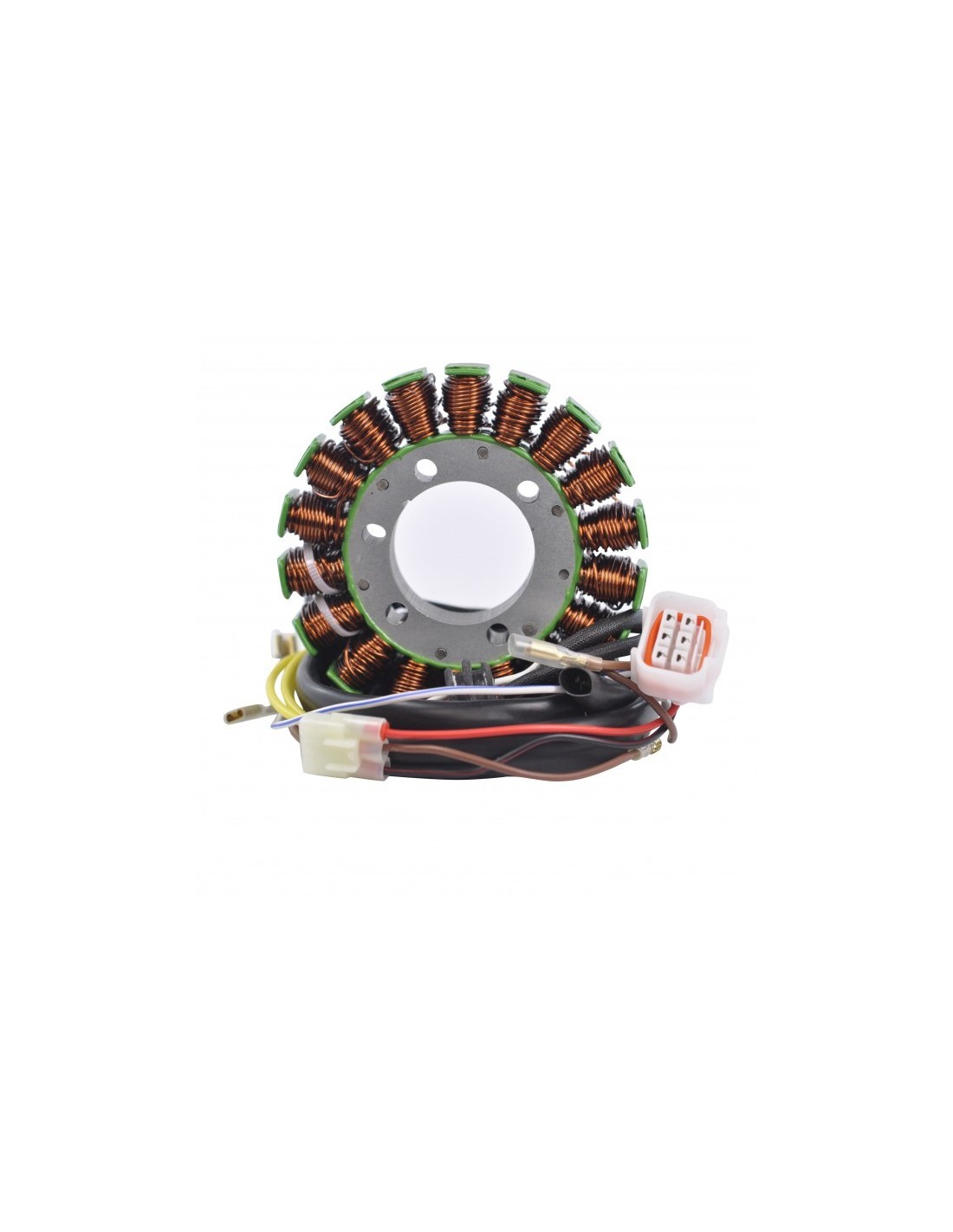

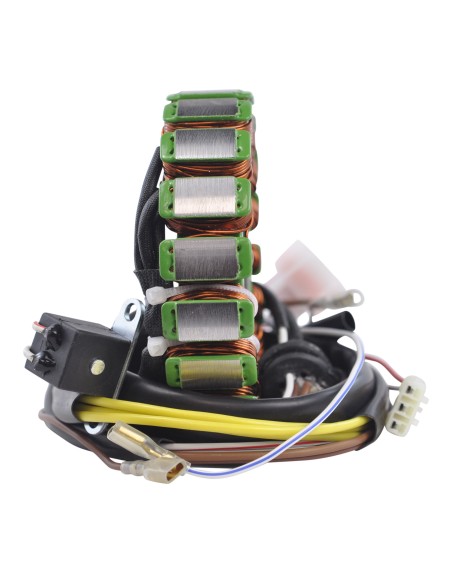

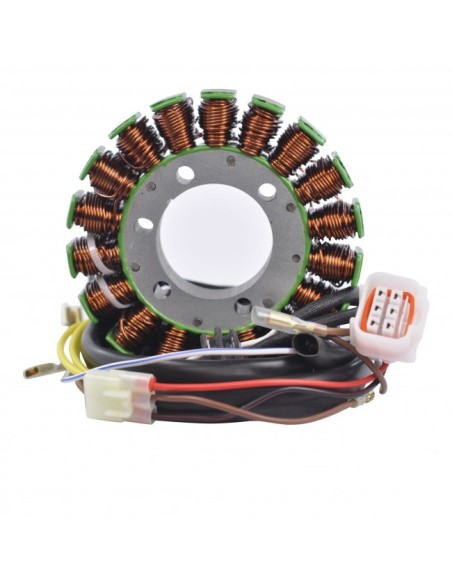

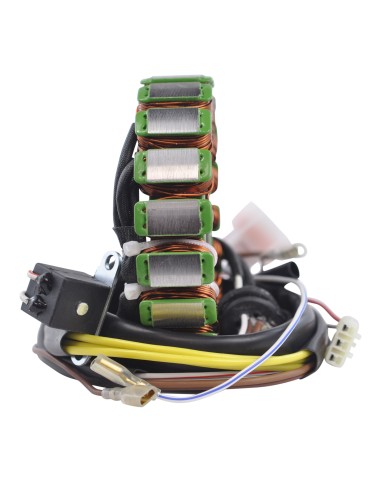

Stator Polaris Sportsman 400 Sportsman 500 Ranger 400 Scrambler 500 OEM 3089249 3089546

• Stator

• Resistant to 200 degrees Celsius

• 2014 Polaris Hawkeye 400 HO HD 2x4
  2014 Polaris Sportsman 400 HO 4x4 Carb
  2014 Polaris Sportsman 400 HO SE 4x4 Carb
  2013 Polaris Hawkeye 400 HO 2x4
  2013 Polaris Sportsman 400 HO 4x4 Carb
  2013 Polaris Sportsman 500 HO 4x4 Touring Carb
  2013 Polaris Sportsman 500 HO Forest Carb
  2012 Polaris Scrambler 500 4x4
  2012 Polaris Scrambler 500 International
  2012 Polaris Sportsman 500 HO 4x4 Carb
  2012 Polaris Sportsman 500 HO Forest Carb
  2011 Polaris Scrambler 500 4x4
  2011 Polaris Scrambler 500 International
  2010 Polaris Scrambler 500 4x4
  2010 Polaris Scrambler 500 International
  2009 Polaris Scrambler 500 4x4 Carb
  2009 Polaris Sportsman 400 HO 4x4 Carb
  2009 Polaris Sportsman 500 HO 4x4 Carb
  2008 Polaris Scrambler 500 2x4 Carb
  2008 Polaris Scrambler 500 4x4 Carb
  2008 Polaris Sportsman 500 6x6 Carb
  2008 Polaris Sportsman 500 HO 4x4 Carb
  2007 Polaris Scrambler 500 2x4 Carb
  2007 Polaris Scrambler 500 4x4 Carb
  2007 Polaris Sportsman 500 6x6 Carb
  2006 Polaris Scrambler 500 4x4 Carb
  2006 Polaris Sportsman 450 HD Carb
  2006 Polaris Sportsman 500 6x6 Carb
  2006 Polaris Sportsman 500 HO 4x4 Carb
  2005 Polaris ATP 500 4x4 Carb
  2005 Polaris Scrambler 500 4x4 Carb
  2005 Polaris Sportsman 400 4x4 Carb
  2005 Polaris Sportsman 500 6x6 Carb
  2005 Polaris Sportsman 500 HO 4x4 Carb
  2004 Polaris Scrambler 500 4x4 Carb
  2004 Polaris Sportsman 400 4x4 Carb
  2004 Polaris Sportsman 500 6x6 Carb
  2004 Polaris Sportsman 500 HO 4x4 Carb
  2014 Polaris Ranger 400 Carb 4x4
  2013 Polaris Ranger 400 Carb 4x4
  2012 Polaris Ranger 400 Carb 4x4
  2011 Polaris Ranger 400 Carb 4x4 HO
  2010 Polaris Ranger 400 Carb 4x4


  OEM

• 3089249
  3089546



• Pick up pulsar coil included

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 108 mm
Thickness: 19 mm

Other specifications:

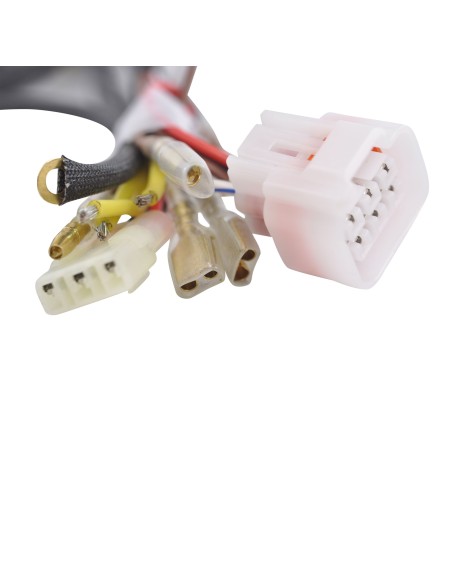

Number of wires: 11

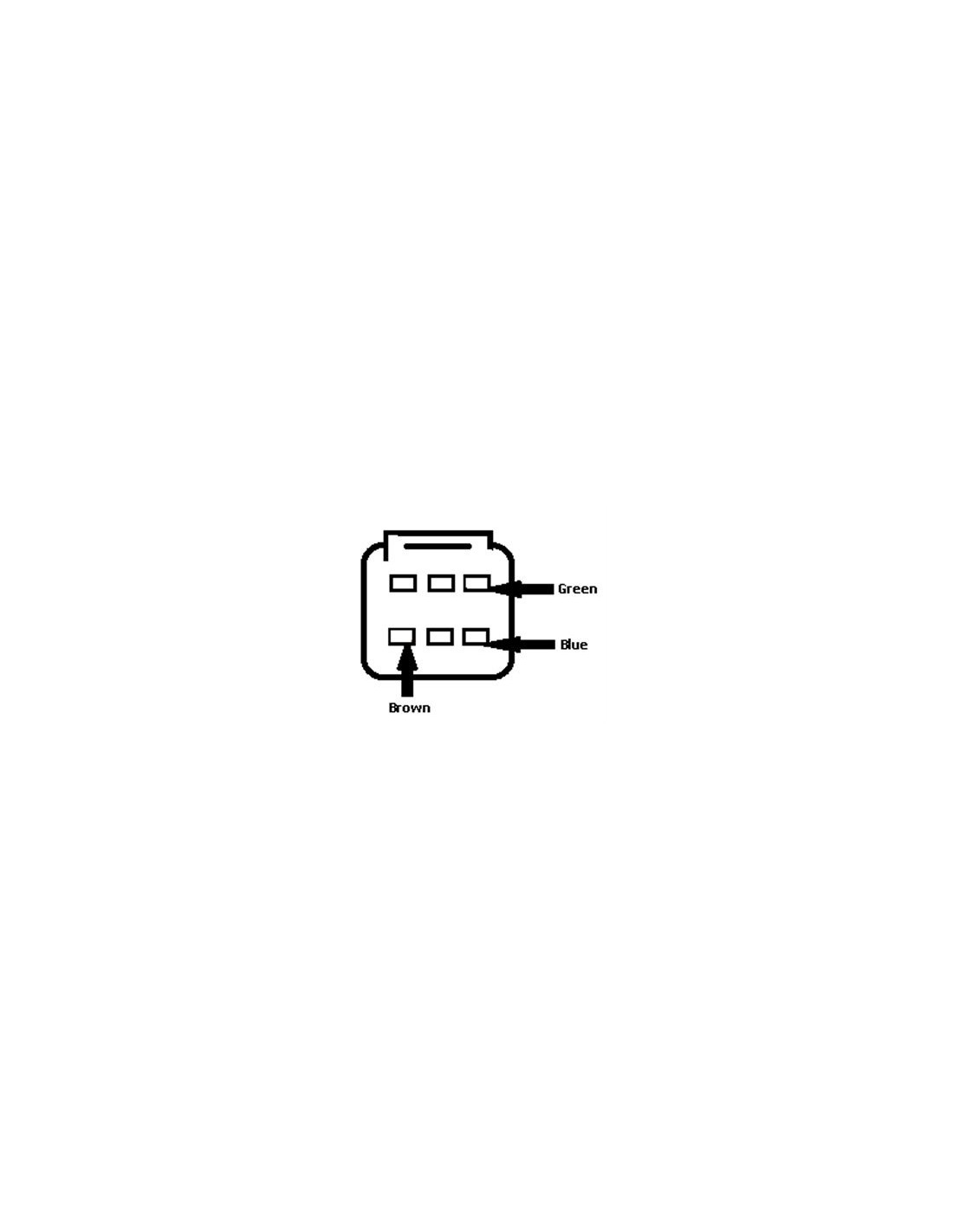

Number of plugs: 6
Number of pins: 9
Harness length Stator to grommet: 100 mm
Harness length grommet to plug: 1000 mm
Pickup coil`s wire length to grommet: 150 mm

Wire to wire resistance:
Alternator:Yellow between each yellow= 0.4 ohms +/-20%
Pickup: White to white/red= 100 ohms =+/-20%
